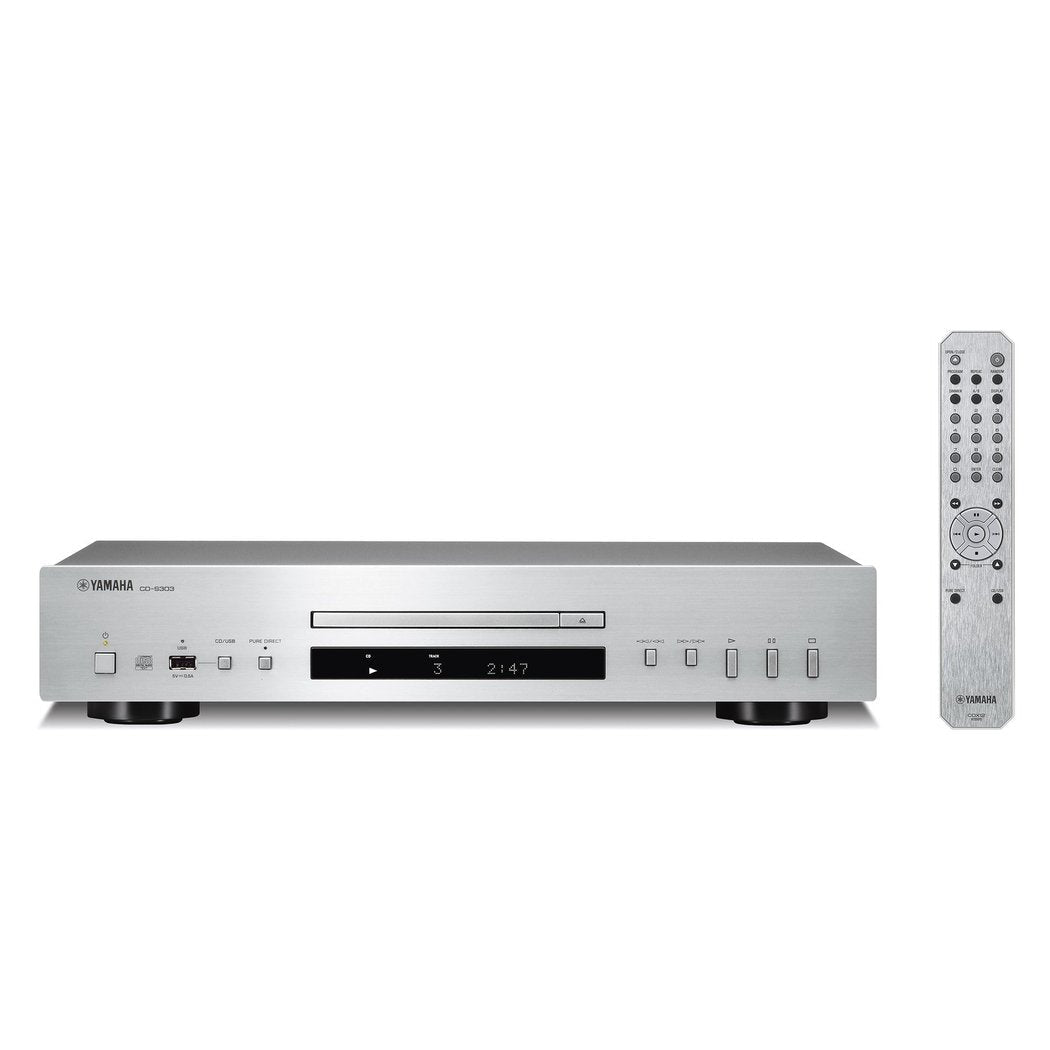

Yamaha CD-S303 CD Player

Engineered for pleasurable sound quality
The CD-S303 CD player incorporates several high-end CD player sound quality features that ensure an enjoyable listening experience for music lovers. In addition to CDs, it plays music files stored on a USB memory device via the front panel USB port.

Pure Direct Function
The CD-S303 features the Pure Direct function, a familiar and popular feature from Yamaha amplifiers and receivers. A button on the front panel or remote control turns off the digital audio output and display. This ensures the lowest possible interference and thus the best sound quality for the analogue audio output.

Highly refined circuit structure and layout
Yamaha engineers have carefully considered the layout of internal parts and circuit boards, which significantly impacts sound quality. The power supplies for the motor drive, display, USB sections, and digital and analogue sections are individually isolated, eliminating electromagnetic interference between them. The drive mechanism is located in the centre of the unit, ensuring ideal weight balance and stable performance.

Short signal paths
The highly logical and symmetrical internal structure of the parts and circuit boards is designed to keep signal paths as short as possible in each circuit. This purposeful structure also keeps the paths between parts straight and short, thus minimising the possibility of signal loss or interference, which is not easy to achieve.

Well-matched high-quality parts
Every part of a CD player affects sound quality, which is why Yamaha places great emphasis on the selection of parts and materials and their compatibility. A few examples of Yamaha's commitment to excellent sound quality include the high-quality acoustic capacitor, a new low-noise high-gain amplifier, and the use of damping material under the transformer and around the signal cables. In short, the refined internal components of the CD-S303 match the level typically found in more expensive models.

High-performance D/A converter
Using a 192 kHz/24-bit D/A converter, the high-performance D/A conversion system leverages Yamaha's sophisticated digital technology refined over the years, ensuring excellent conversion accuracy, S/N ratio, and dynamic range.

Laser pick-up with floating mechanism
The laser pickup is isolated in a floating mechanism, so the sensitive operation of the laser is not affected by vibrations.

Intelligent Digital Servo
Conventional servo circuits cannot fully eliminate errors caused by warped discs, dust, and other defects. This system uses reliable DSP (Digital Signal Processor) specifically for CDs to monitor the signal, adjust laser pick-up tracking and focus, and control spindle motor speed to correct potential problems.

Listen to MP3, WMA, LPCM, AAC, and FLAC music
The front panel USB port allows you to easily listen to digital MP3, WMA, LPCM, AAC, or FLAC music files stored on USB memory devices. You can also play files stored on CD-R/RW discs.

CD Text display with 3 modes
Information about the CD being played is displayed directly on the CD player's display. The three-mode CD Text display shows the CD title, artist name, and track title.

Program Play (audio CDs only)
Tracks can be easily programmed in any order. You can clear the program at any time with a single touch.

Technical specifications:
Compatible discs: CD, CD-R, CD-RW
Signal-to-noise ratio: 105 dB (CD)
Dynamic range: 96 dB
Harmonic distortion: 0.003 % (CD)
Frequency range: 2 – 20,000 Hz
Playback functions: random play, repeat, last track, programmed
Audio outputs: optical, coaxial, analog (RCA)
Supported formats: MP3, WMA, AAC, WAV, FLAC
Dimensions (W x H x D): 435 x 86 x 260 mm
Weight: 3.5 kg

Other notable features:
10-key direct track and operation control
Random play
Repeat play (full/single)
3-mode time display
4 illumination levels
Last track playback
Ready mode
Play mode memory
