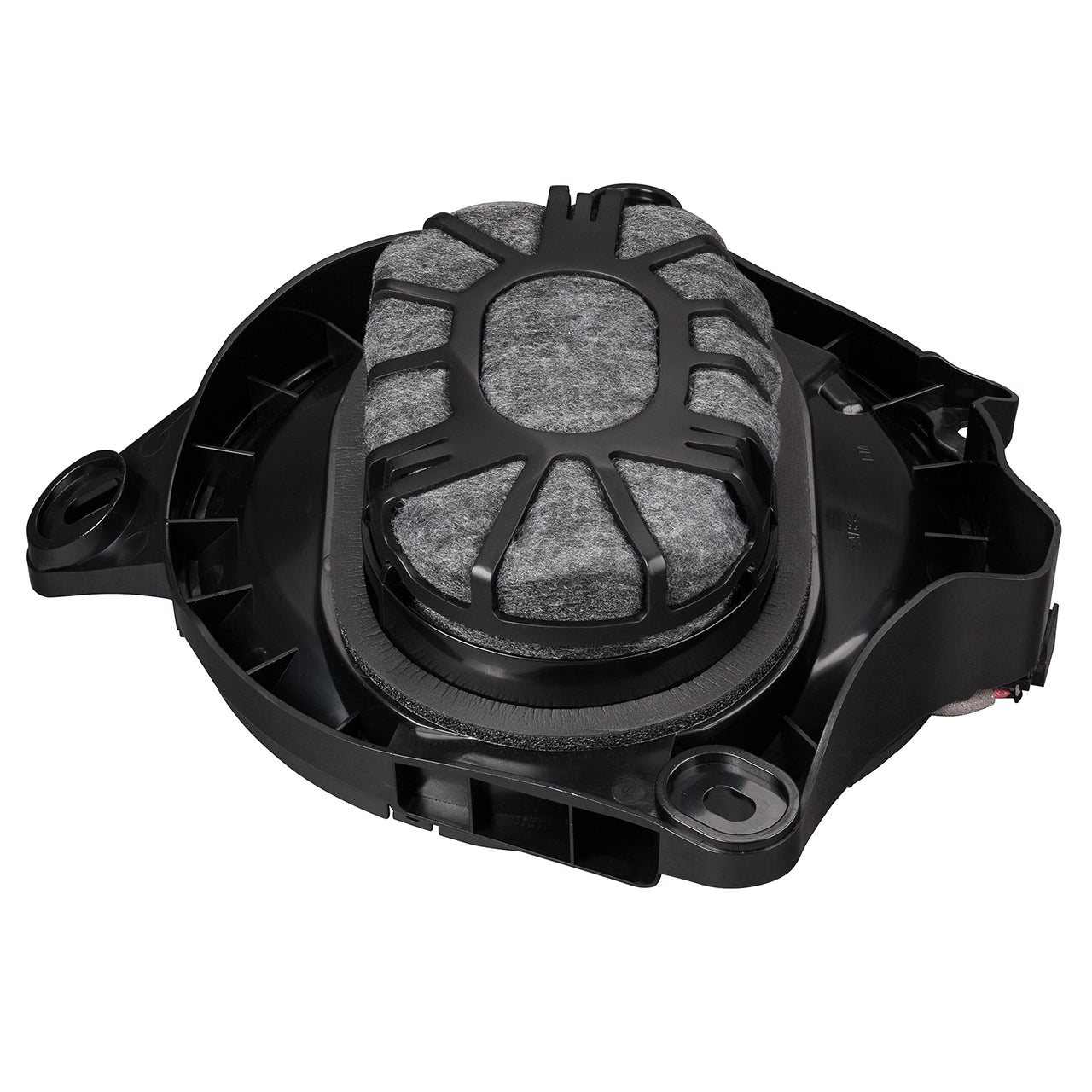

UP W8MB-S4.2 LHD
Premium cars deserve premium sound!
Match UPgrade speakers take your Mercedes Benz audio system to a new level. The range includes a suitable speaker for every installation location in the car. And they are completely Plug & Play in terms of both the body and the connector.
By adding a Match DSP amplifier, you get top-notch sound that is a joy to the ears and requires no visible changes to the car.
The image below shows where in the car the different speaker models are designed to be installed.
This product includes 2 subwoofer speakers. One for the left and one for the right. Suitable for cars with left-hand drive.
Compatibility:
GLE / GLS
SUV V165 2018 -
COUPE C167 2019 -
Specifications:
Power RMS / Max. P 100 / 200 Watts
Impedance Z 1 x 4 Ω
DC resistance Re 3.3 Ω
Frequency response 25 - 250 Hz
Resonance frequency Fs 46 Hz
Mechanical Q factor Qms 1.76
Electrical Q factor Qes 0.77
Total Q factor Qts 0.54
Compliance Cms 225 µm/N
Equivalent air volume Vas 15 L
Force factor B*I 8.0 Tm
Sensitivity SPL 91 dB @ 2.83V / 1m
88 dB @ 1W / 1m
Cone area Sd 216 cm²
Moving mass MMS 40 g
Cone material Paper cone
Mechanical resistance Rms 1.6 kg/s
Voice coil diameter ø 37 mm
Voice coil winding height 16 mm
Max. linear excursion Xmax +/- 5 mm
