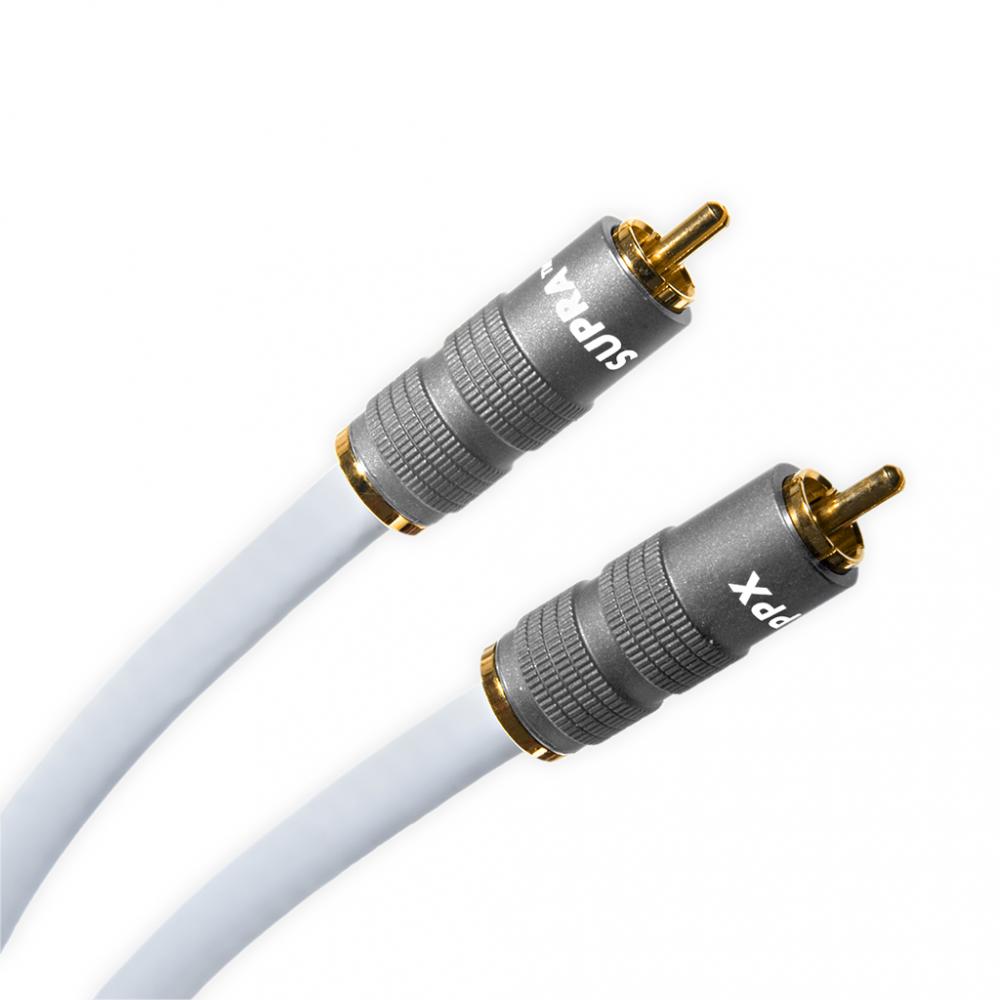

Supra Trico Coaxial coaxial cable

Supra Trico Coaxial coaxial cable

Supra Trico is a true 75 Ohm digital interconnect designed to transmit digital signals between devices that require high bandwidth and precisely matched impedance. The Trico coaxial cable has sufficient bandwidth to transmit the full digital spectrum, maintaining signal integrity, and is sufficiently oversized to ensure the signal does not suffer even in long runs. The cable also has very low capacitance, which makes its ability to transmit a digital square wave first-class.

Features and benefits

• Silver-plated oxygen-free 5N copper conductors guarantee excellent high-frequency conductivity
• Thanks to the PE insulation and extremely low capacitance, transient response is at a first-class level
• Double-shielded construction makes the cable immune to external interference noise
• 24K gold-plated connectors are free from oxidation and guarantee a long and reliable service life
• True 75 Ohm cable is suitable for use with 75 Ohm transmission standards without signal degradation
• Made in Sweden

Technical specifications

• Cross-sectional area: 0.71 mm2
• Number of strands per conductor: 7
• Conductor diameter: 0.36 mm
• Insulation: PE foam (air-filled)
• Jacket: Heat and aging resistant PVC
• Outer diameter: 8.2 mm

Electrical performance

• Resistance: 8.1 Ohm/km
• Inductance: 0.28 µH/m
• Capacitance: 58 pF/m
• Impedance: 75 Ohms
• Velocity factor: 0.78 x C (speed of light)
