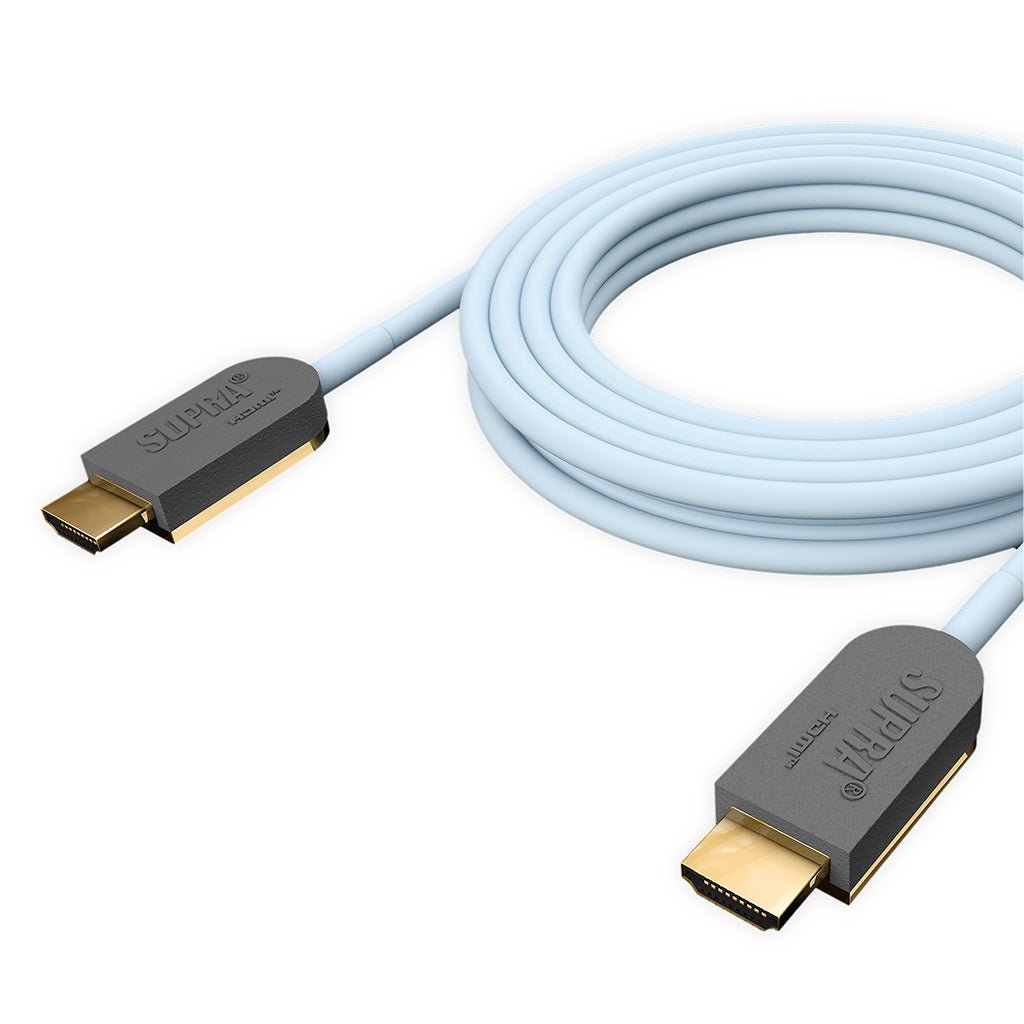

Supra HDMI AOC Optical

Active Optical 8K HDR HDMI 2.1 Cable

The Supra HDMI 2.1 AOC is the perfect solution for transmitting 8K signals over long distances. The purity of the optical cable's signal surpasses traditional copper cables, and thanks to active technology, there is no loss or flickering even with long runs.

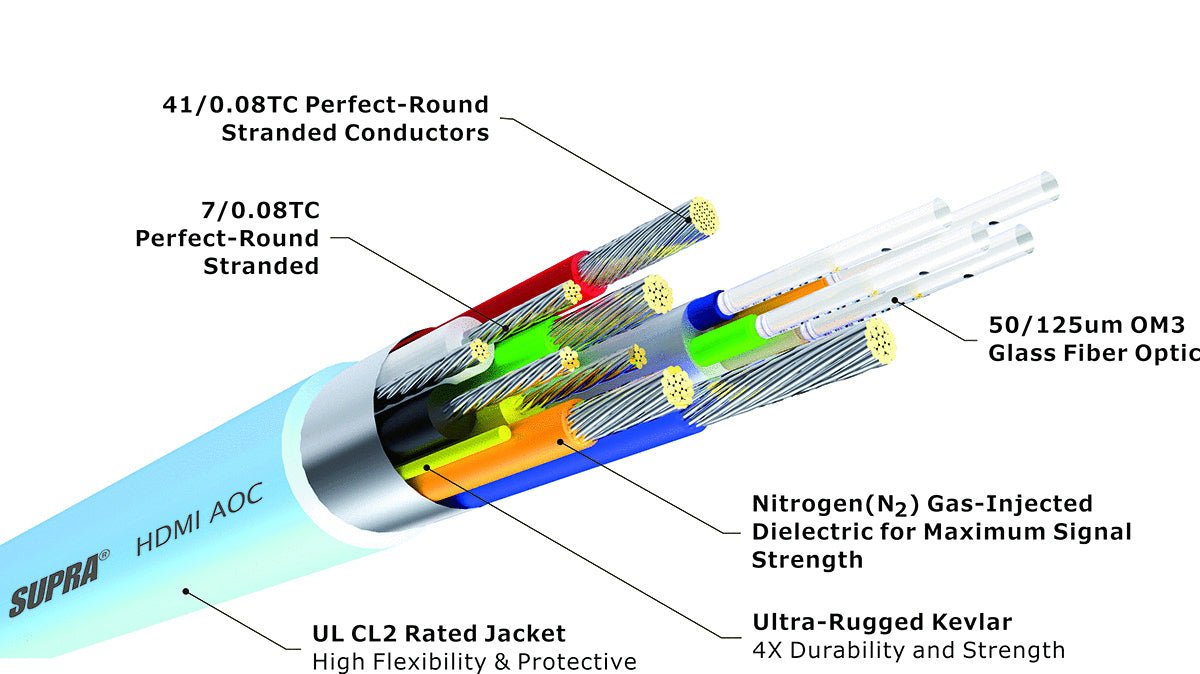

Hybrid fiber optic technology enables lossless signal transmission over long runs, while RFI and EMI interference remain minimal. The 48 Gbps bandwidth allows for the transmission of ULTRA HD 8K 7840x4320@60Hz signals up to 100 meters. The transmitter and receiver modules are integrated into standard Type A 19-pin male HDMI connectors for connecting to the source and display.

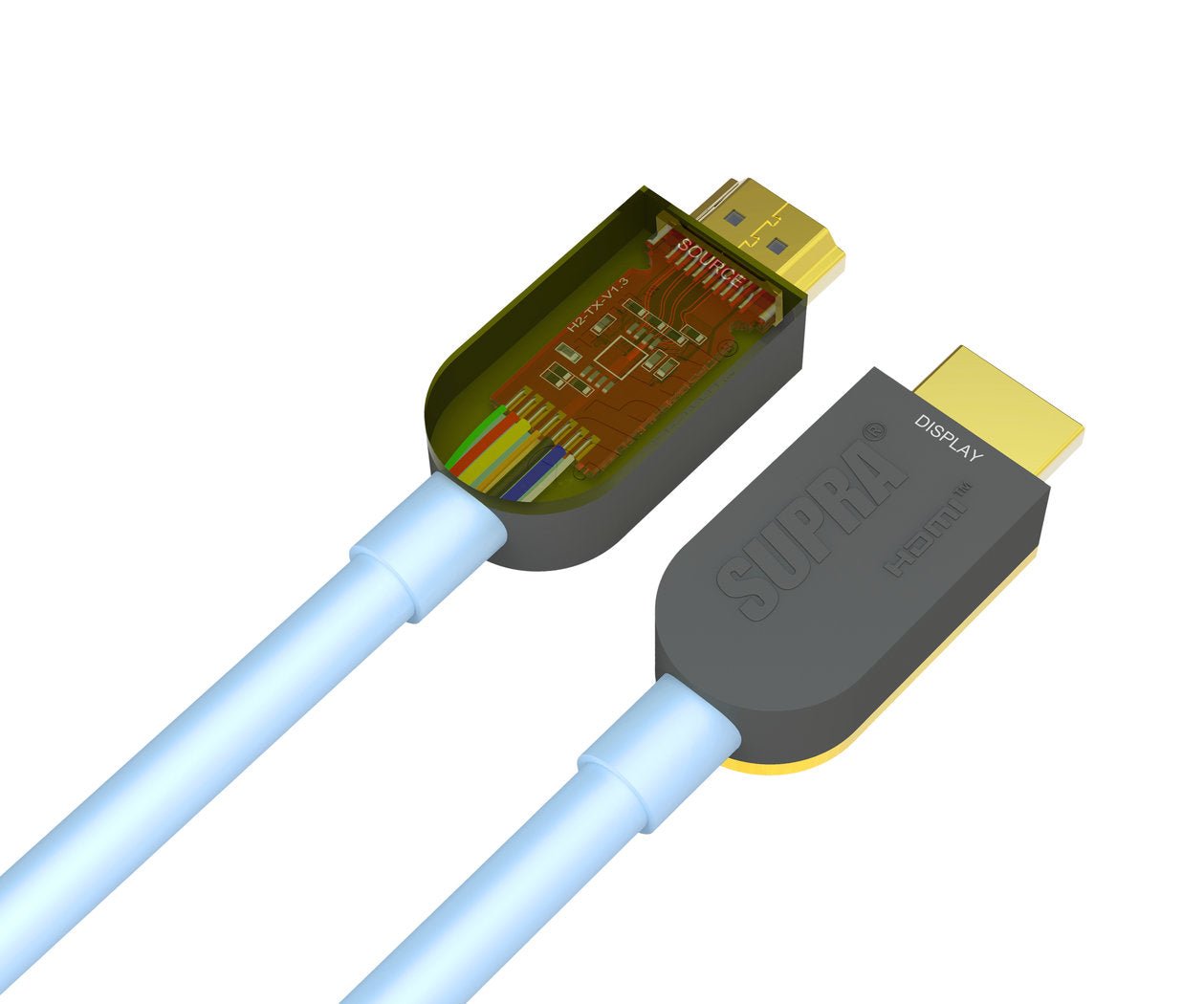

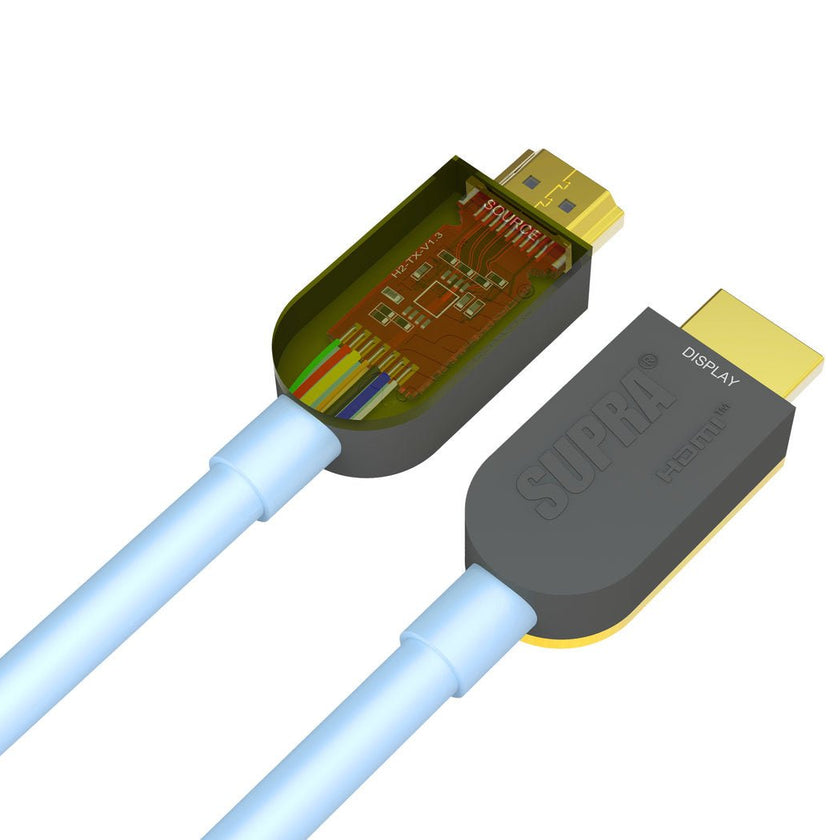

Supra AOC gold-plated connectors contain active control circuits that convert the HDMI signal to optical and back. In addition, the AOC concept is fully Plug & Play, requiring no external drivers or power supplies – an extremely neat installation, if we do say so ourselves.

By using Supra AOC cables, you make installation easier and your system more future-proof.

Features and Benefits

• Proprietary gold-plated connectors keep interference out of the signal.
• Fiber optic technology in selected connectors guarantees freedom from extraneous noise.
• Supports resolutions up to Ultra HD 8K 7860x4320@60Hz and up to 100 meters in length.
• Dolby Atmos, True HD, DTS-HD Master Audio, up to 32 audio channels.
• Plug & Play installation - no drivers or external power supplies.
• The thin and highly flexible conductor is only 4.5 mm in diameter, making it easy to install.
• An incredible 48 Gbps bandwidth transmits 8K Ultra signals with full power and color space.
• 4:4:4 color space
• HDR support
• eARC & CEC
• HDCP 2.3

Technical specifications:

• Full HD Blu-ray and HD DVD video
• CEC
• DVD-Audio
• Super Audio (DSD)
• Automatic lip sync
• Dolby TrueHD
• DTS-HD Master Audio
• Updated CEC command list
• 3D Video
• Ethernet channel (100 Mbit/s)
• ARC, eARC
• 4 simultaneous audio channels
• 2 simultaneous video channels (dual view)
• Hybrid Log-Gamma (HLG) HDR OEFT
• Static HDR
• Variable Refresh Rate (VRR)
• Quick Media Switching (QMS)
• Quick Frame Transport (QFT)
• Auto Low Latency Mode (ALLM)
• VESA DCS 1.2a
• Guaranteed resolution: 8K@60Hz
• Bandwidth: 48 Gbit/s
