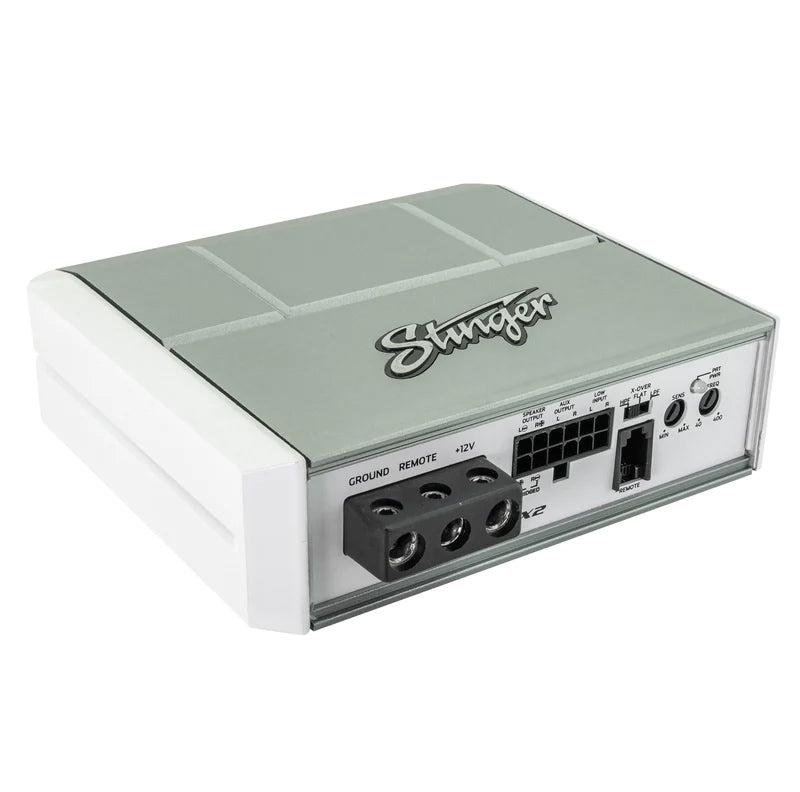

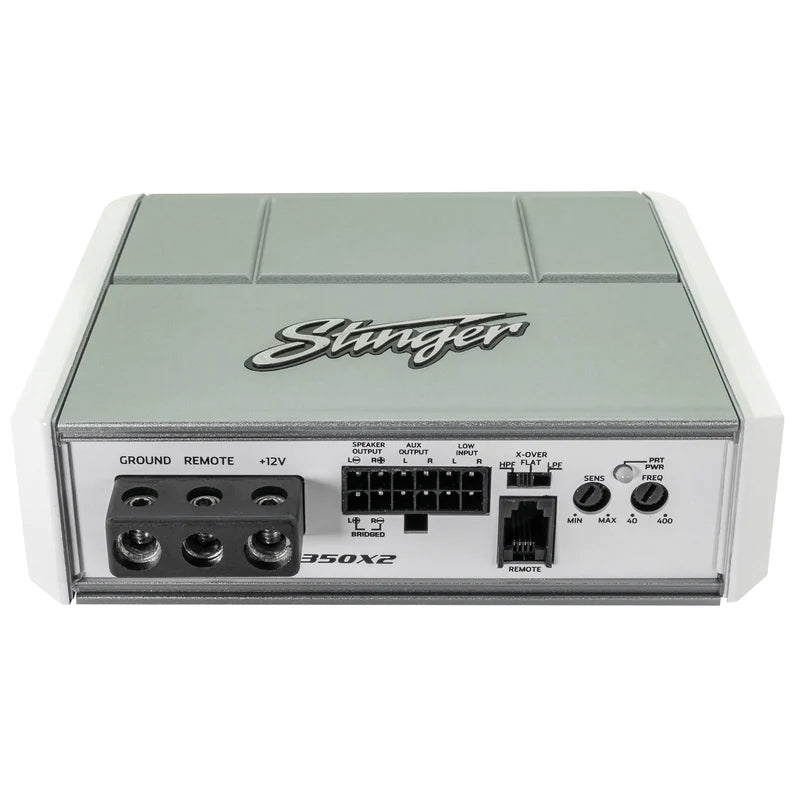

STINGER 2-channel amplifier SPX350X2

Stinger's SPX series amplifiers are very compact in size and all of them are IPX4 / IPX5 protected. The amplifiers have a wide range of installation options, such as various boats, tractors, ATVs, mopeds, campers and all other possible vehicles where the amplifier needs to be physically small and/or resistant to splashing water, for example.

The SPX350x2 is a two-channel Class D amplifier with physical dimensions of only 141 x 120 x 41mm.

The SPX350X2 is ideal for driving a separate set of speakers or coaxial speakers, or alternatively bridged to a four-ohm subwoofer. The amplifier has crossover filters that can be selected for high or low pass, or the filters can also be bypassed if desired.
The crossover frequency is adjustable from 40 to 400 Hz and the crossover slope is 12 dB/octave.

The amplifier comes with a wired volume/level control, which also has a mute function.

IP ratings:

• IPX4 (device is resistant to splashes of water)
• IPX5 (device withstands low-pressure water jets)

Specifications:

• Operating voltage: 8-16 Volts
• 1 x 350W (4 ohms)
• 2 x 175W (2 ohms)
• 2 x 125W (4 ohms)
• IPX-4/5 protection
• Class D amplifier
• RCA output (linking to another amplifier)
• Wired level/volume control with mute function
• Dimensions: 141 x 120 x 41mm

Minimum loads:

• Stereo 2 ohm
• Bridged 4 ohm
