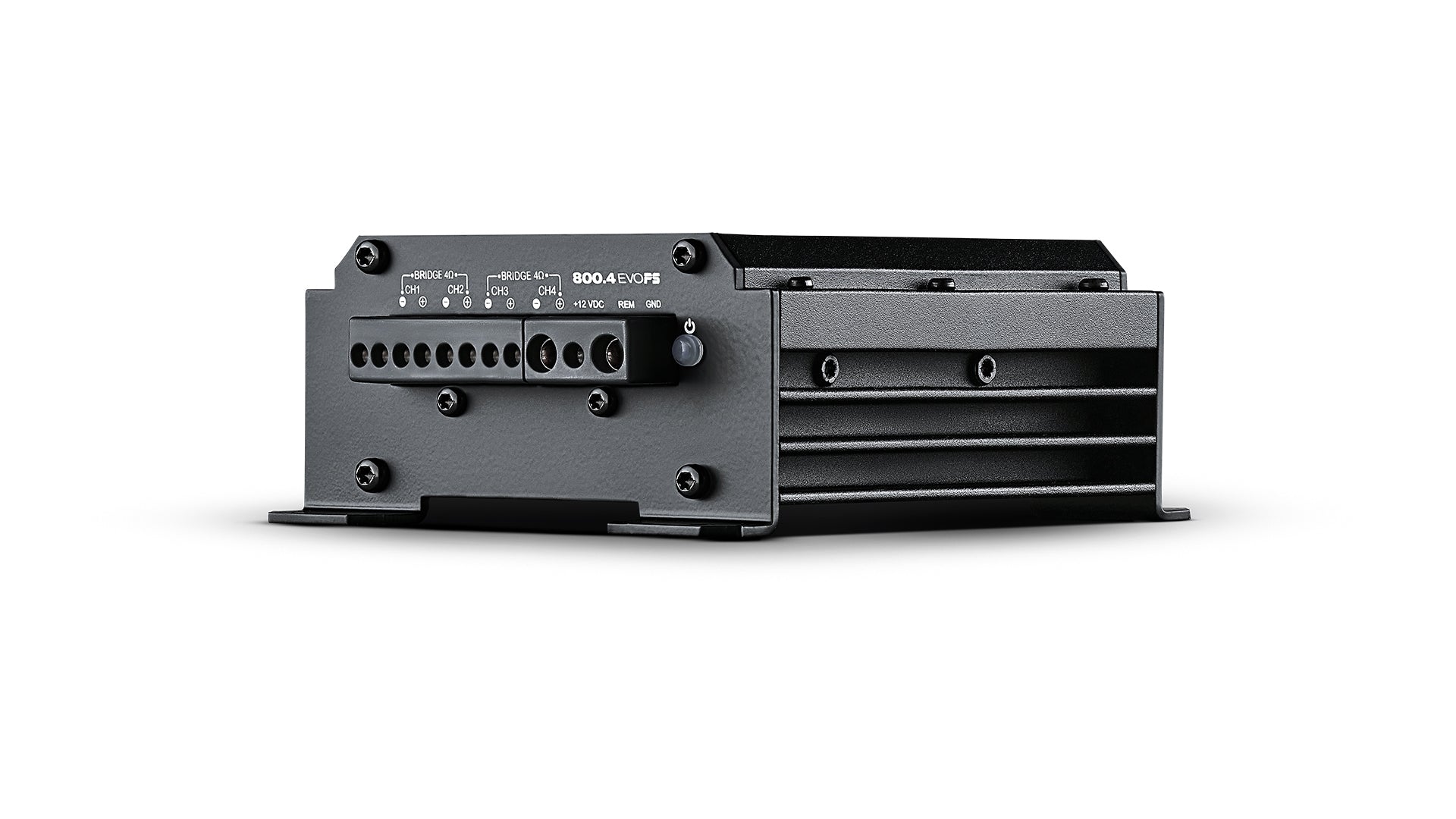

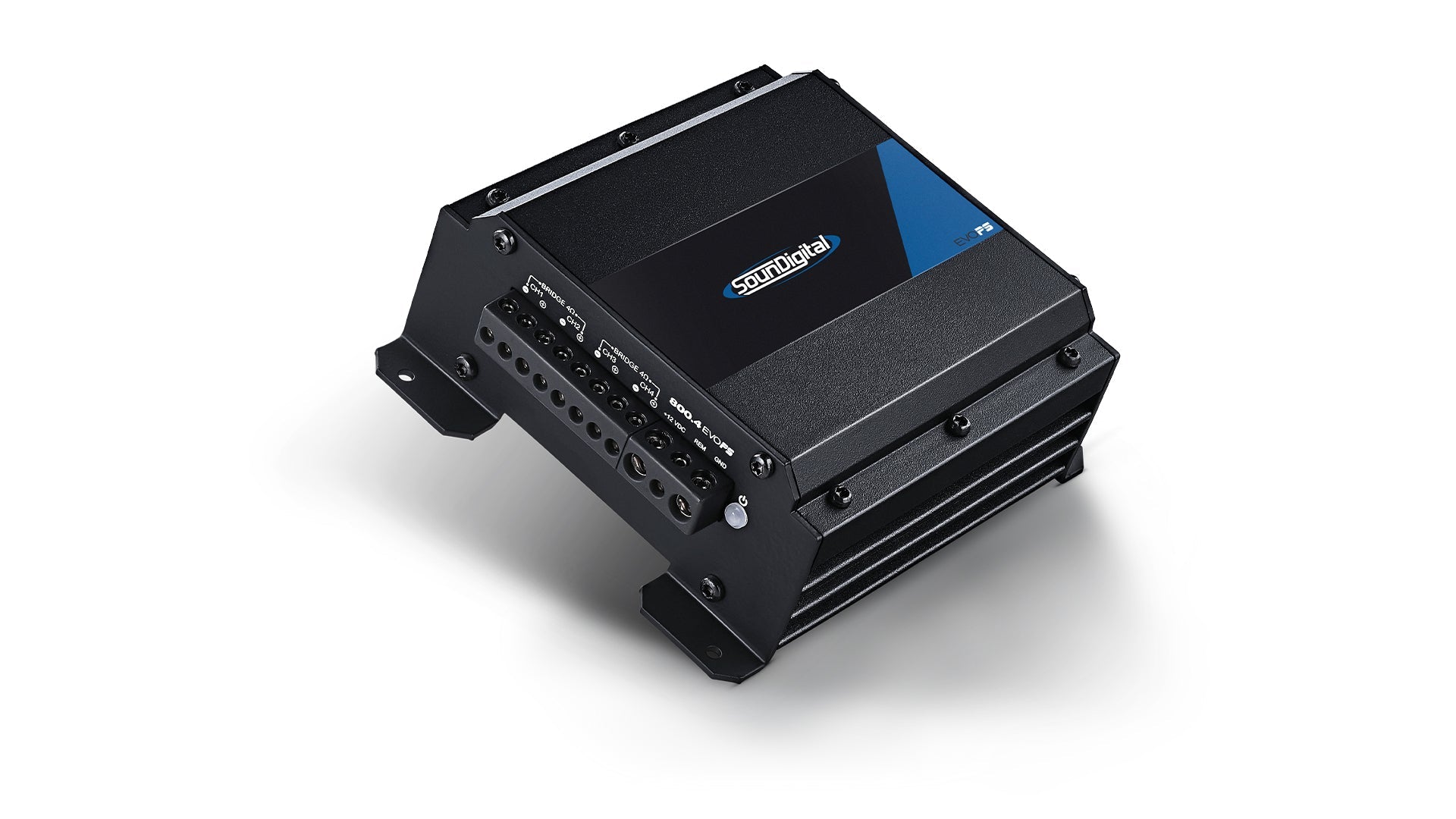

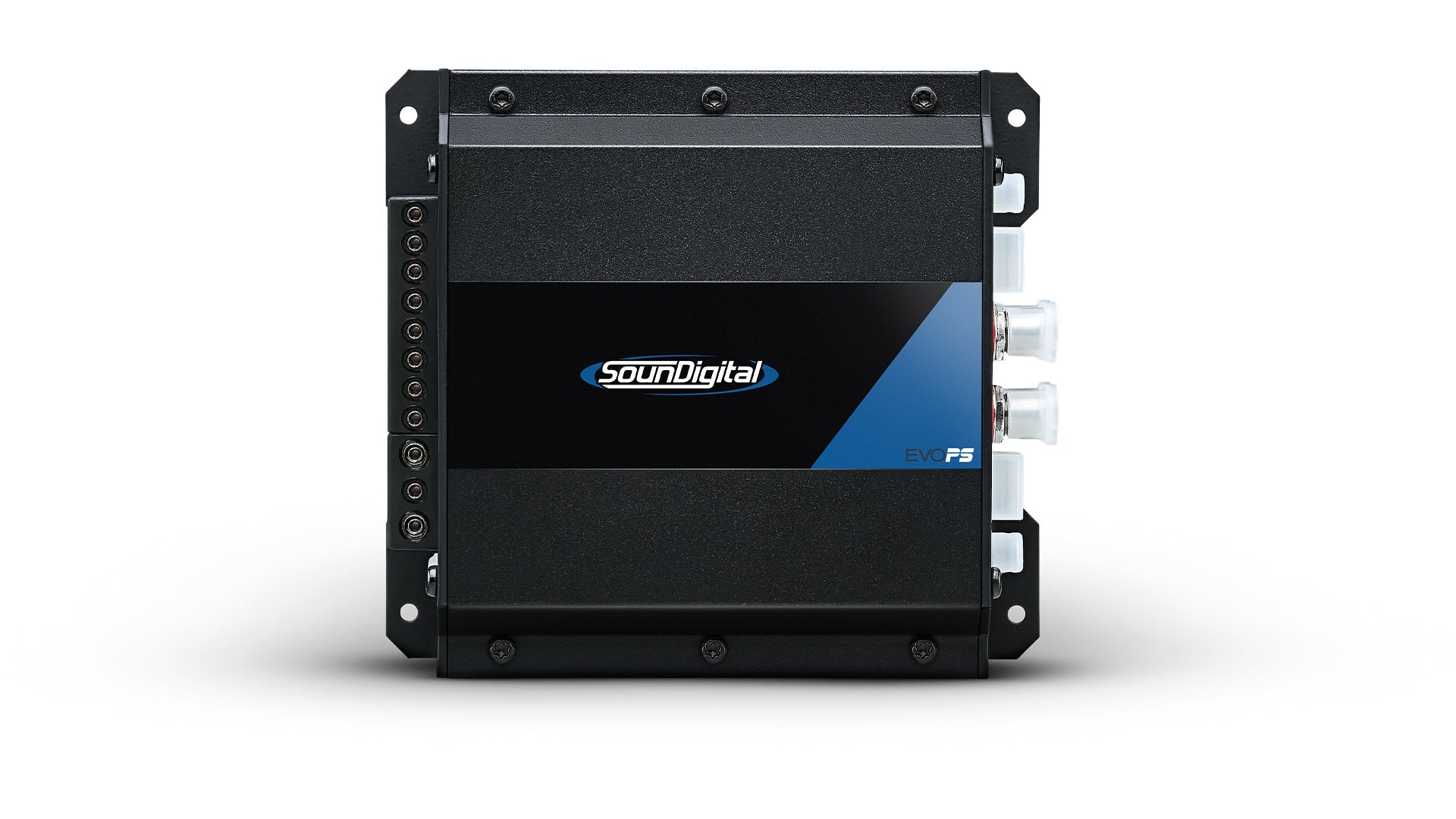

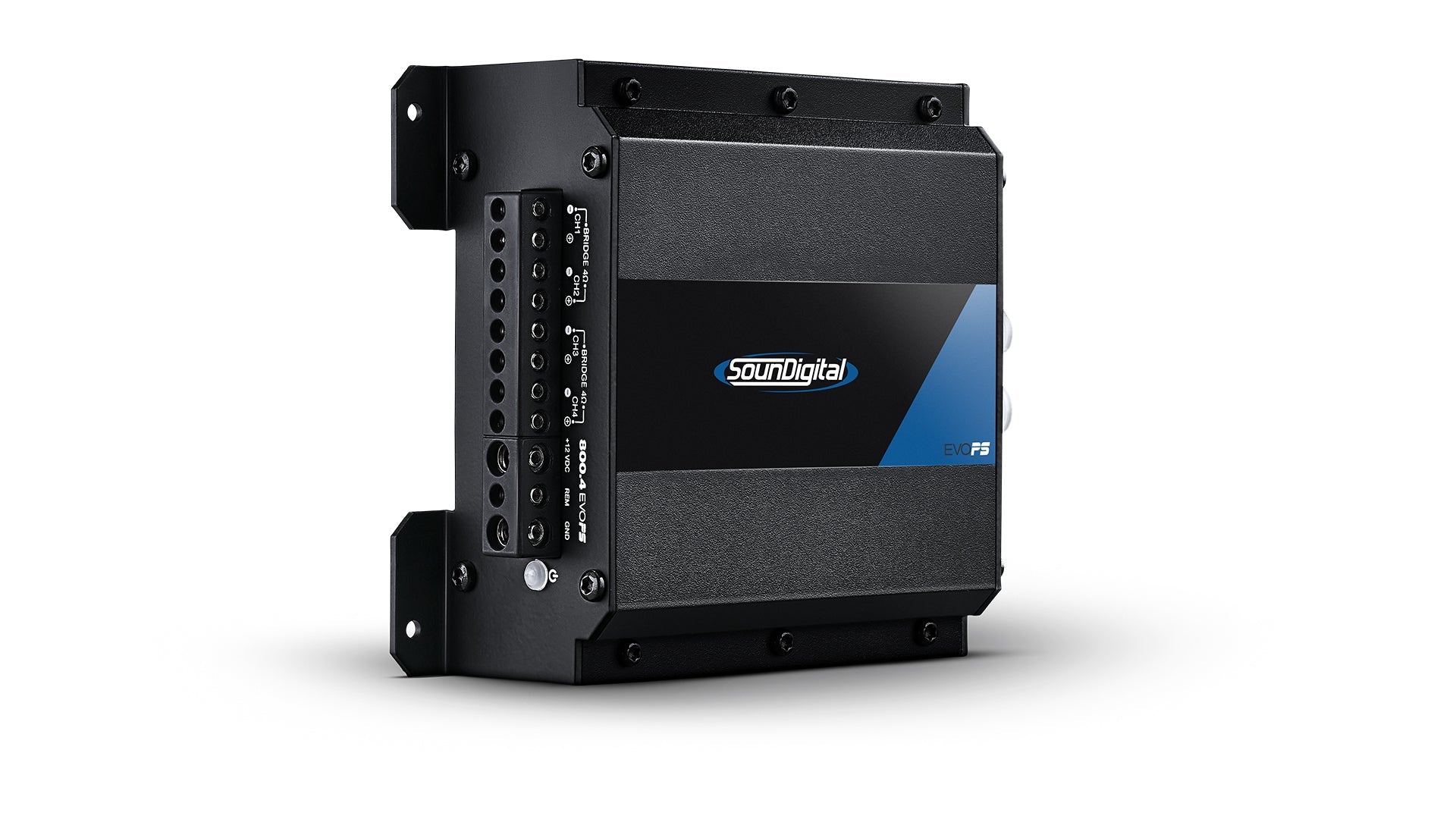

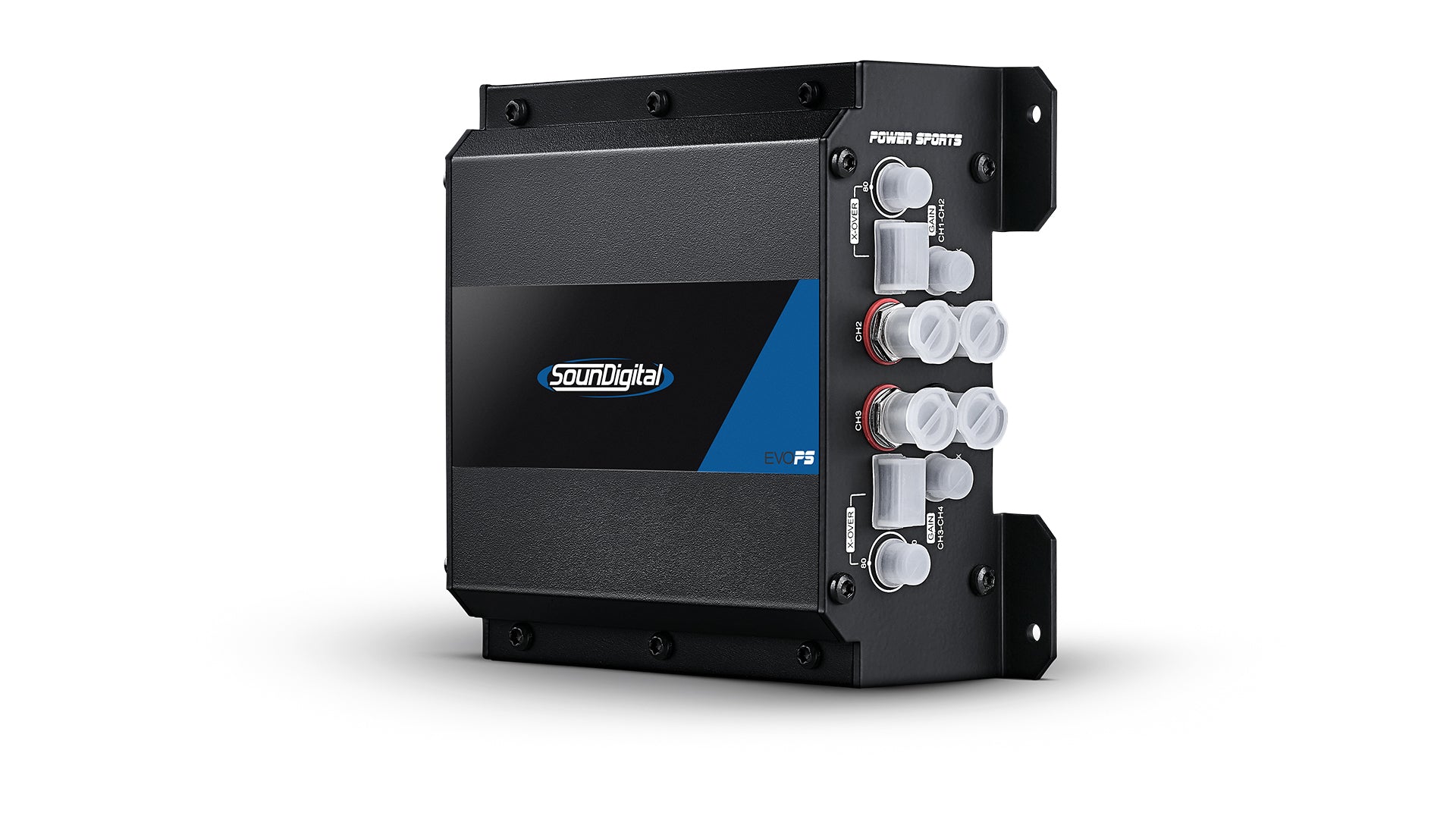

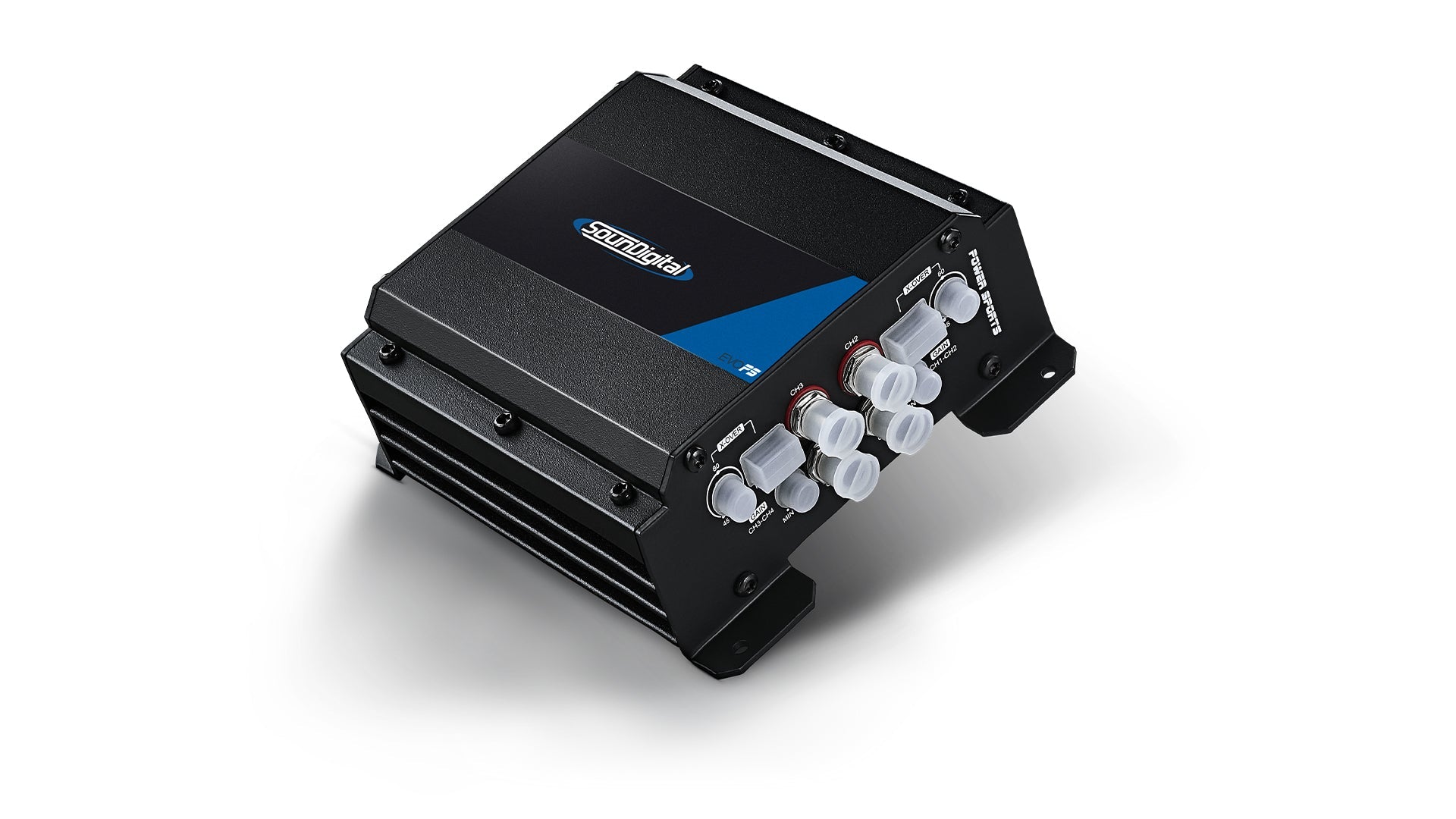

SounDigital 800.4-4 EVOPS – 4-channel amplifier 4 Ω

The SounDigital 800.4-4 EVOPS – small yet powerful Power Sport Line amplifier is suitable for most applications. The amplifier is resistant to moisture, splashing water, and dust, making it a perfect solution for boats, motorcycles, ATVs, and other demanding environments. Unique and patented technologies guarantee a clean and faithful listening experience.

Technical specifications

• Output power: 4 × 200 W @ 2 Ω / 4 × 132 W @ 4 Ω
• Bridged: 1 × 400 W @ 4 Ω
• Operating voltage: 8–16 V
• Current consumption (music): 35 A
• Current consumption (max): 70 A
• Recommended fuse: 40 A
• Efficiency: 79 %
• Damping factor: 200
• Frequency response: 5 Hz–22 kHz
• SNR: 91 dB
• Crossover LPF/HPF: 45–850 Hz
• Dimensions (L × W × H): 144 × 130 × 56 mm
• Weight: 0.89 kg

Do not connect the amplifier below the rated load!
