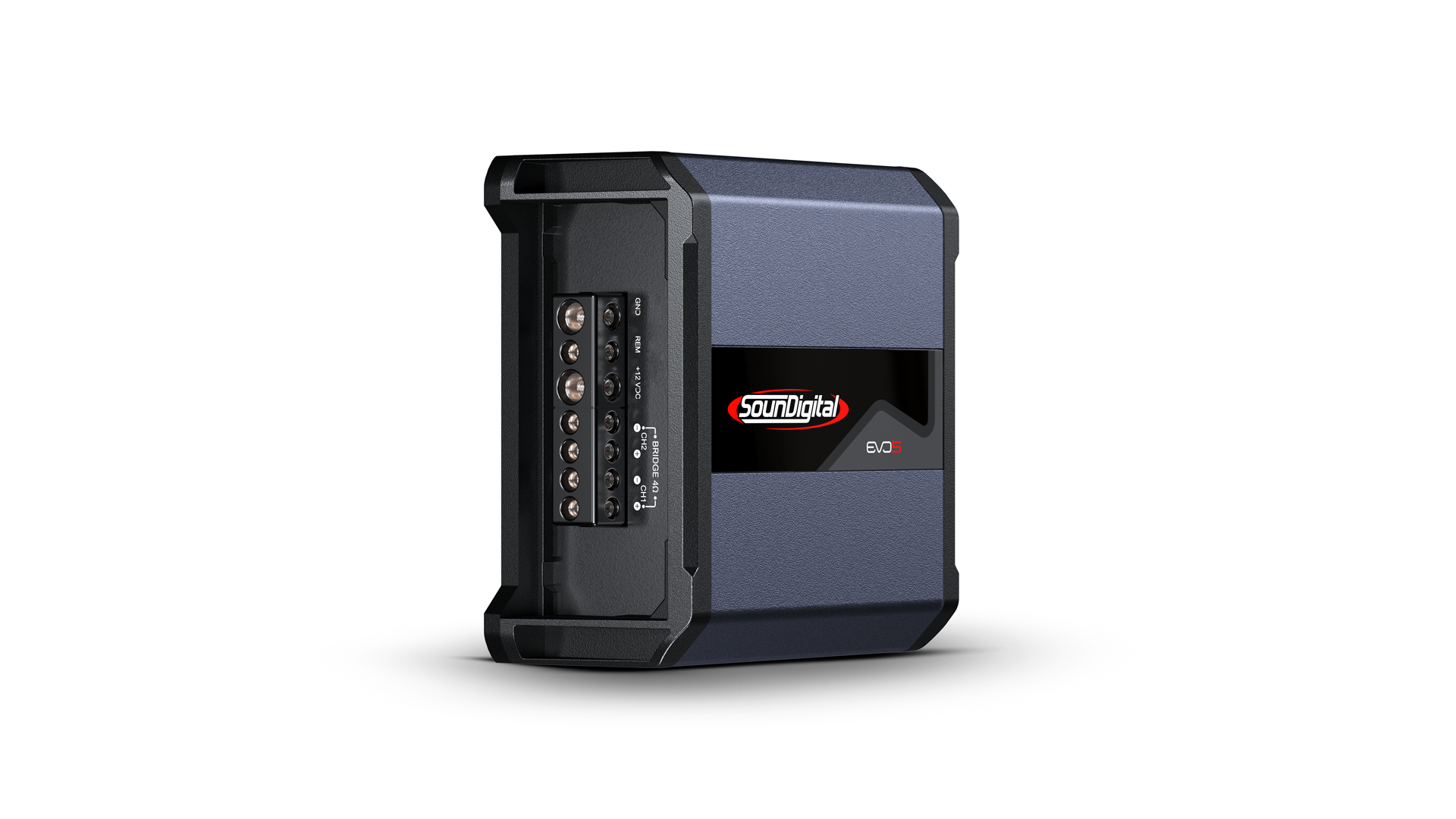

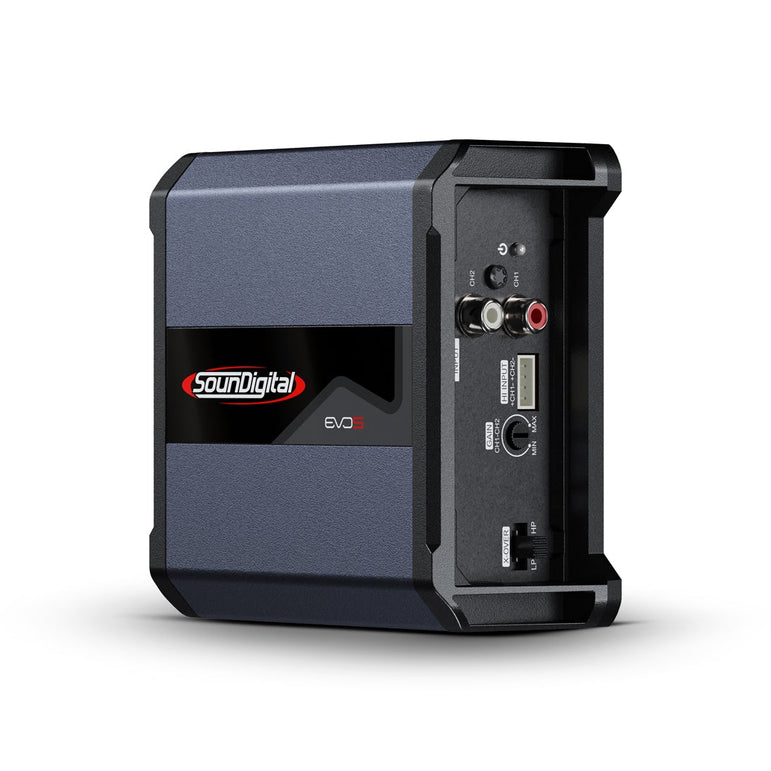

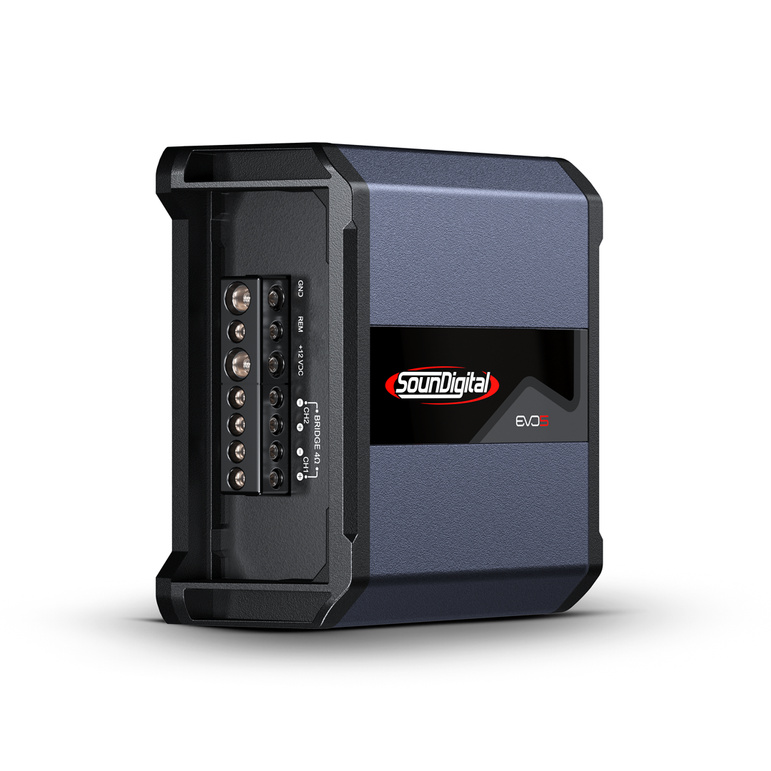

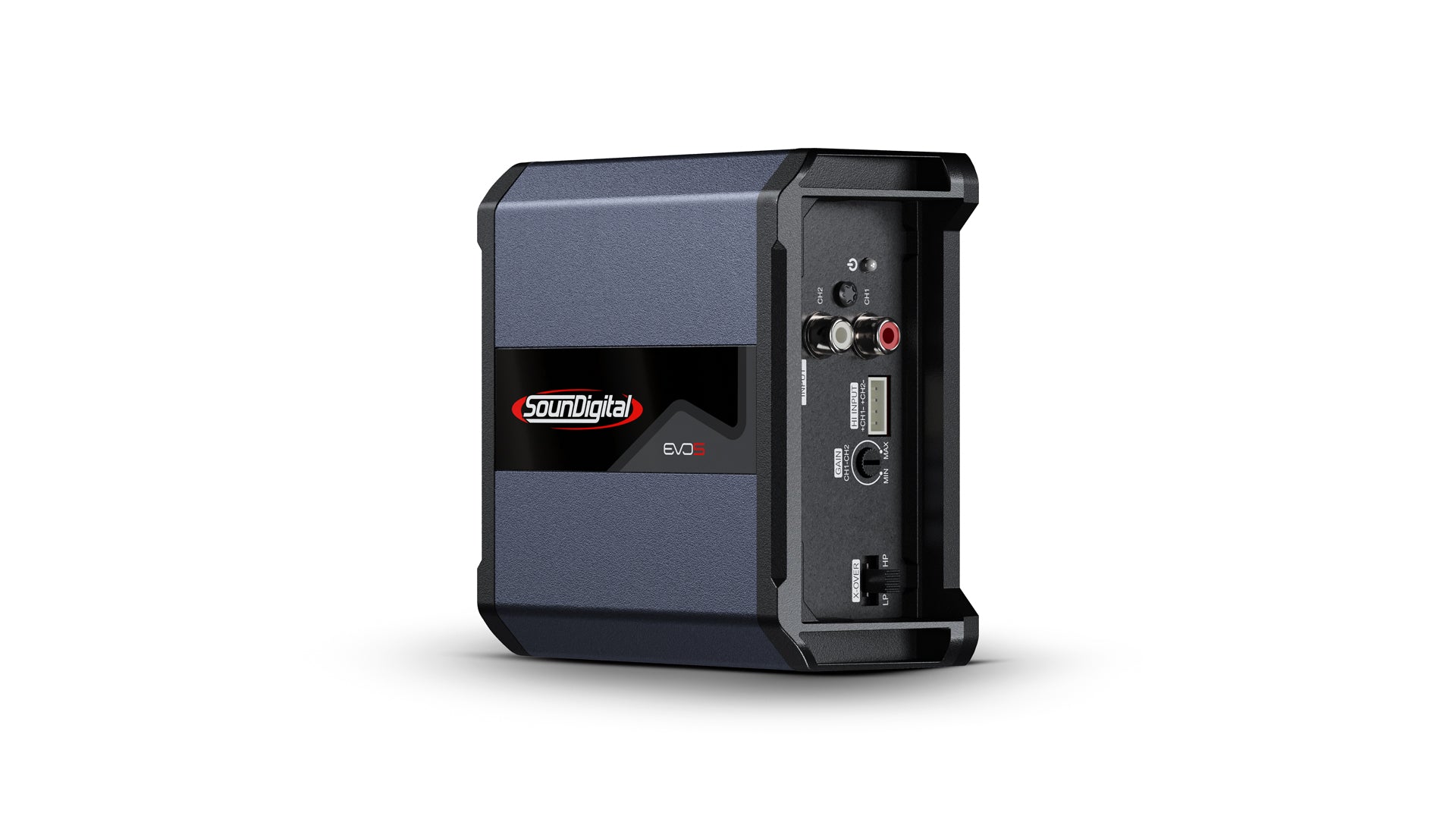

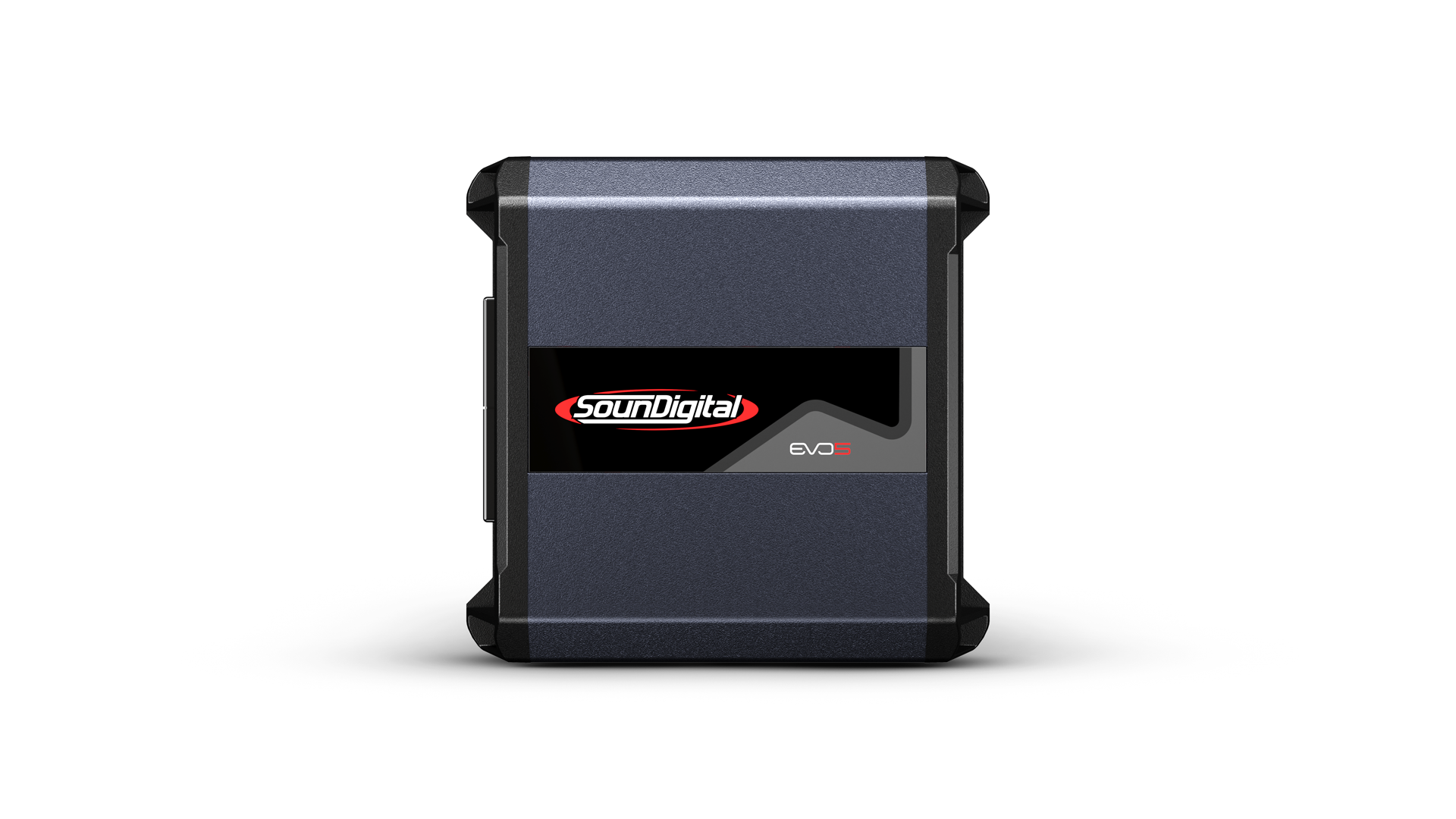

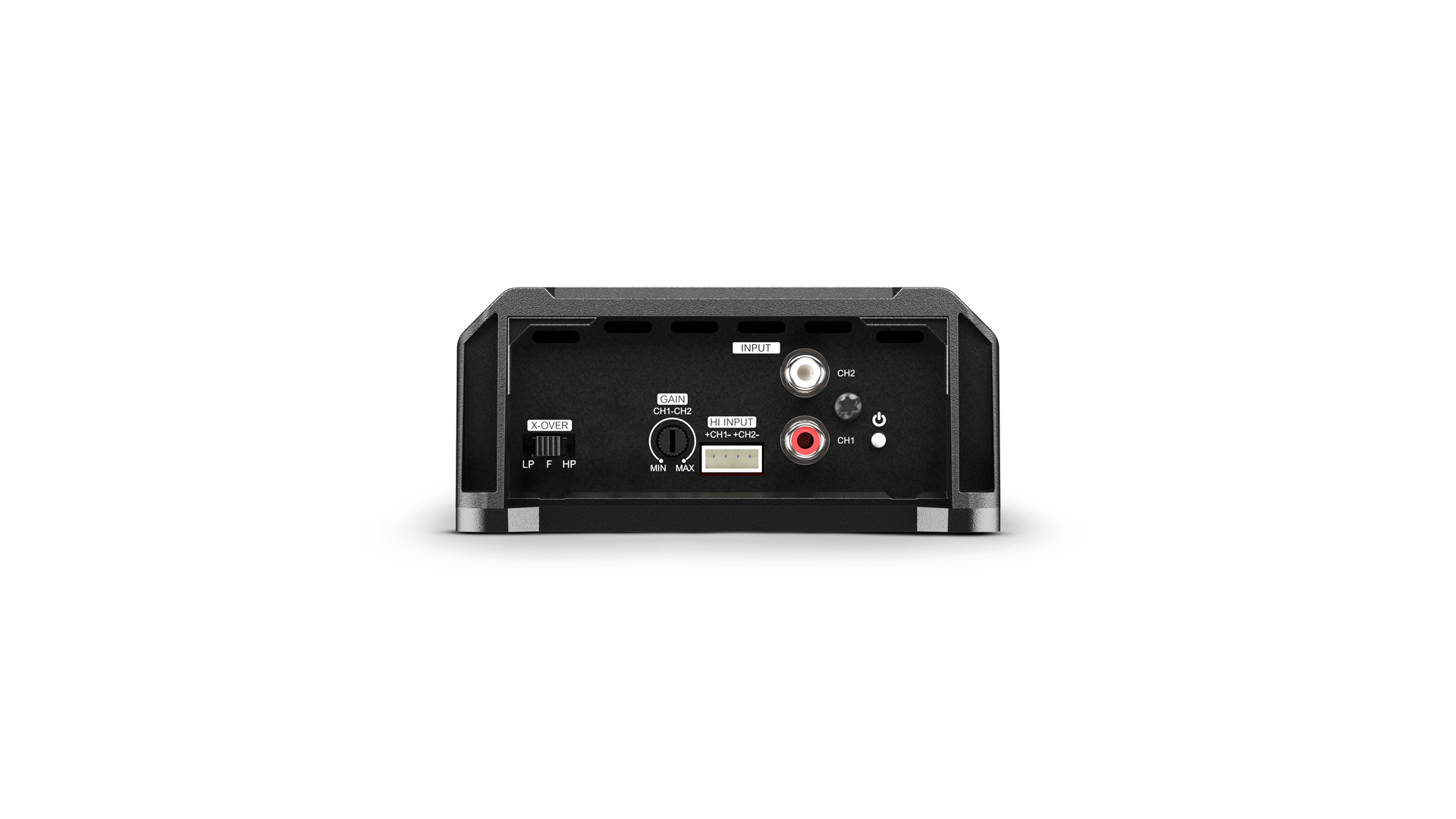

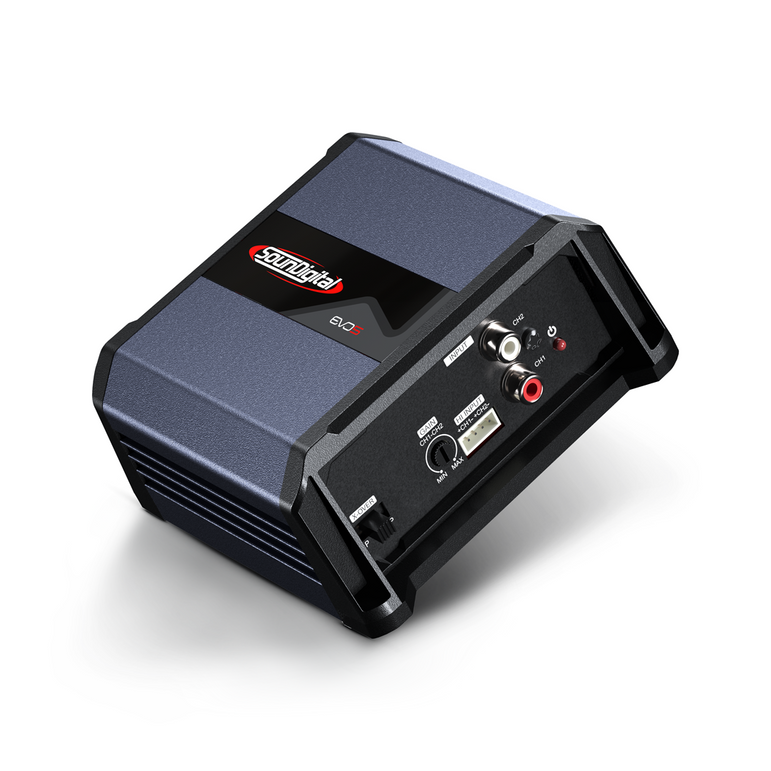

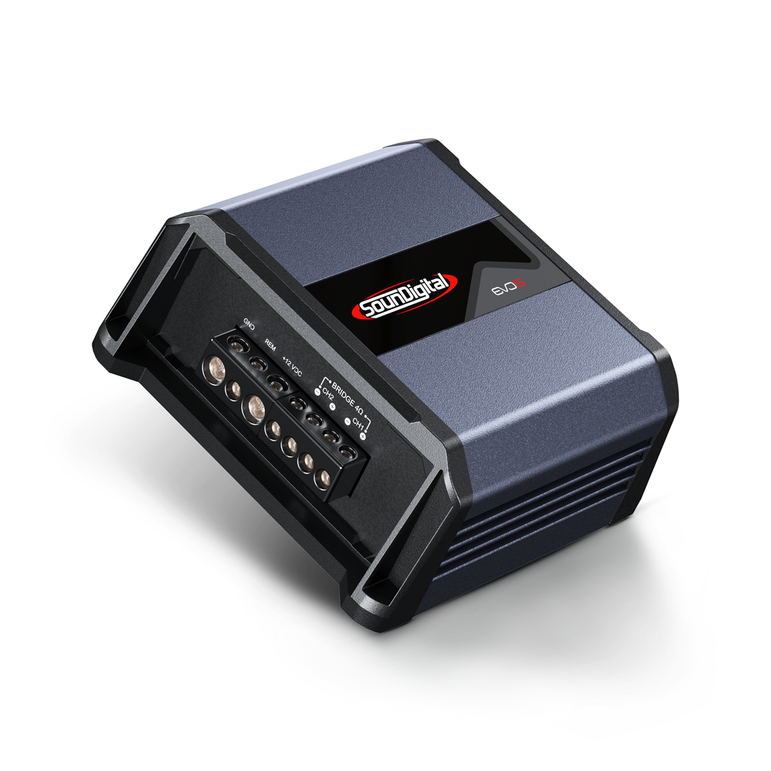

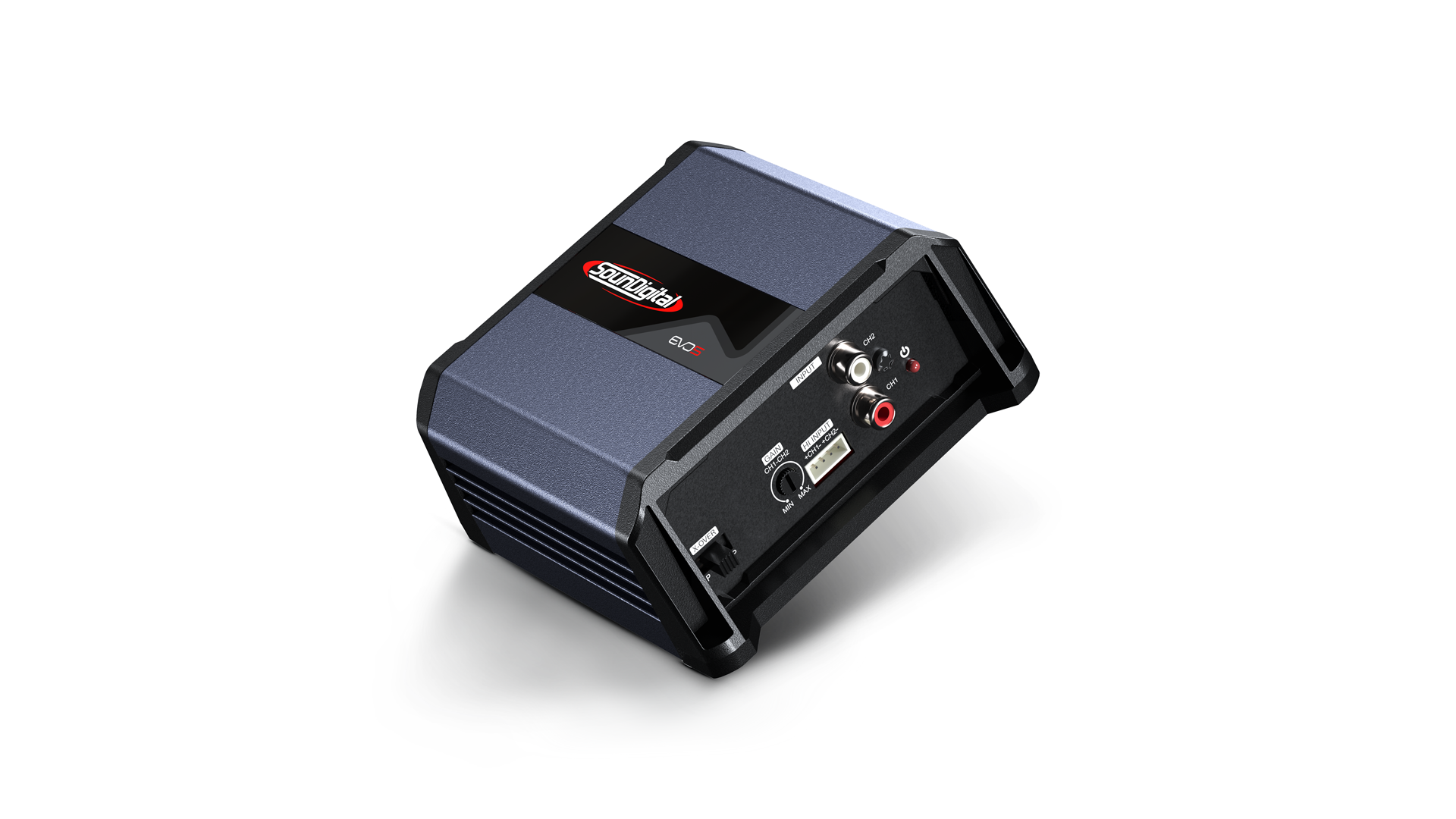

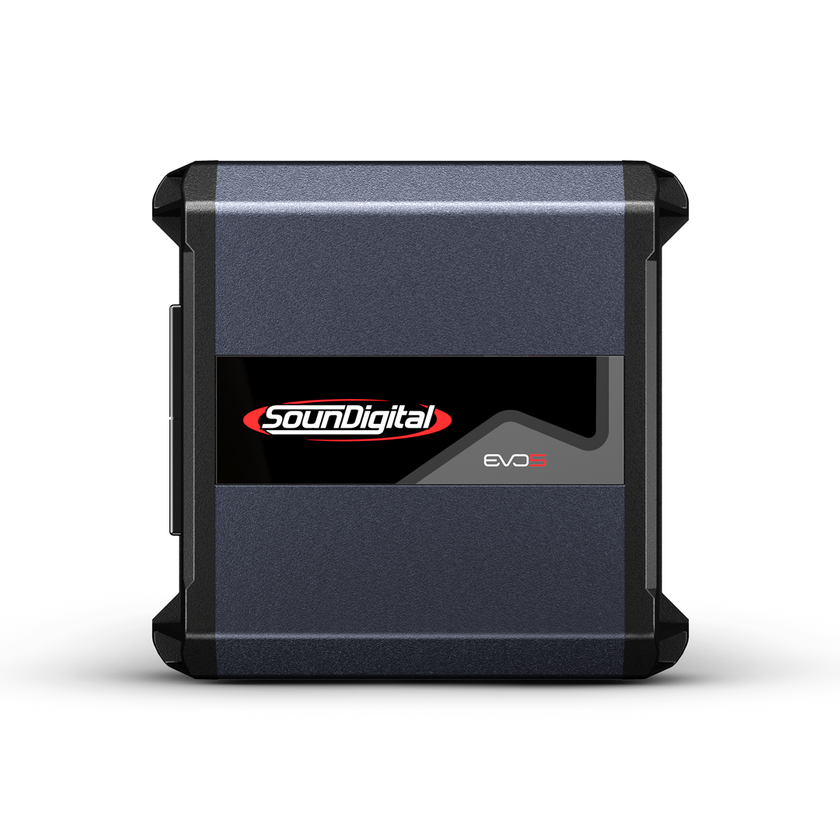

SounDigital 400.2 EVO 5 – 2-Channel Amplifier 4 Ω

The SounDigital 400.2 EVO 5 takes the power/price/size ratio of amplifiers to a new level. Never before have such large powers been obtained from such small external dimensions—and at a very reasonable price. Damping factor over 200, operating voltage from 9 volts. All SounDigital models are designed and manufactured in their own production facility in Brazil.

Technical Specifications

• Output power @ 12.6 V: 2 × 132 W @ 4 Ω / 2 × 200 W @ 2 Ω

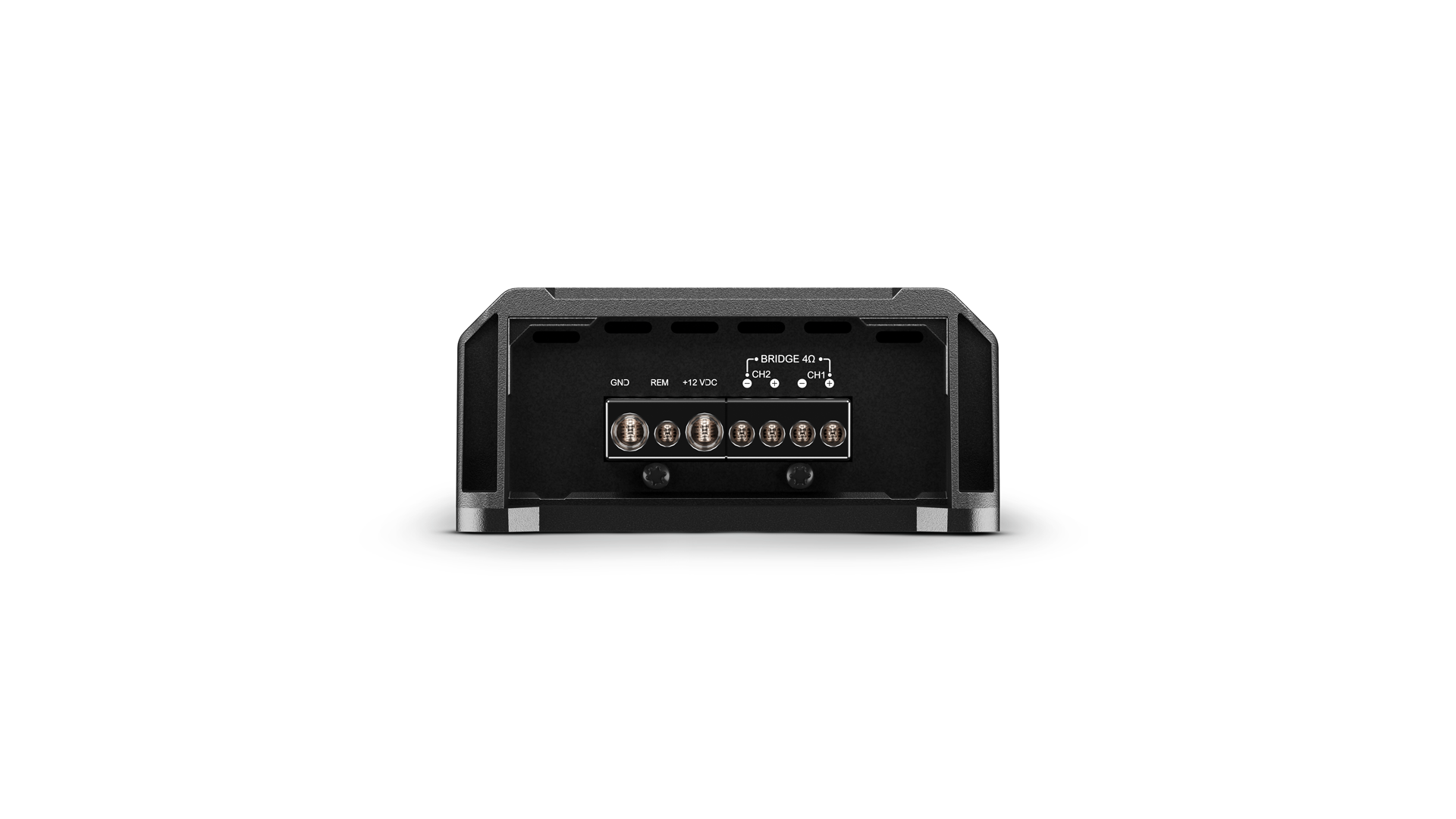

• Bridged @ 12.6 V: 1 × 264 W @ 8 Ω / 1 × 400 W @ 4 Ω
• Operating voltage: 9–16 V
• THD: 0.08 %
• Damping factor: 200
• Frequency response: 10 Hz–20 kHz

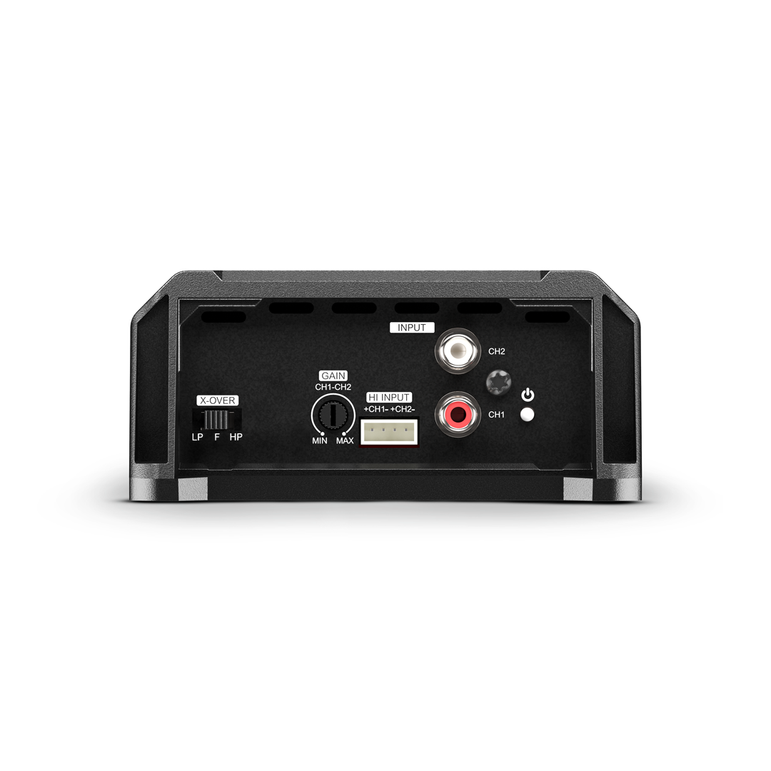

• Crossover HPF/LPF: 80 Hz (on/off)
• Dimensions (L × W × H): 121 × 113 × 51 mm
• Weight: 0.68 kg

Do not connect the amplifier below the nominal load!
