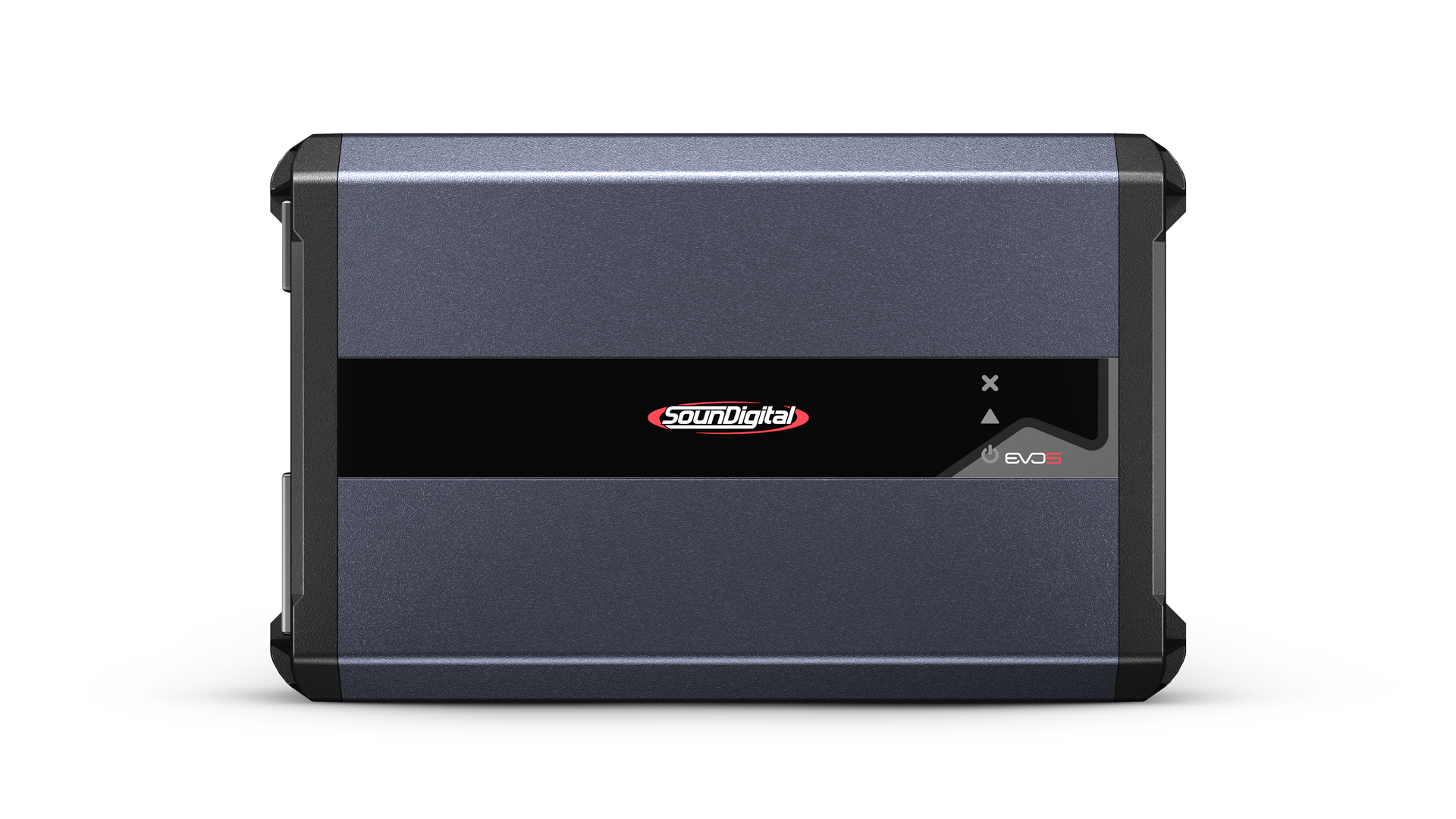

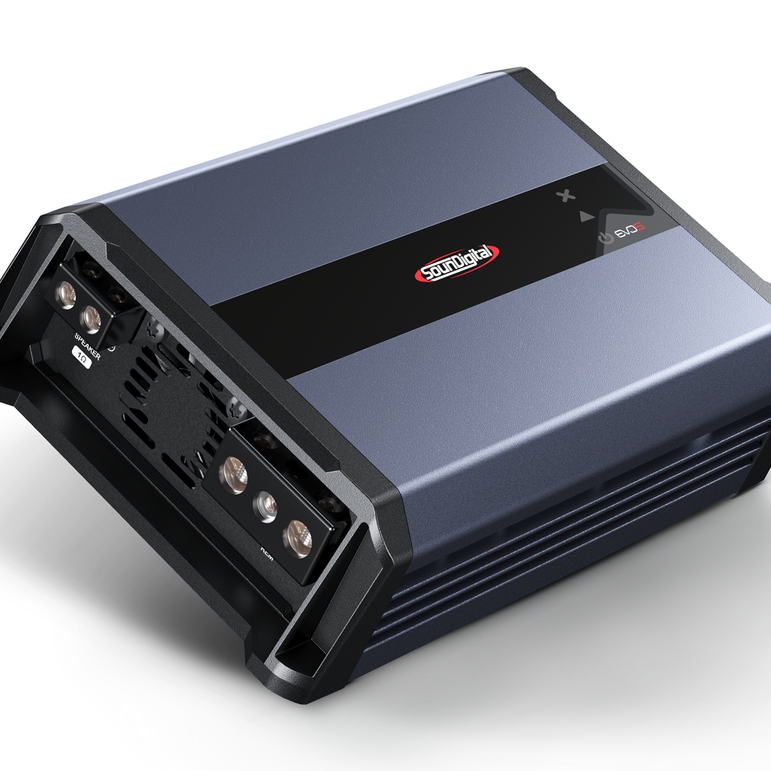

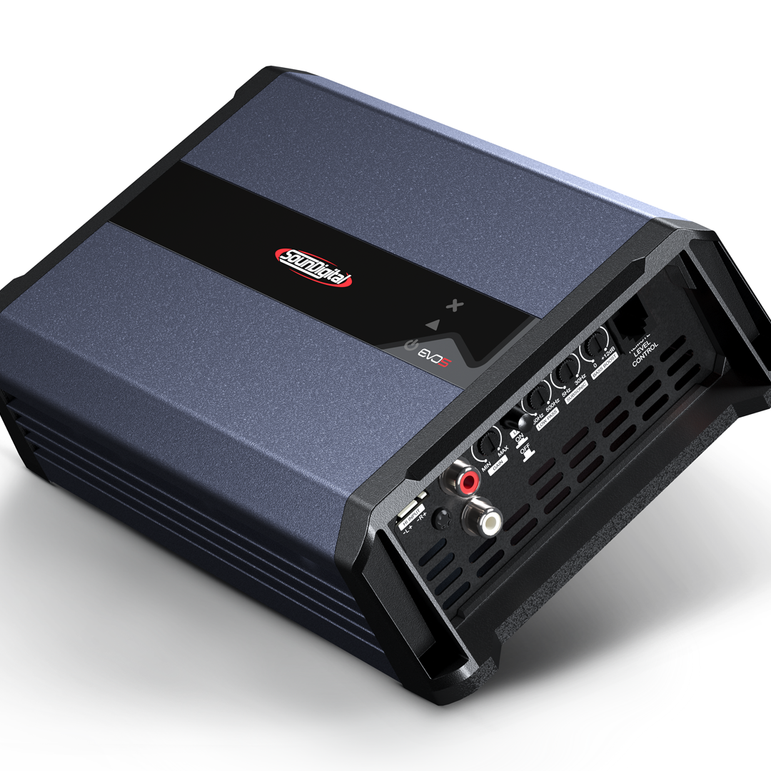

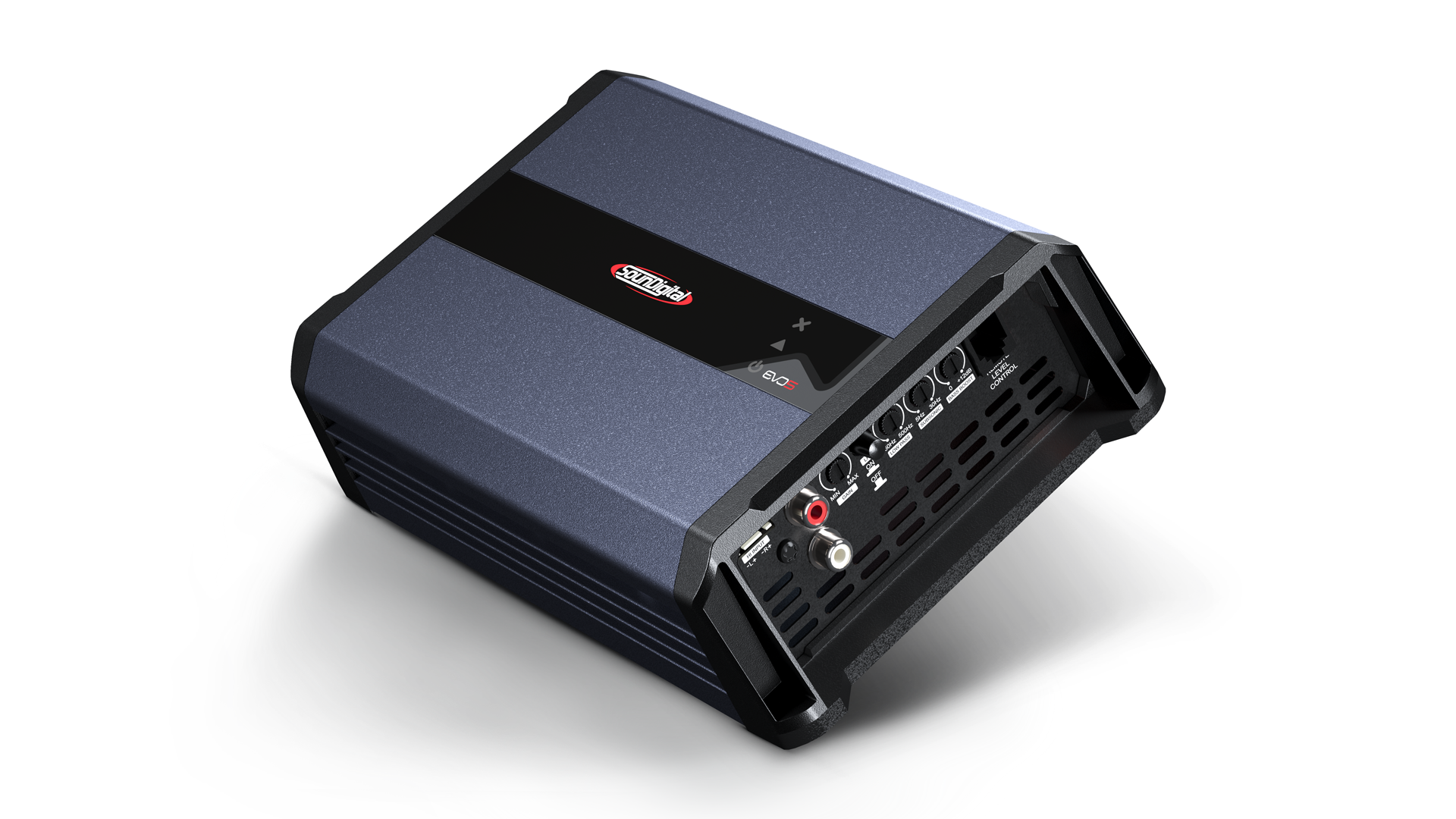

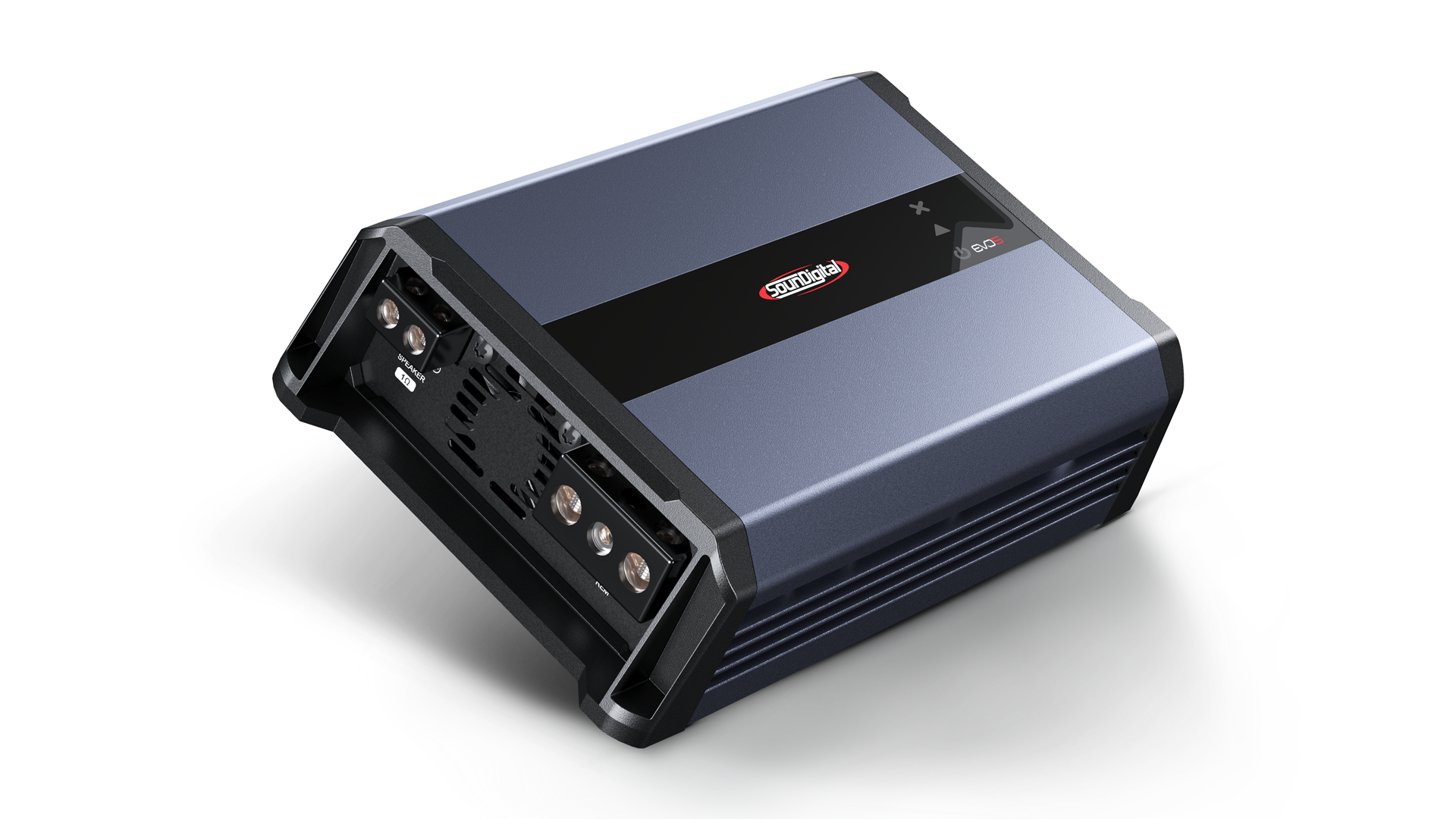

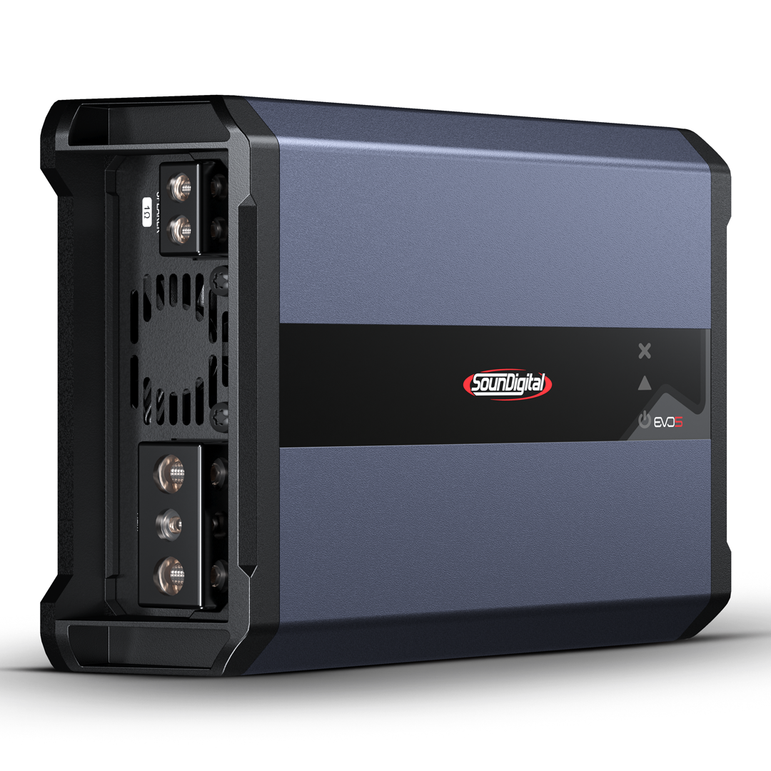

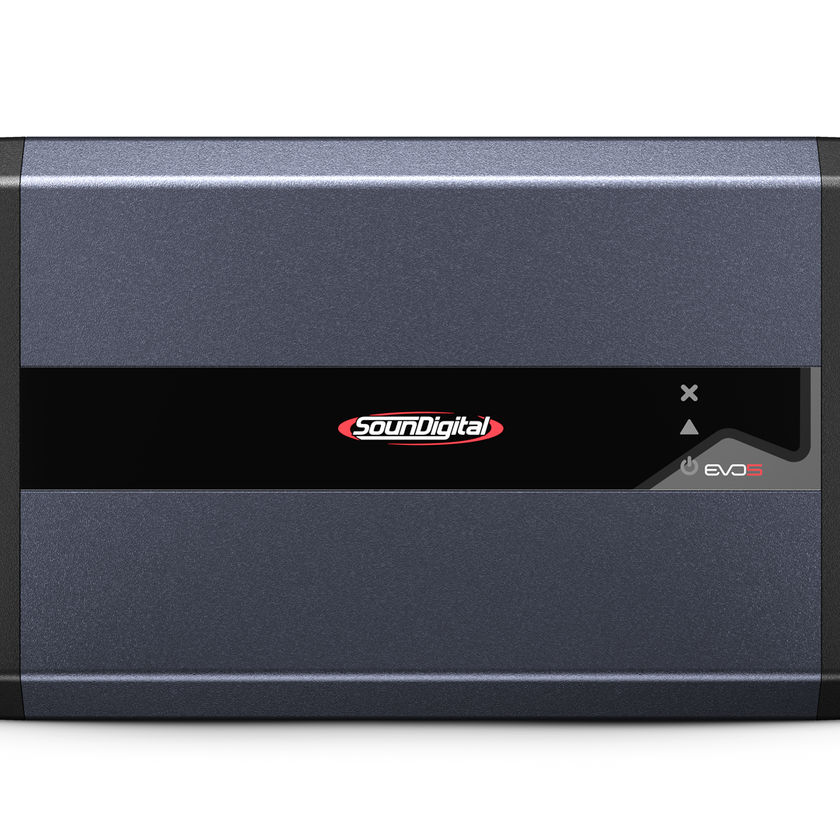

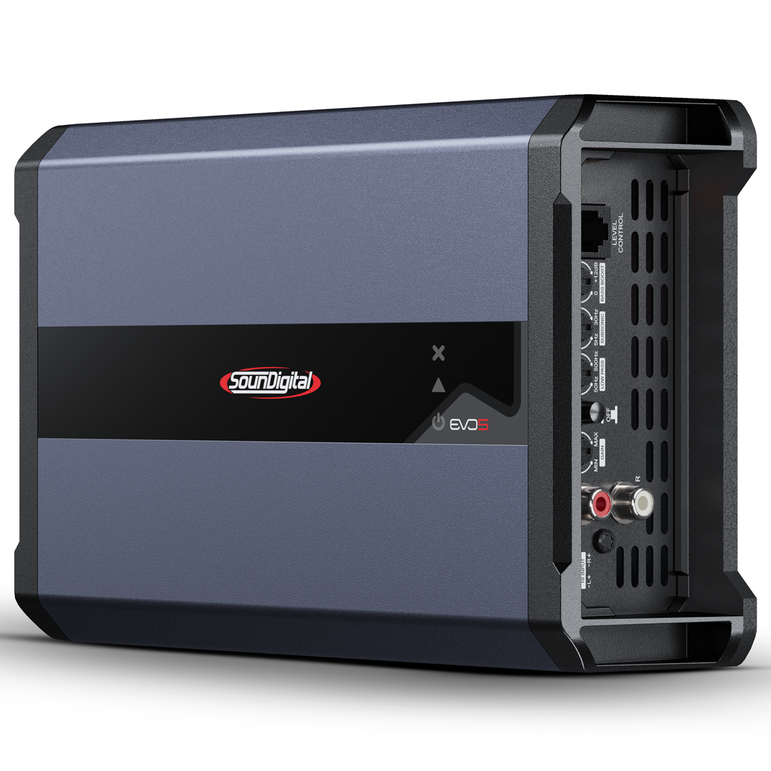

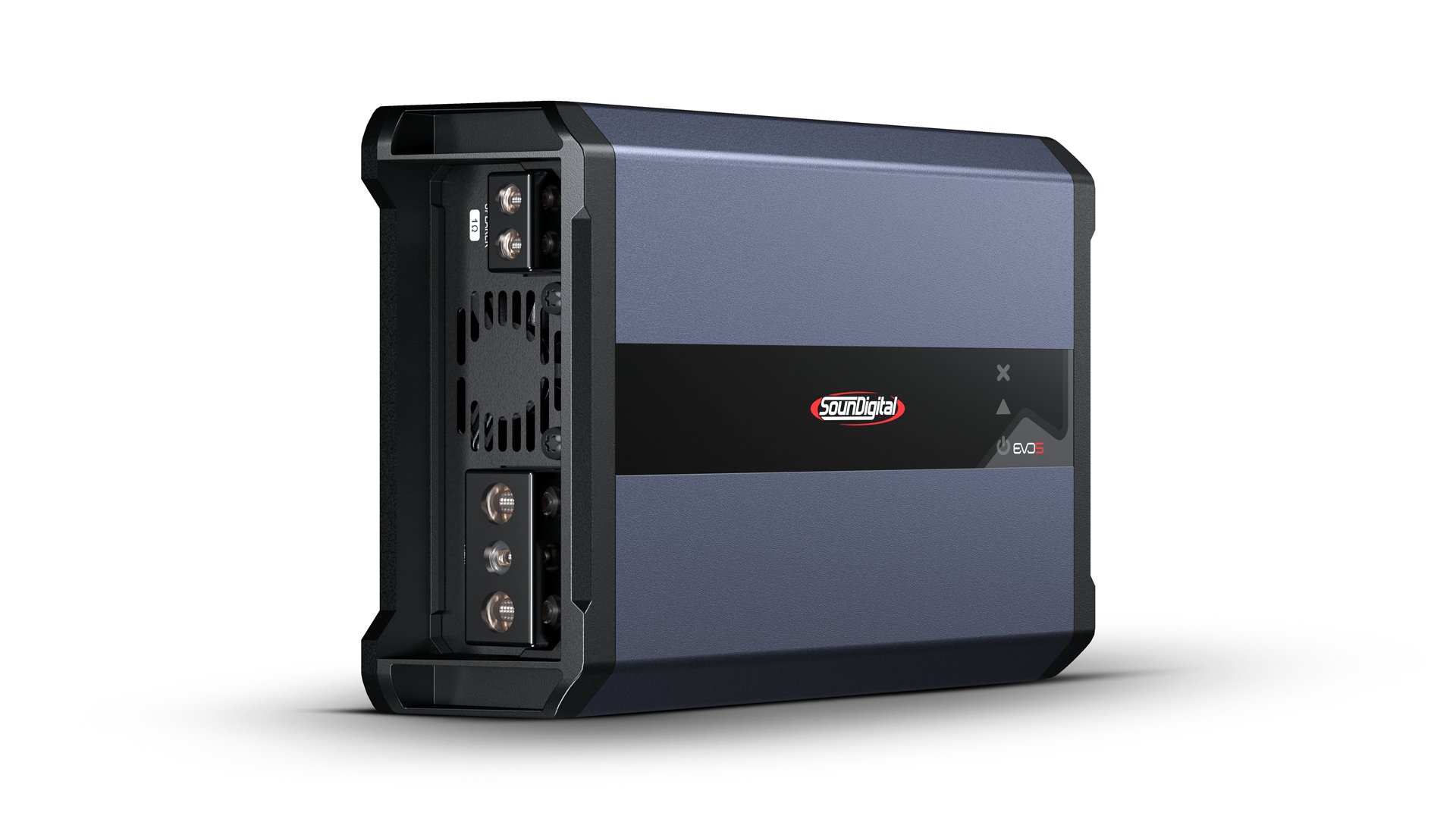

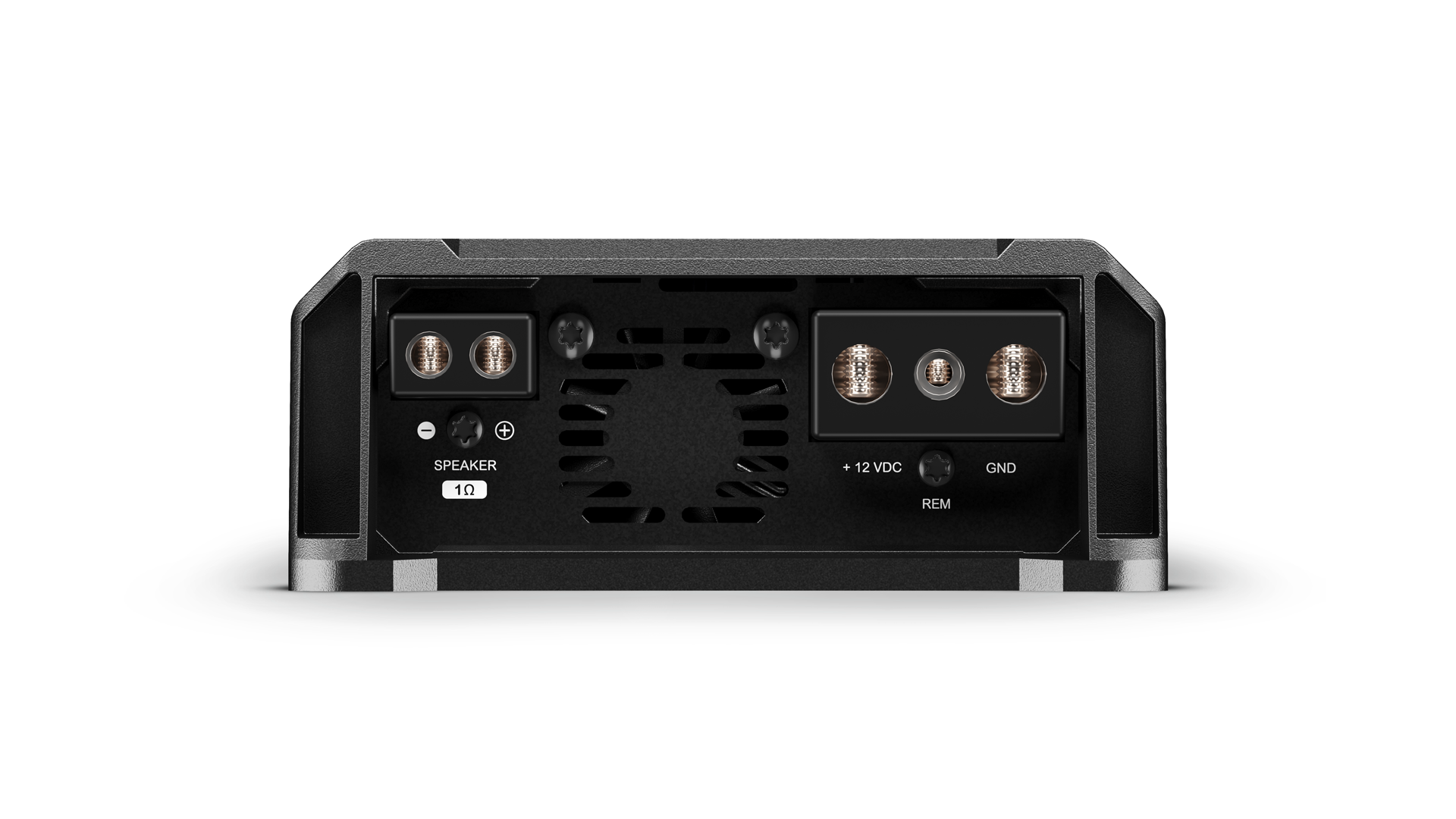

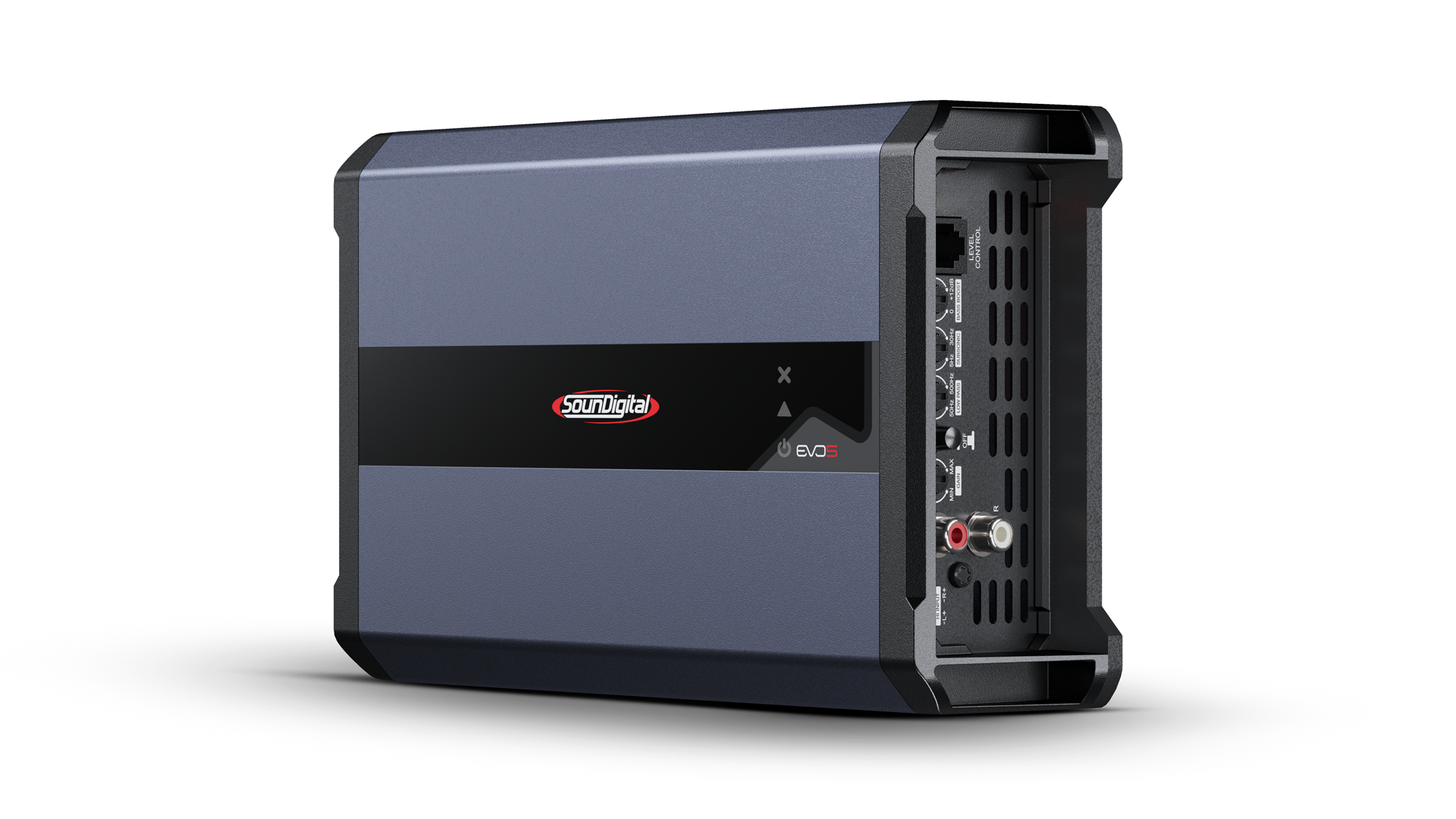

SounDigital 3000.1 EVO 5 – 1-channel amplifier 4 Ω

The SounDigital 3000.1 EVO 5 takes the amplifier's power/price/size ratio to a new level. Never before has such high power been produced from such small external dimensions—and at a very reasonable price. Damping factor over 2000, operating voltage as low as 8 volts. All SounDigital models are designed and manufactured in their own production facility in Brazil.

Technical Specifications

• Output Power: 1 × 3000 W RMS @ 4 Ω
• Operating Voltage: 8–16 V
• Current Consumption (music): 140 A @ 4 Ω
• Recommended Fuse: 150 A
• Recommended Battery: 150 Ah

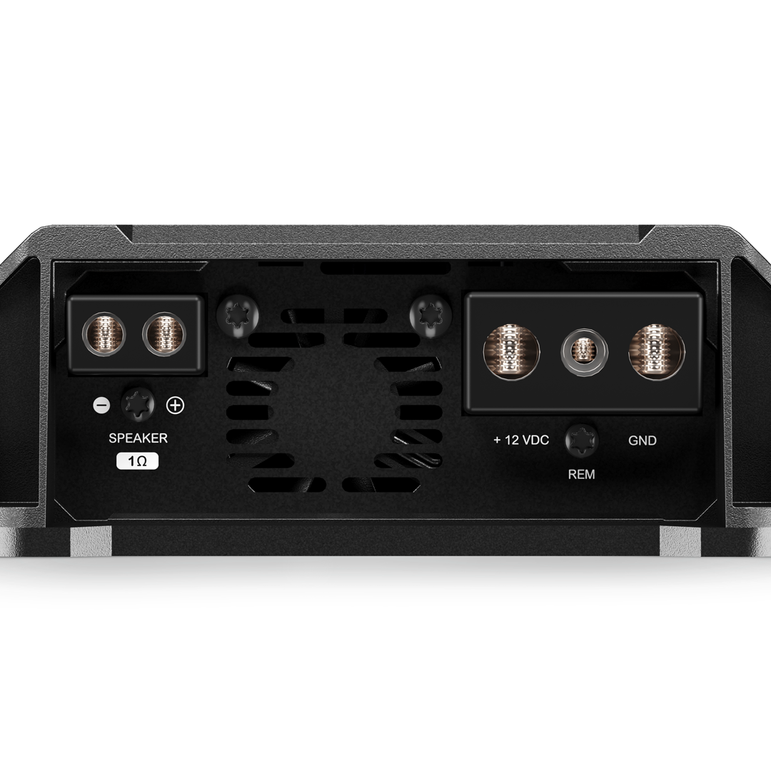

• Power Cable: 35 mm² (2 AWG)
• Efficiency: 85 %
• Damping Factor: 2000
• Frequency Response: 5 Hz–25 kHz
• SNR: 92 dB

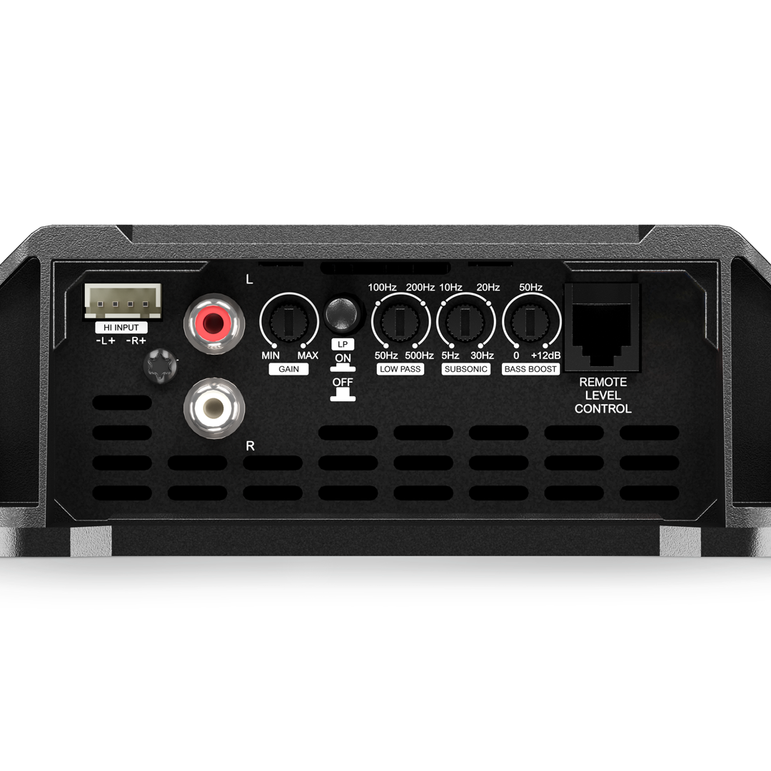

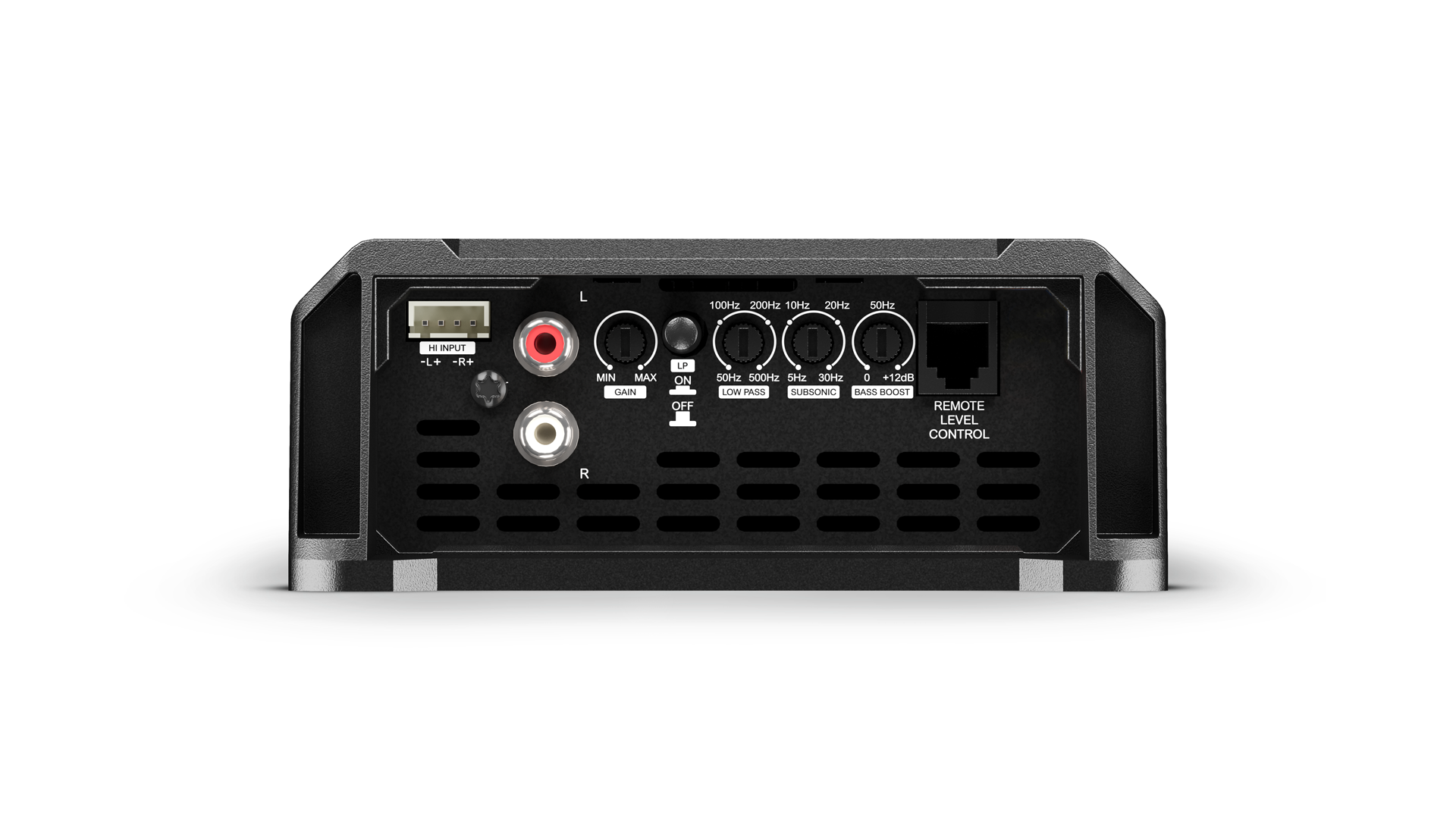

• Input Sensitivity: 0.2–2 V
• Subsonic Filter: 5–80 Hz
• Low Pass Filter (LPF): 50 Hz–1 kHz
• Bass Boost: 0–12 dB @ 50 Hz
• Dimensions (L × W × H): 228 × 136 × 55 mm
• Weight: 1.75 kg

Do not connect the amplifier below its rated load!
