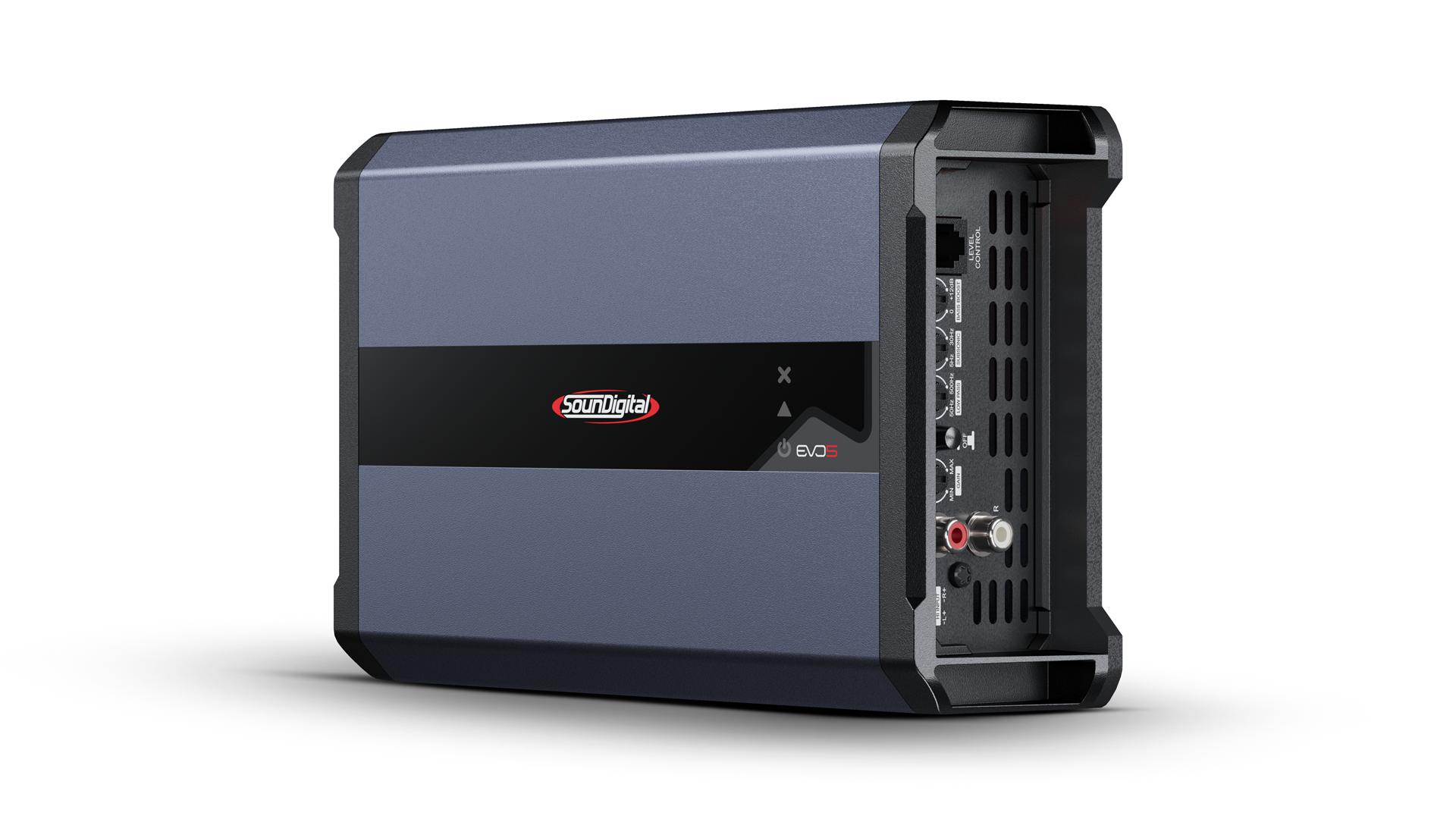

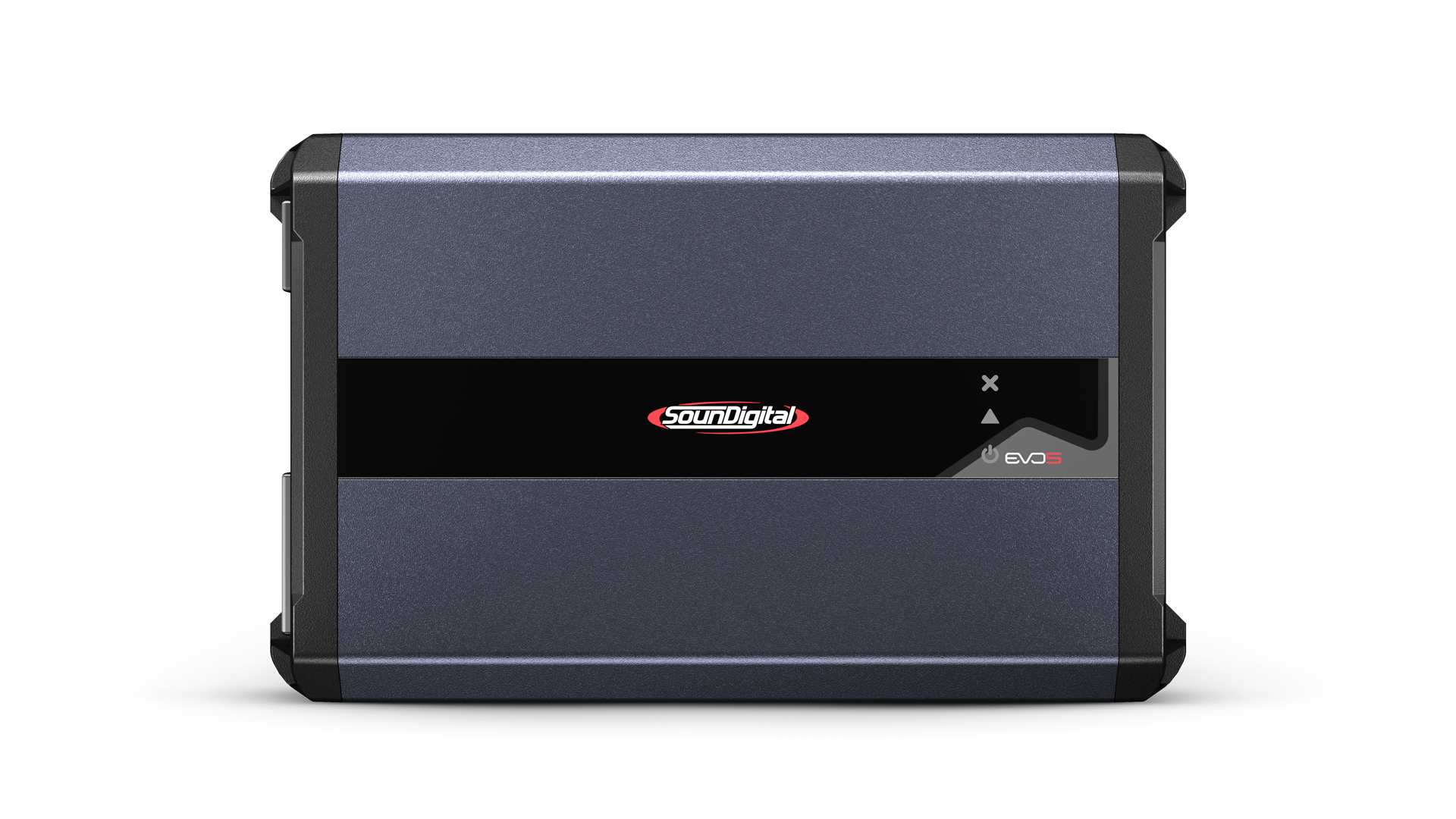

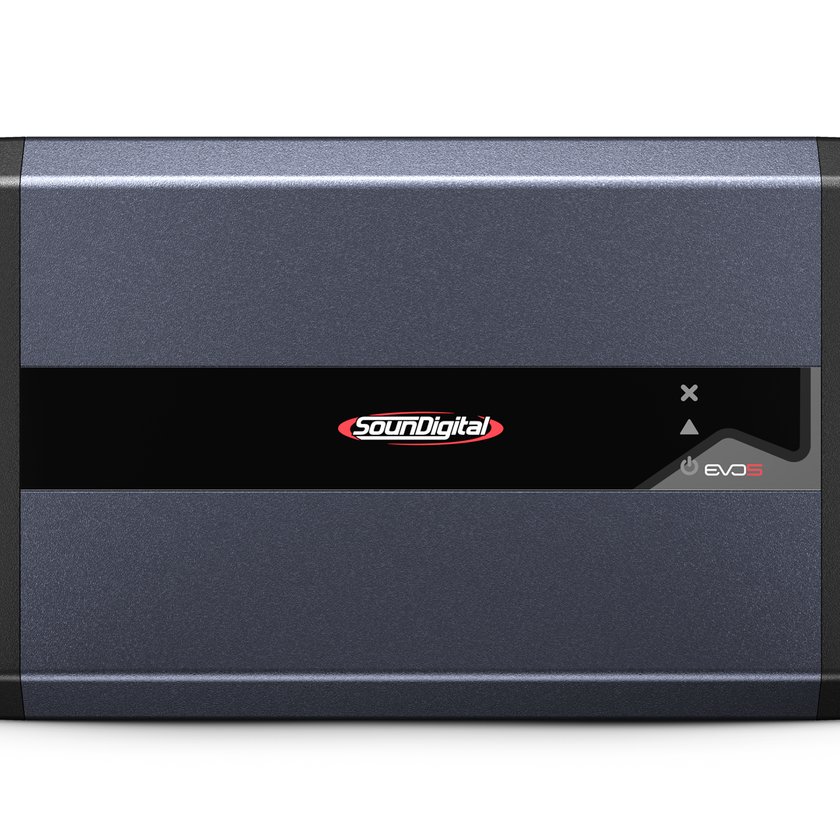

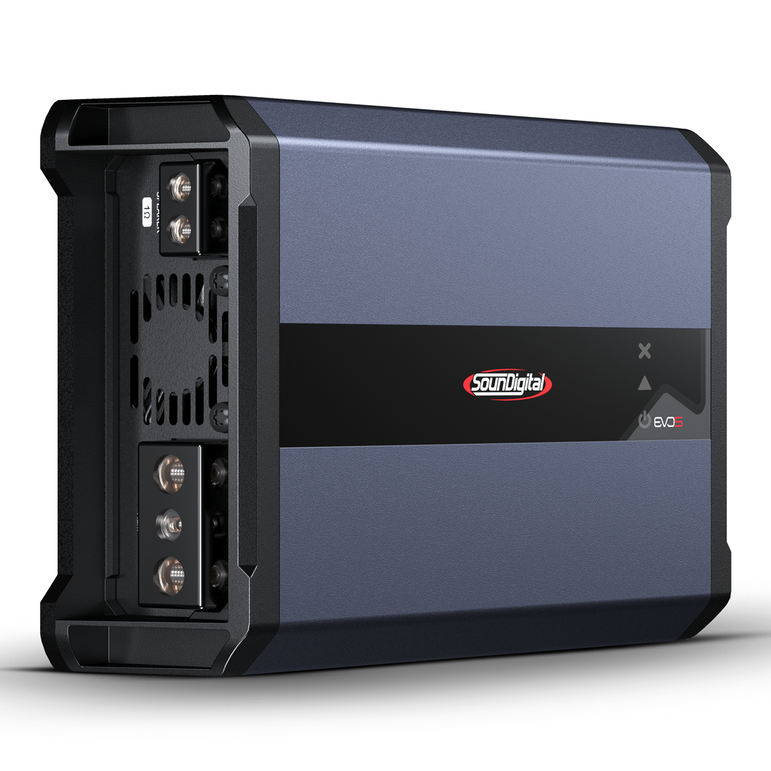

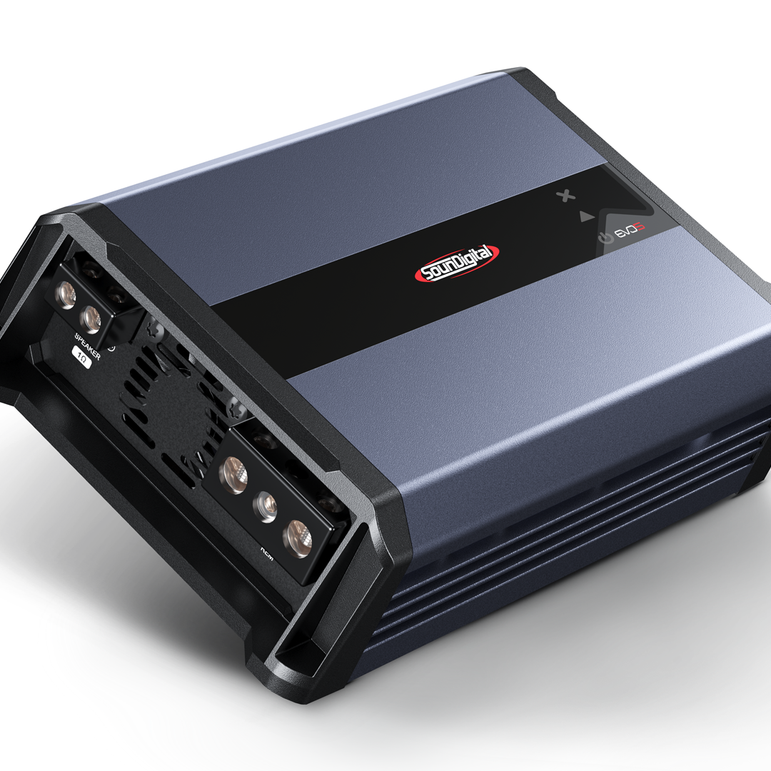

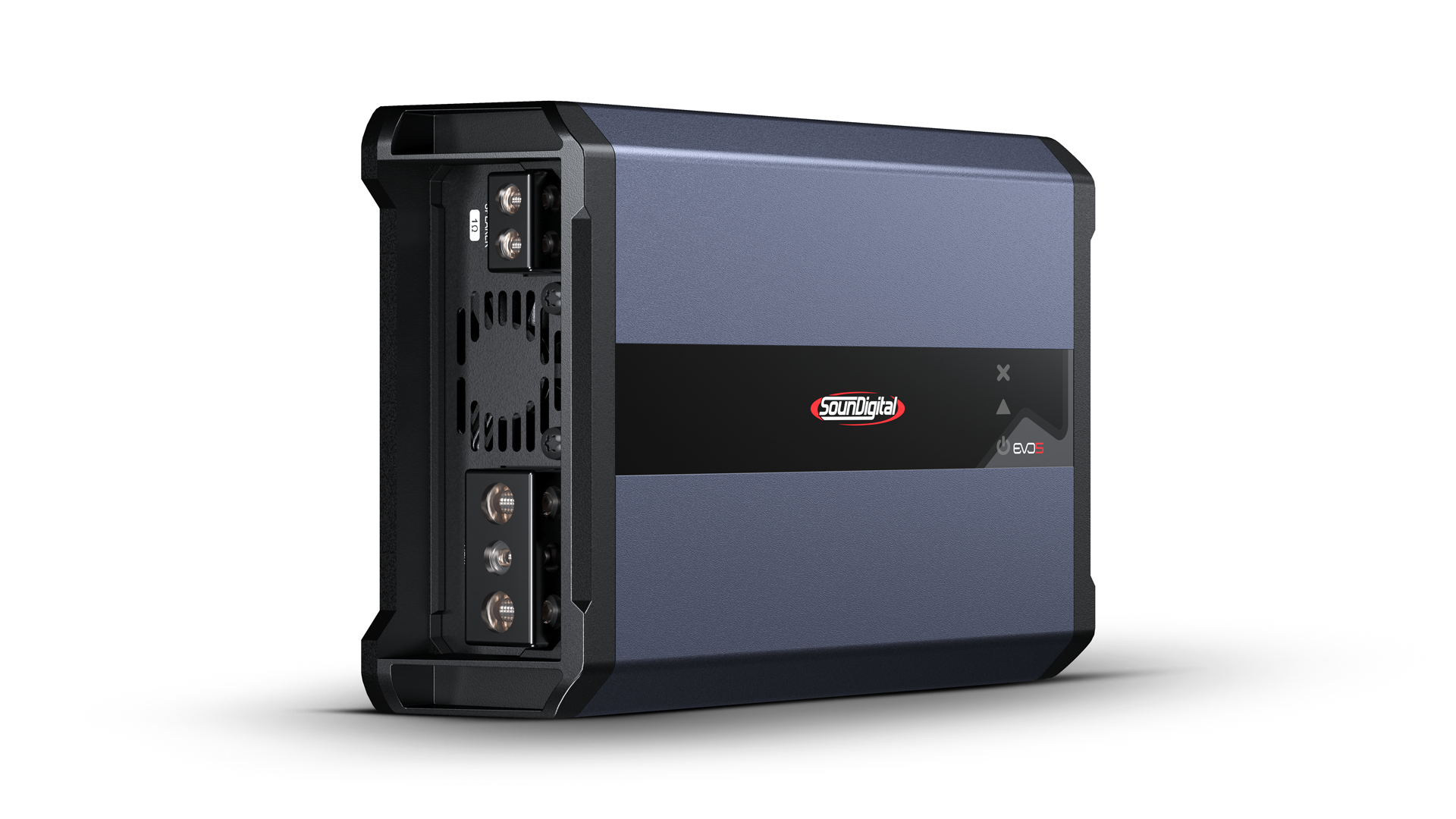

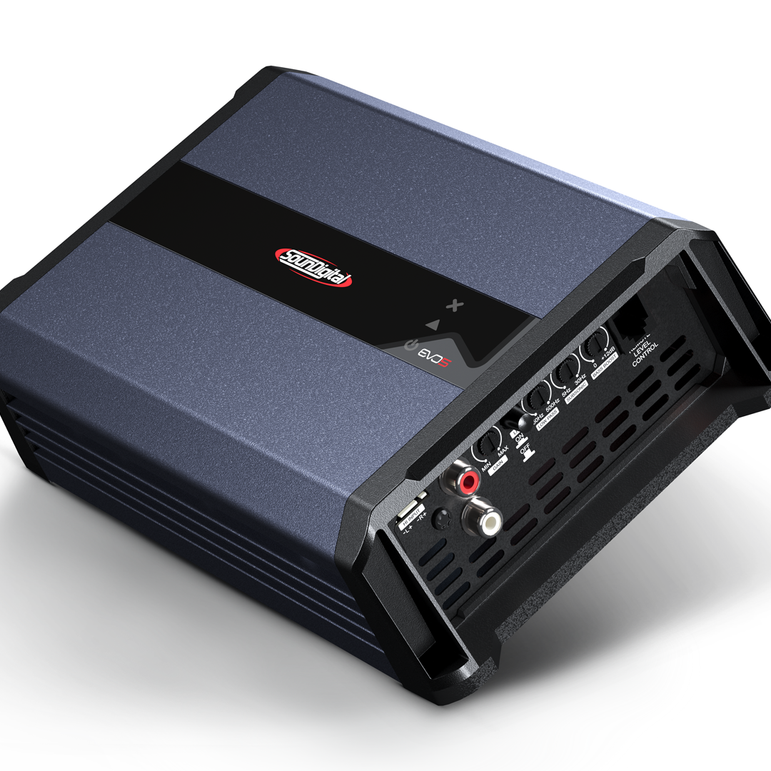

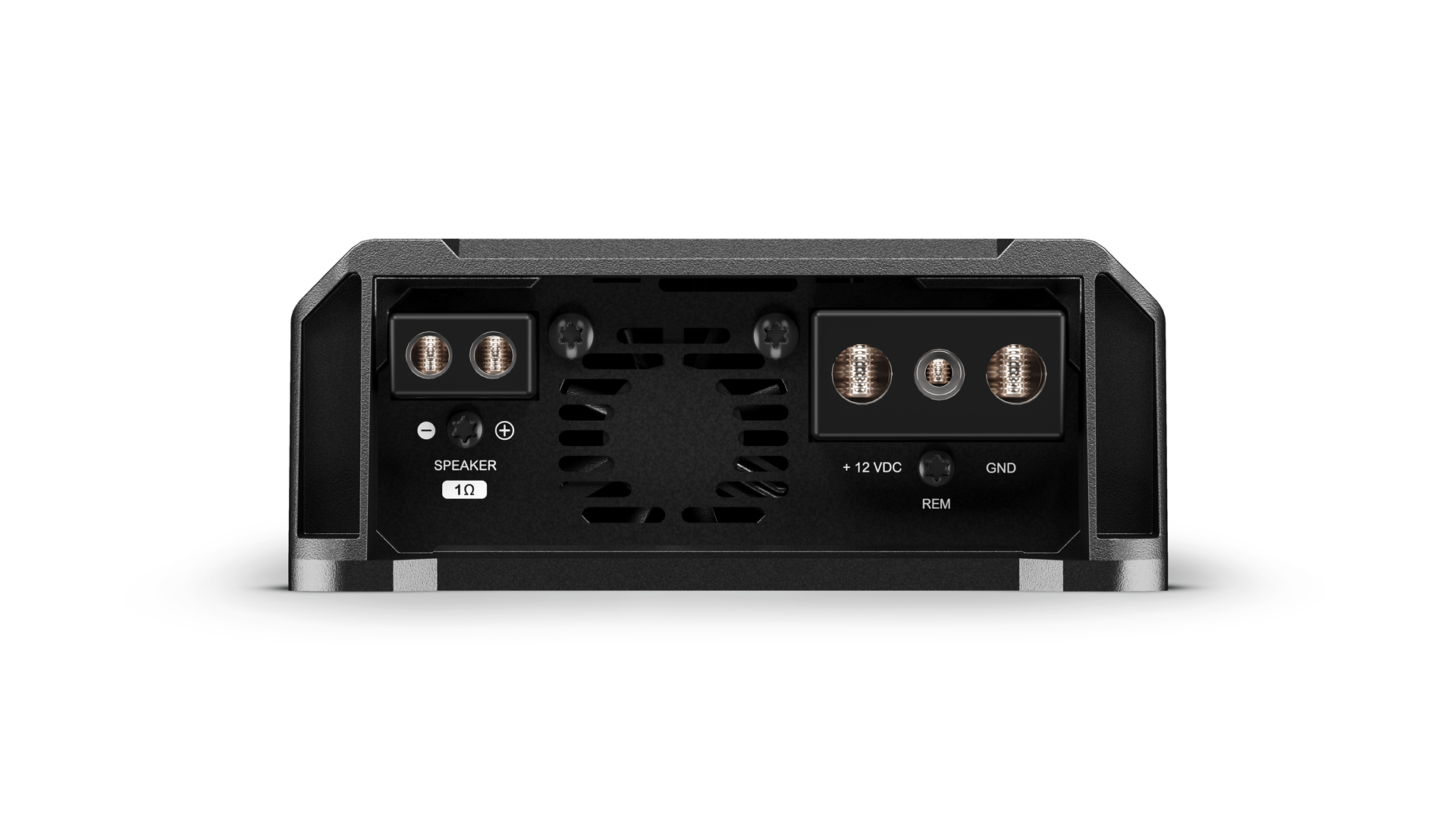

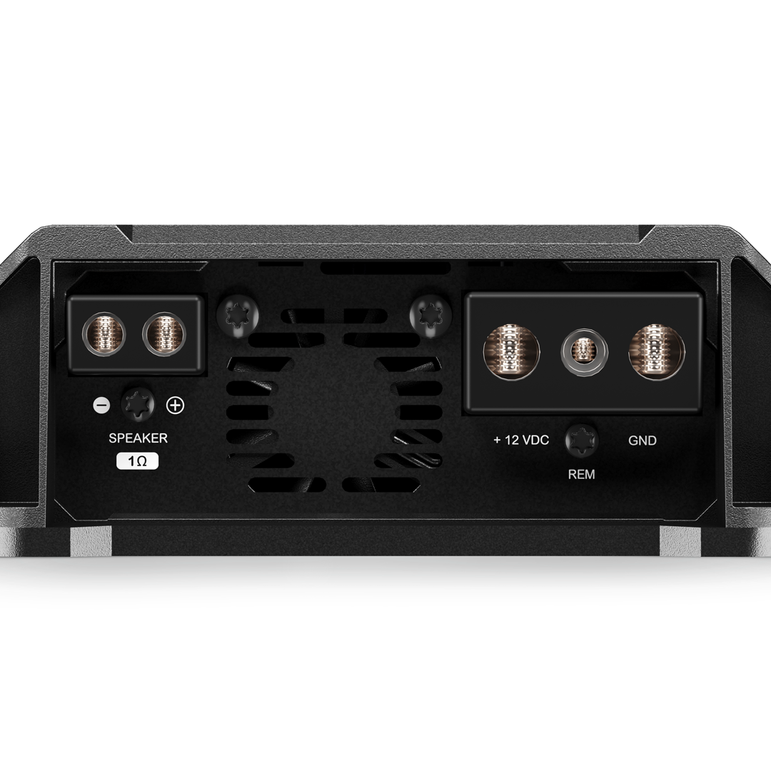

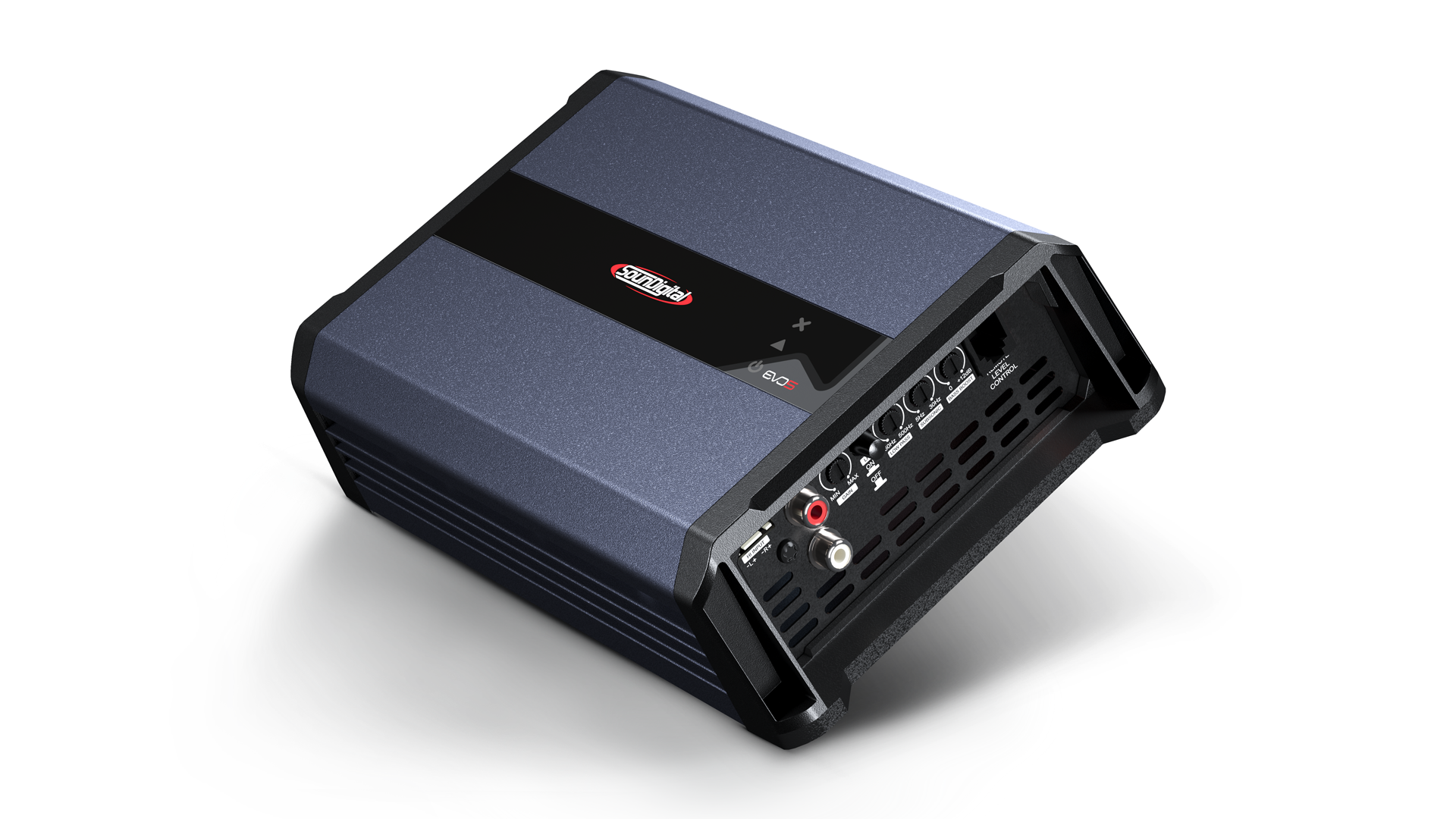

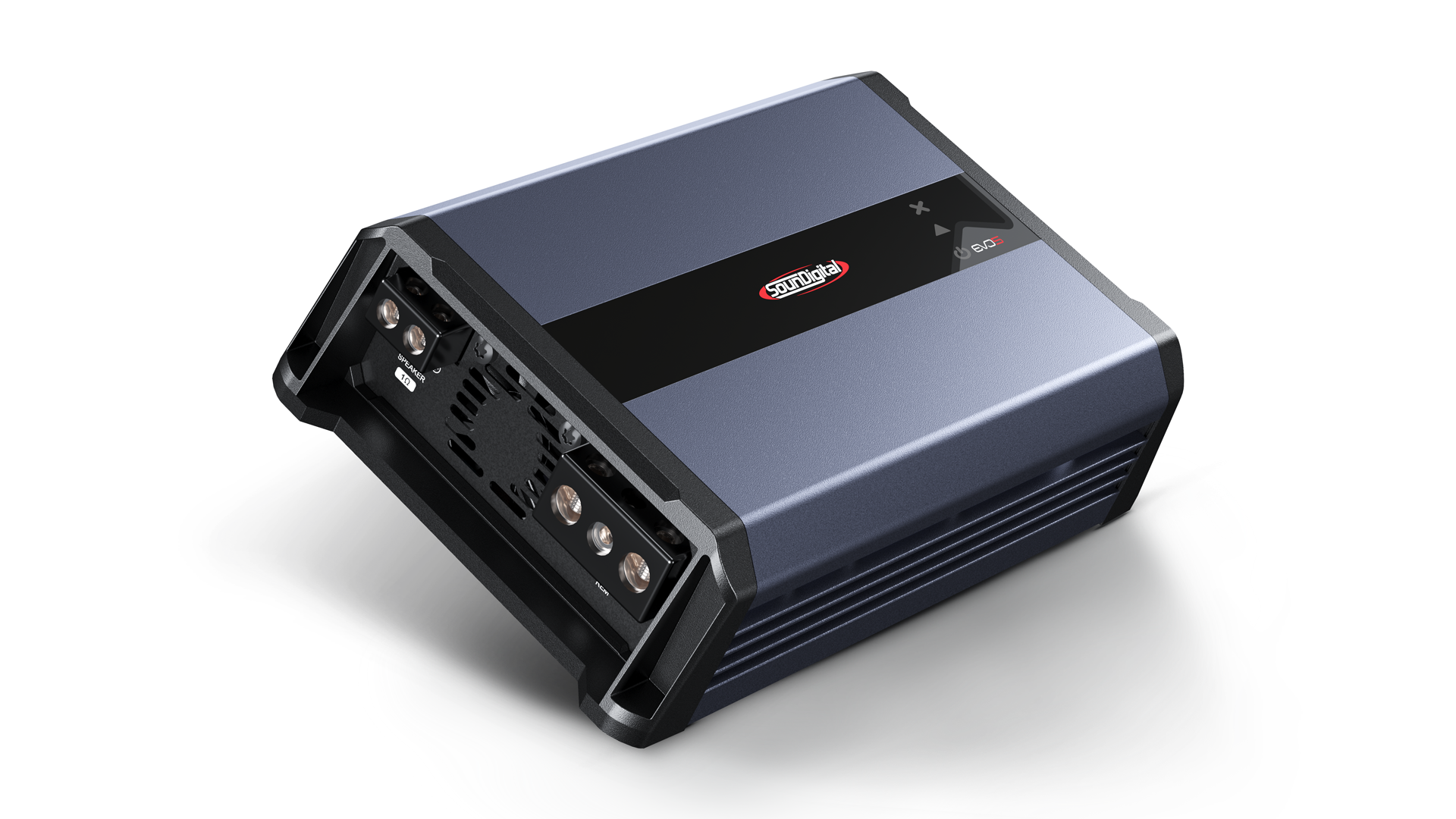

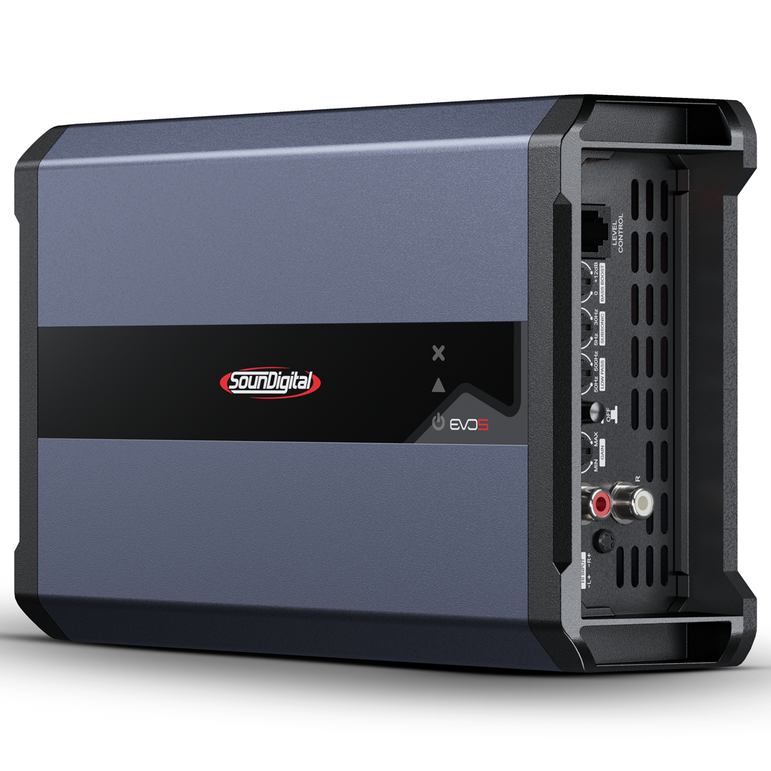

SounDigital 3000.1 EVO 5 - 2 Ohm
Soundigital amplifiers take the power/price/size ratio of amplifiers to a new level. Never before has such high power been achieved from such small external dimensions. And at a very reasonable price! The damping factor of all models is over 1000! High powers consume a lot of power and in many cars the problem is voltage drops at the peak of the music and when playing loudly. Sounddigital amplifiers have taken this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts! Soundigital is an amplifier manufacturer that operates in a very rare way these days, ALL models are designed and manufactured in our own production facility in Brazil.
Specifications:
Power @ 1Ω: N/A
Power @ 2Ω: 1 X 3000W RMS
Power @ 4Ω: 1 X 1980W RMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz~80Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
8V – 16V
SNR:
92dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
2Ω: 139A
4Ω: 140A
Current Draw With Resistive Load:
2Ω: 277A
4Ω: 280A
Total Efficiency:
2Ω: 86%
4Ω: 85%
Damping Factor:
2000
Power Cable:
35mm² (2AWG)
Audio Output Cable:
2Ω: 2 x 2.5 mm² (13 AWG)
4Ω: 2 x 1.5 mm² (15 AWG)
Recommended Fuse (Music):
150A
Recommended Battery:
150Ah
Width:
5.3 in / 13.6 cm
Length:
8.9 in / 22.8 cm
Height:
2.1 in / 5.48 cm
Weight:
1.75 Kg
