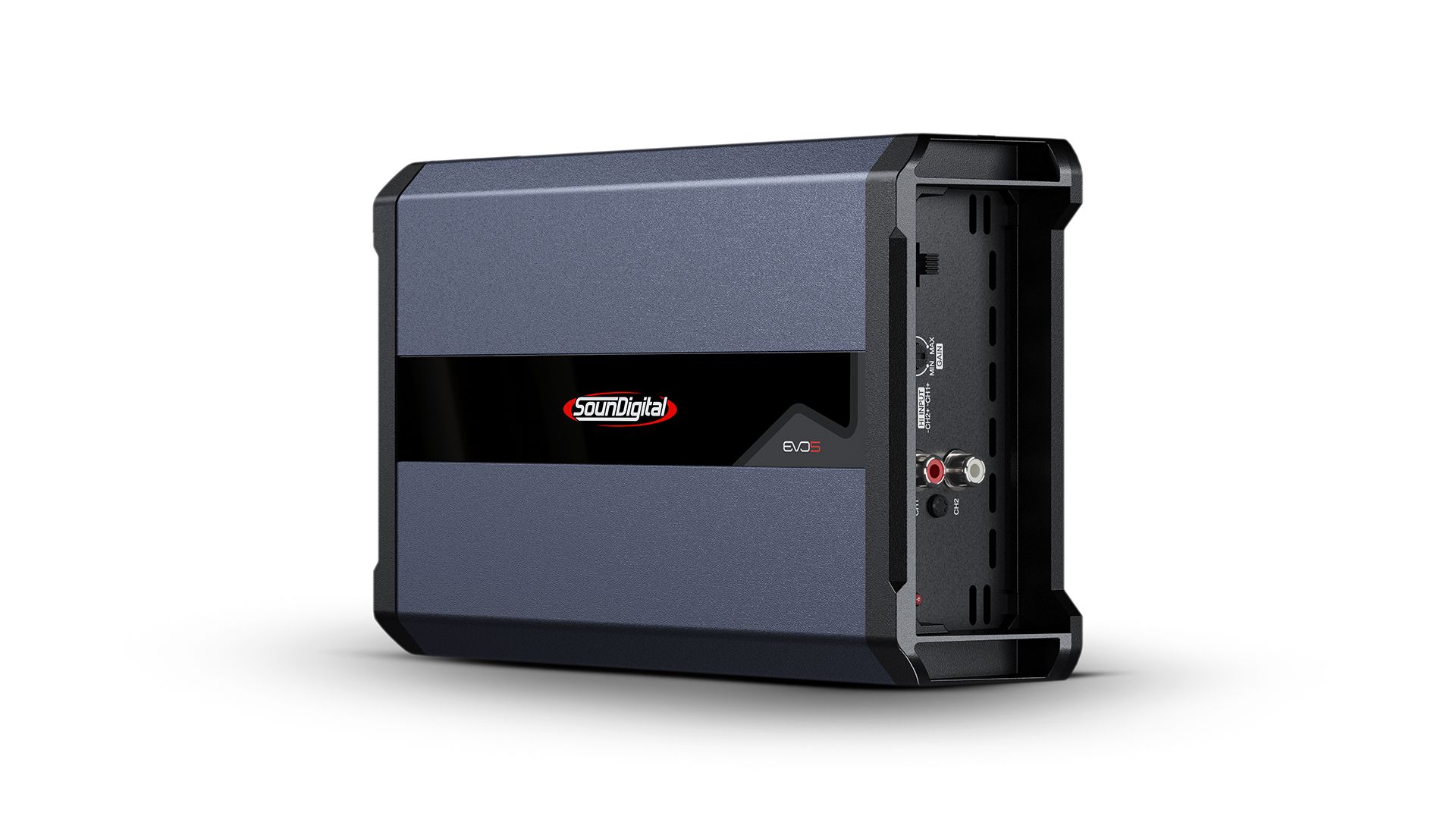

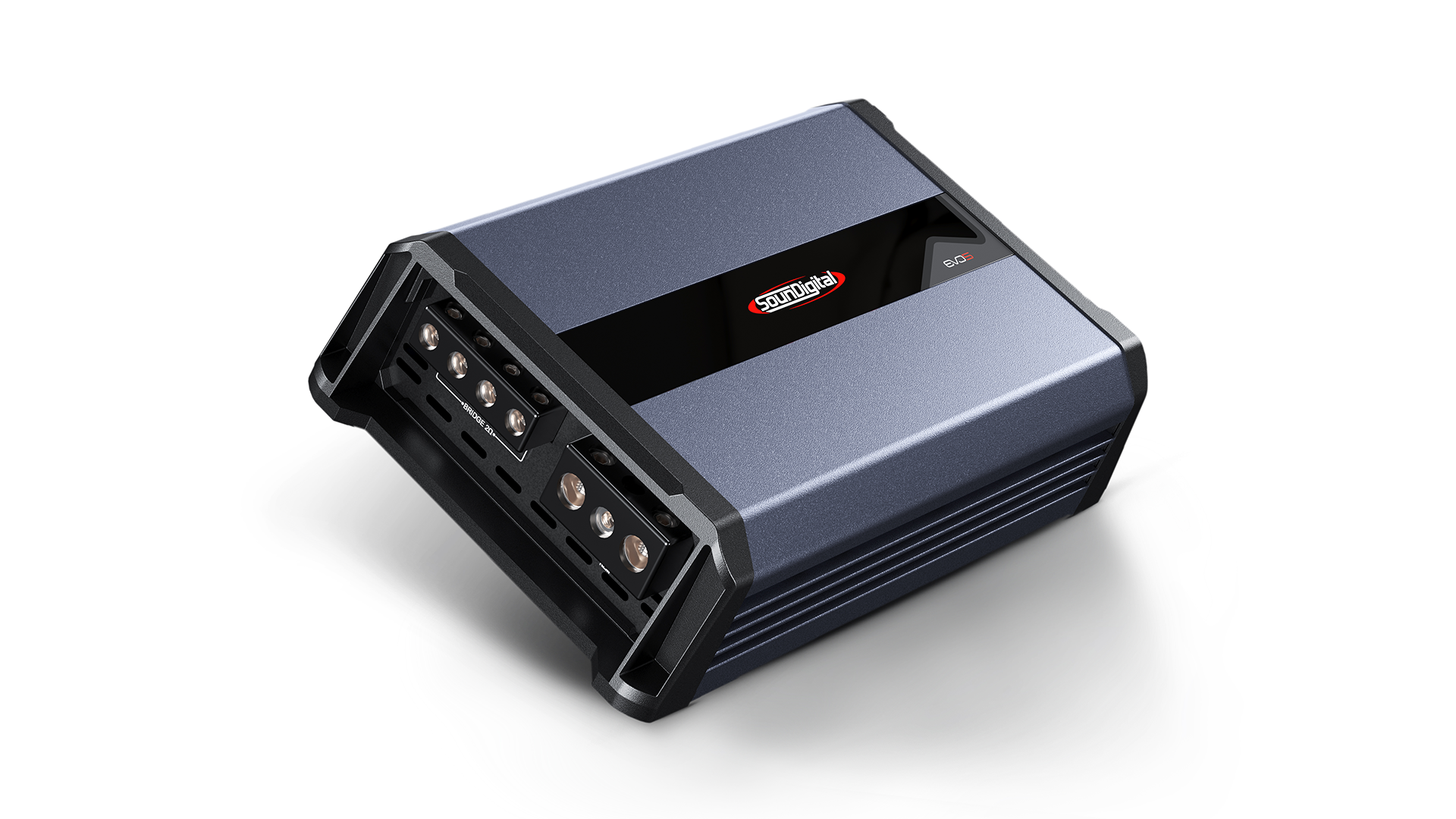

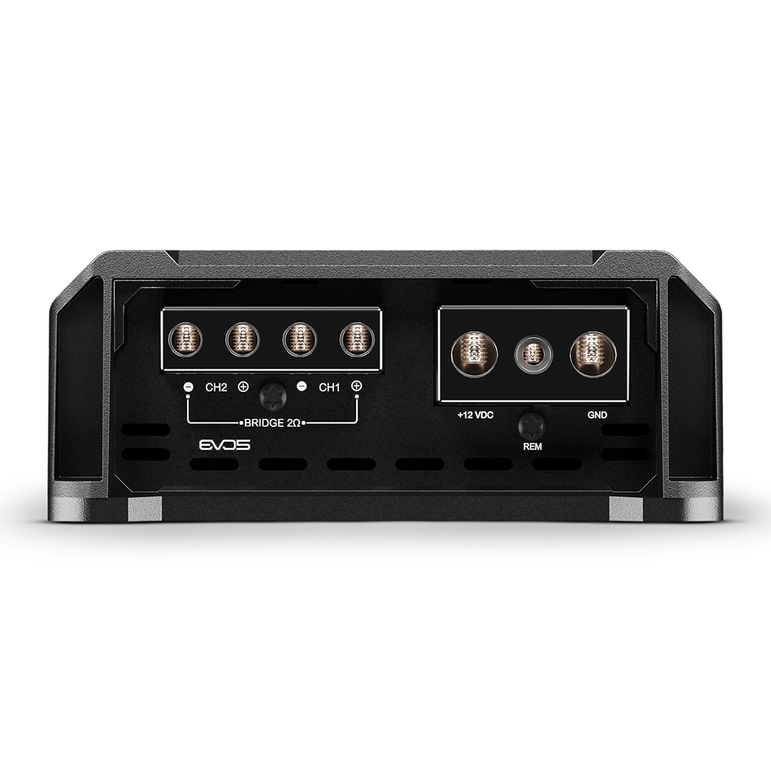

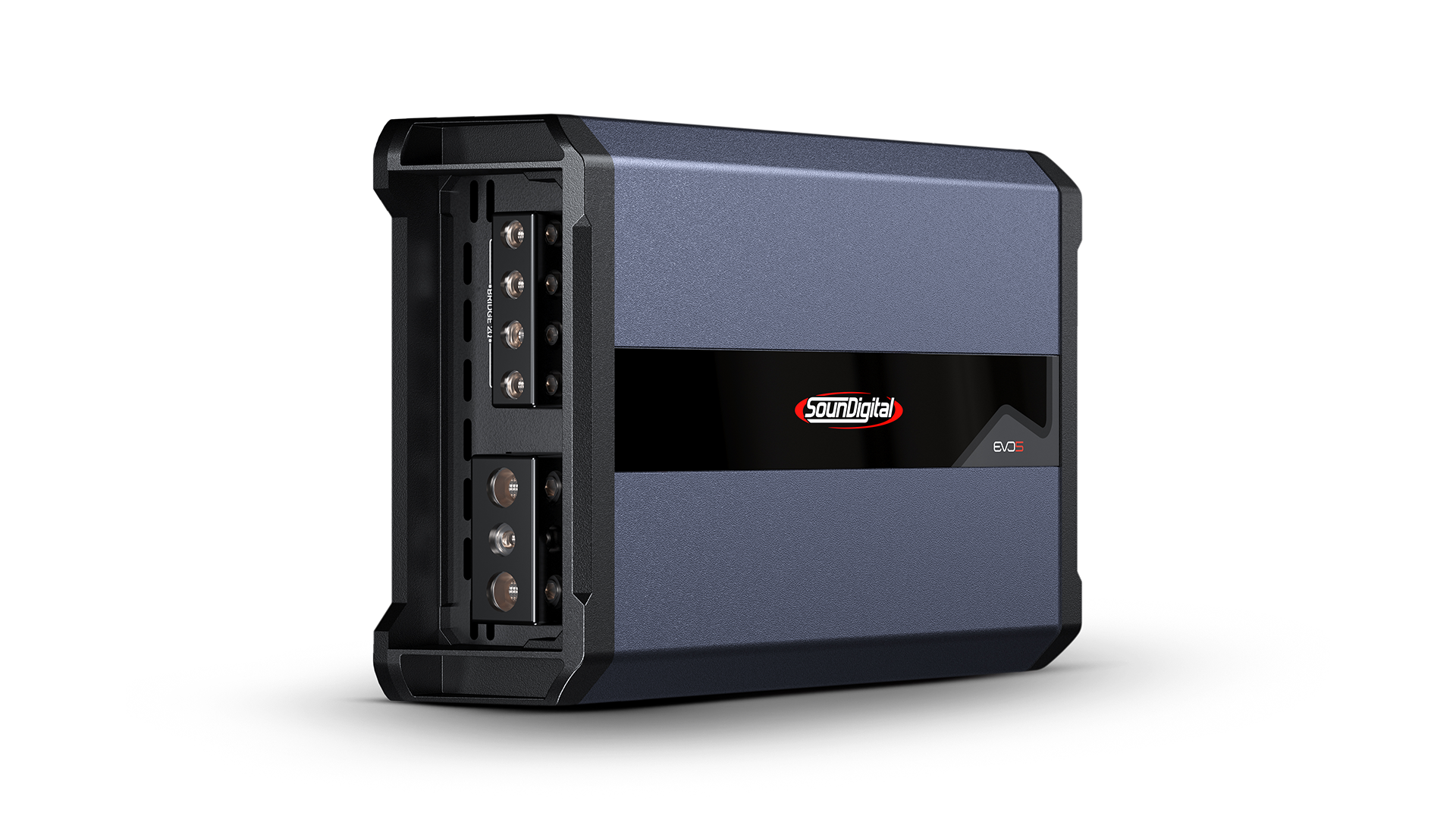

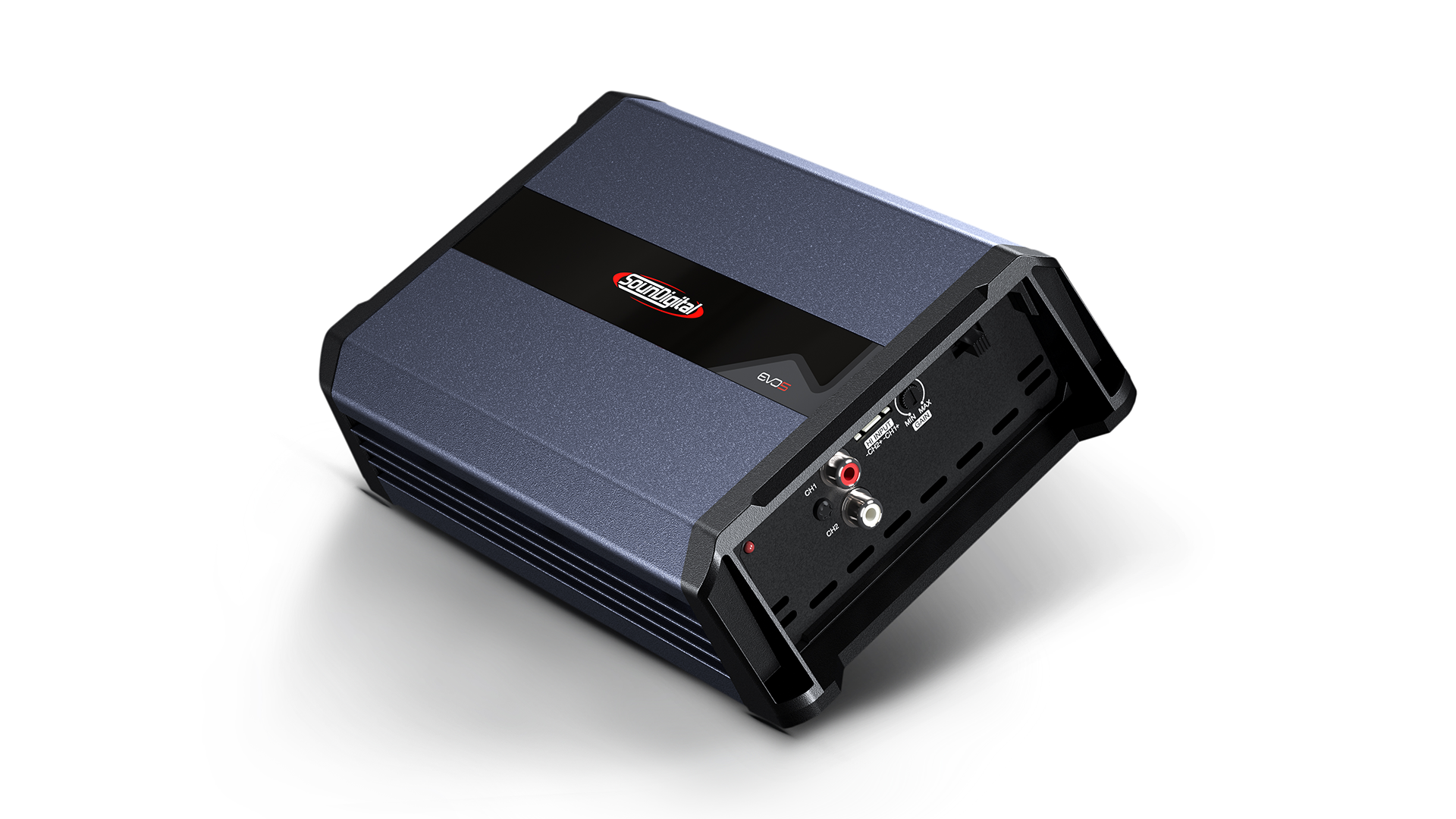

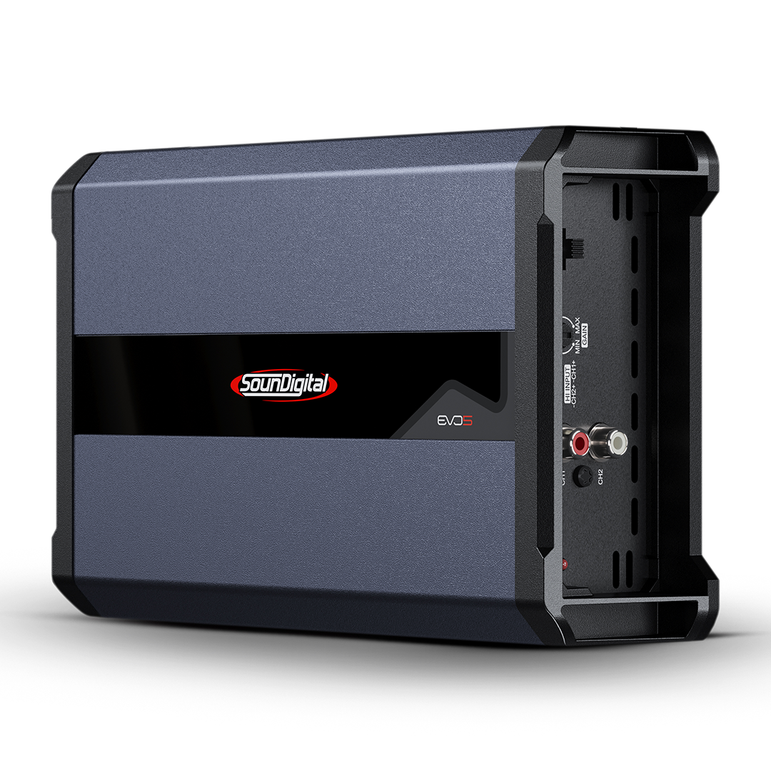

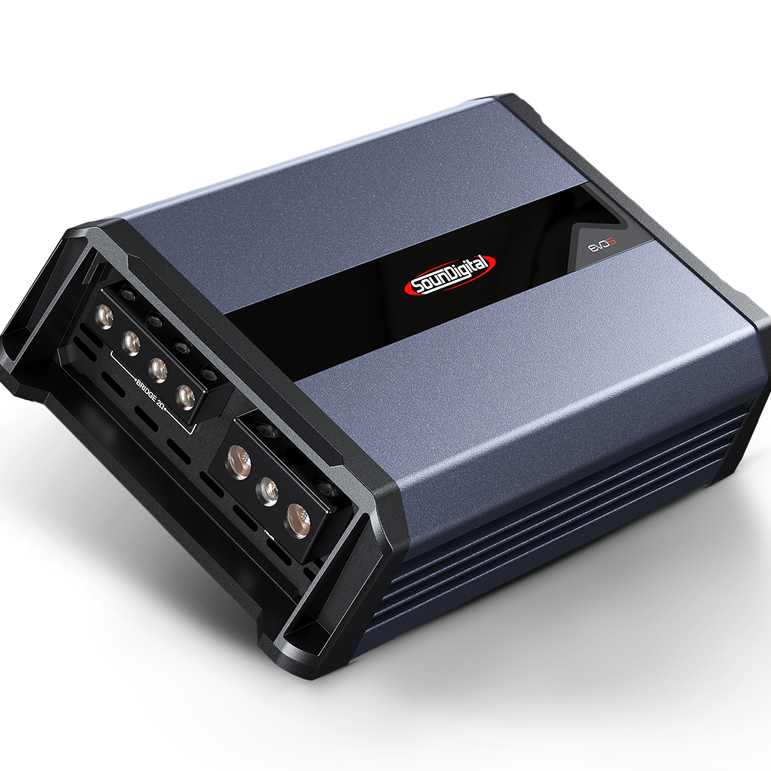

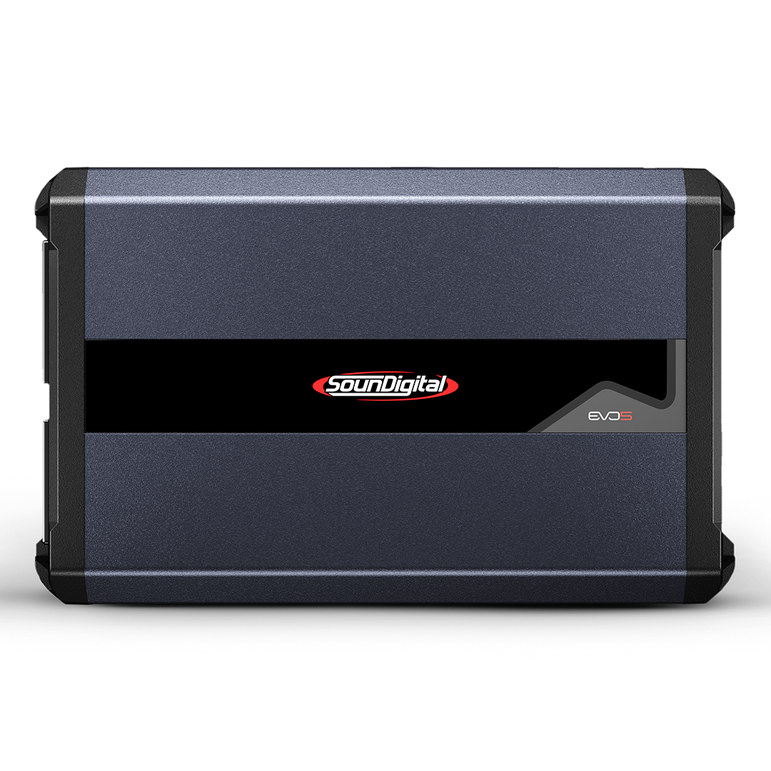

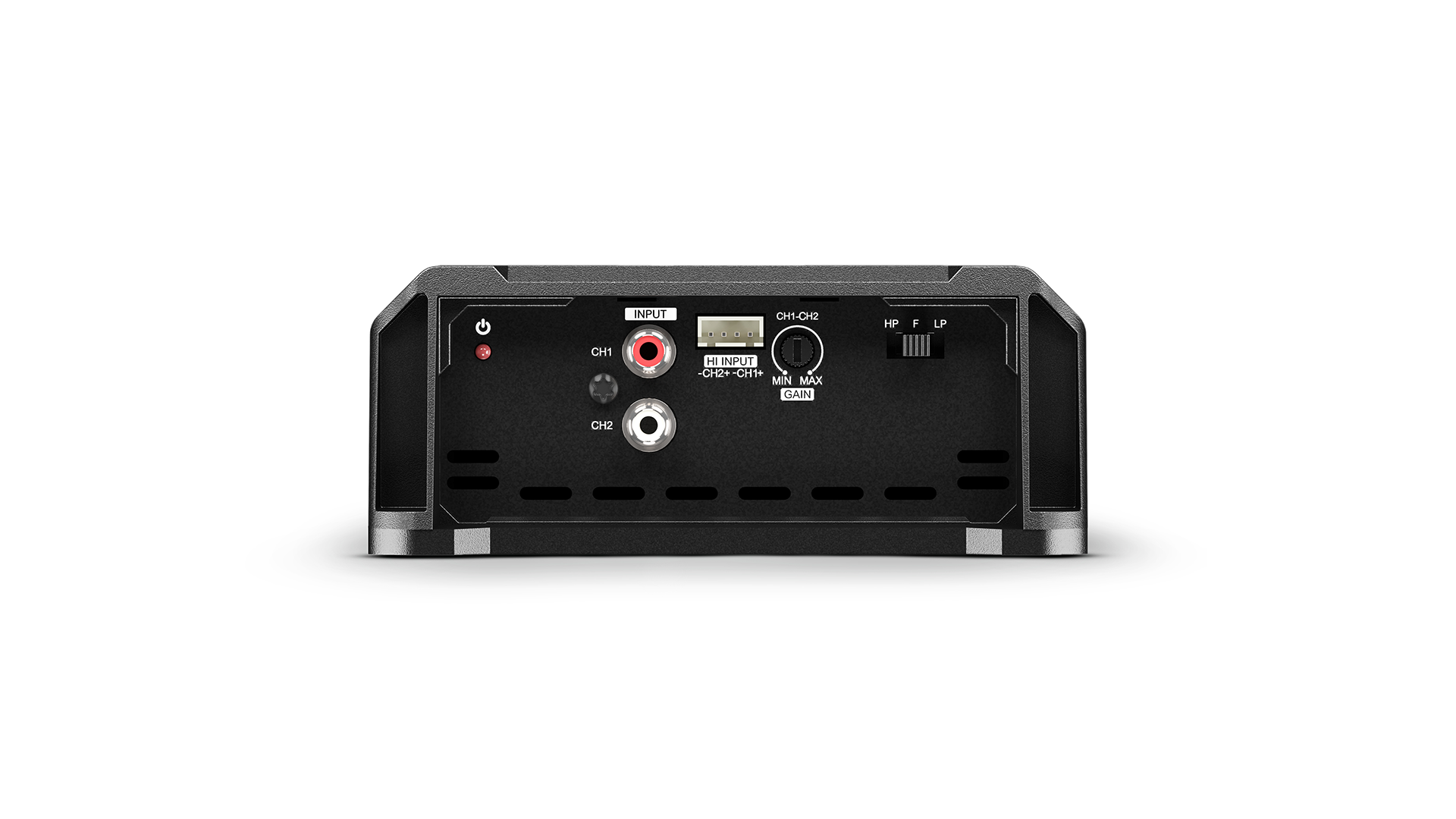

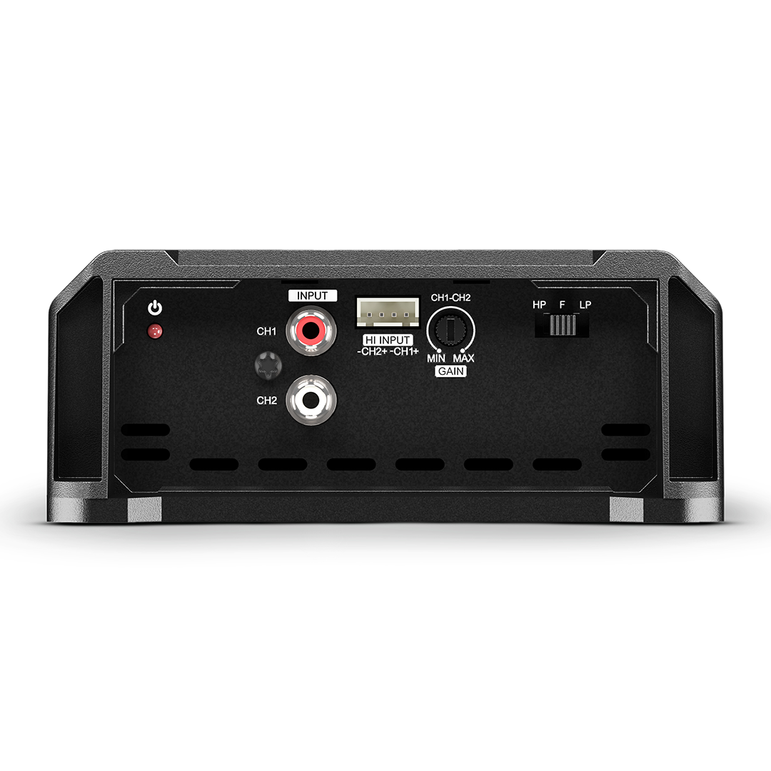

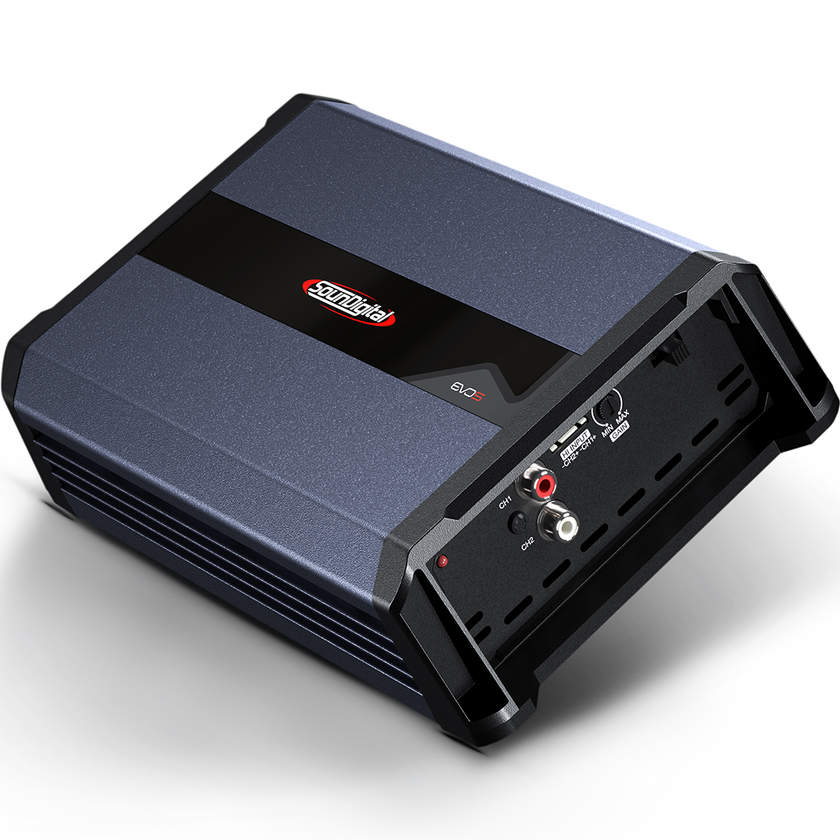

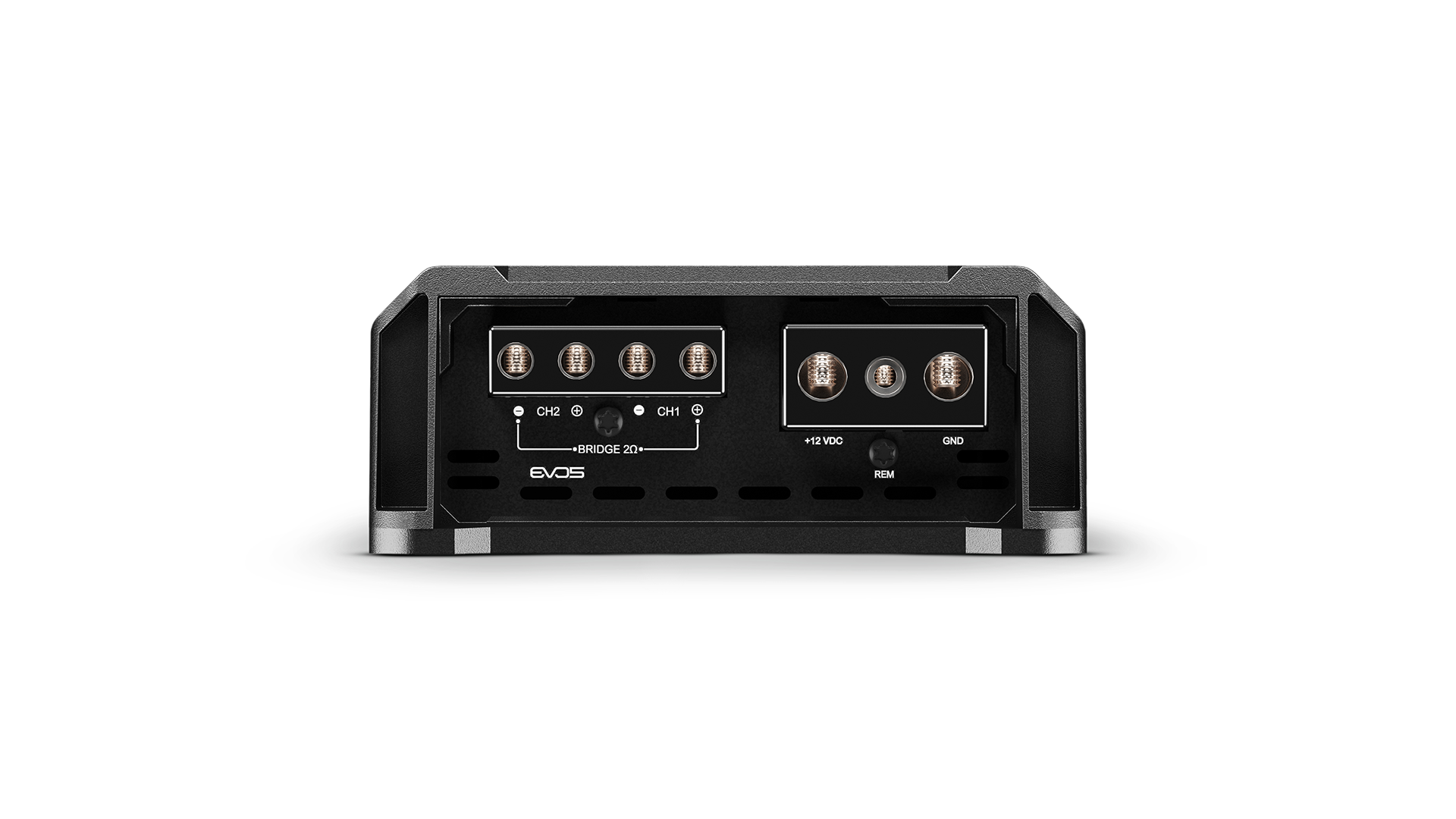

SounDigital 2000.2 EVO 5 – 2-channel amplifier 2 Ω

The SounDigital 2000.2 EVO 5 takes the power/price/size ratio of amplifiers to a new level. Never before have such high power outputs been achieved from such small dimensions—and at a very reasonable price. Damping factor over 1000, operating voltage from as low as 9 volts. All SounDigital models are designed and manufactured in their own production facility in Brazil.

Technical specifications

• Output power: 2 × 660 W RMS @ 2 Ω / 2 × 1000 W RMS @ 1 Ω
• Bridged: 1 × 2000 W RMS @ 2 Ω / 1 × 1320 W RMS @ 4 Ω
• Operating voltage: 8–16 V
• Current consumption (music): 89 A @ 2 Ω / 88 A @ 4 Ω
• Recommended fuse: 100 A
• Recommended battery: 100 Ah
• Efficiency: 89–90 %
• Damping factor: 200 (@ 100 Hz)
• Frequency response: 10 Hz–20 kHz
• SNR: 90 dB
• Input sensitivity: 0.2–4 V
• Crossover HPF/LPF: 80 Hz (12 dB/oct)
• Dimensions (L × W × H): 227 × 136 × 55 mm
• Weight: 1.54 kg

Do not connect the amplifier below the rated load!
