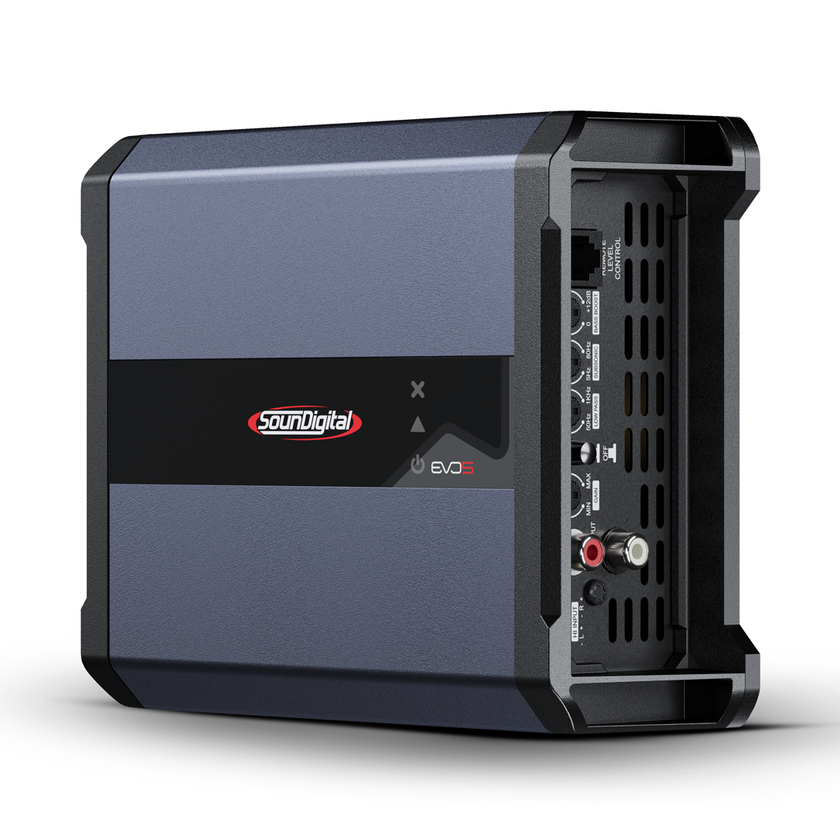

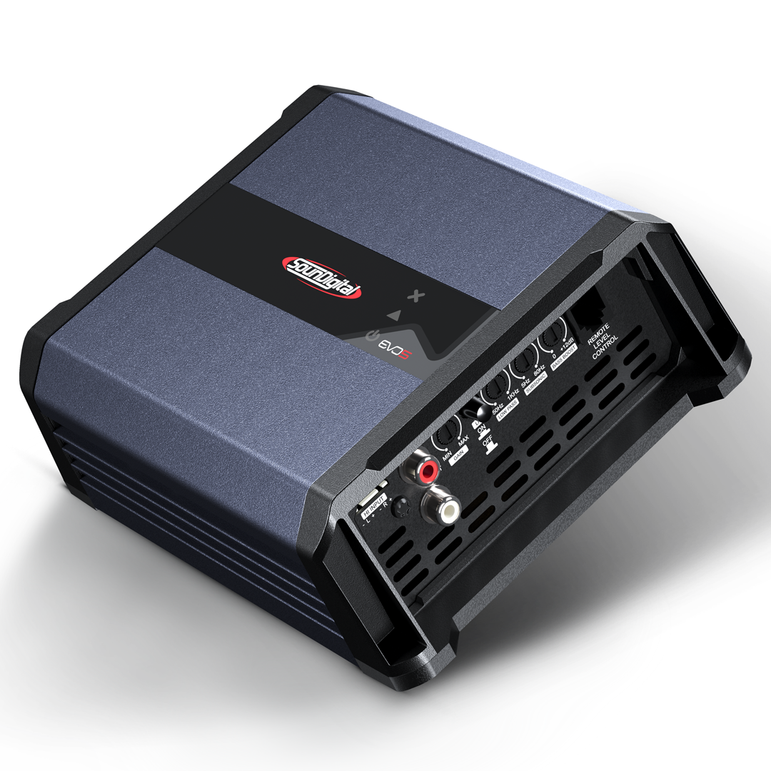

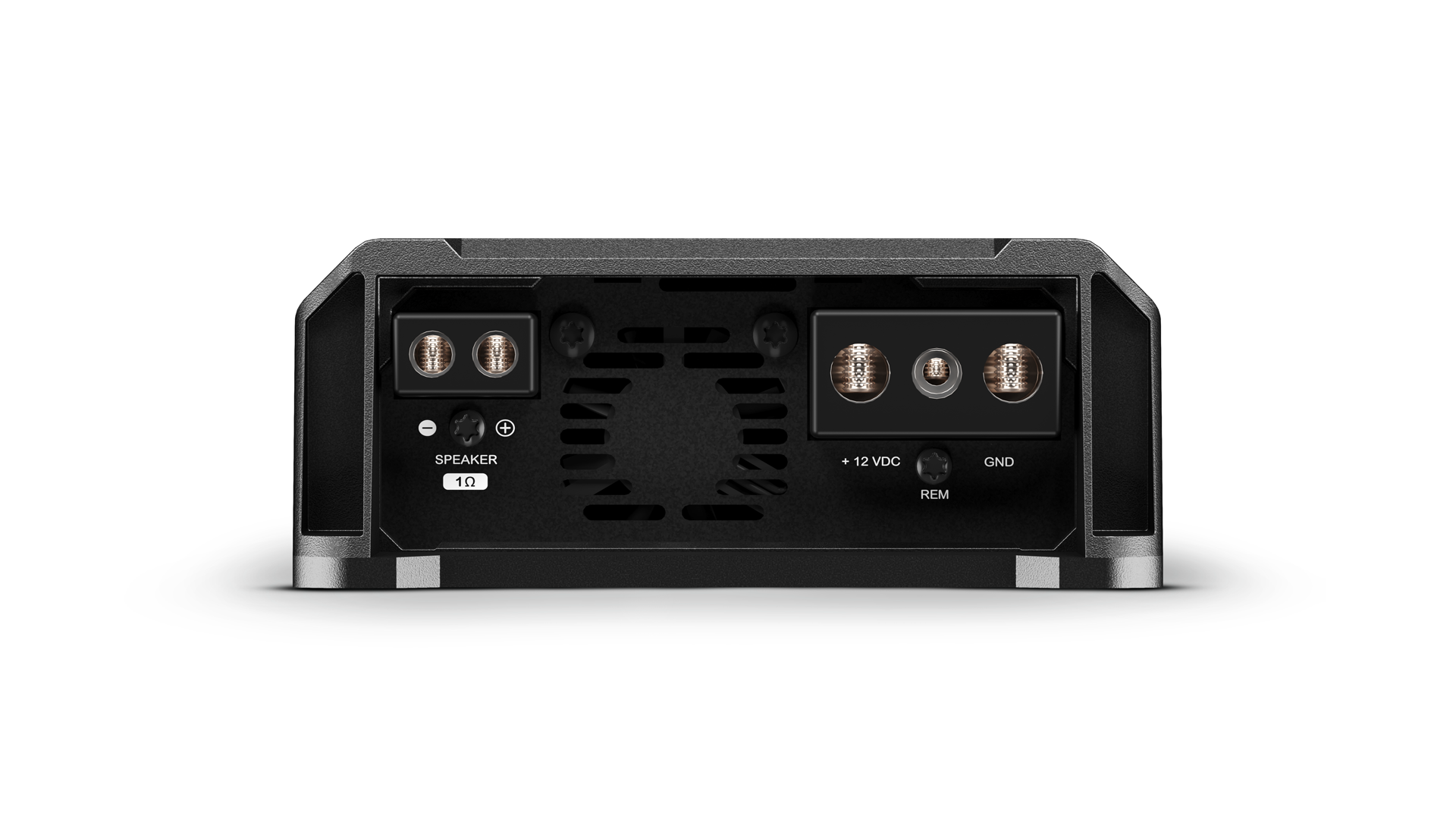

SounDigital 1600.1 EVO 5 - 1 Ohm
Soundigital amplifiers take the power/price/size ratio of amplifiers to a new level.
Never before has such high power been achieved from such small external dimensions. And at a very reasonable price! All models have a damping factor of over 1000!
High power levels consume a lot of power, and in many cars, voltage drops during peak music and when playing loudly are a problem.
Soundigital's amplifiers take this practical situation into account so that the operating voltage of the amplifiers can be as low as 9 volts!
Soundigital operates in a very rare way as an amplifier manufacturer these days, ALL models are designed and manufactured in their own production facility in Brazil.
Specifications:
Power @ 4Ω: 1 X 697 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 1Ω: 1 X 1600 WRMS
Frequency Response (-3dB):
5Hz ~ 25kHz
Subsonic Filter:
5Hz~80Hz
Low Pass Filter:
50Hz ~ 1kHz
Bass Boost:
0dB ~ 12dB @ 50Hz
Operating Voltage:
9V~16V
Signal-to-Noise Ratio:
1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB
Input Sensitivity:
0.2V ~ 2V
Current Draw (Music):
1Ω: 75A
2Ω: 71A
4Ω: 69.4A
Current Draw (Max):
1Ω: 149A
2Ω: 143A
4Ω: 138.8A
Total Efficiency:
1Ω: 85%
2Ω: 89%
4Ω: 91.5%
Damping Factor:
2000
Power Cable:
16mm² (5AWG)
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
Recommended Fuse (Music):
80A
Recommended Battery:
80Ah
Width:
13.6 cm / 5.4 in
Length:
18 cm / 7.1 in
Height:
5.48 cm / 2.1 in
Weight:
1.13 Kg.
