SounDigital 1600.1 BASSTRONIK - 2 Ohm

SounDigital 1600.1 BASSTRONIK - 2 Ohm

• 1-channel amplifier
• 1600W
• 2 Ohm model
• Speaker level input
• Damping coefficient over 2000!
• Very sturdy power side!
• For playing subwoofers / midbasses

The starting point for the design of SounDigital BASSTRONIK amplifiers has been how to create amplifiers with excellent efficiency.
and even more powerful amplifiers while still maintaining reliability and good sound quality.

This new series is primarily designed to drive powerful subwoofers/midbasses, which is why SounDigital has upgraded the power side of the amplifiers to be the most powerful they have ever used in their amplifiers!

The BASSTRONIK series 1600.1 and 3000.1 amplifiers are full-range amplifiers. It is possible to connect a low-pass filter
off using the ″LP″ switch.

The BASSTRONIK series amplifiers are: compact in size and deliver a lot of power.

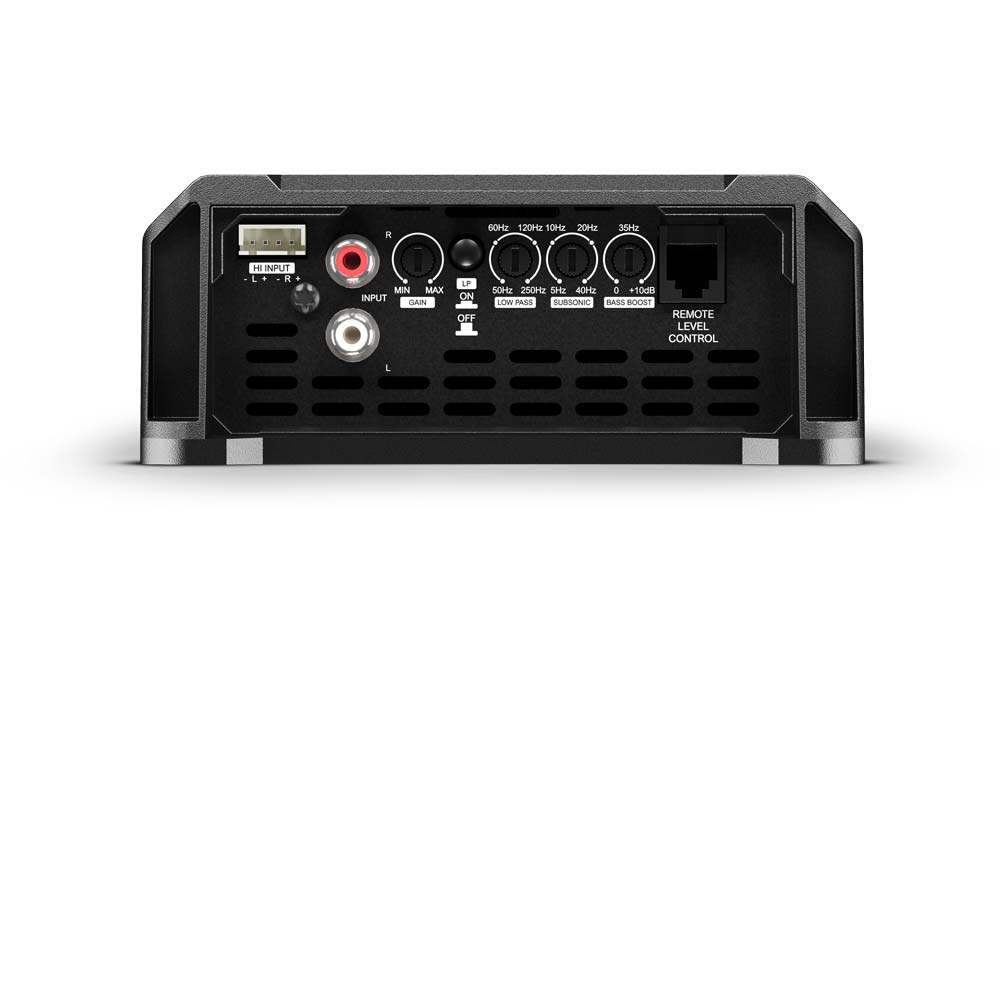

In addition to RCA connectors, the amplifiers also have a speaker-level input, as well as a connector for a wired level control (
SoundDigital RLC ).

The damping coefficient of these models is an incredible over 2000!

High power levels consume a lot of power and in many cars, the problem is that the voltage drops at the peak of the music and at high volumes.
when playing.

Soundigital amplifiers have taken this practical situation into account so that the operating voltage of the amplifiers can be as low as
low as 10 volts!

SounDigital is an amplifier manufacturer that operates in a very rare way these days,
ALL models are designed and manufactured in our own production facility in Brazil.

Specifications:
Power @ 4Ω: 1 X 1000 WRMS
Power @ 2Ω: 1 X 1600 WRMS

Frequency Response (-3dB):
5Hz ~ 20kHz

Subsonic Filter:
5Hz~40Hz

Low Pass Filter (12dB/octave):
50Hz ~ 250Hz

Bass Boost:
0dB ~ 10dB @ 35Hz

Input Sensitivity (RCA):
0.2V ~ 2V

Input Sensitivity (High Level input):
1.5V ~ 15V

Operating Voltage:
10V~16V

Signal-to-Noise Ratio:
90.2dB

Current Draw (Music):
82A

Current Draw (Max):
164

Total Efficiency:
85%

Damping Factor:
2000

Recommended Fuse (Music):
100A

Recommended Battery:
120Ah

Power cable size:
35mm²

Speaker Cable size:
4.0mm²

Remote Cable size:
1.5mm²

Width:
136.2 / 5.4 in

Length:
180.1mm / 7.1in

Height:
54.8 / 2.2 in
