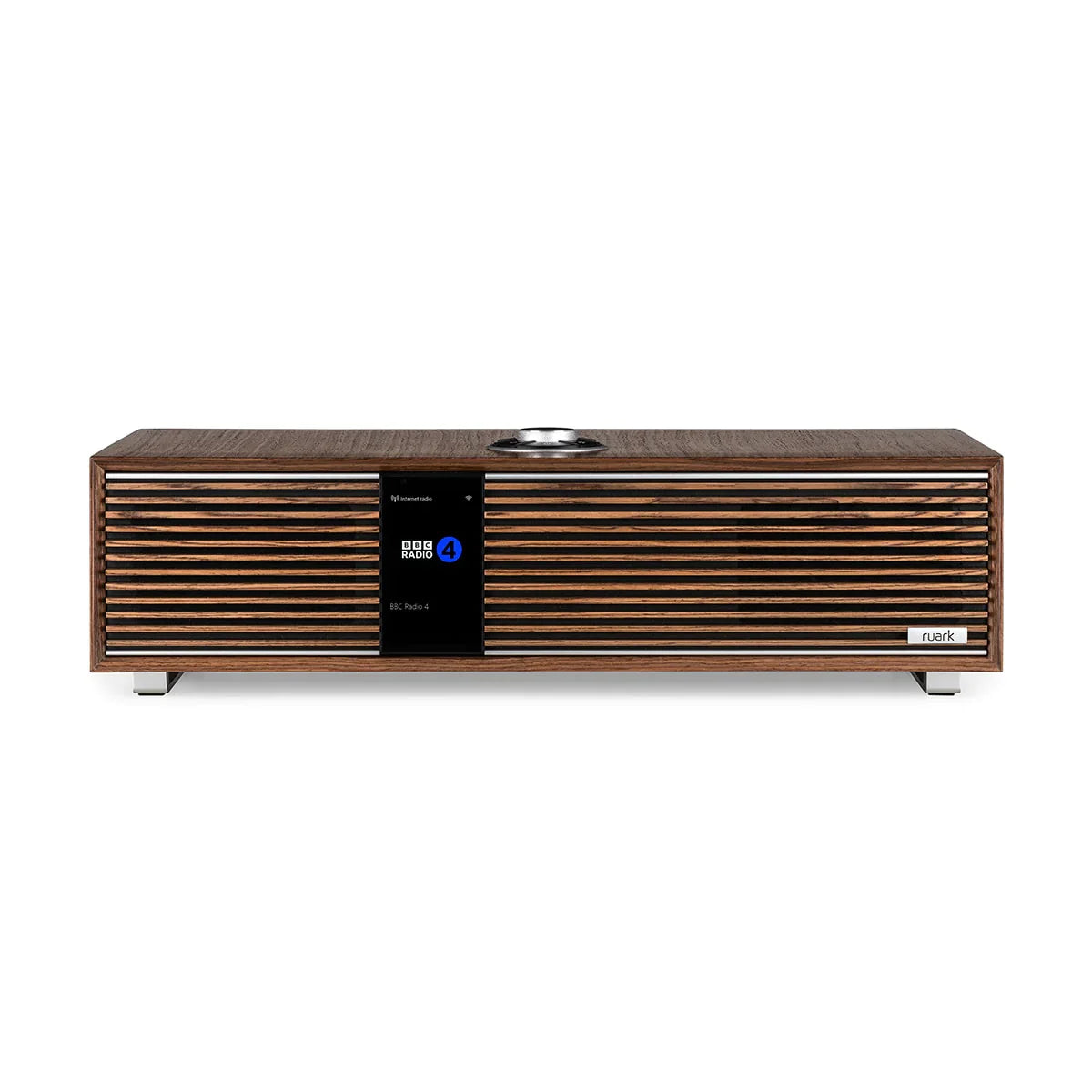

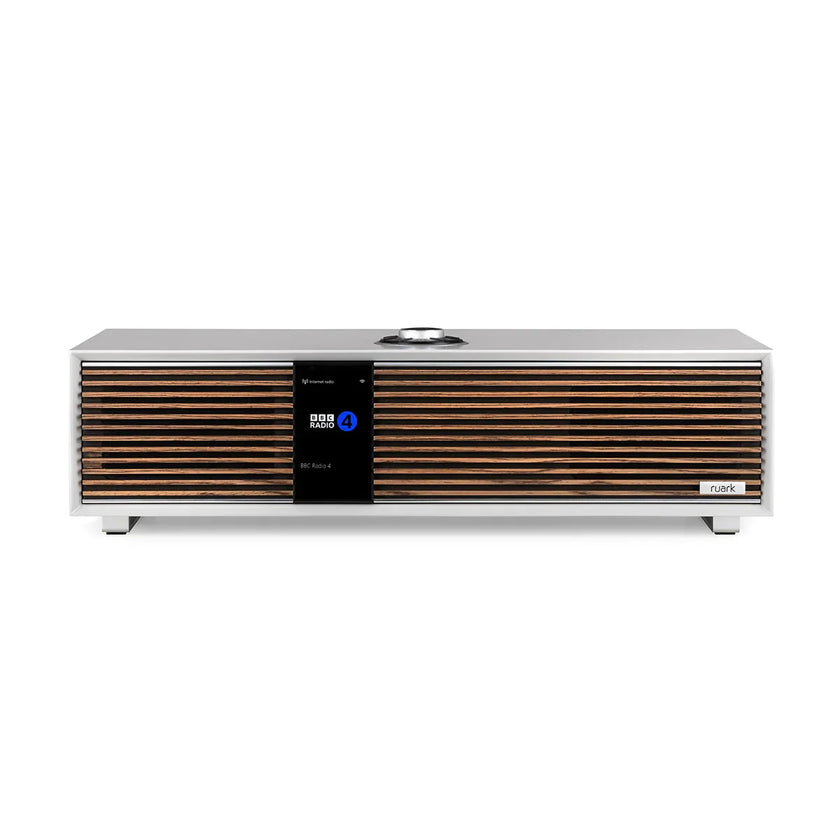

Ruark Audio R410 Integrated Music System

Beautiful streaming

Designed to be seen

With superb detailing and a modern 70s inspired aesthetic, R410 is a product designed to be seen. From the handcrafted grille to the precision-formed cabinet components, only the highest quality materials have been used.

Designed to be heard

Ruark's audio heritage means there is a proper understanding of the complexities of cabinet, electronic, and driver design to create sound that will genuinely touch your soul. R410 features a carefully tuned reflex enclosure for new NS+ bass-mid units and combined with the tweeters from the award-winning MR1 speaker, the result is an effortless performance that belies R410's compact stature. Together with a new generation digital amplifier, audiophile components, and the best sound processing technologies, R410 creates a magical performance that will connect you closer to the music you love.

Versatile Hi-Res connectivity

At the heart of R410 is a powerful processor, capable of supporting the highest quality music files. Spotify and TIDAL Connect are built-in, but if you prefer your music at home, R410’s media player will allow you to quickly browse and stream music from other devices on your network. In addition, through its inputs, R410 also makes it easy to connect a turntable or play CDs by connecting a CD-ROM drive to the USB input. Notably, with an HDMI ARC/eARC connection, R410 is an excellent sound system for televisions and the perfect solution for all your entertainment needs.

Apple AirPlay and Chromecast built-in

From 50s LPs to 80s CDs and 1900s MP3s, it's clear that the way we listen to music has evolved. With R410, you can still connect a turntable or CD drive and enjoy it, but primarily, R410 is designed for streaming and taking advantage of the incredible music services available online.

With Apple AirPlay and Chromecast built-in, you can stream directly to R410 from services such as BBC Sounds, Amazon Music, Deezer, and Qobuz with better than CD sound quality. You can also easily create a multi-room system by linking R410 with other AirPlay and Chromecast speakers or devices. All future 100 series models will also have this compatibility.

Pleasant and easy to control

The RotoDial control system has been a distinctive feature of Ruark products since the launch of the R1 in 2006. R410 also comes with a similar rechargeable remote control. Thanks to Bluetooth connectivity, no aiming is required – and like a quality watch, it's an object you'll love to use because it looks and feels good.

Beautiful to behold

R410's advanced processor has enabled a fluid user interface that processes input from apps and the control system and quickly displays the interaction on R410's high-resolution color screen. The vertical orientation of the screen deliberately mimics the way we view most services on our smartphones, making R410 intuitive to use, but most importantly, the screen brings an interactive element to R410 that few other systems offer.

Technical specifications

Audio

• Frequency response: 35Hz - 22kHz
• Speaker units
• 2 × Ruark 20mm silk dome tweeters
• 2 × Ruark 100mm NS+ bass-mid
• Amplifier: 120 W RMS Class D amplifier (0.02% THD @ 30 W/CH)
• Extensions
• Adjustable bass and treble settings
• Stereo+ 3D audio enhancement
• Adaptive EQ provides ideal sound based on volume
• Enclosure type: Tuned twin bass reflex enclosure
• Digital to analog: Burr-Brown 32-bit 192 kHz DAC
• Analog to digital: Burr-Brown 32-bit 192 kHz ADC

Features

• Controller: Intuitive RotoDial control system
• Remote control: RotoDial BT LE rechargeable remote control
• Display: Hi-Res auto-dimming 4" color TFT screen
• Presets: 20 global presets
• App control via Spotify, BBC Sounds, etc.
• Auto-standby: Adjustable auto power-saving mode
• Adjustable input levels: Adjustable line input and optical input levels
• USB charging port: USB-C 5V 1A (5W)
• DST: Automatic daylight saving time adjustment
• Software updates via wireless or USB as needed
• User interface languages: Multilingual

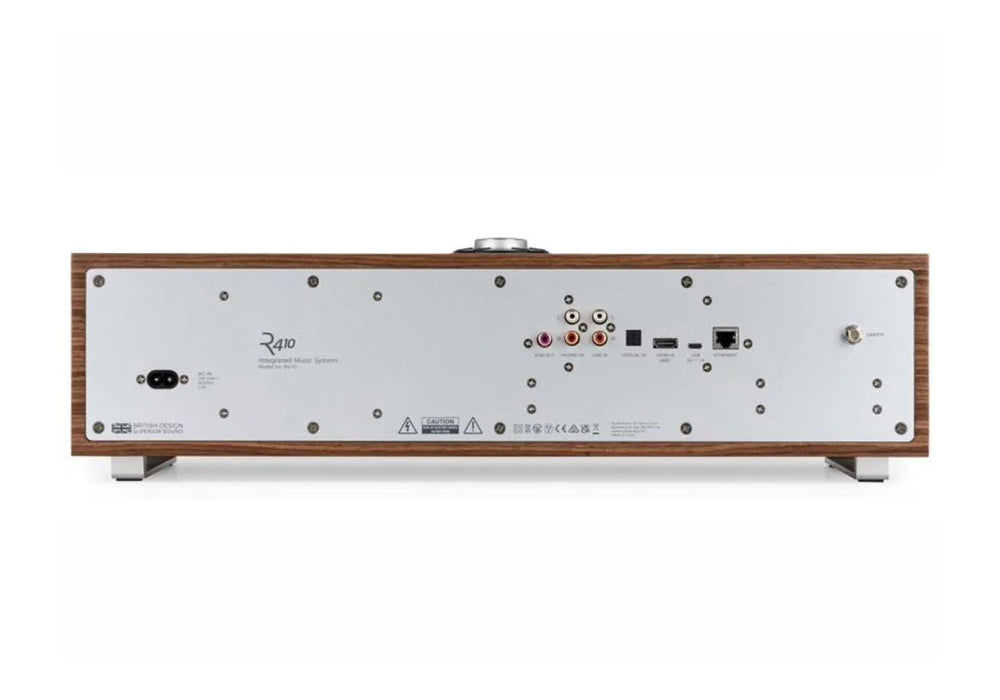

Connectivity

• Radio: Internet Radio DAB / DAB+ / FM with RDS (87.5-108MHz)
• Multi-room compatible via Apple AirPlay and Google Cast
• Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
• Apple AirPlay and Google Chromecast built-in streaming
• Built-in music services: Spotify Connect, TIDAL Connect
• Supported music services: Amazon Music, BBC Sounds, Deezer, Qobuz and many more
• Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
• Ethernet: RJ45 connector 10/100 Mbps
• DLNA UPnP™ DLNA media server compatible
• CD player CD playback via external USB CD drive (optional)
• HDMI ARC and eARC
• Line input Stereo: RCA input (up to 2.3 Vrms)
• RIAA phono input: Turntable input with MM phono gain stage
• Optical input: TOSLINK input up to 24-bit 192 kHz
• Subwoofer output via mono RCA
• USB 2.0 Type C FAT32 playback port
• Antenna: 75Ω F-type antenna connector

Supported audio formats

• MP3 up to 48kHz 320kbps
• AAC formats up to 96 kHz 320kbps
• FLAC up to 24-bit 192 kHz
• WAV up to 24-bit 192 kHz
• WMA formats up to 48 kHz 320kbps
• WMA 9 up to 48 kHz 256kbps

General specifications

• Product dimensions: H150 × W560 × D290 mm
• Product weight: 9.5kg
• Product power supply: 90-240VAC, 50-60Hz, 2.5A
• Power consumption: <2W in standby; 5-10W typical

Package contents

• 2m power cord
• Quick start guide
• RotoDial BT LE rechargeable remote control
• Telescopic antenna
