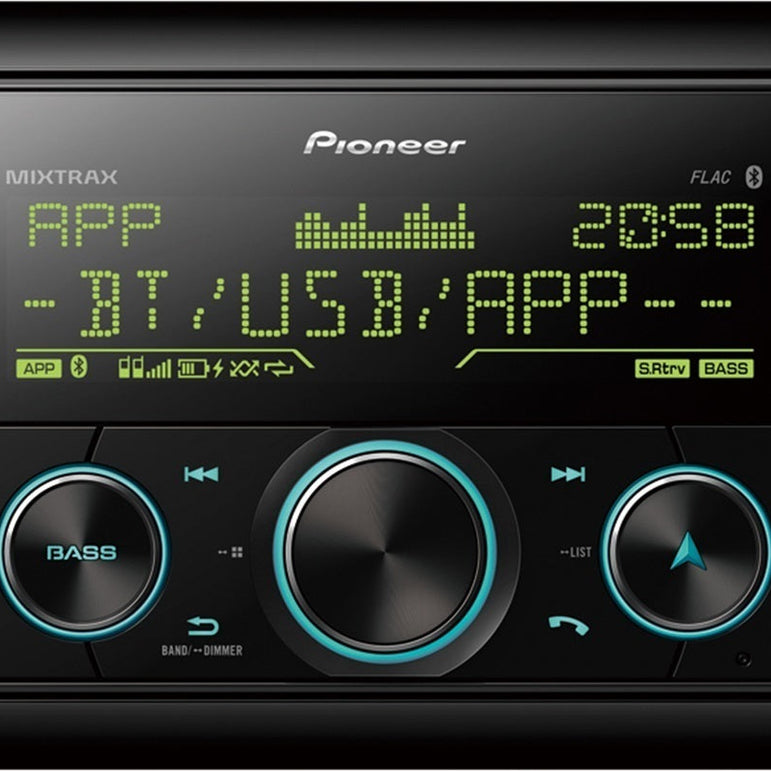

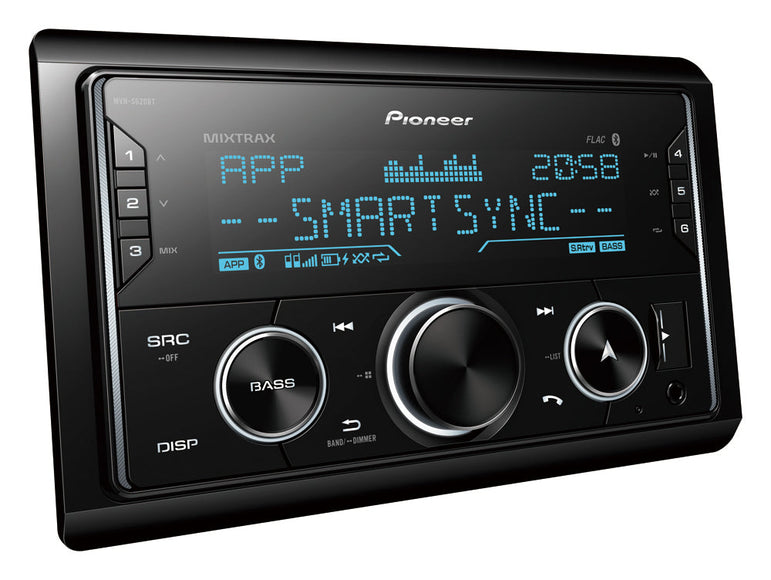

Pioneer MVH-S620BT
A 2-DIN short-body player with truly versatile features. The MVH-S620BT has Bluetooth, Spotify App, Smart Sync App (Apple and Android compatible). The device also has a built-in DSP with 2/3-way crossovers, time delay adjustments, and a 13-band graphic equalizer. The device also plays FLAC files. With Bluetooth connectivity, you can make handsfree calls and stream music wirelessly from your smartphone. The device comes with a microphone for HandsFree use. By downloading the Pioneer Smart Sync app, you can use your iOS or Android phone as a remote control for the player. The app allows you to make clear adjustments to the player and control the player via your phone.
Specifications:
Features:
- Bluetooth®
- Pioneer Smart Sync App: iPhone / Android
- Spotify: iPhone / Android
- MIXTRAX
- 210,000 color RGB display and RGB buttons.
- 3 x line output (2V)
- 1 x AUX IN line input 3.5mm (on the front panel of the player)
- 1 x USB port (on the front panel of the player)
USB playback:
• MP3, WMA, WAV, FLAC and AAC audio files
Standard Mode = Subwoofer + Front + Rear outputs
Network Mode = Subwoofer + Midrange + Treble outputs
Subwoofer channels:
Low LPF: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
Low LPF Slope: 12 / 18 / 24 / 30 / 36 dB/oct
Low Level: -24db – +10dB
Subwoofer Phase: Normal / Inverted
MID channels_
Mid HPF: 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 Hz
Mid HPF Slope: 0 / 6 / 12 / 18 / 24 dB/oct
Mid LPF: 1.25 / 1.6 / 2 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz
Mid LPF Slope: 0 / 6 / 12 / 18 / 24 dB/oct
Mid Level: -24db – +10dB
HIGH channels:
High HPF: 1.25 / 1.6 / 2 / 2.5 / 3.15 / 4 / 5 / 6.3 / 8 / 10 / 12.5 kHz
High HPF Slope: 6 / 12 / 18 / 24 dB/oct
High Level: -24db – +10dB
NOTE!!!
The high-pass of the treble cannot be bypassed, but the minimum crossover frequency is 1.25kHz and the minimum crossover slope is 6dB/oct, so it is not suitable for use with broadband in Network Mode.
NOTE!!!
In Network Mode, the player has no outputs for rear speakers, only for active 2-way front + subwoofer.
Channel-specific time delay
0 – 350cm (2.5cm increments)
13-band graphic EQ
50Hz / 80Hz / 125Hz / 200Hz / 315Hz / 500Hz / 800Hz / 1.25kHz / 2kHz / 3.15kHz / 5kHz / 8kHz / 12.5kHz
Correction range: ±12dB.
