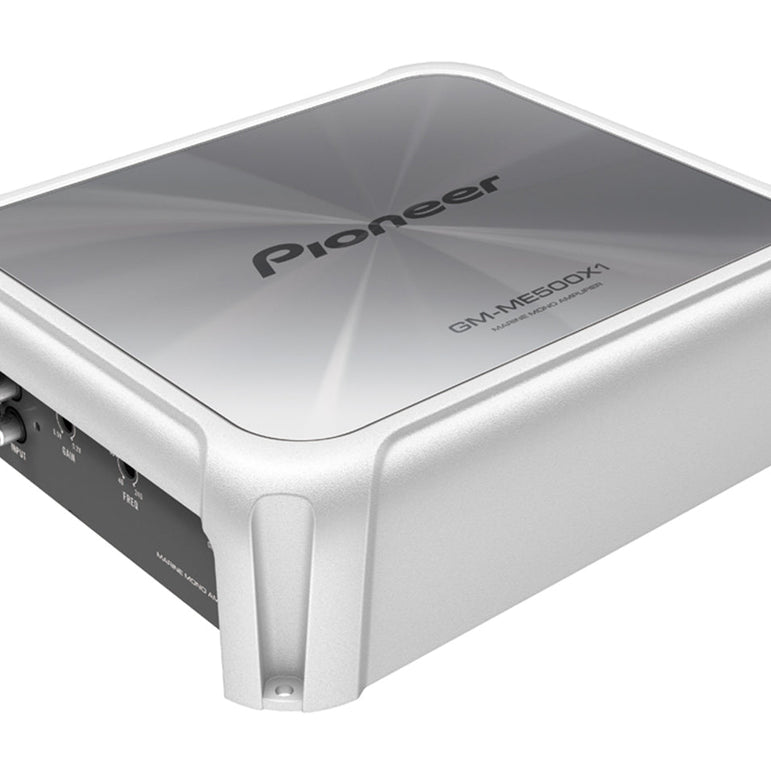

PIONEER GM-ME500X1
Pioneer's GM-ME500X1 is a Marine Class D amplifier specifically designed for boat use. The amplifier features a durable paint finish, splash guards for fuses and connectors. Pioneer's digital amplifier circuit includes a "Protection Control System" that detects internal temperature and adjusts output power accordingly. Thanks to the "Automatic Signal Sensing and Turn-On" function, the amplifier automatically detects the input signal and turns the amplifier on and off via the speaker line input. The GM-ME500X1 includes a wired Bass Boost remote control.
Specifications:
Channels: 1
Peak power: 1 x 600W (4Ω), 1 x 1000W (2Ω), 1600W (1Ω)
Continuous power: 1 x 300W (4Ω), 1 x 500W (2Ω), 1 x 800W (1Ω)
Playback frequency: 10 Hz – 240 Hz
Bass Boost: Yes
Bass Boost Remote Control: Yes
Low-pass filter: 40 - 240Hz (12 dB/oct)
Input sensitivity (RCA): 0.2V - 6.5V
Input sensitivity (speaker level): 0.8V - 16V
THD: 0.05
Signal-to-noise ratio: 100 dB
Dimensions (WxHxD): 265 mm x 215 mm x 60 mm
Specifications:
Channel(s)1
Speaker TerminalsBlock-type
LPFYes
Maximum power1 x 600W (4Ω)
1 x 1000W (2Ω)
1600W Total
Continuous power output1 x 300W RMS (4Ω)
1 x 500W RMS (2Ω)
1 x 800W RMS (1Ω)
Frequency response 10 Hz to 240 Hz
Input level controlRCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion 0.05%
S/N ratio 100 dB
Chassis size (W x H x D) 265 mm x 215 mm x 60 mm
Bass BoostYes
Speaker line input sensor Turn-on sensor
Bass Boost Remote
Crossover Frequency40 - 240Hz (-12 dB/oct) Hz
Mono
Audio
RCA Terminals.
