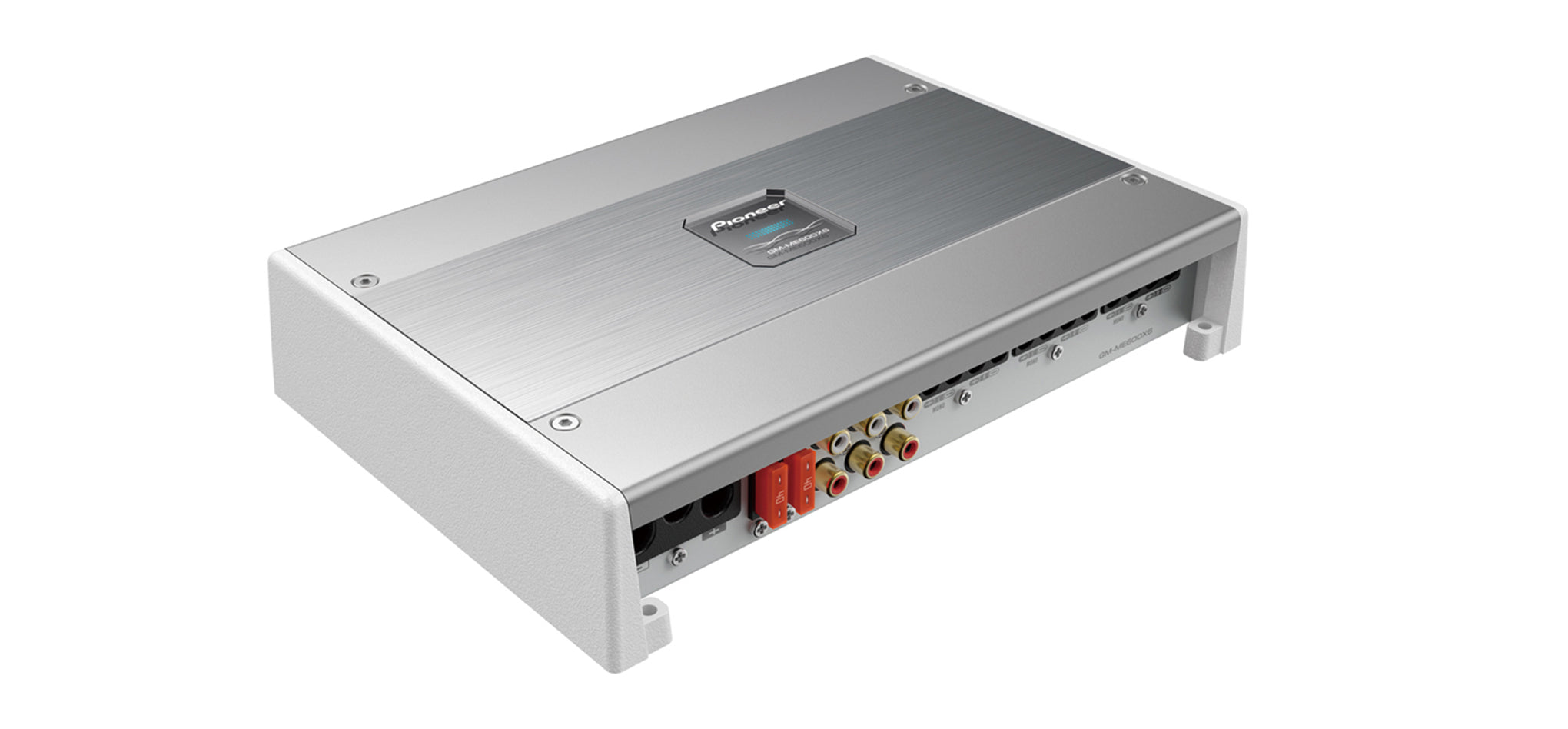

PIONEER GM-ME600X6
Pioneer's GM-ME600X6 is a Marine Class D amplifier specifically designed for boat use. The amplifier features a durable paint finish and splash guards for fuses and connectors. For added flexibility, easy installation is assured thanks to the “Automatic Signal Sensing and Turn-On” function, which automatically detects the input signal and turns the amplifier on and off via the speaker line input. Pioneer's digital amplifier circuit includes a “Protection Control System” that detects internal temperature and adjusts output power accordingly. With the “Automatic Signal Sensing and Turn-On” function, the amplifier automatically detects the input signal and turns the amplifier on and off via the speaker line input.
Specifications:
Category: Class D
Channels: 6/5/3
Continuous Output Power: Normal Mode: 6 x 75W RMS (4Ω), 6 x 100W RMS (2Ω), 3 x 150W RMS 4Ω (bridged)
Power mode: 6 x 100W RMS (4Ω), 6 x 100W RMS (2Ω), 3 x 200W RMS 4Ω (bridged)
Input sensitivity (RCA): 0.2V - 6.5V
Input sensitivity (speaker level): 0.8V - 16V
THD: 0.05
Signal-to-noise ratio: 95 dB
Maximum current consumption: 56A (power mode)
Filters HPF / LPF: 50–500Hz, (12dB/oct)
Dimensions (WxHxD): 260 X 50.6 X 180mm
Device weight: 2.6kg
Specifications:
Speaker line input sensor Turn-on sensor
Variable LPF
D-class
Channel(s)6/5/3
Speaker TerminalsBlock-type
Continuous Power OutputNormal Mode: 6 x 75W RMS (4Ω), 6 x 100W RMS (2Ω)
- Mono Mode: 3 x 150W RMS (4Ω)
High Power Mode: 6 x 100W RMS (4Ω), 6 x 100W RMS (2Ω)
- Mono Mode: 3 x 200W RMS (4Ω)
Frequency response10Hz～240Hz (+0dB,-3dB)
Input level controlRCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion 0.05%
S/N ratio 95 dB
Max. current consumption56A (High Power Mode)
Size260(W) X 50.6(H) X 180(D) mm
Unit weight2.6kg
Crossover Frequency50-500Hz, (-12dB/oct) Hz
Load impedance capability2 ～8Ω
Audio
Variable HPF
RCA Terminals
Low Pass Filter
High Pass Filter
Connections
Multi-block Terminal.
