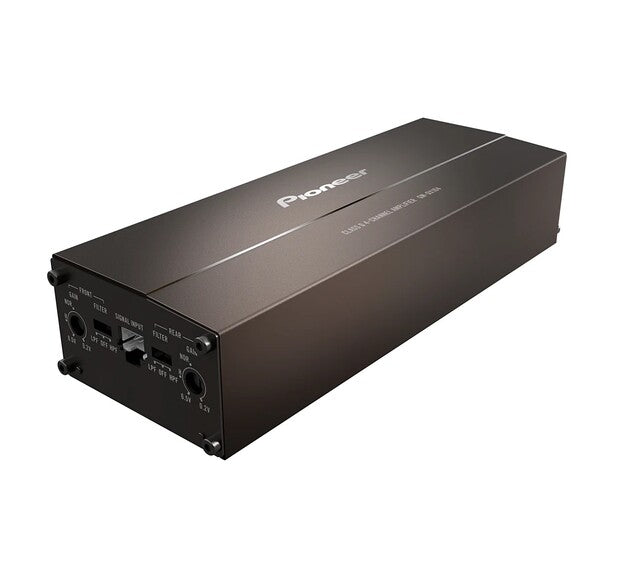

Pioneer GM-DX104

GM-DX104 ultra-compact 4-channel amplifier.

Thanks to its small size, the amplifier can be installed, for example, behind the dashboard, in the center console, or even in the glove compartment. The amplifier is installed in the car with a Plug&Play wiring harness.

The GM-DX104 is designed to be compatible with high voltage systems up to 16V, making it a suitable solution for electric vehicles (EVs)

Bridgeable:
Yes

Class:
D

Grounding System:
Negative

Power Source:
14.4 V DC (10.5 V to 16.0 V)

Protection Control system:
Yes

Terminal Type:
Removable

Unit Weight:
1.2 lbs

Allowable Load Impedance:
2 ohm to 8 ohm allowable

Avg Current Consumption (amps x #ch):
1.6 A (4 Ohms x 4ch),1.6 A (2 Ohms x 4ch),1.6 A (4 Ohms x 2ch Bridged)

Continuous Power Output:
45 W x 4-Channel - 4 Ohm, 90 W x 2-Channel - 4 Ohm Bridged

Frequency Response Channel:
10Hz to 40kHz (+0dB,-3dB) A/B Ch

Fuse Rating:
15A

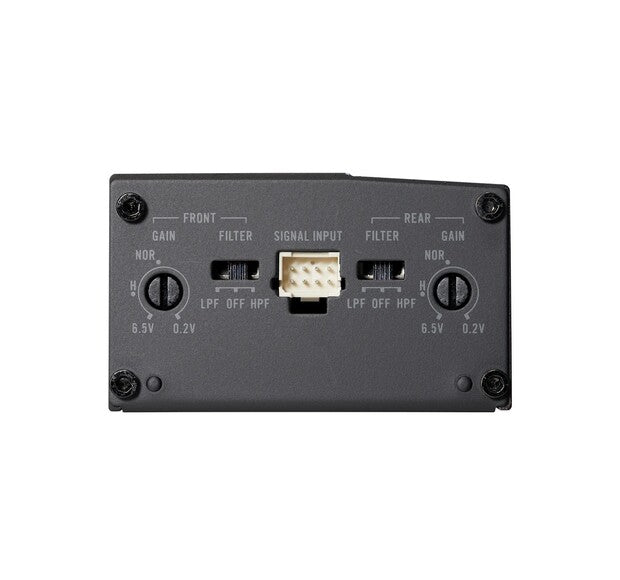

High-Pass Crossover frequency:
80Hz (LPF/OFF/HPF)

High-Pass Slope (dB/octave):
-12 dB/oct

Low-Pass Crossover frequency:
80Hz (LPF/OFF/HPF)

Low-Pass Slope (dB/octave):
-12dB/oct

Maximum Power Output:
100 W x 4-Channel (4 Ohm), 200 W x 2-Channel (4 Ohm Bridged)

RCA Inputs:
4-Channel

Signal to Noise:
93 dB

Speaker Line input Sensor:
Yes
