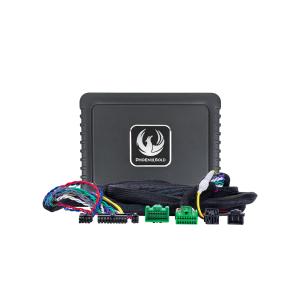

Phoenix Gold ZDAP-VOL1

Phoenix Gold ZDAP-VOL1

Six-channel amplifier with eight-channel DSP processor.

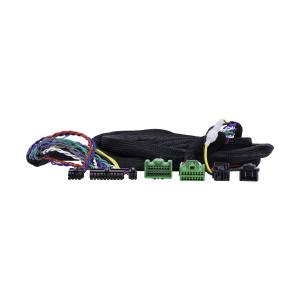

Consists of products: ZDA6.8 + ZDC-VOL1

NOTE: Only for cars with High Performance audio and the original amplifier with FIVE cooling fins on top of the amplifier.

Compatibility

4 x 30W + 2 x 70W amplifier, with an eight-channel signal processor, offering excellent sound quality and adjustability through easy-to-use software.

The amplifier operates in Class A/B, which produces an exceptionally warm and natural sound for your vehicle.

Plug & Play installation on over ten different Volvo models.

The ZDA6.8 DSP amplifier revolutionizes your car's audio performance in this price range, outperforming all factory-installed amplifiers.
Unlike most similar products that use Class D technology, the ZDAP-VOL1 utilizes Class A/B technology, producing a warmer and more natural sound that brings your music to life. Even without DSP adjustments, the sound quality is significantly improved, and the built-in DSP takes the sound even further, allowing you to fine-tune your car's sound system to your exact preferences - regardless of your musical taste.

Input Priority
Input Priority ensures seamless integration with your car's original head unit. You can use RCA input or digital sources such as optical S/PDIF input, coaxial input or built-in Bluetooth (Bluetooth 5.0) without losing important sounds from the original equipment, such as parking sensors, alarms and radio signals.
For example, if your vehicle's head unit has a high-pass filter that limits bass, you can bypass this limitation by streaming the audio directly to the amplifier via Bluetooth – while retaining all the functionality of the OEM system.

DSP outputs
The ZDA6.8 not only upgrades your system, but also allows you to expand it. Thanks to two freely configurable RCA DSP outputs (channels 7-8), you can connect, for example, a subwoofer amplifier and control it completely freely via DSP. Delay settings, crossover filters and equalizer options ensure top-class performance for additional components.

Software
You control the processor with free and easy-to-use PC software (compatible with Windows 10 and 11). Connect to your computer with the included USB-B cable and you have the following control options:

• 31-band parametric equalizer (PEQ) for all channels

• Selectable filter types (Bessel, Butterworth, Linkwitz-Riley) and adjustable slopes from -6 dB to -48 dB

• Time delay adjustments for all channels

• Fully customizable channel routing

• Custom Channel Links (Copy or Link)

These advanced features allow you to adjust your sound system perfectly to your own preferences.

Main features

• Burr Brown OPs – The same cutting-edge technology as in Phoenix Gold's High End ZQ series, bringing the ultimate in sound precision.

• Burr DAC PCM1681 – Premium digital-to-analog conversion ensures the best possible conversion.

• Bluetooth 5.0 – Stable and high-performance wireless connection.

• Toshiba TDA transistor package – The perfect balance of power and precision.

• Molded heat sink – Advanced cooling design ensures performance even under heavy use.

• 48 kHz DSP sampling rate – Incredible clarity and processing precision.

• Gold-plated PCB – Phoenix Gold's commitment to quality and durability.

• Molex Connectors – Reliable connections for easy installation.

• 8-channel DSP (all models) – Unlimited possibilities for system customization.

• Class A/B design – Natural, distortion-free sound without noisy fans.

Phoenix Gold ZDAP-VOL1

Specifications:

• Amplifier class: A/B

• Confirmed channels: 6

• DSP channels: 8

• Frequency response (-3dB): 15 Hz – 23 kHz

• Maximum power: 520 W

• RMS power (4 Ω): 2 x 70 W + 4 x 30W

• RCA output voltage: 4 V

• DA converter: Burr Brown PCM1681

• DSP resolution: 24 bits

• Sampling frequency: 48 kHz

• S/N ratio (analog/digital input): -90 dB

• Total Harmonic Distortion (THD): 0.1%

• Channel leakage: -60 dB

• Damping factor: 120

Connections and functions:

• Speaker level input: Yes

• Auto start: Yes

• Input sensitivity (speaker level): 0.2 V – 20 V

• Input sensitivity (line level): 0.2 V – 5 V

• Analog inputs: 6 × speaker level / 2 × line level

• Digital inputs: Bluetooth / Coaxial / USB / SPDIF

• Line-level outputs (RCA): 8

• Alarm input and output: Yes

• Computer connection: USB-B (PC software, Windows 10/11 compatible)

• Phone app: Coming soon...

Power consumption and installation:

• Operating voltage: 9 V – 16 V

• Start-Stop compatibility: Yes

• Quiescent current: 1.5 A

• Maximum current consumption: 30 A

• Overall efficiency (4 Ω): 60%

• Power connector: 10 mm²

Accessories:

• Remote control (optional): ZDAWCT
