Music Hall mmf-11.3SE

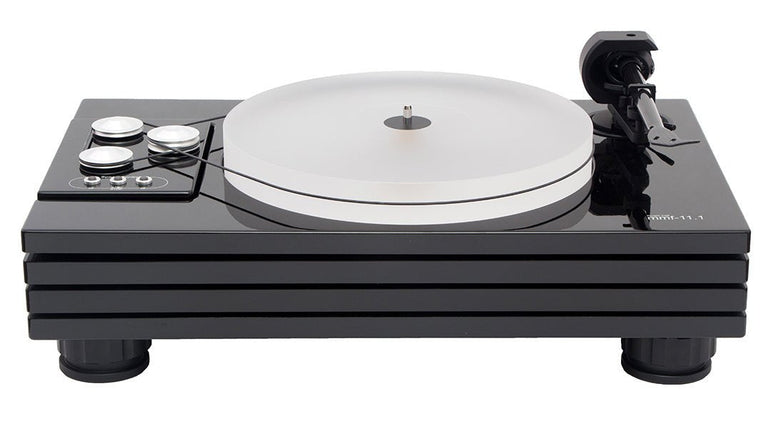

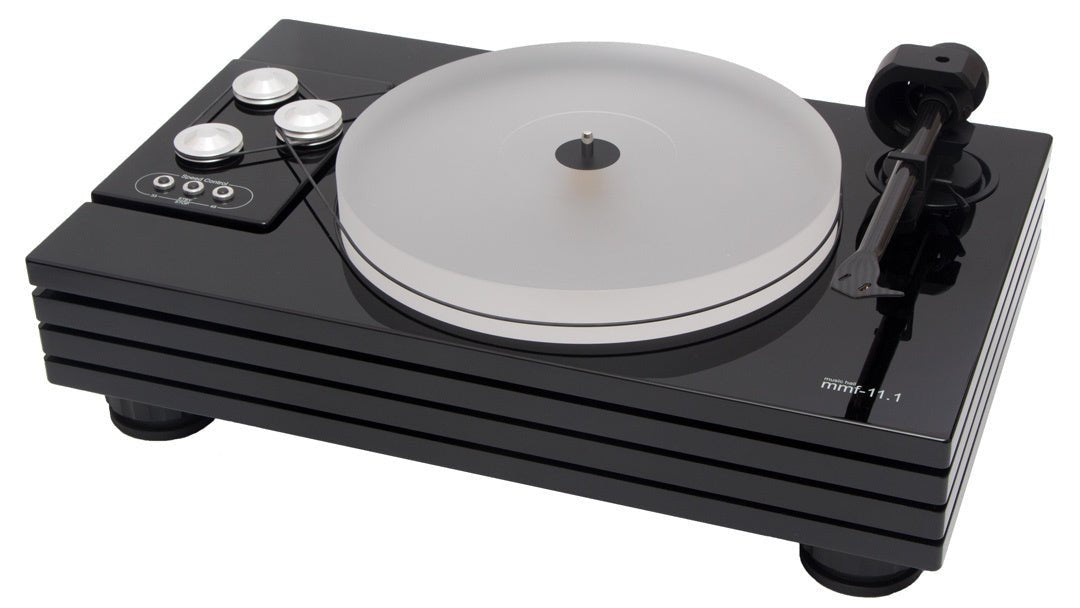

The Music Hall mmf-11.1 is the flagship model in the collection, a belt-driven audiophile turntable that utilizes a four-layer sandwich design.

The separated design aims to isolate critical audio components from each other, with each potentially interfering element having its own chassis part. The tonearm is mounted on the top chassis, and the inverted ceramic fluid-lubricated main bearing is mounted on the second chassis, allowing the partially recessed 1 1/2″ acrylic platter to rotate freely.

Key Features:

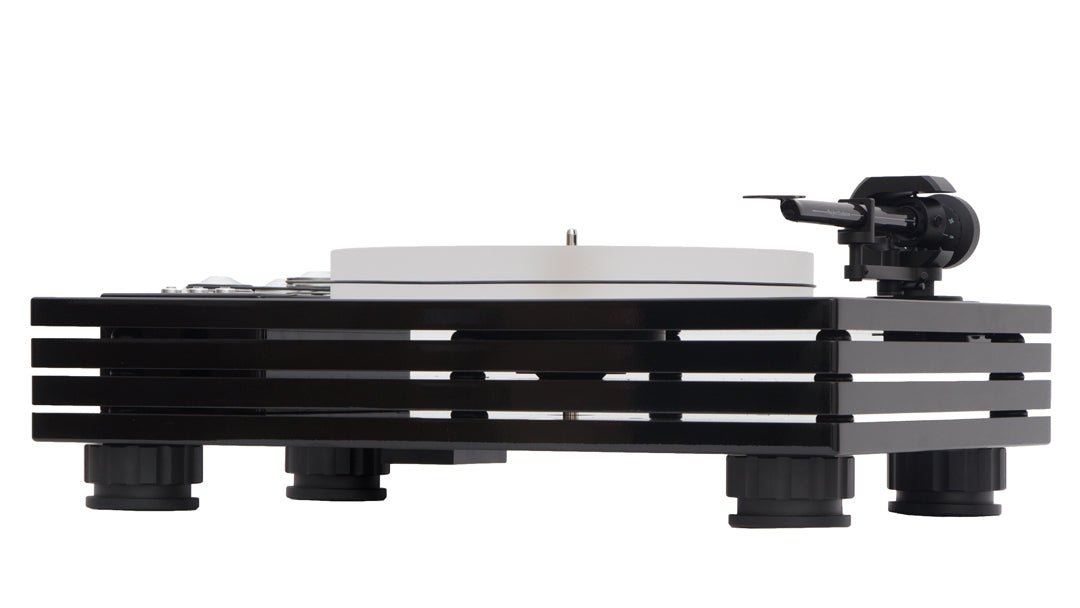

• Music Hall's unique four-layer design with Sorbothane vibration isolation

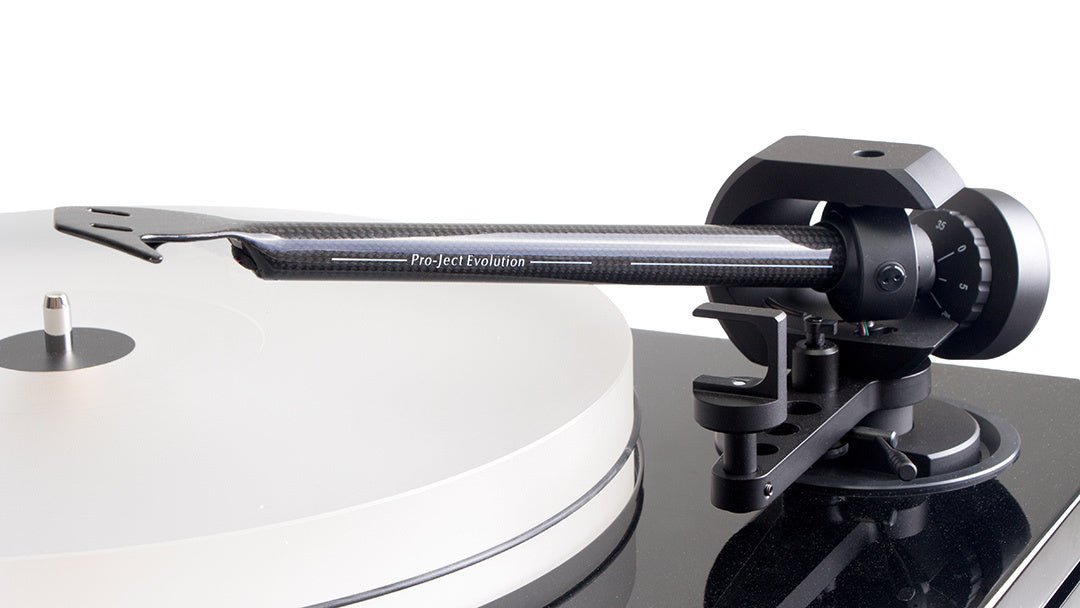

• One-piece carbon fiber Project '9cc Evolution' tonearm
• The tonearm features a 4-point gimbal bearing with precise ABEC bearings
• The internal tonearm wiring is made of high-purity copper
• Only two contact points from the cartridge to the output terminals
• The center of gravity of the counterweight is precisely matched with the stylus's center of gravity for minimal resonance
• Fully adjustable and damped (VTA) tonearm lift mechanism

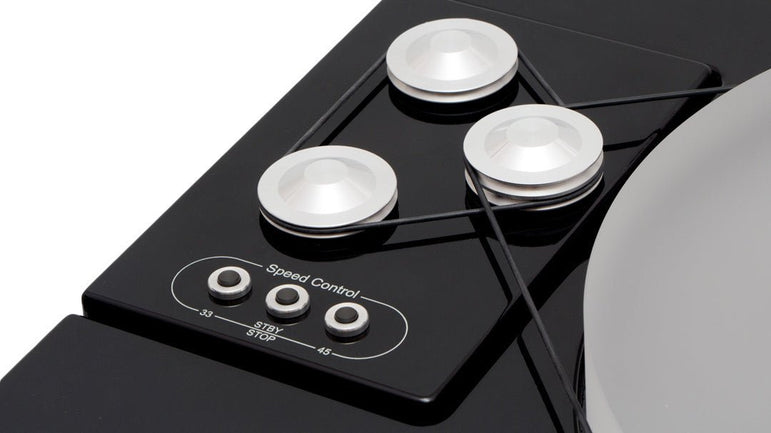

• Microprocessor-controlled and electronically adjustable dual motor system
• 33 1⁄3 and 45 rpm speed change at the push of a button
• Motors and flywheel assembly are mounted on their own resonance-free base plate in the lower part of the chassis

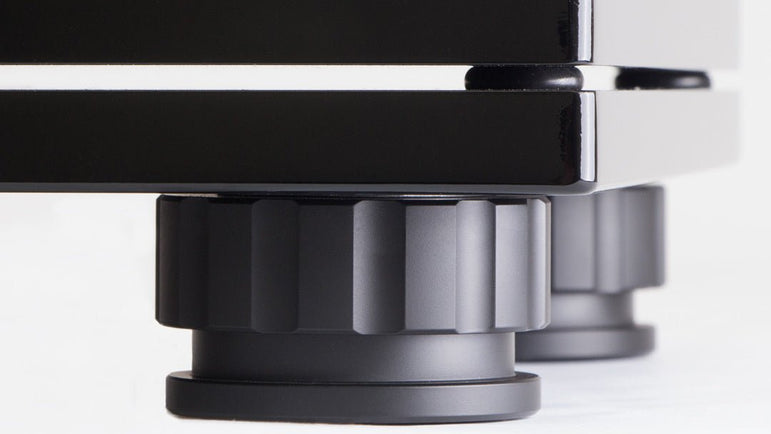

• Isolation feet adjustable via magnetic levitation
• Inverted ceramic fluid-lubricated main bearing for extremely quiet operation
• Solid acrylic platter
• Removable acrylic dust cover

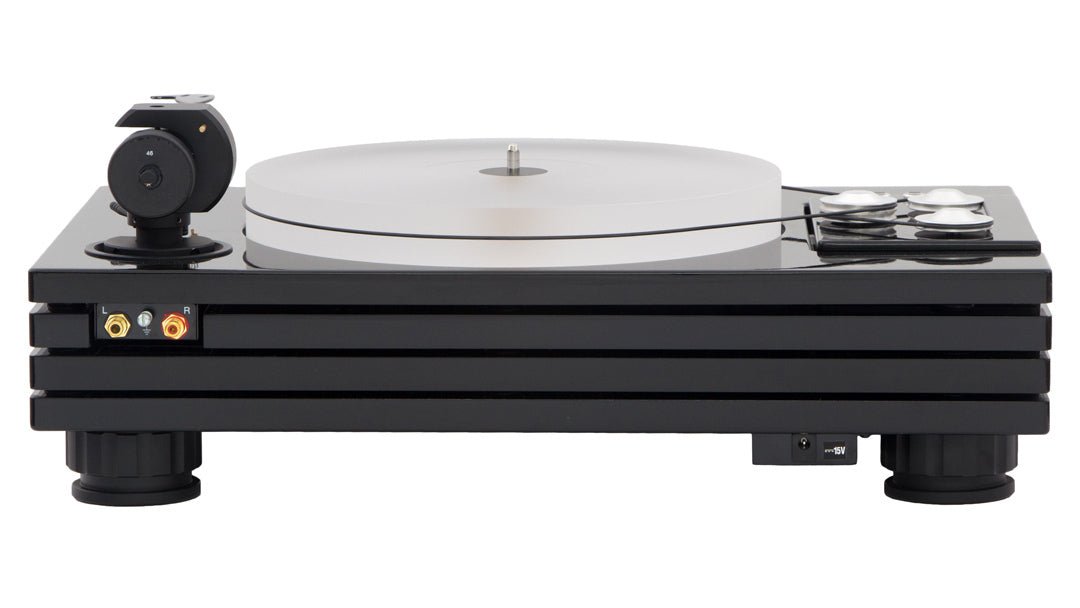

• High-quality gold-plated RCA connectors with detachable phono cable
• Quiet, belt-driven version
• Low noise, fully manual belt-drive unit, dust cover, 45 rpm adapter
• Delivered in a stunning wooden box
• Integrated spirit level for precise adjustment
• Dust cover and 45 rpm adapter included

Specifications

• speed of turntable: 33 1/3 or 45 r.p.m.
• change speed: electronically, luminous buttons
• deviation speed: < ±0.1%
• variance speed: < ±0.08%
• mechanical distance: > -45dB
• electrical distance: > -65dB
• drive: silicone belt over pulley
• motor: 2 x synchronous motors; the motor is controlled via microprocessor
• platter: acrylic (11.8 in., 300 mm) weight – (7.4lbs., 3.35 kg)
• power: switching power supply (90 – 246 VAC, 47-63Hz) type EU, UK,USA
• electric input: 23W DC
• effective arm length: 9in. (230 mm)
• effective arm mass: 8.5 g
• mounting distance: 8.3 in (212 mm)
• overlap: .71 in (18 mm)
• angle crank: 24°
• course zero error angle: ø 130.5, ø 243.7
• force on the tip: 0-3 g
• plinth material: MDF
• belt material: silicone rubber

Dimensions and weight:

• Dimensions: 465 x 190 x 340mm
• Dimensions: 465 x 440 x 450mm (dust cover open)
• Weight: 17.9 kg
