Moon 260D CD player + DAC

Moon 260D

CD Player + DAC

A truly high-performance and affordable high-end digital product that meets current and future needs. The Moon 260D CD player and optional 32-bit DAC combine powerful and useful features, CD playback, and music streaming into one platform.

The Moon 260D offers excellent flexibility as an all-in-one CD player and DAC. Thanks to its 32-bit processor, MOON's signature oversized power supplies, and sophisticated analog stages, the 260D's audio performance is unparalleled in its price range. The DAC section is completely optional, so you can add it later if needed.

The player features an "MQA pass-through" capability. MQA-encoded data on a disc is sent to the digital output so that an MQA-certified DAC decodes it and provides the user with the full performance offered by MQA.

Manufacturer's product page (EN)

Technical specifications:

• M-Quattro gel-based 4-point floating suspension

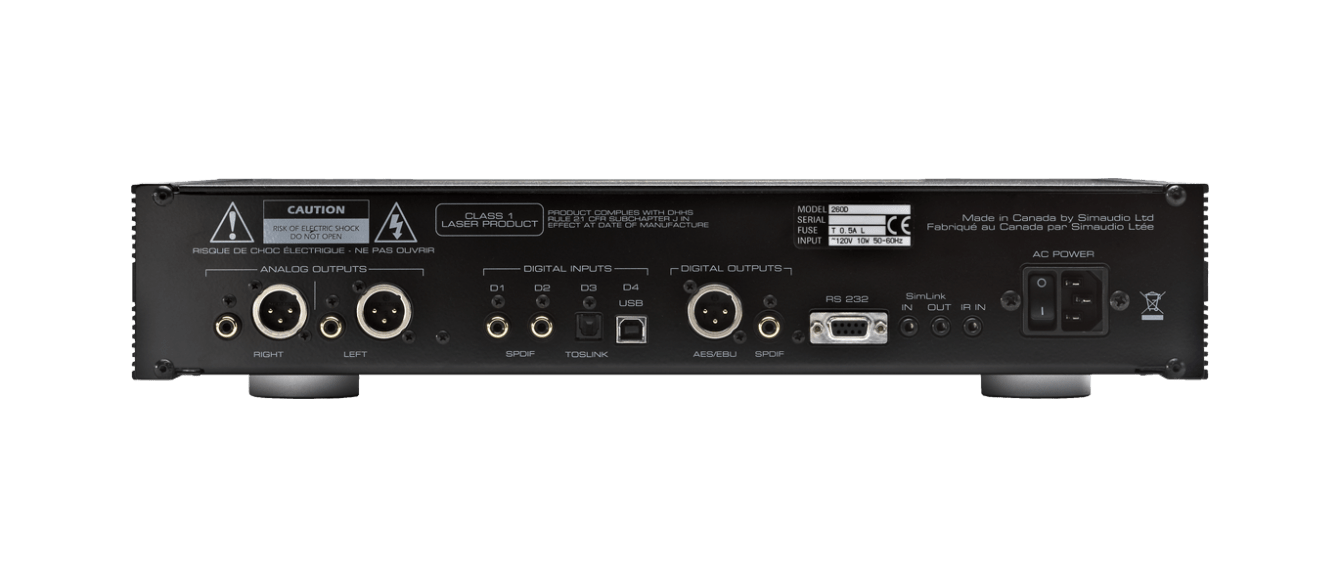

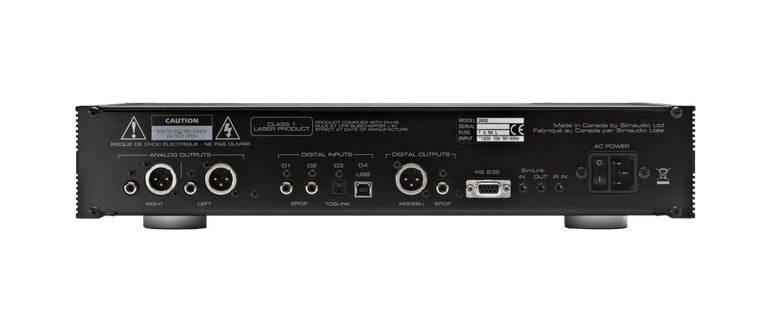

• 2 digital outputs (S/PDIF and AES/EBU)
• True 32-bit asynchronous Digital-to-Analog converter
• 4 digital inputs (S/PDIF x 2, TosLink x 1, USB x 1)
• USB input with galvanic isolation
• Frequency response (full range): 2Hz - 100kHz +0/-3dB
• THD @ 1kHz, 0dBFS (A-weighted): 0.005%
• Intermodulation distortion: 0.005%
• Dynamic Range: 120dB
• Signal-to-noise Ratio: 120dB @ full output
• Channel Separation: 116dB
• Intrinsic Jitter: 1 picosecond RMS
• Analog Output @ 0dBFS: 2.0 V
• Analog output impedance: 75Ω
• PCM Bit-depth range: 16 - 24 bits
• PCM sampling frequency rates: 44.1 - 192kHz

Dimensions:

• Height: 8.6cm
• Width: 42.9cm
• Depth: 33.3cm
