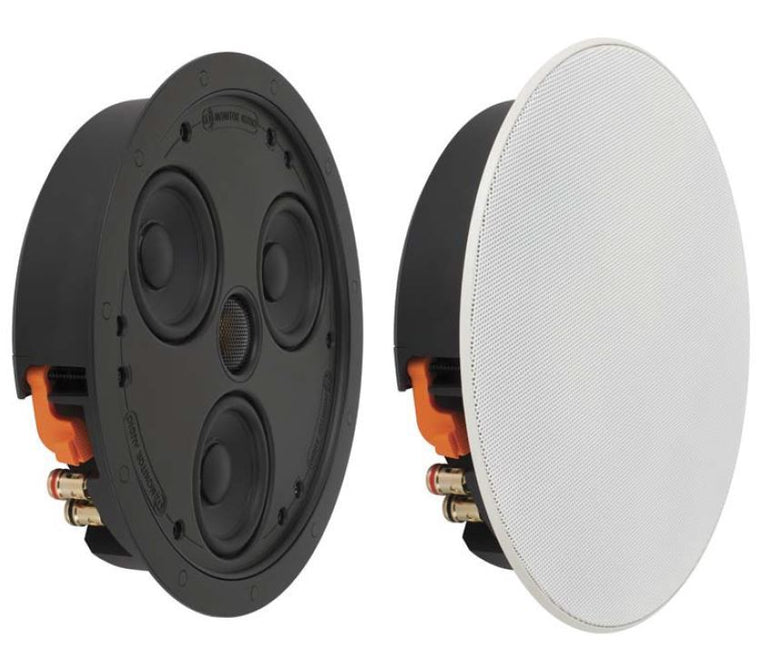

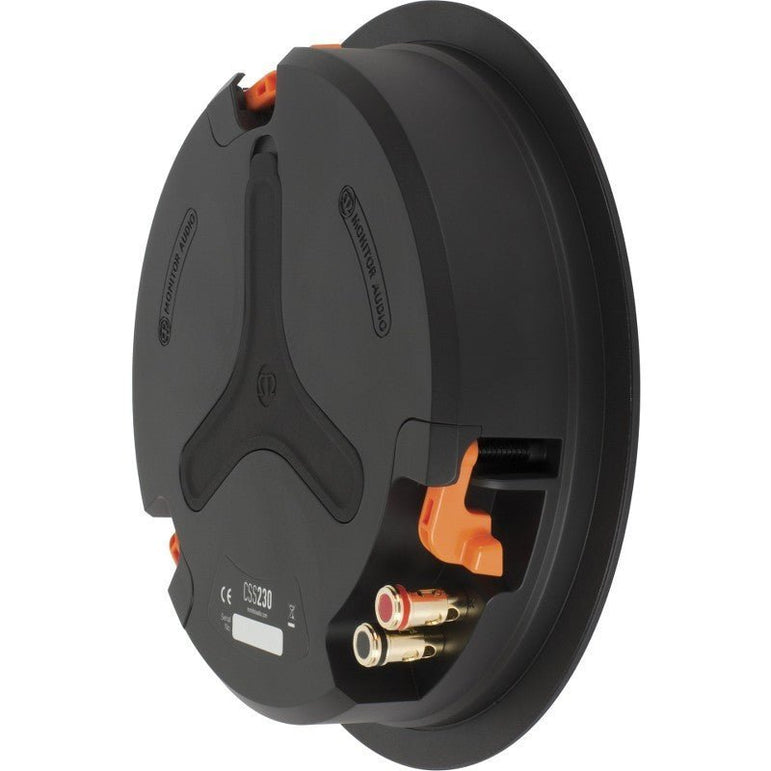

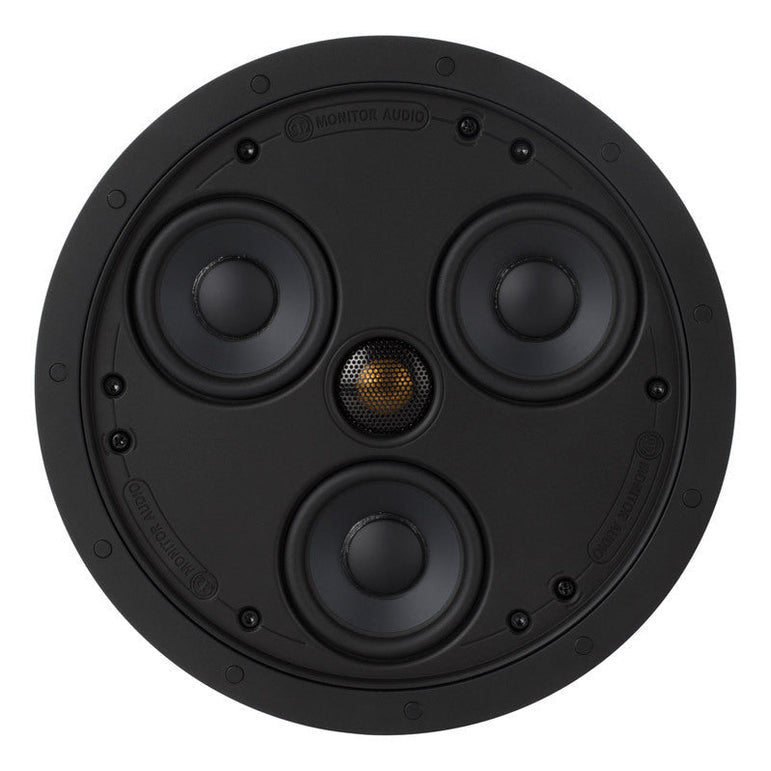

Monitor Audio CSS230
Recessed speaker. Extremely shallow installation, 50mm. Designed for inside partition walls or when space is limited.
Hybrid CP "Controlled Performance" type, with sealed or open back-box option offering high performance. Three 3" C-CAM bass/midrange drivers. 19 mm C-CAM gold tweeter. High-quality crossover design delivers Monitor Audio's award-winning sound quality. Gold-plated flexible push terminals are reliable and easy to connect. Magnetically attached "Trim-less" round grilles. For wall/ceiling mounting. Patented Tri-Grip fasteners - Reliable, durable and quick to install.
Technical specifications:
-
Three 3" C-CAM bass/midrange drivers, 1 pc 19mm Gold Dome tweeter
-
Frequency response: 100Hz - 30kHz (sealed enclosure), 80Hz - 30Hz (open).
-
Nominal impedance: 8 ohms
-
Sensitivity: (1W @ 1M) 86dB
-
Maximum SPL: 103.8dBA
-
Power handling: (RMS) 60W
-
Amplifier recommendation: 20 - 60W
-
Overall diameter: 250mm
-
Overall depth (including grille): 53mm
-
Installation depth: 50mm
-
Mounting type: 3-position Tri-Grip mounting
-
Construction material: ABS plastic, (RoHS2 compliant), paintable steel grille
