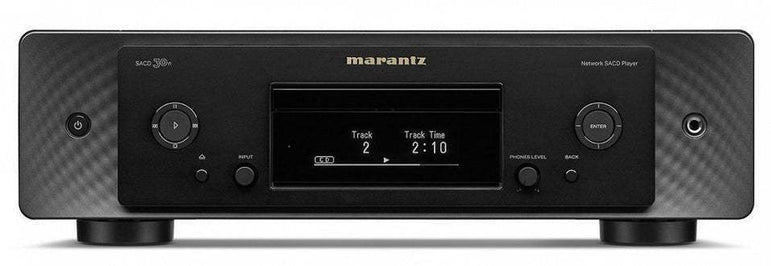

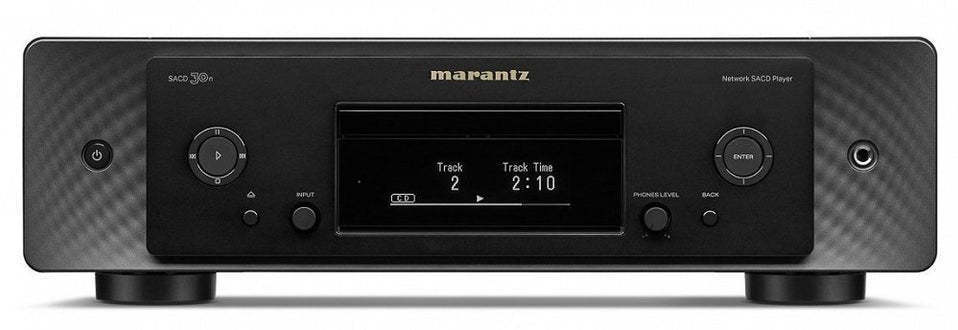

Marantz SACD 30n

SACD/CD and network player with HEOS support

The SCAD 30n combines a high-quality SACD player and a network player in one high-quality enclosure. The SACD30 model has built-in HEOS functions, so the device is ready to be part of your home's multi-room system. The device supports DSD files and converts the PCM signal to DSD format, so you can be sure that the device allows you to hear recordings with the best possible quality that current technology offers. Marantz Musical Mastering is Marantz's own patented solution for signal flow processing that eliminates the need for traditional D/A conversion, shortens the signal path, and thus creates unprecedented sound quality.

Technical specifications:

• AirPlay 2 o
• Amazon Prime Music* / Pandora* o / o
• Asynchronous mode rear USB-B o
• Bit-perfect transmission o
• CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC o / o / o / o / o / -
• CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data - / o / o / o / -
• Copper plated chassis -
• Customised Components o
• DAC operation mode: USB-B / Coax / Optical o / o / o
• Data Disc Compatibility: DSD / WAV / ALAC o / o / o
• Digital out off / Audio EX Mode o / -
• Extra metal plate for chassis strengthing o (1.5mm)
• HDAM version HDAM+HDAM SA3
• Headphone: Standard / Buffer / Current feedback - / - / o (HDAM SA2)
• HEOS Multiroom and Streaming o
• High Grade Audio Components o
• Internet radio tunein
• Jitter Reducer o
• Network audio streaming o
• Power Transformer: Toroidal / El o / -
• Roon Tested o
• Signal isolator for DAC Mode operation o
• Spotify Connect* / Tidal* / Deezer* / others * o / o / o / o
• Symmetric circuit layout o
• USB input for memory stick o
• USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 o / o / o
• Voice Control - Google Assist / Apple Siri o / o
• Voice Control - Microphone built-in -
• Voice Control - Works with Amazon Alexa o

General

• Auto power off o

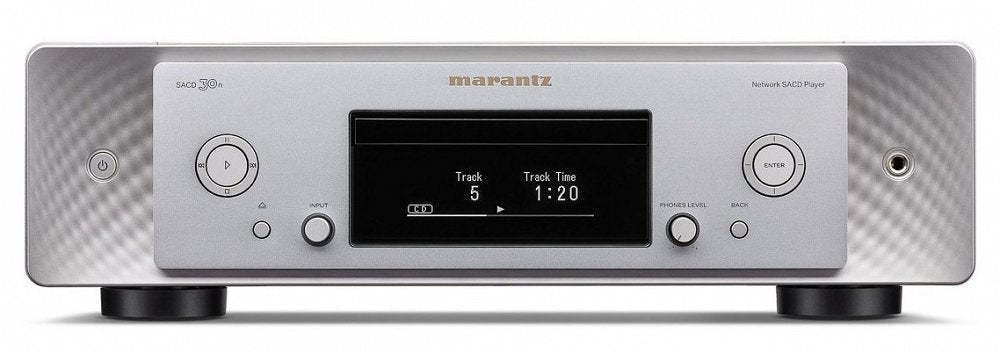

• Available colors: Gold / Silver / Black / Silver-Gold - / - / o / o
• Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
• Carton Weight (inc. product) in kg 16.2
• Detachable Power Cable o
• Maximum Dimensions (W x H x D) in mm 443 x 424 x 130
• Metal Front Panel o
• Power Consumption in W 48
• Remote Control RC002PMND
• Standby Consumption in W 0.4
• Weight in kg 13.5

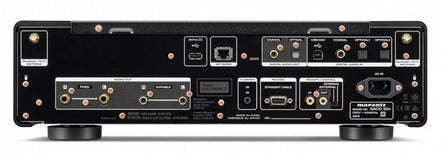

Inputs/Outputs

• Analogue Out (Cinch) 1
• Balanced Out -
• D-Bus o
• Digital Coaxial In / Out 2 / 1
• Digital Optical In / Out 1 / 1
• Ethernet port o
• Flasher input o
• Gold Plated Cinch o
• Headphone Out o
• Headphone Volume Control o
• IP control o
• RS232 o
• Sample Rate digital In 192 kHz / 24-bit
• USB Audio (front) o (rear)
• USB type B input for PC (rear) Sample Rate USB type B In o up to DSD11.2
• Variable Out (Cinch) 1

Network

• App control AMP/CD via Network Player o
• Bluetooth on / off mode o
• DSD Audio Streaming up to DSD11.2 by Update
• Gapless playback o (FLAC, WAV, DSD)
• Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24 o / o / o / o
• Lossy formats MP3 / WMA / AAC o / o / o
• Remote APP: iDevice / Android o / o
• Wi-Fi on / off mode o
• Wi-Fi / Wired LAN 2.4GHz, 5GHz / o

Others

• Display: Dimmer / Off o / o
• Marantz Musical Mastering o
• Marantz Musical Mastering Conversion o
• Marantz Musical Mastering Stream o
• Selectable filter: CD / SA-CD / DAC-Mode o/ - / o(PCM Only)
• Separated rectifier circuit for analogue and digital circuitry o
• Playback
• Program Play (CD / SA-CD) 25 / -
• Random Play o
• Repeat o

Specifications

• Channel Separation -
• Channel Separation (SA) -
• D/A Conversion MMM
• DAC IC MMM
• Digital Filter MMM
• Dynamic Range 98 dB
• Dynamic Range (SA) 109dB
• Frequency Response 2 Hz - 20 kHz
• Frequency Response (Cust.) 2 Hz - 20 kHz
• Headphone amp HDAM SA3
• Low Pass Filter stage HDAM
• Mechanism SACDM-3L
• Noise Shaper MMM
• Output buffer HDAM SA3
• Signal to Noise Ratio 104dB
• Signal to Noise Ratio (SA) 112dB
• Total Harmonic Distortion 0,000015
• Total Harmonic Distortion (SA) 0.0008%
• Weight 13.5kg
