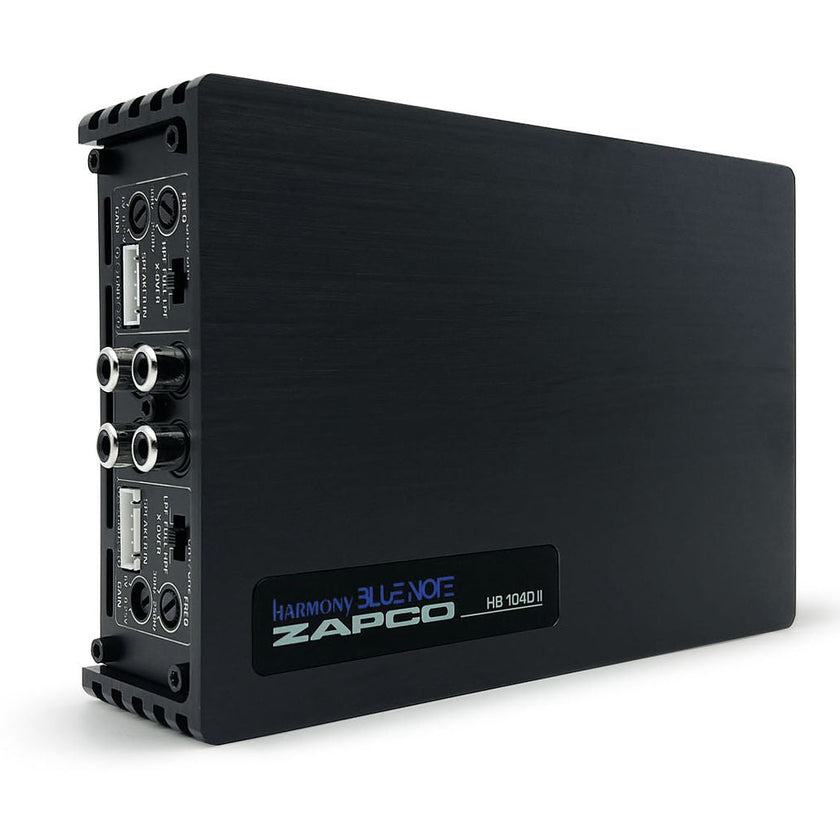

Zapco HB 104D II 4-channel Class D amplifier
Features and functions
- 4-channel, full frequency range, Class D

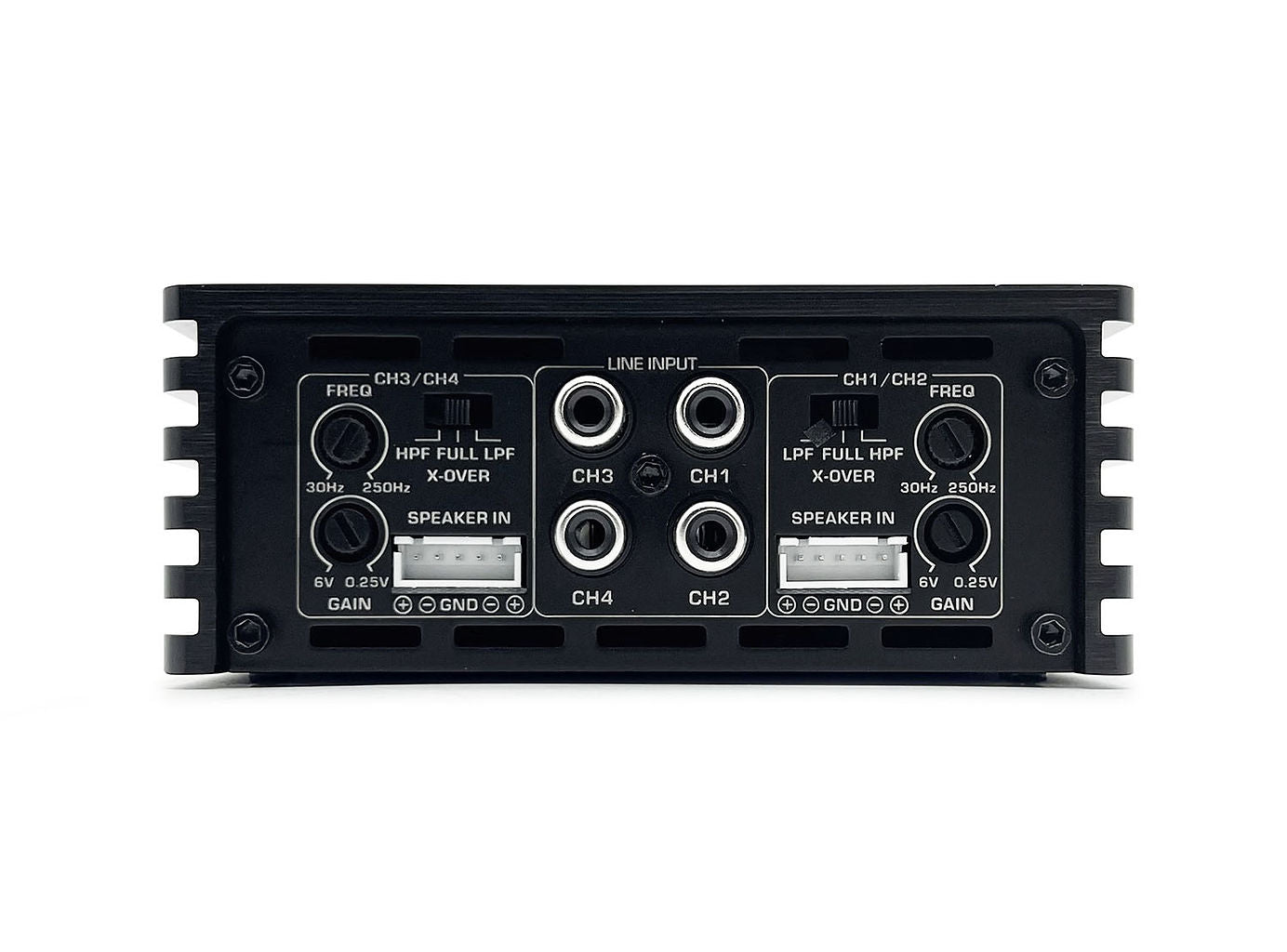

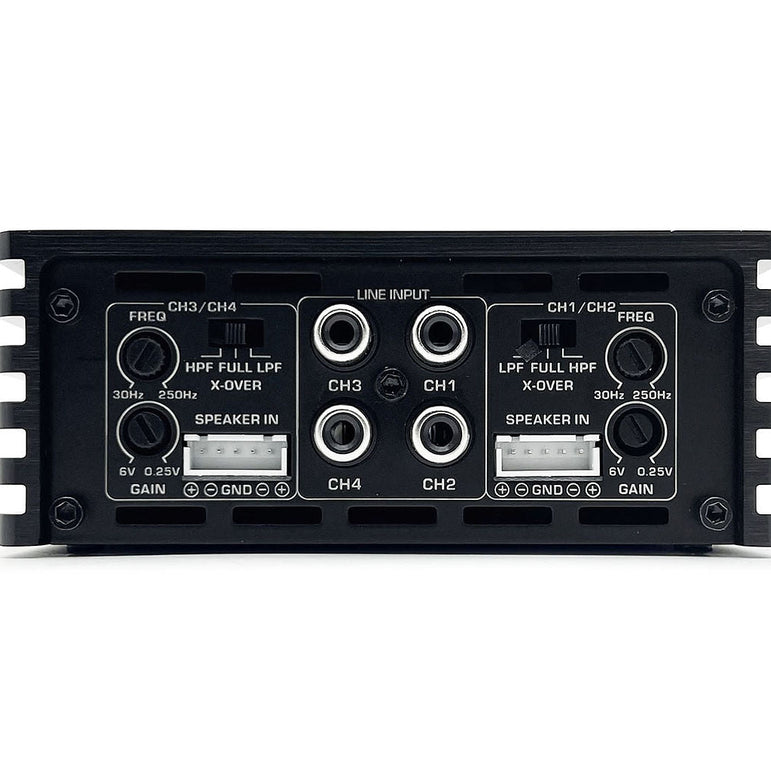

- RCA and speaker level inputs
- Adjustable input sensitivity
- Adjustable electronic crossover filter
Specifications
- Power @ 4Ω: 4 x 100 watts RMS
- THD @ rated power < 0.5% THD
- Power @ 2Ω: 4 x 150 watts RMS
- Power Bridged @ 4Ω: 2 x 250 W RMS
- Signal-to-noise ratio > 90 dB
- THD + noise < 0.1%
- Frequency response 20 Hz - 20 kHz ±1 dB
- Input sensitivity 0.25 V to 6 V (low)
- Dimensions (mm): 170 (L) x 115 (W) x 45.5 (H)
