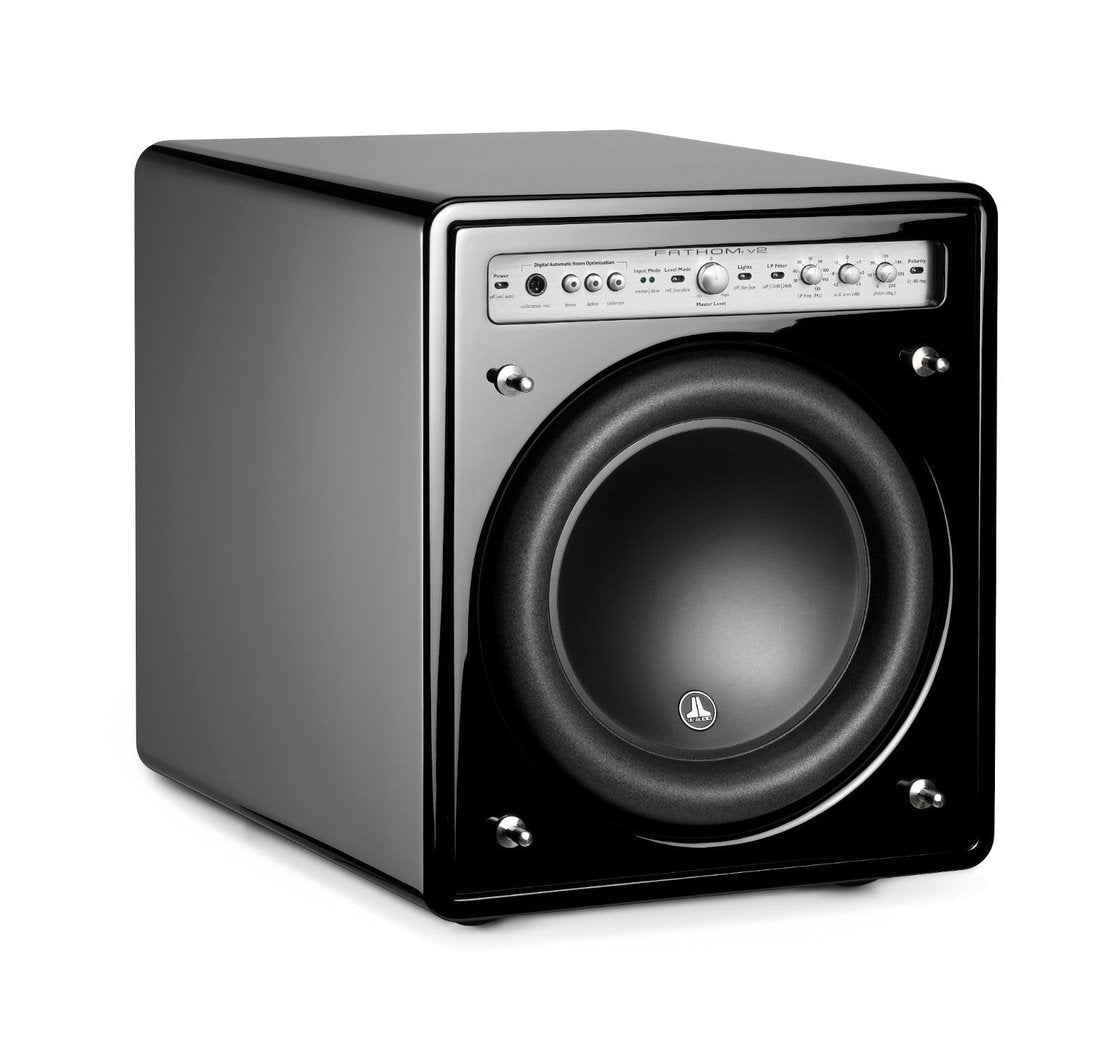

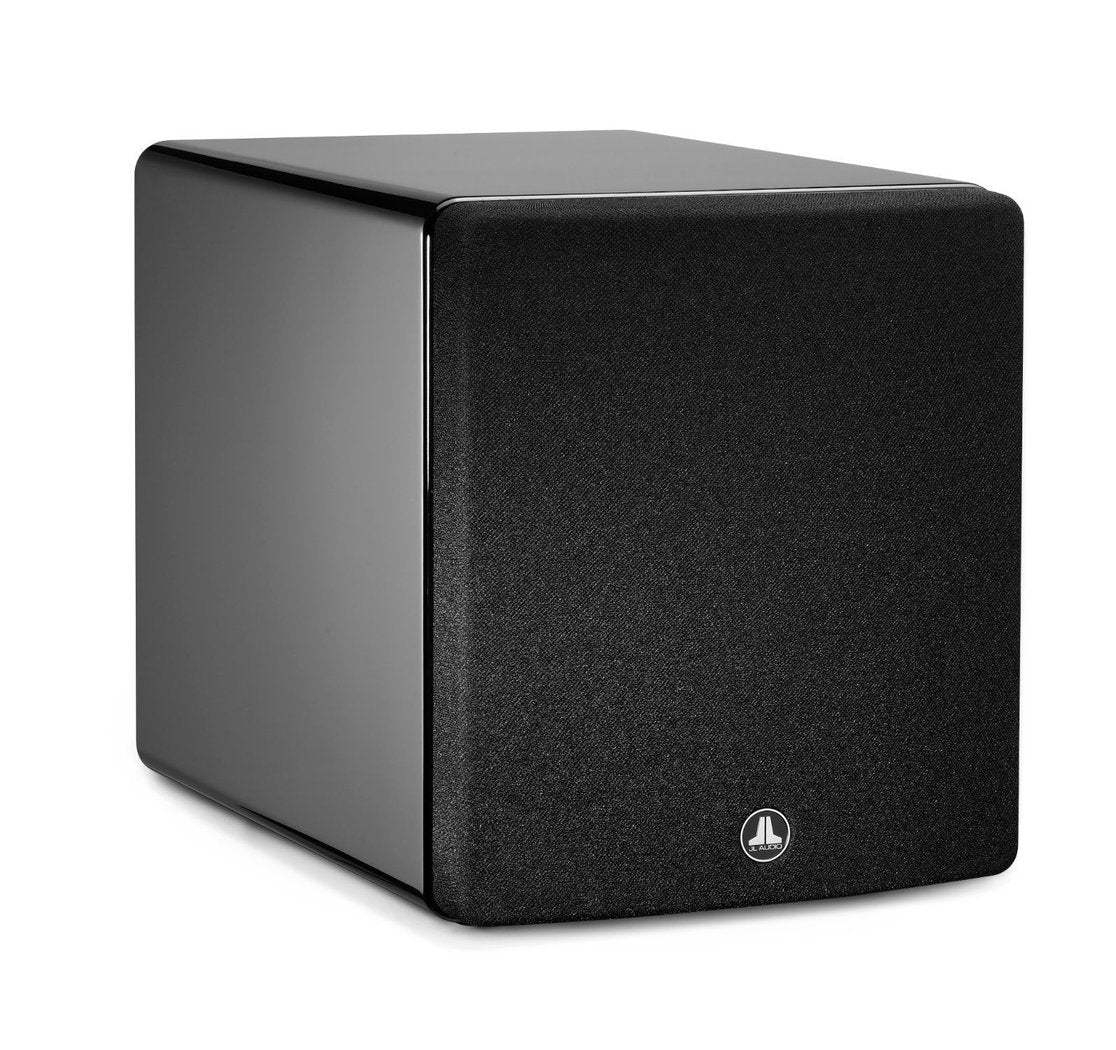

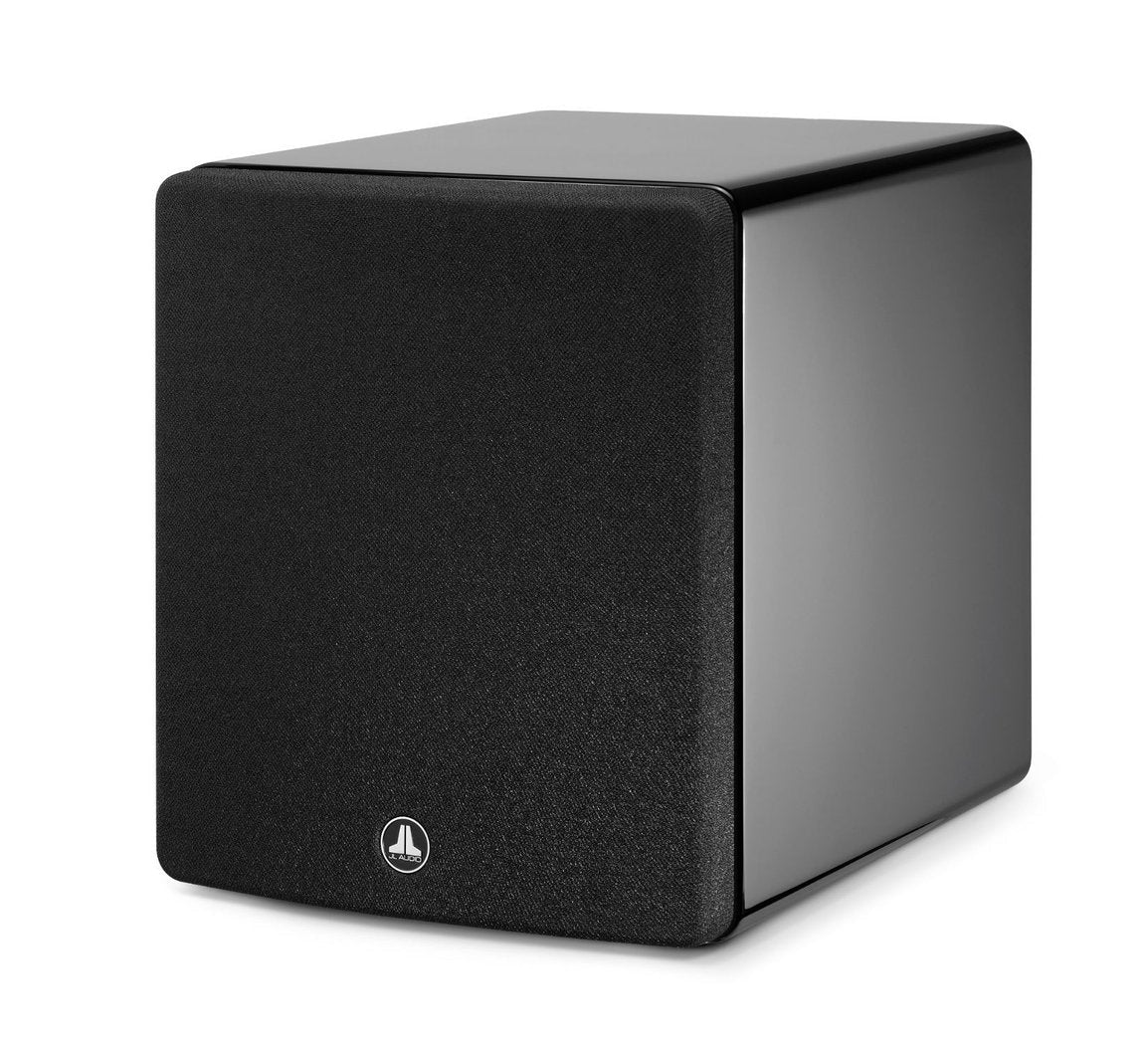

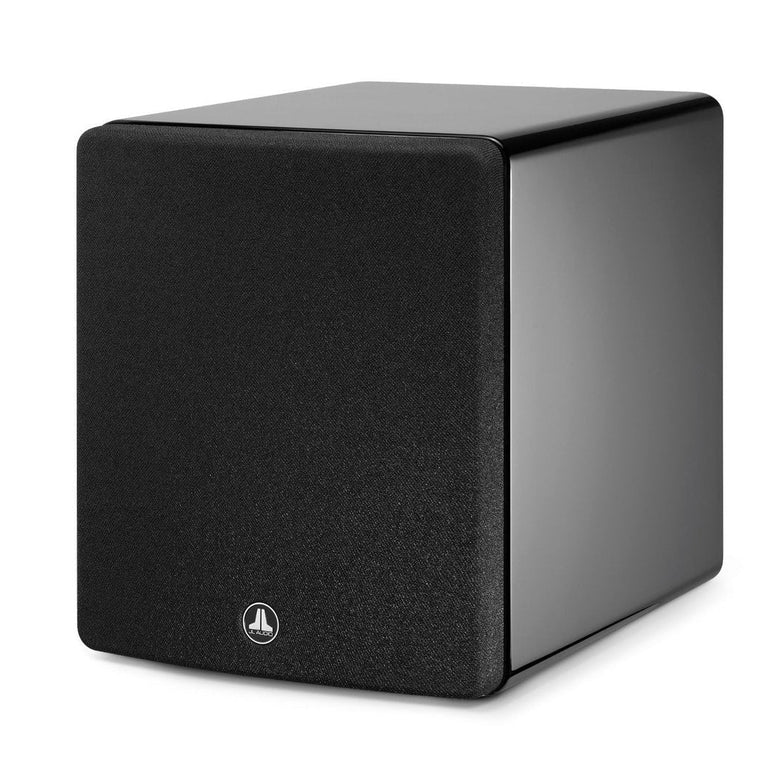

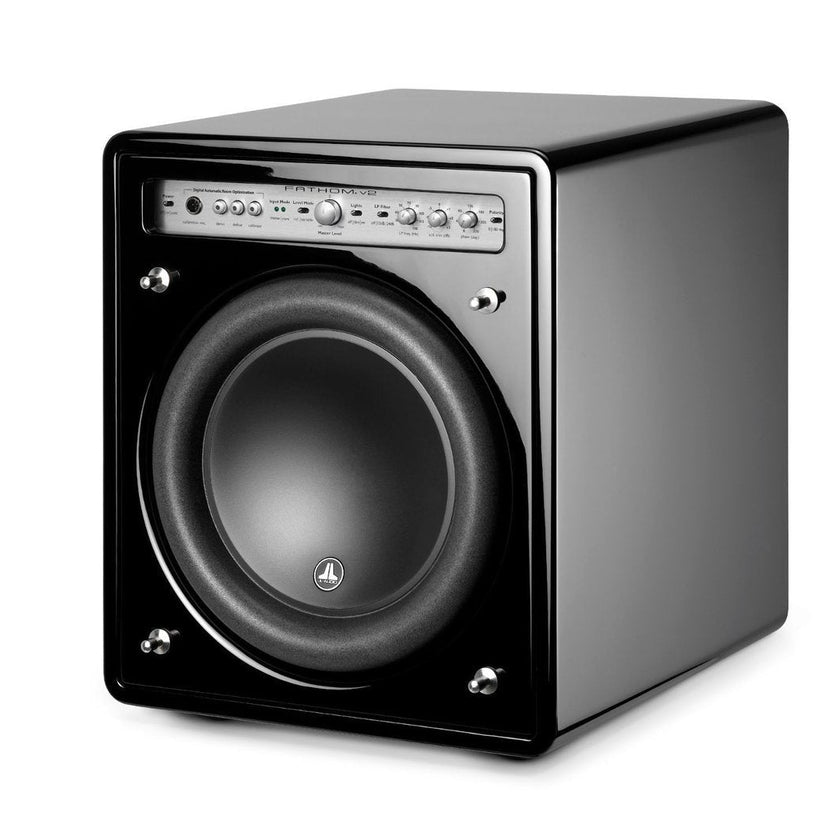

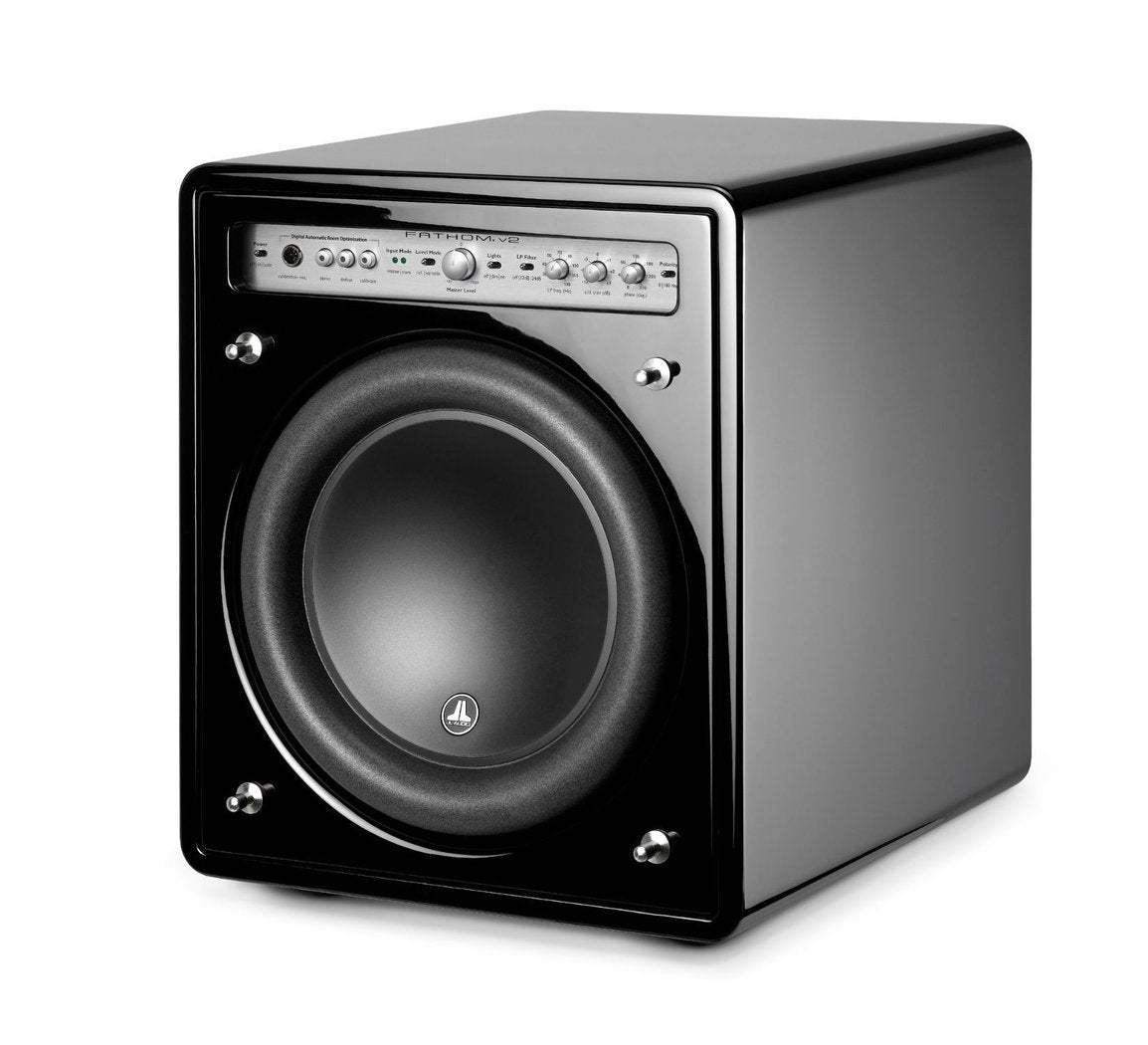

JL Audio f112v2

12" Active Subwoofer

The Fathom f112v2 is ideally suited for medium-sized rooms, where it delivers rock-solid, accurate, fast, and powerful bass reproduction. The combination of an ultra-long-excursion 12-inch W7 driver and a highly efficient amplifier gives it the kind of formidable power normally associated with much larger and more complex subwoofer systems.

Because the f112v2 utilizes the same driver design and amplification technology as our acclaimed flagship Gotham®, it delivers highly convincing sound quality. Low distortion, excellent dynamic characteristics, and shockingly deep extension allow you to experience all the excitement of the most demanding cinematic material, while Fathom is simultaneously capable of reproducing all the nuances and textures of your delicate musical material.

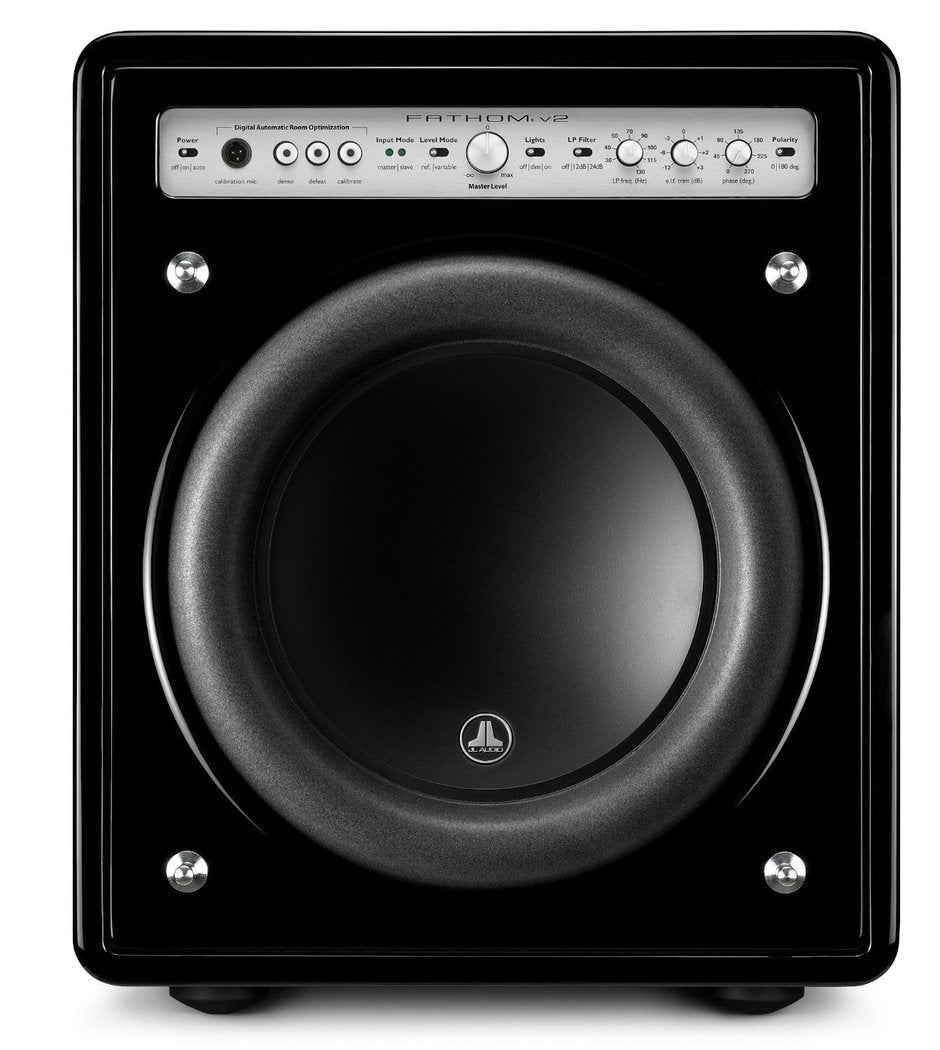

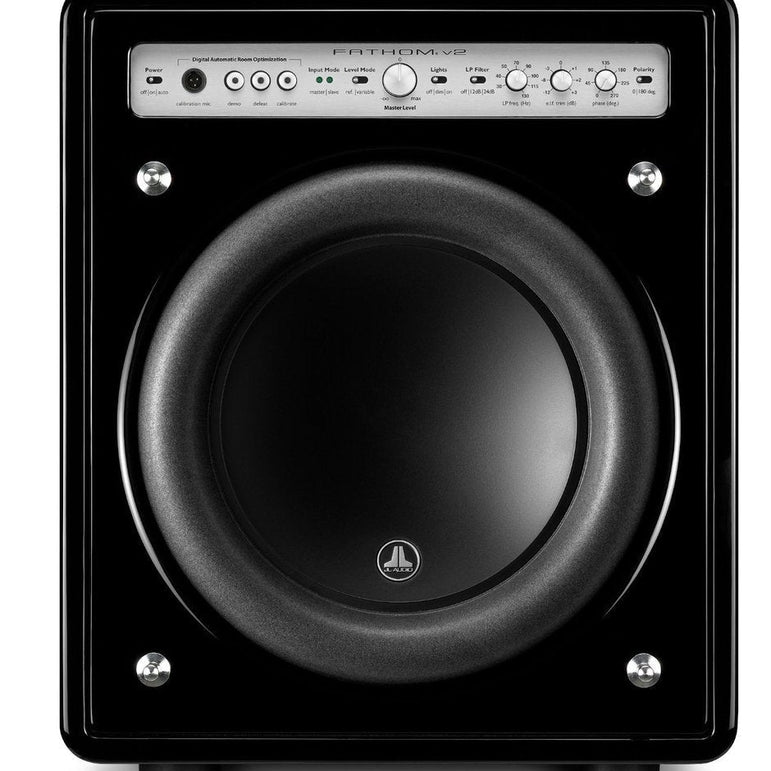

A complete suite of signal processing features is easily accessible from the front panel of every Fathom. These include a highly flexible low-pass filter, phase control and polarity inversion, e.l.f. trim, and an extremely accurate Digital Automatic Room Optimization (D.A.R.O.) system. A high-quality calibrated microphone is supplied for the D.A.R.O. system. Input connections are made via RCA connectors or balanced Neutrik® combo XLR / TRS connectors. An XLR output is also included, through which you can daisy-chain another Fathom subwoofer.

Advanced Driver Technology

Fathom bass drivers utilize JL Audio's proprietary DMA optimization, which ensures that the driver's motor force provides a highly linear excursion over a long travel distance. Unlike traditional modeling methods, DMA accounts for dynamic variations in current delivery with real music material. The advantage of this technology is that the driver keeps up with the pace whether listening loud or quiet, unlike many traditional subwoofers whose reproduction only 'opens up' when the throttle is turned up significantly.

The extreme mounting depth of the driver is intentional and allows for sufficient distance between the suspension and dual spiders and the cone, enabling truly long excursion and minimal distortion values, as well as improved durability.

Read more about the F112v2's numerous technical patents and D.A.R.O. room correction on the manufacturer's product pages (in English)

Technical specifications and features:

• Enclosure Type: Sealed
• Color: Gloss Black
• Free-field Response:
  • 21 - 119 Hz (±1.5dB)
  • -3 dB points 19 Hz / 150 Hz
  • -10 dB points 17 Hz / 167 Hz
• Amplifier Power: 1800 W RMS short-term
• Power Modes: Off, On or Automatic signal sensing turn-on

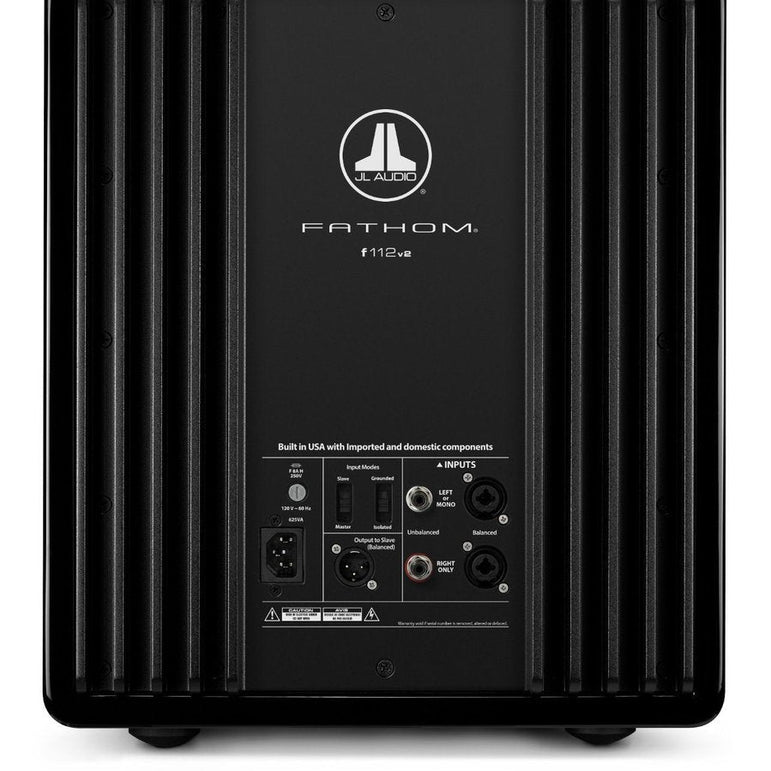

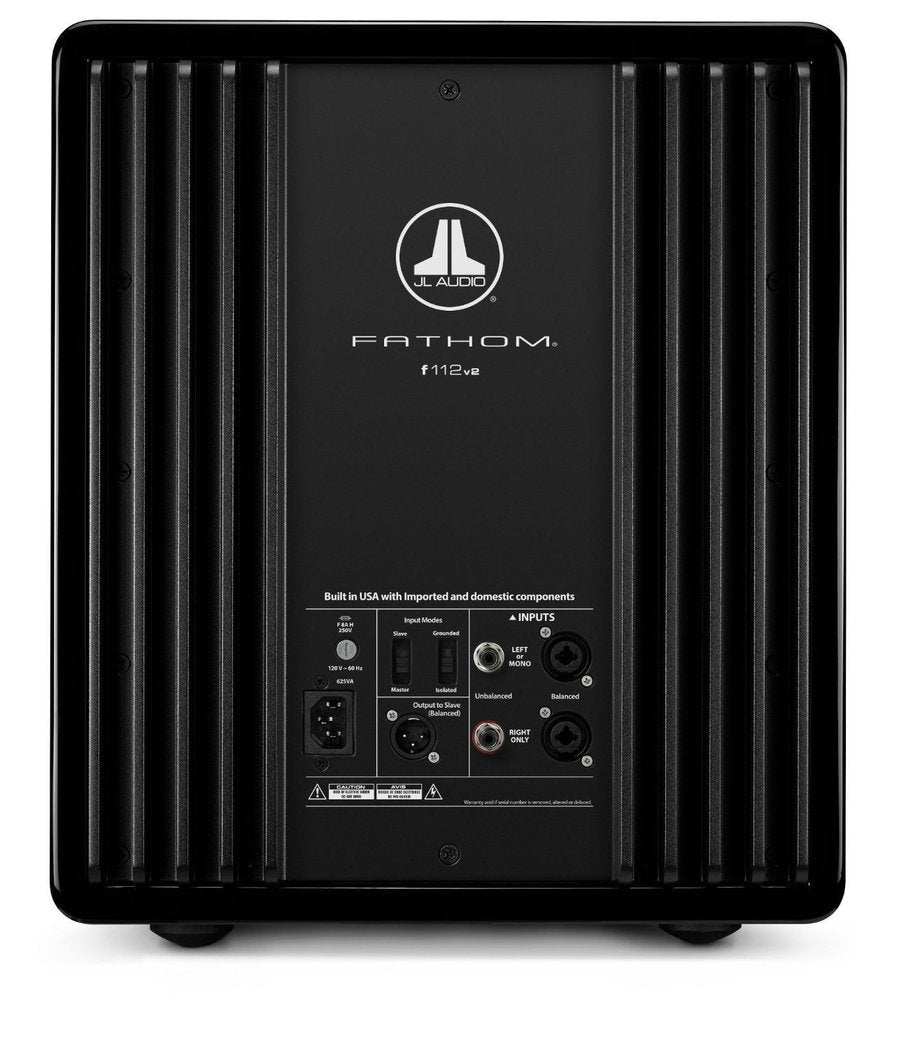

• Unbalanced Inputs: Stereo or Mono (2 RCA connectors)
• Balanced Inputs: Stereo or Mono (2 female XLR connectors)
• RCA Input Grounding Selection: Floating or Grounded
• Input Mode: Master or Slave (daisy-chained)
• Volume Control: Reference (fixed) or Variable (adjustable, from full mute up to +15dB above reference level)
• Filter Mode(s):
• Low-Pass:
• 12 or 24 dB/octave
• Adjustment range 30 Hz - 130 Hz
• Filter Bypass: Yes, selectable
• Polarity: 0 or 180 degrees
• Phase: Adjustable, 0 - 280 degrees
• Extreme Low Frequency (E.L.F.) Trim: Adjustable, -12 dB to +3 dB (at 25 Hz)
• Loop Output: Balanced (1 male XLR connector)
• Net Weight: 53 kg
• Dimensions (including feet):
  • Depth: 451 mm
  • Width: 384 mm
  • Height: 470 mm
• Warranty: 24 months
