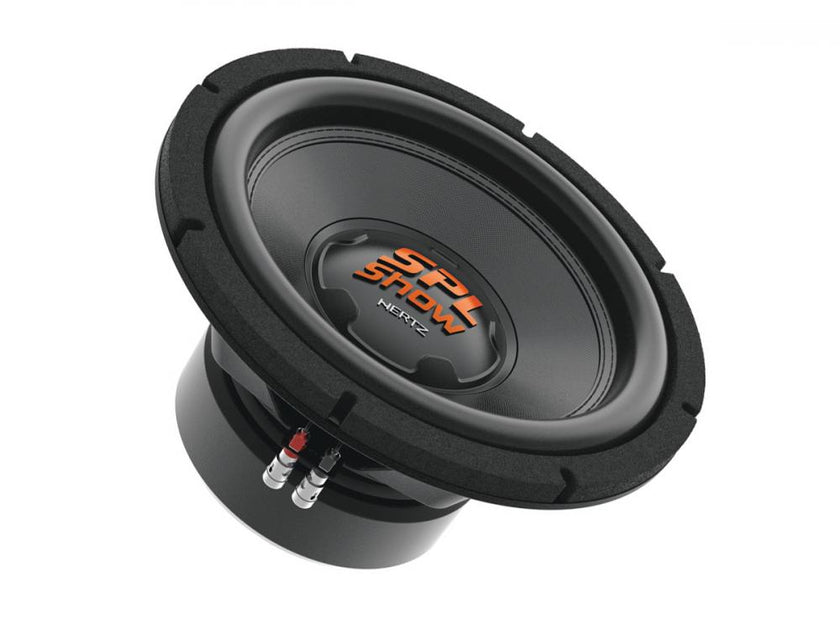

Hertz SS 12 D2 12" SPL subwoofer

The SS 12 D2 subwoofer with its 12" cone is ready to impress enthusiasts with its power. The specially designed upper suspension combined with the double-layered lower suspension keep the performance consistent throughout, whether it's normal music listening or participating in a sound pressure competition.

Heat dissipation is of paramount importance in such high-volume drivers, and thanks to the precise design, heat dissipation and dissipation away from the driver are at a first-class level. The robust dual voice coil has a diameter of a whopping 75 mm and is equipped with air vents, allowing the subwoofer to withstand up to 2000 W of instantaneous power. The chassis structure is designed with heat dissipation in mind and is also extremely mechanically durable. The unpressed paper cone with cotton fibers achieves the ideal compromise between stiffness and lightness. These two factors are of equal importance when aiming for high sensitivity. The under-suspension and conductor cables are oversized in size to withstand the exceptionally large movement of the cone without becoming stressed or compromising playback quality. The massive ferrite magnet keeps the whole thing in extreme control right up to the limits of performance. The pressure terminals make connection easy and they accept speaker wire up to 12 AWG thick.

1. 74 mm dual voice coil (2 x 2 Ohms) with support structure and four layers is equipped with air vents and can withstand 2000 W of power momentarily

2. Double-layer lower suspension with progressive profile keeps performance consistent.

3. Multi-layer foam rubber top suspension allows for large movement deviation and high sound pressure.

4. Oversized conductor cables and sub-suspension are designed to withstand the demands of high movement deviation.

5. A convincing oversized ferrite magnet keeps the cone movement linear.

6. Nickel-plated push-in connectors that accept 12 AWG speaker wire make installation easy and secure.

7. Unpressed paper cone with cotton fibers produces high sensitivity.

Size: 300mm (12")

Continuous power rating: 1000 W

Instantaneous power consumption: 2000 W

Impedance 2 + 2 Ohms

Sensitivity: 86 dB

Voice coil diameter: 75 mm

Xmax: 15.4 mm

X-mech: 10.6 mm

D: 253 mm

Xmax: 15.4 mm

Re: 0.96 Ohms

Fs: 36 Hz

Le: 0.9 mH

Left: 24.52 l

Weight: 282.2 g

Cms: 0.07 mm/N

BL: 9.37 T•m

Qts: 0.64

Qes: 0.70

Qms: 7.0

SPL: 86 dB

Dimensions

Overall diameter: 320 mm (A)

Mounting hole diameter: 283 mm (B)

Overall depth: 184 mm (C)

Installation opening depth: 161 mm (D)
