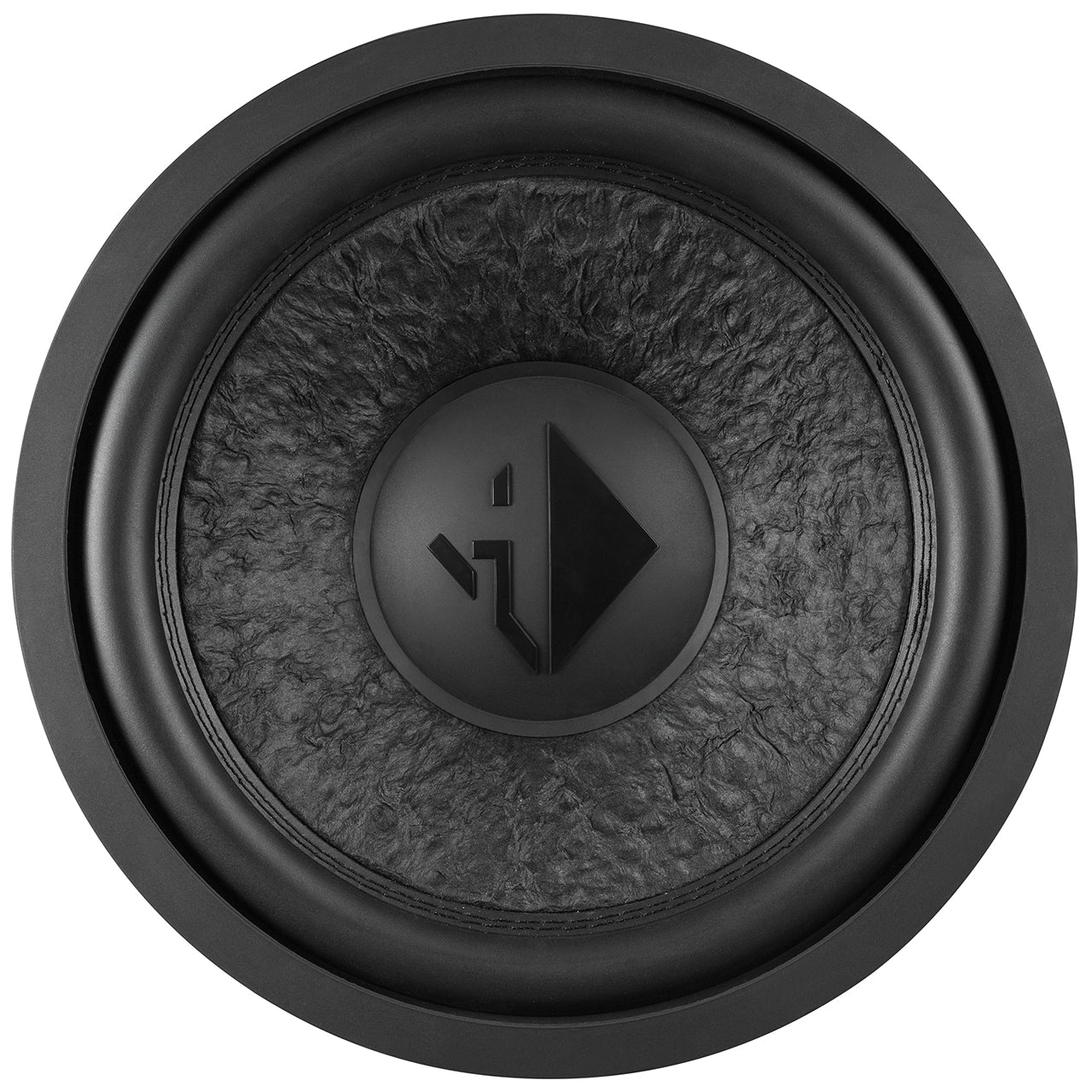

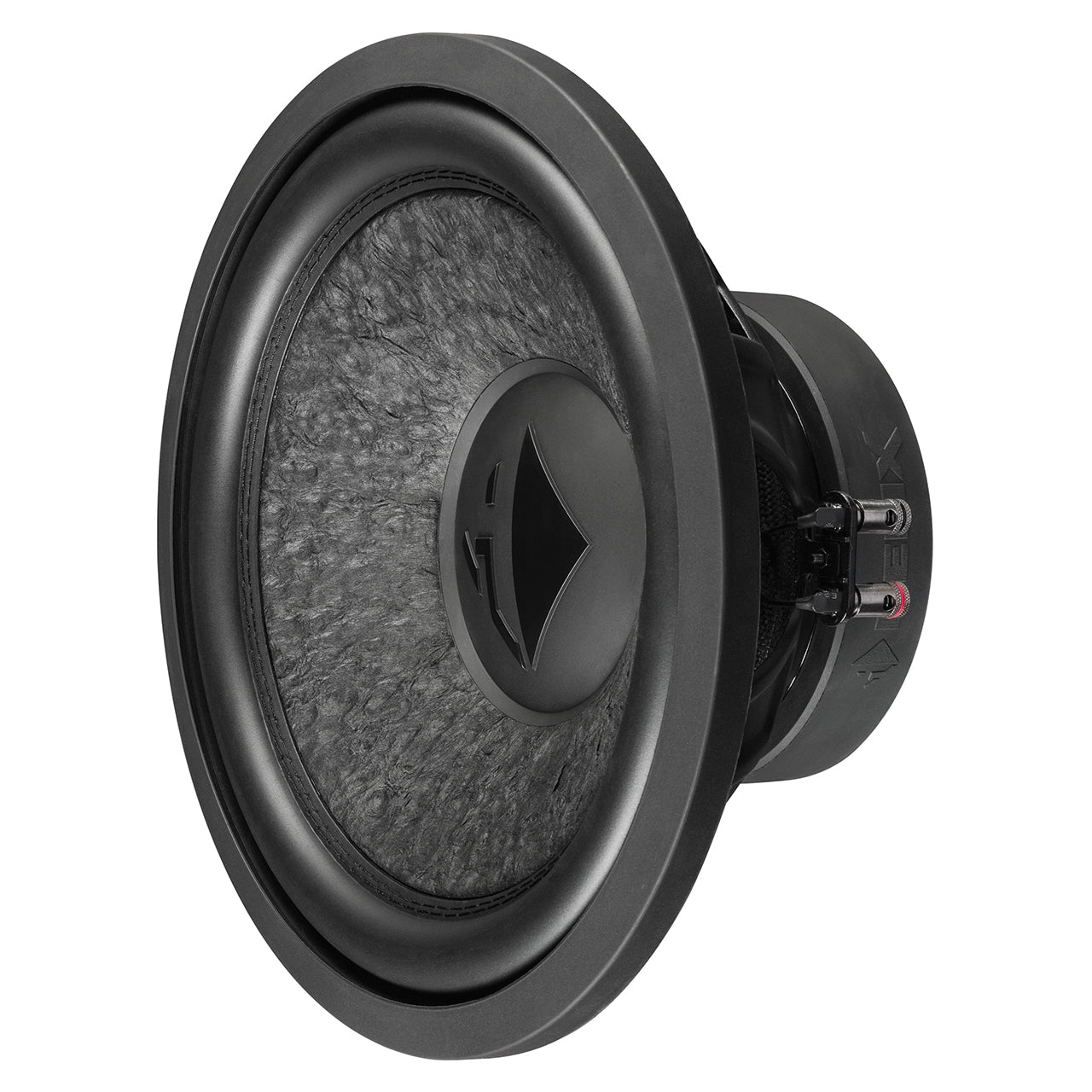

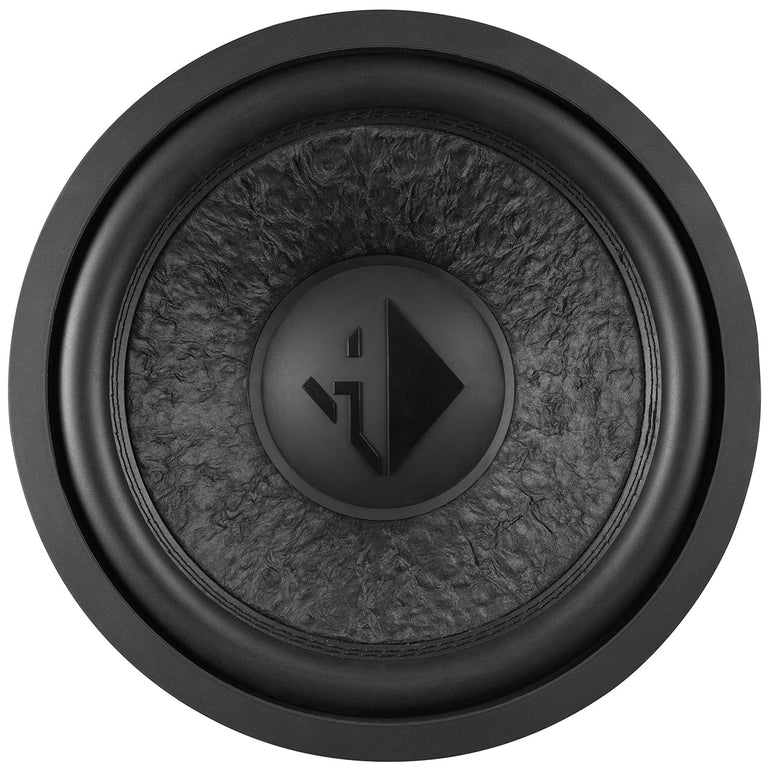

HELIX IK W12-DVC2-2 x 2 Ohm
The all-new IK W12 subwoofer delivers incredible sound quality and bass response in a 22L sealed enclosure. The new IK series delivers incredible performance in a compact size.
The IK W12 subwoofer has a very stiff yet lightweight pressed paper cone, which ensures good sensitivity but also withstands harsh use.

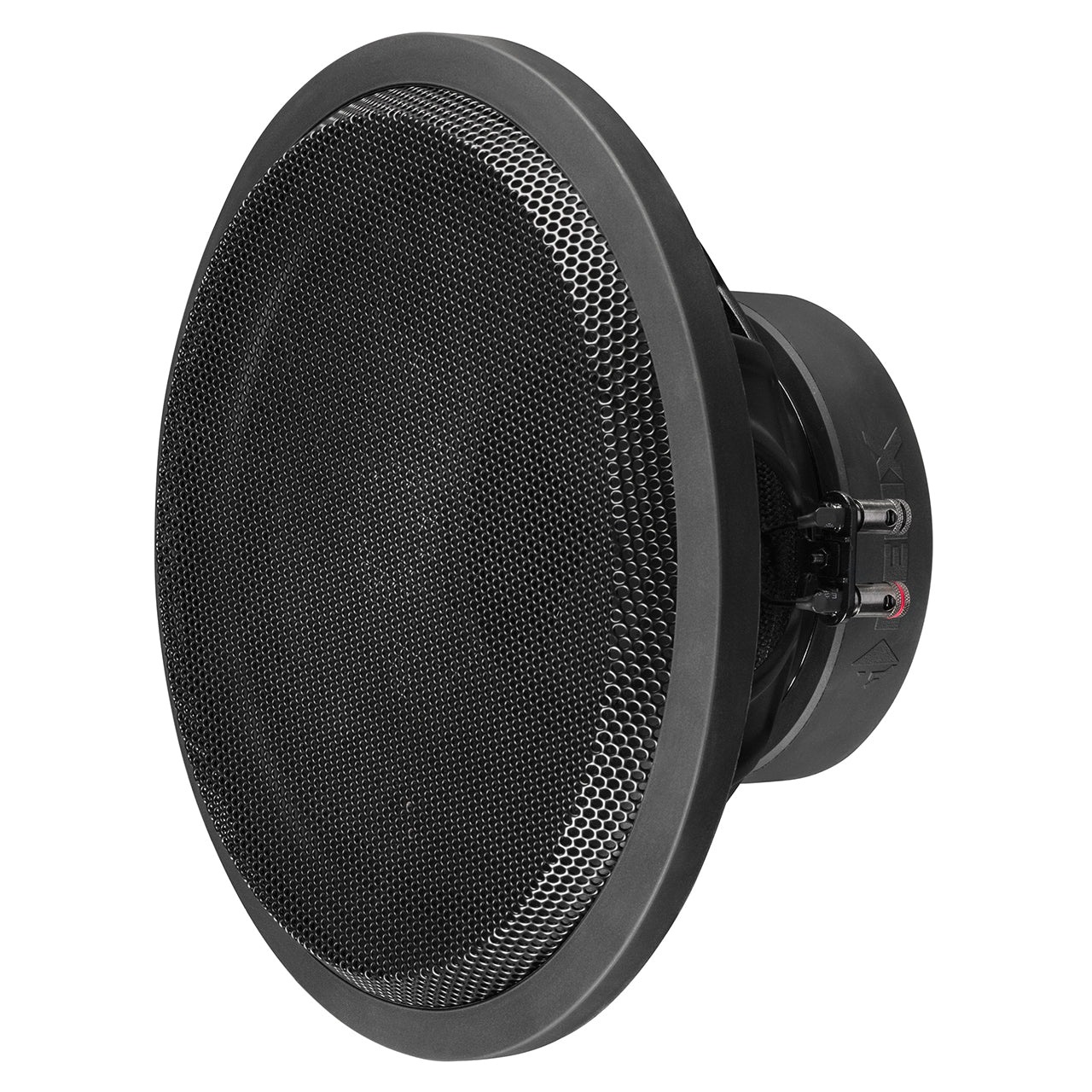

The subwoofer is supplied with a durable protective grille.
Specifications:
Technical data:
IK W12-DVC2 – 2 x 2 Ohms
Power handling RMS / max. P 300 / 600 Watt
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.6 Ω
Resonance frequency Fs 32 Hz
Mechanical Q factor Qms 3.70
Electrical Q factor Qes 0.46
Total Q factor Qts 0.41
Compliance Cms 179 μm/N
Equivalent air volume Vas 66 L
Force factor B*I 13.7 Tm
Sensitivity SPL
93.0 dB @ 2.83V / 1m
90.0 dB @ 1W / 1m
Cone area Sd 515 cm²
Moving mass MMS 134 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms 7.33 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44″
Installation diameter ø 286 mm / 11.26
Installation depth 144 mm / 5.67″
Recommended enclosure volumes
Sealed box
Net volume 22 L
Lower limiting frequency (-3dB) 40 Hz
Recommended DSP settings “Self-Define” Highpass: 37 Hz / Q = 1.6
EQ Filter: 90 Hz / Q = 1.5 / -3 dB
Vented box
Net volume 30 L
Port diameter ø 100 mm / 3.94″
Port area 78 cm²
Port length 28 cm / 9.84″
Port tuning frequency Fb 39 Hz
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings “Self-Define” Highpass: 36 Hz / Q = 1.3
EQ Filter: 100 Hz / Q = 0.85 / -2 dB
Scope of delivery
1 x Subwoofer HELIX IK W12-DVC2
1 x Grille
1 x Gasket
1 x Data sheet
