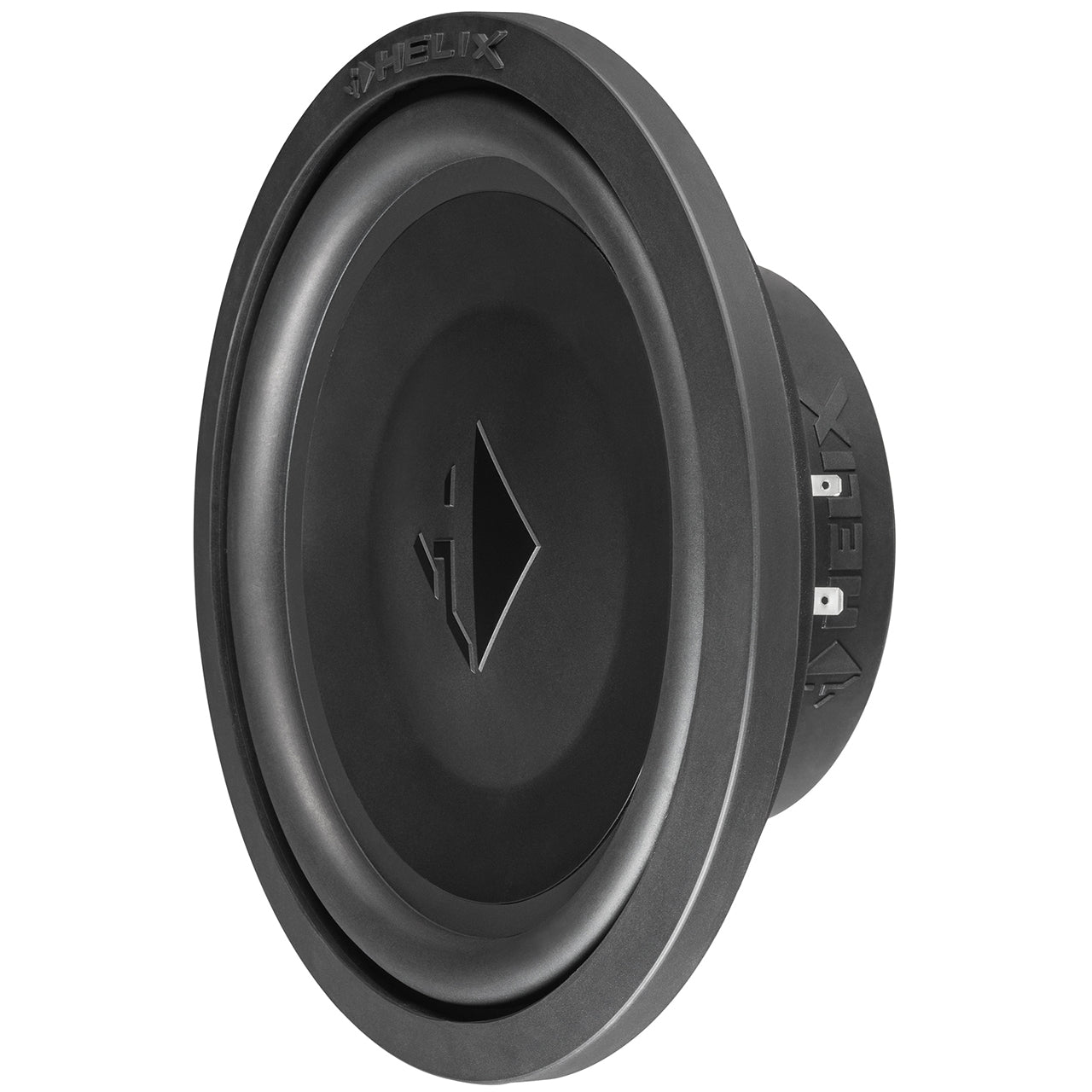

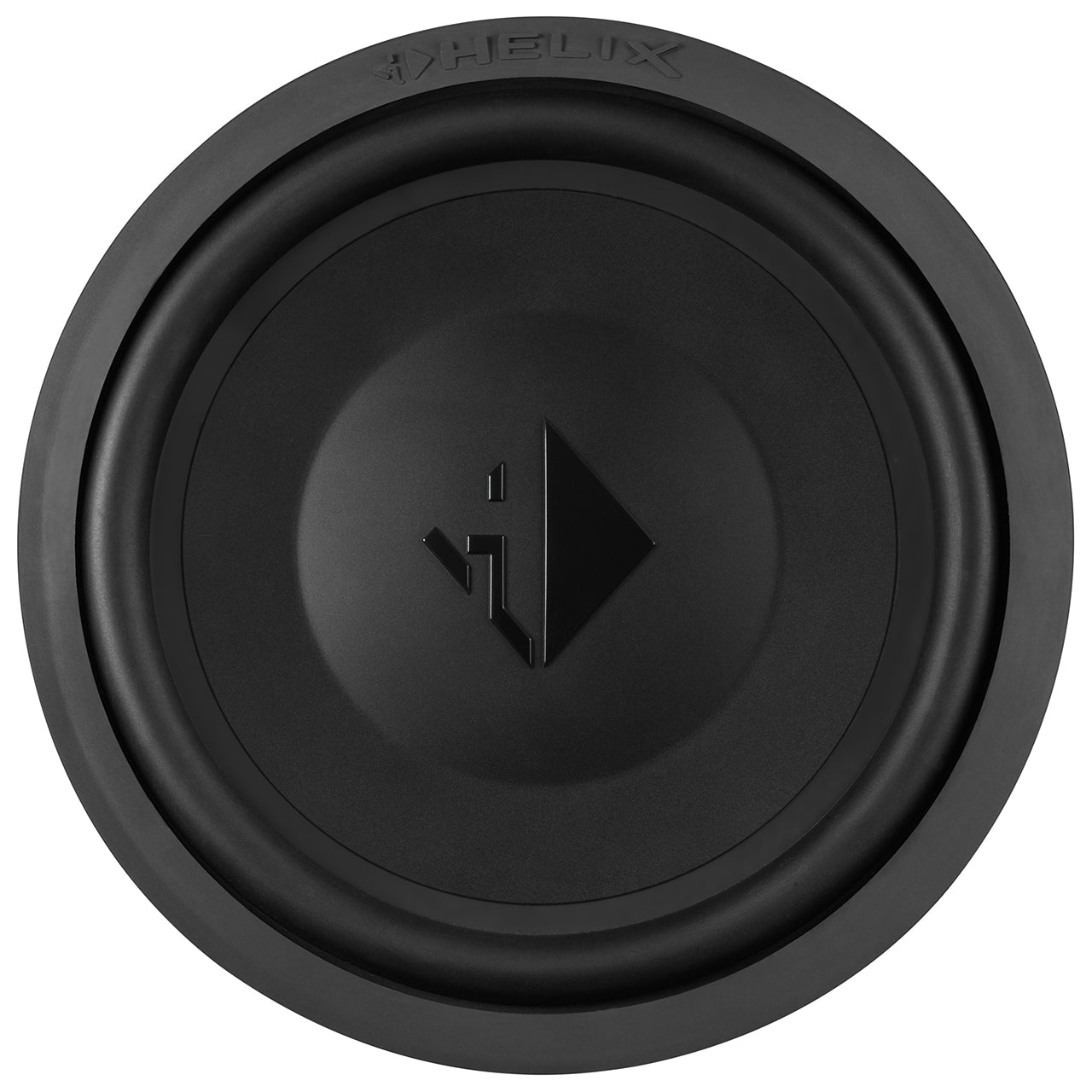

Helix IK S10-SVC2 (1x2Ohm)

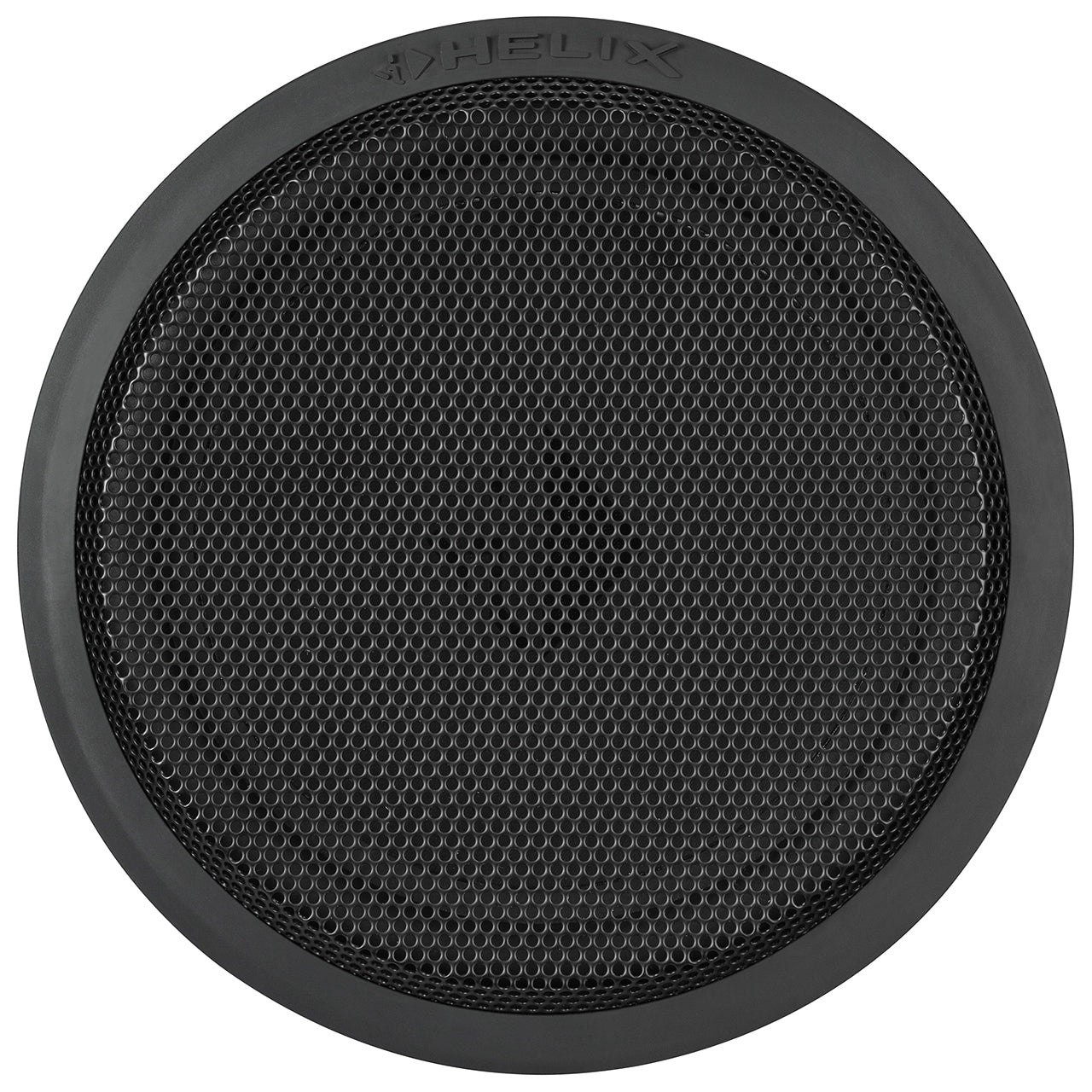

The Helix IK S10 is a high-quality low-profile subwoofer that operates in a small enclosure and comes with a protective grille.

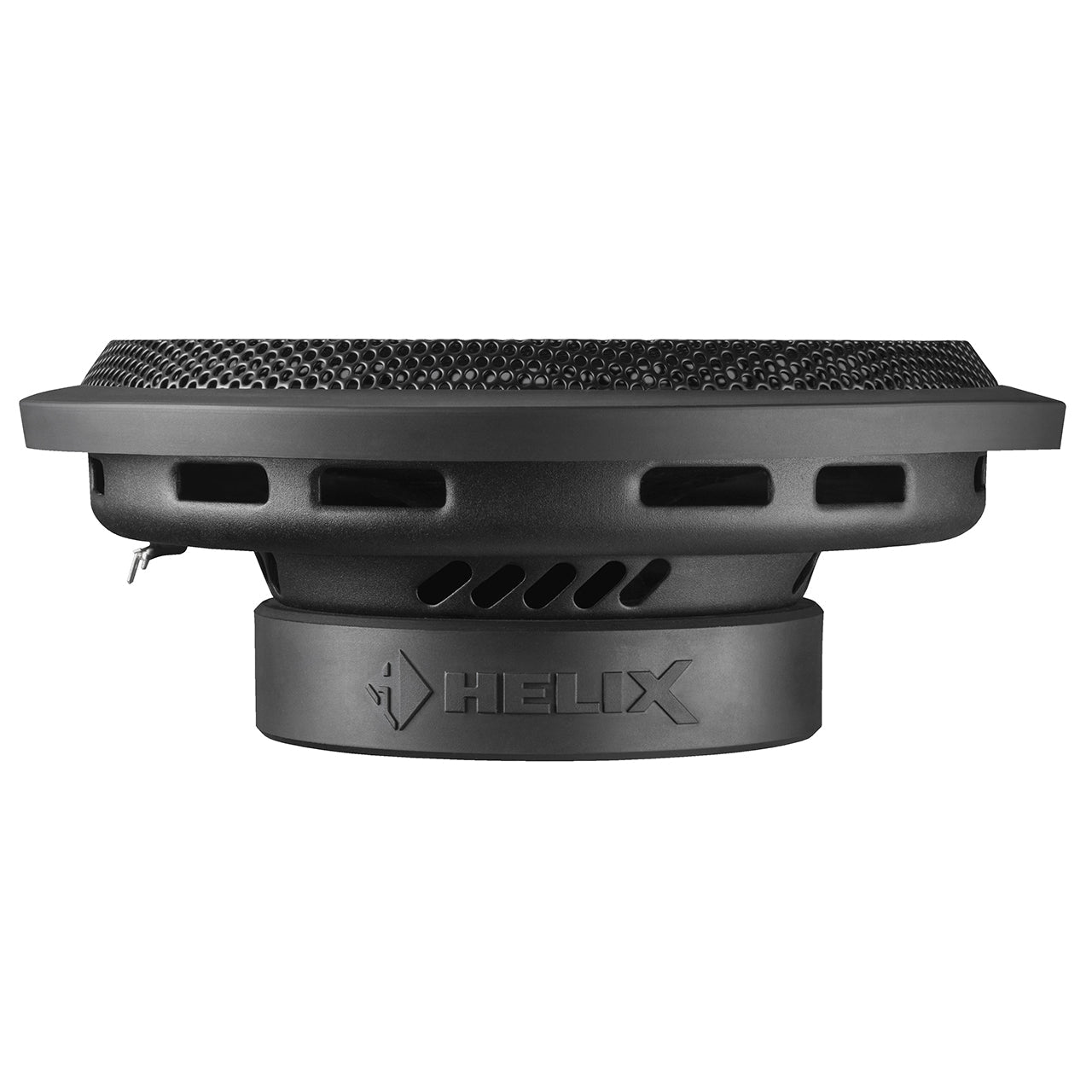

The installation depth of this element is only 84.5 mm, so it can be installed in a very shallow housing.
Helix's IK series subwoofers work in small enclosures. Both reflex enclosures and sealed enclosures. Reasonably priced drivers available with 1x2 Ohm voice coil. IK series drivers offer very good sound quality from a small enclosure.
Specifications:
Power handling RMS / max. P 300 / 600 Watts
Impedance Z 1 x 2 Ω
DC resistance Re 2.0 Ω
Resonance frequency Fs 37 Hz
Mechanical Q factor Qms 7.61
Electrical Q factor Qes 0.54
Total Q factor Qts 0.51
Compliance Cms 150 μm/N
Equivalent air volume Vas 26 L
Force factor B*I 10.1 Tm
Sensitivity SPL 93.0 dB @ 2.83V / 1m
87.0 dB @ 1W / 1m
Cone area Sd 353 cm²
Moving mass MMS 119 g
Cone material Sandwich paper cone
Mechanical resistance Rms 3.7 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 18 mm
Max. linear excursion Xmax +/- 6.0 mm
Outer diameter ø 262 mm / 10.31″
Installation diameter ø 229 mm / 9.01″
Installation depth 84.5 mm / 3.33″
Recommended enclosure volumes
Sealed box
Net volume 14 L
Lower limiting frequency (-3dB) 46 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 45 Hz cut-off frequency and Q = 1.3
additional EQ filter 100 Hz / Q = 1.0 / -3 dB
Vented box
Net volume 16 L
Port diameter ø 70 mm / 2.76″
Port area 38 cm²
Port length 38 cm / 14.96″
Port tuning frequency Fb 37 Hz
Lower limiting frequency (-3dB) 39 Hz
Recommended DSP settings Recommended ″self-define″ highpass filter with 37 Hz cut-off frequency and Q = 1.2
additional EQ filter 95 Hz / Q = 0.7 / -3 dB
Scope of delivery
1 x Subwoofer HELIX IK S10-SVC2
1x Grille
1 x Gasket
1x Enclosure connecting terminal
1 x Data sheet
