-High Resolution DSP
-12 channels
-32 bit ACO platform
-ADEP.3 circuit
-2 x 64-bit audio signal processors
As the name suggests, the Helix DSP ULTRA S is more than just another processor with a couple more channels. The ULTRA S is a device that takes DSP devices to a whole new level and demonstrates Audiotec Fischer's expertise as a pioneer in DSP technology.
The redesigned audio signal path reduces distortion to a minimum: at its core are the renowned AKM Velvet Sound™ 32 Bit AD and DA signal converters and new, high-quality operational amplifiers from the legendary TI/BurrBrown ″OPA series″ with SoundPlus™ technology, which guarantees the best possible sound quality.
The only way to improve processing power is to add more processing power. The ULTRA S are two of the most powerful 64-bit audio signal processors in the Analog Devices portfolio. With an incredible 2.4 billion MAC operations per second, they enable twelve individual channels of processing and a 96 kHz sampling rate.
The new 32-bit ACO platform enables fast operation in everything, but it also does much more. The most important feature is the analysis of the signal from OEM audio sources and automatic response straightening. This compensates for the input signal distortion that is often done in OEM devices to compensate for poor quality original speakers.
The ULTRA S seamlessly integrates with any OEM audio source thanks to the ADEP.3 circuitry and incredibly wide input sensitivity. The 4-32 Volt input sensitivity on the speaker level input allows installation behind OEM amplifiers in cars where removal from the player is impossible
The redesigned audio signal path reduces distortion to a minimum: at its core are the renowned AKM Velvet Sound™ 32 Bit AD and DA signal converters and new, high-quality operational amplifiers from the legendary TI/BurrBrown ″OPA series″ with SoundPlus™ technology, which guarantees the best possible sound quality.
The only way to improve processing power is to add more processing power. The ULTRA S are two of the most powerful 64-bit audio signal processors in the Analog Devices portfolio. With an incredible 2.4 billion MAC operations per second, they enable twelve individual channels of processing and a 96 kHz sampling rate.
The new 32-bit ACO platform enables fast operation in everything, but it also does much more. The most important feature is the analysis of the signal from OEM audio sources and automatic response straightening. This compensates for the input signal distortion that is often done in OEM devices to compensate for poor quality original speakers.
The ULTRA S seamlessly integrates with any OEM audio source thanks to the ADEP.3 circuitry and incredibly wide input sensitivity. The 4-32 Volt input sensitivity on the speaker level input allows installation behind OEM amplifiers in cars where removal from the player is impossible
Technical data

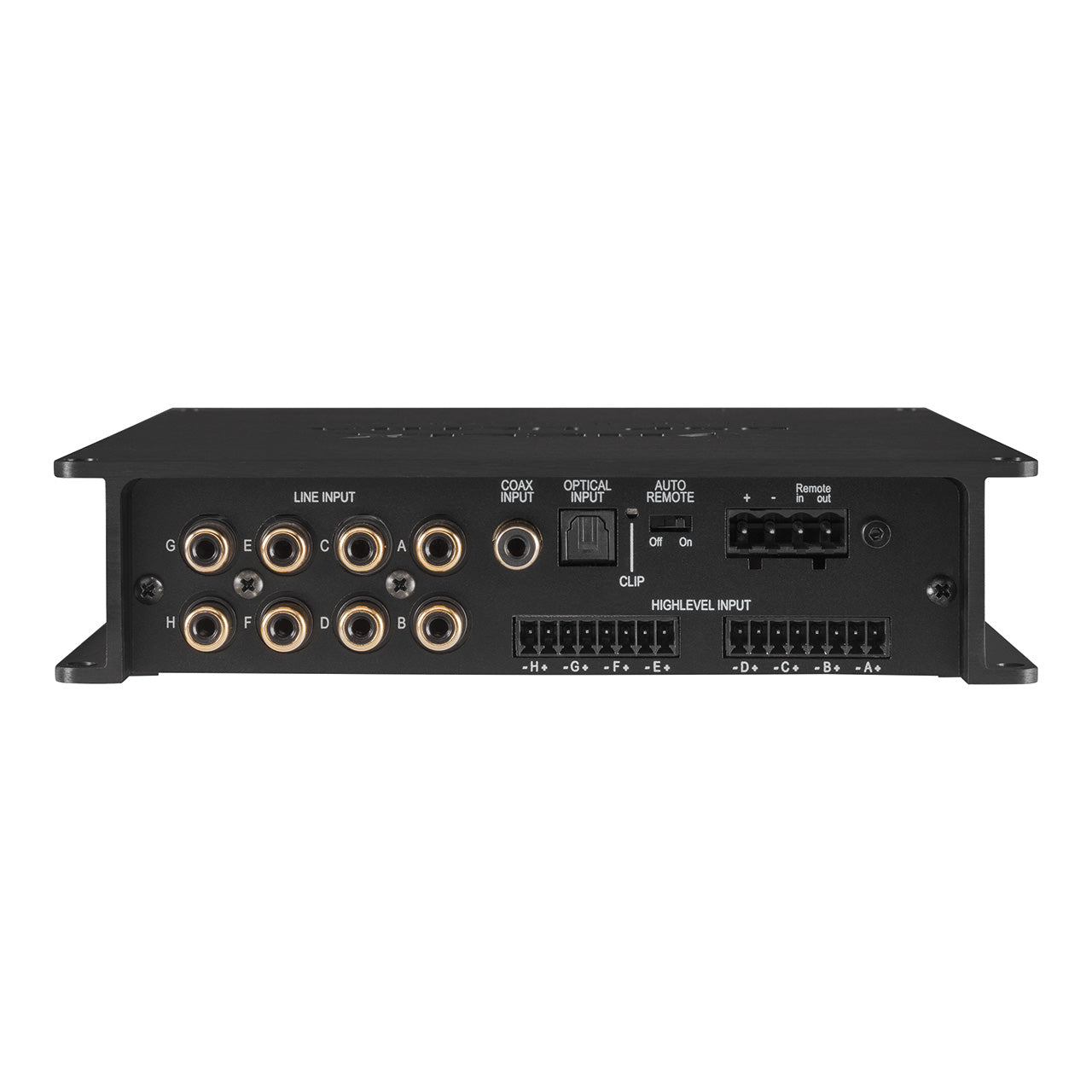

Inputs 8 x RCA / Cinch
8 x High-level speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivity RCA / RCA 1 - 8 Volts
High level 4 - 32 Volts

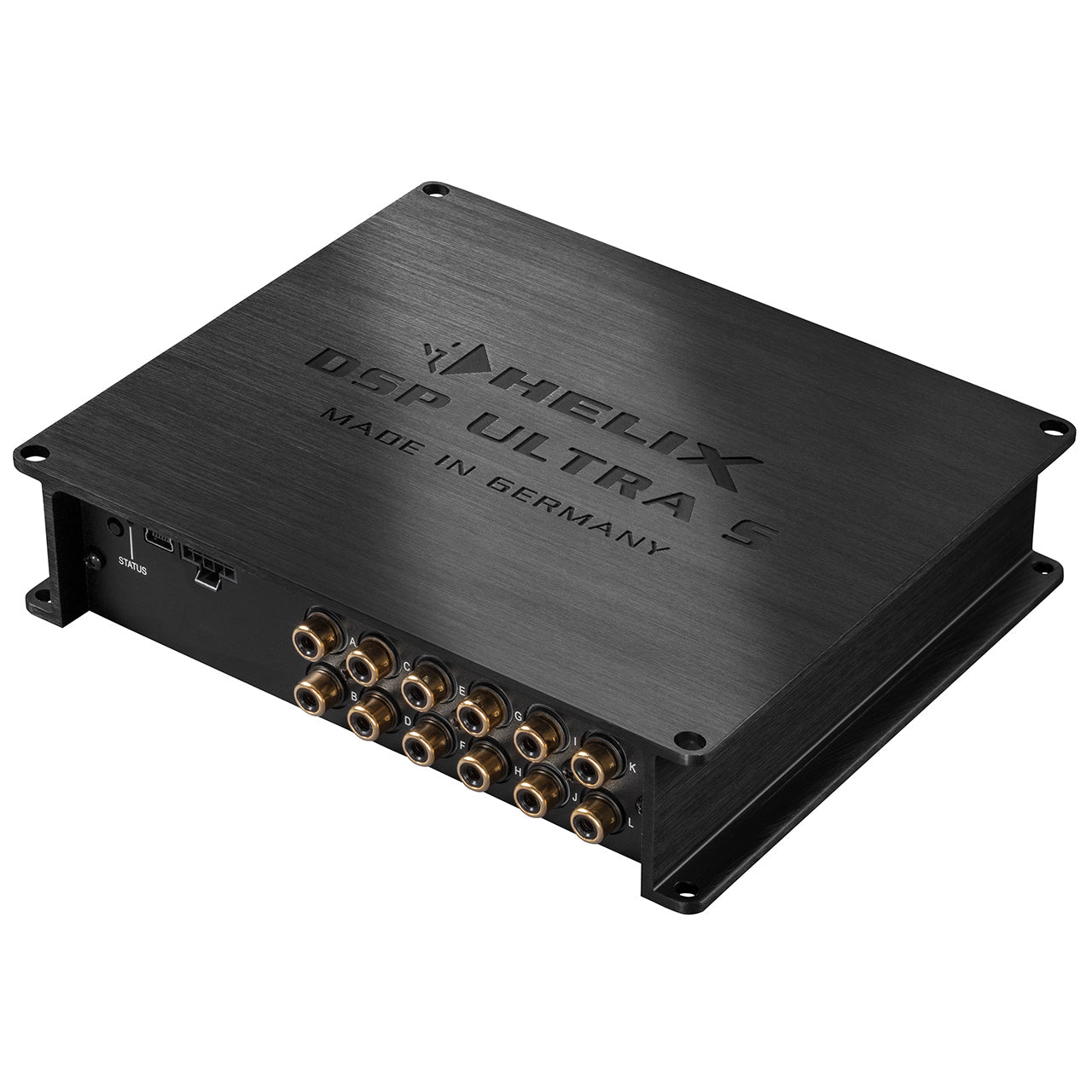

Outputs 12 x RCA / Cinch
1 x Remote Out
Output voltage 8 Volts
Frequency response 10 Hz to 44,000 Hz
DSP resolution 64 Bit
DSP power 2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate 96 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: Asahi Kasei 32 Bit
D/A: Asahi Kasei 32 Bit
Signal-to-noise ratio digital input 117 dB (A-weighted)
Signal-to-noise ratio analog input 111 dB (A-weighted)
Total harmonic distortion (THD+N) digital input 0.0004 %
Total harmonic distortion (THD+N) analog input 0.0008 %
IM distortion (IMD) digital input 0.0015 %
IM distortion (IMD) analog input 0.003%
Crosstalk 90 dB
Operating voltage 9.6 - 17 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 1.1 A max.
Current draw 550 mA
Max. remote output current 500 mA
Operating temperature range -40°C to +70°C
Additional features HEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D) 40 x 177 x 170 mm /
1.58 x 6.97 x 6.69“
Scope of delivery
1 x Signal processor HELIX DSP ULTRA S
1 x USB cable
1 x Mounting material
1 x Instruction manual
