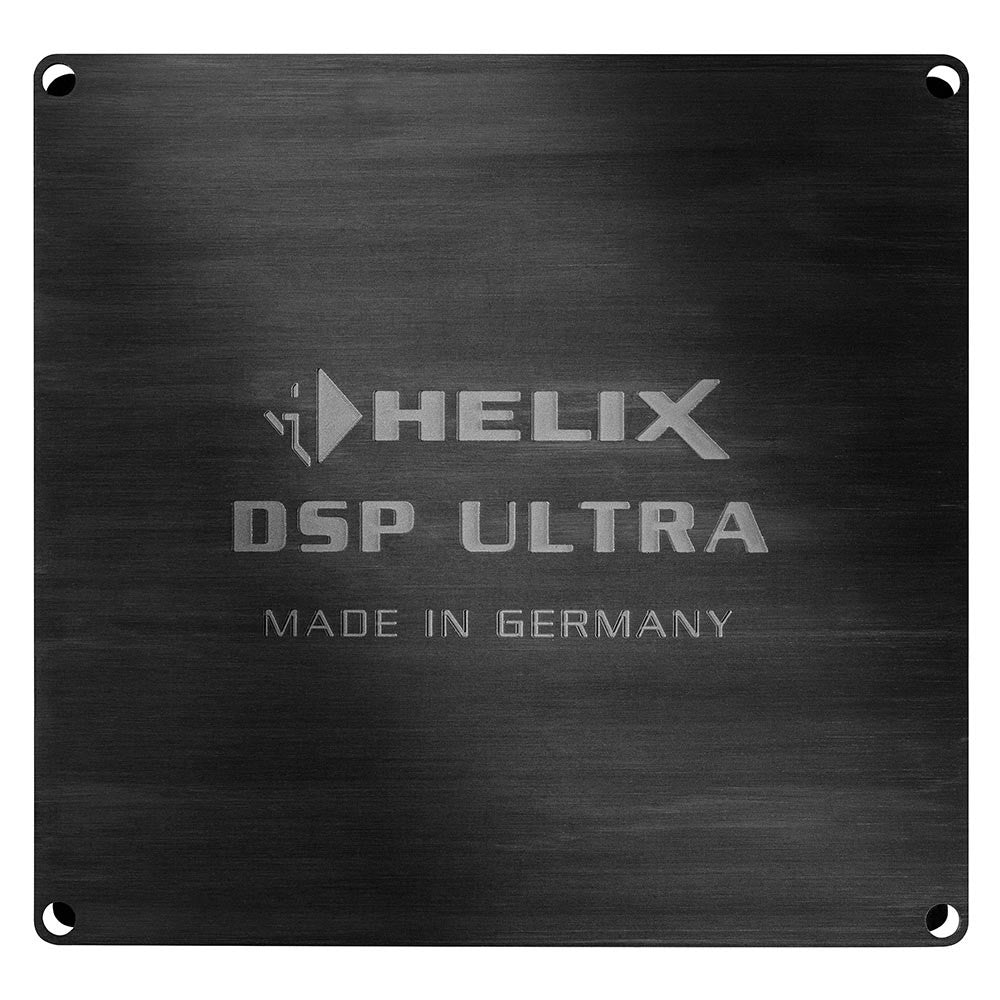

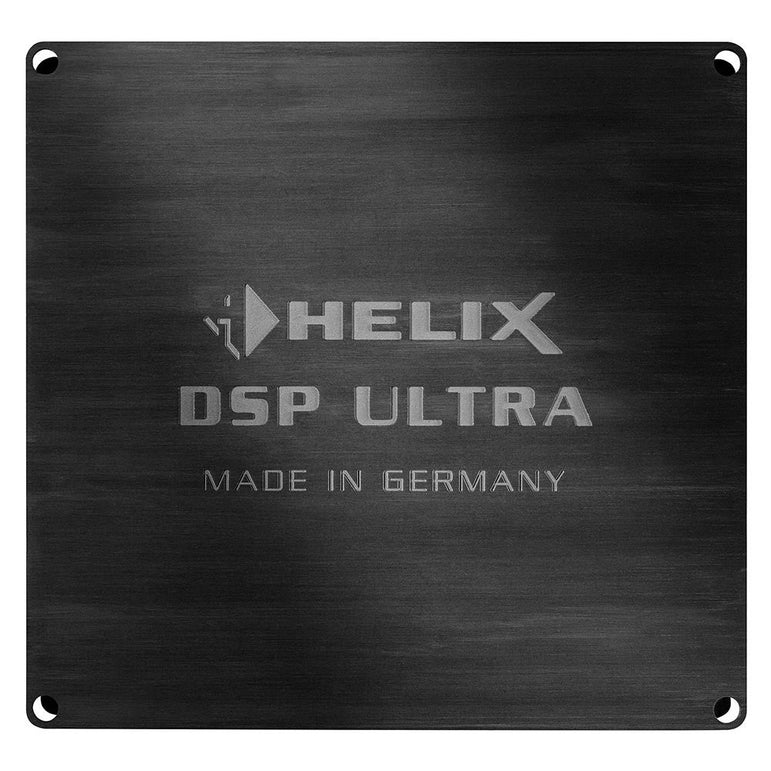

Helix DSP ULTRA
As the name suggests, Helix DSP ULTRA is more than just another processor with a couple more channels. ULTRA is a device that takes DSP devices to a whole new level and demonstrates Audiotec Fischer's expertise as a pioneer in DSP technology.
The only way to improve processing power is to add more processing power. The ULTRA features two of the most powerful 64-bit audio signal processors in the Analog Devices portfolio. An incredible 2.4 billion MAC operations per second enable twelve individual channels of processing and a 96 kHz sampling rate.

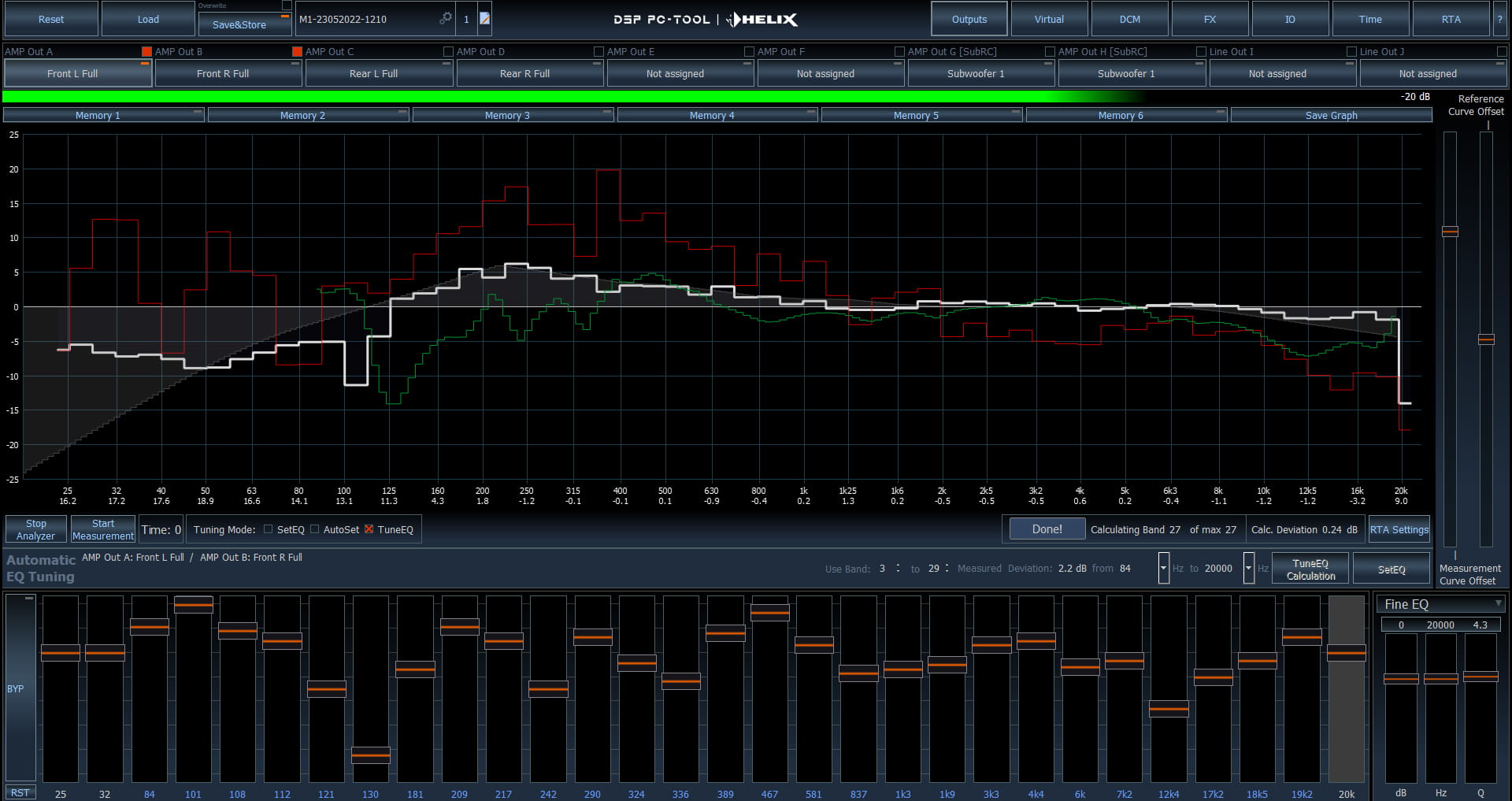

The new 32-bit ACO platform enables fast operation in everything, but it also does much more. The most important feature is the analysis of the signal from OEM audio sources and automatic response straightening. This compensates for the input signal distortion that is often done in OEM devices to compensate for poor quality original speakers.
The ULTRA seamlessly integrates with any OEM audio source thanks to the ADEP.3 circuitry and incredibly wide input sensitivity. The 4-32 Volt input sensitivity on the speaker level input allows installation behind OEM amplifiers in cars where removing it from the player is impossible.
Specifications:

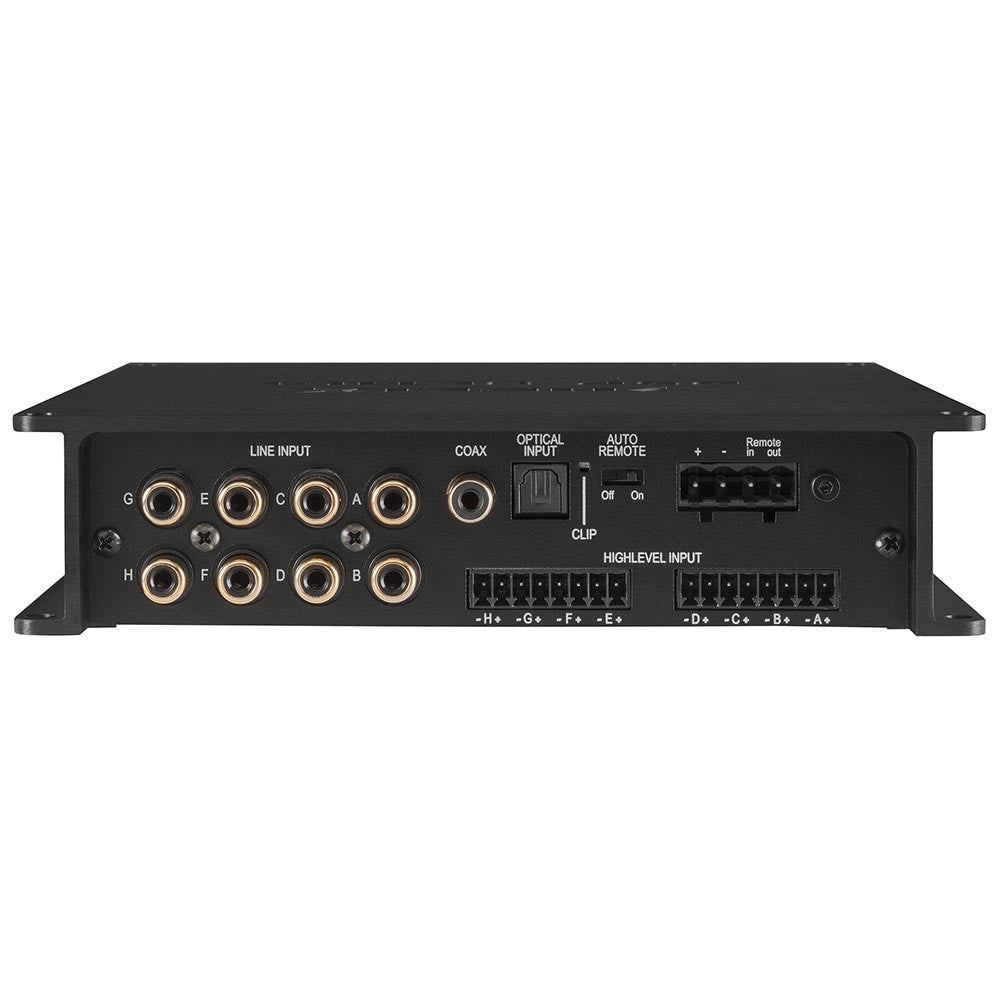

Inputs8 x RCA / Cinch
8 x High-level speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivityRCA / Cinch 1 - 8 Volts
High level 4 - 32 Volts

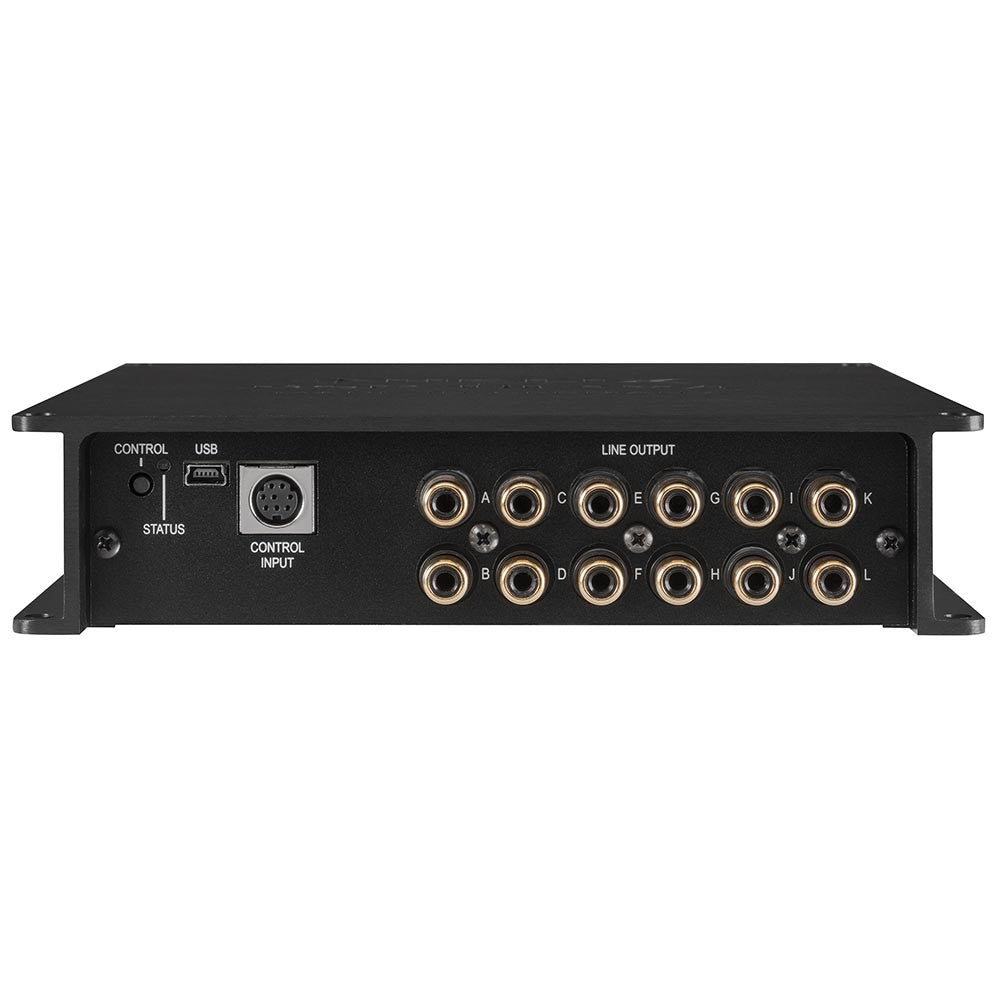

Outputs12 x RCA / Cinch
1 x Remote Out
Output voltage8 Volts
Frequency response 10 Hz to 44,000 Hz
DSP resolution64 Bit
DSP power2 x 295 MHz (2.4 billion MAC operations/second)
Sampling rate96 kHz
DSP type 2 x Audio signal processor
Signal converters A/D: Asahi Kasei 32 Bit
D/A: Asahi Kasei 32 Bit
Signal-to-noise ratio digital input 117 dB (A-weighted)
Signal-to-noise ratio analog input 111 dB (A-weighted)
Total harmonic distortion (THD+N) digital input 0.0004 %
Total harmonic distortion (THD+N) analog input 0.001 %
IM distortion (IMD) digital input 0.002%
IM distortion (IMD) analog input 0.004%
Crosstalk 90 dB
Operating voltage9.6 - 18 Volts (max. 5 sec. down to 6 Volts)
Current draw650 mA
Max. remote output current 500 mA
Additional featuresHEC slot, Ground lift switch, Control Input, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D) 40 x 177 x 170 mm.
