Helix DSP.3S
Helix DSP.3S
The Helix DSP.3S is a new and improved version of the popular Helix DSP.3 model. The Helix DSP.3S is guaranteed to be one of the best DSP processors on the market in terms of price/performance ratio.
ACO
Thanks to the ACO platform (ACO = Advanced 32 Bit CoProcessor), the device is incredibly fast and efficient.
ISA & Input EQ
The Helix DSP.3S model features ISA (Input Signal Analyzer) and InputEQ, i.e. input signal measurement and equalizer. ISA measures the frequency response of the incoming signal and InputEQ is a channel-specific 5-channel parametric equalizer that can correct any distortions in the frequency response of the incoming signal. This provides a proper starting point for the best possible sound reproduction.
Signal Input

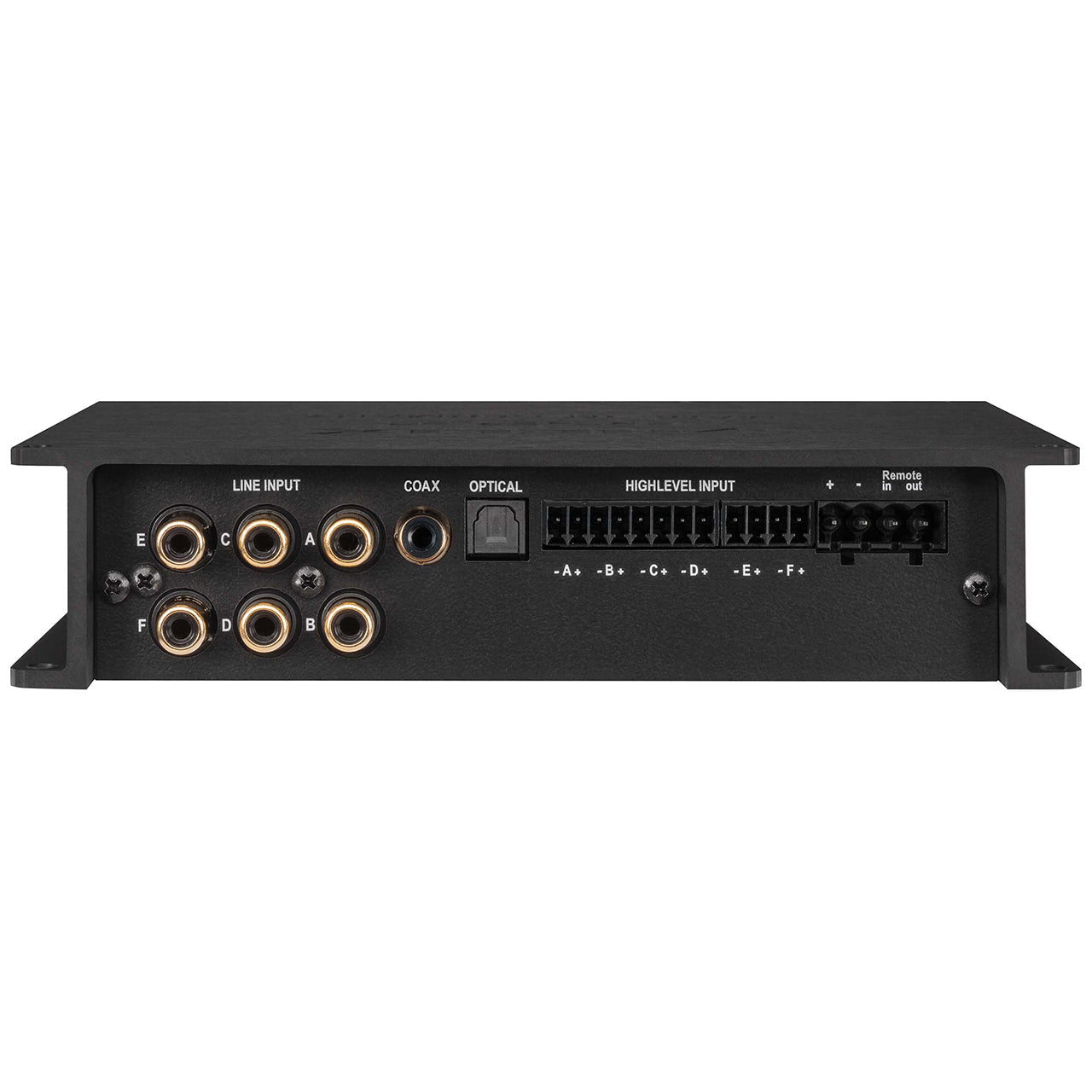

The signal can be brought in at speaker level, line level, optical or via the optional Helix HEC module via Bluetooth or at HD level via a USB cable.
Powerful processor
Processor speed is a very important feature when adjusting an audio system. The slower the processor, the more the dynamics will flatten out when adjusting equalization or crossovers. This processor has the latest technology 64-bit 295Mhz processor with a speed of 1.2 billion calculations per second.
Autostart
High Level Input has the most advanced Autostart function on the market with a switch-off delay adjustment of 10-300 seconds. The device only turns on when it detects the correct speaker signal, and does not react to start-up pops or other disturbances. Like other plug&play devices from Audiotec Fischer, it is an ideal product for radios implemented with a CAN bus, where the radio may be on for up to 40 minutes after the doors are locked.
8 channels
With this device you can make all the splits of a 4-way system and the delays of each element. Or an active 2-way front, sub and rear speakers. Or any combination. There are 8 channels in use, the properties of which can be defined for each channel yourself.
Helix HEC modules
This model is also available with an internal Helix HEC Bluetooth, Helix HEC HD-Audio USB, Helix HEC AUX IN or Helix HEC OPTICAL IN module.
NOTE! Helix DSP.3 accessories are not compatible with the new DSP.3S model!
Specifications:
Inputs6 x RCA / Cinch
6 x High-level speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Coax SPDIF (12 - 192 kHz)
1 x Remote In
Input sensitivityRCA / Cinch 2 - 4 Volts
High level 5 - 11 Volts

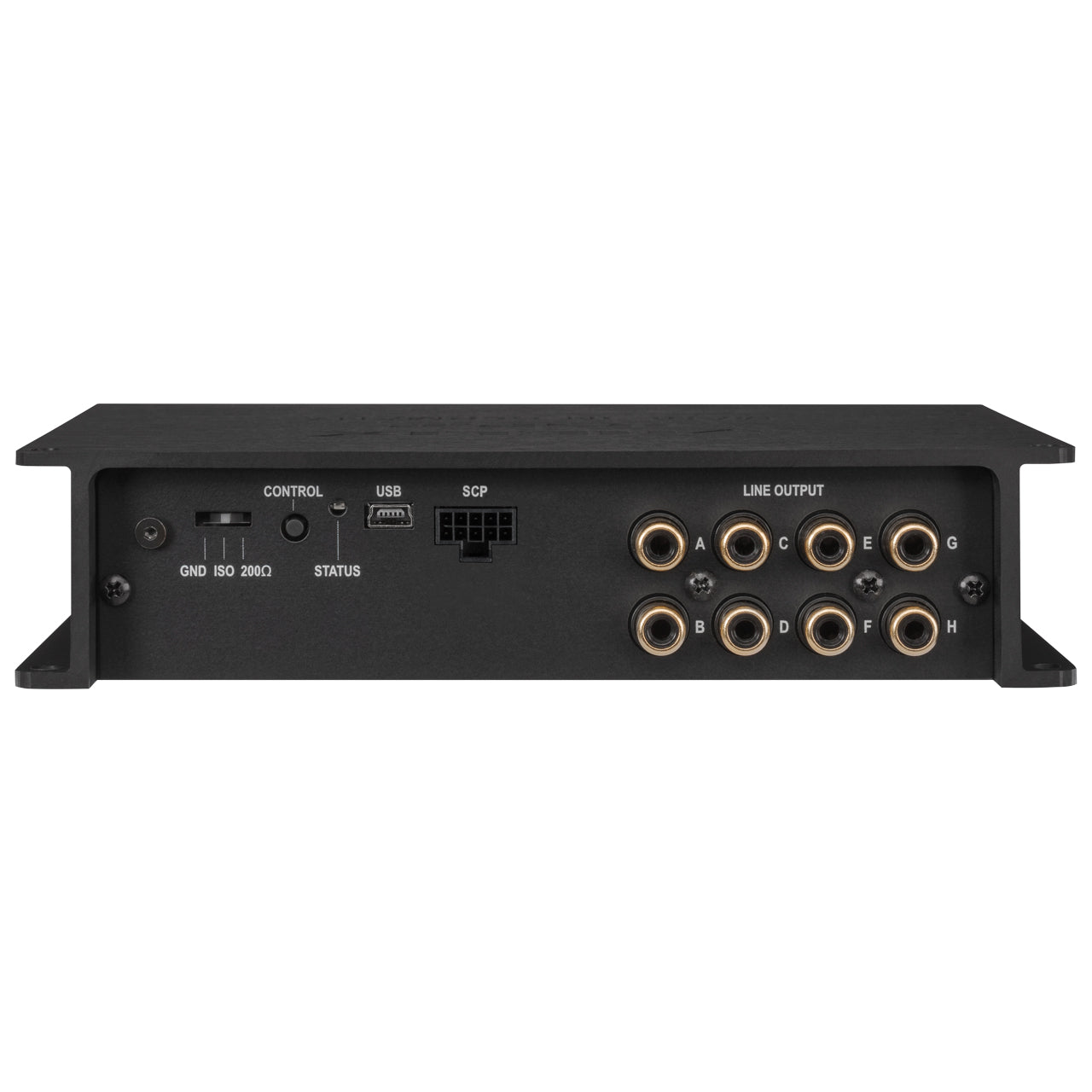

Outputs8 x RCA / Cinch
1 x Remote Out
Output voltage6 Volts
Frequency response 10 Hz to 44,000 Hz
DSP resolution64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate96 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 112 dB (A-weighted)
Signal-to-noise ratio analog input 107 dB (A-weighted)
Total harmonic distortion (THD+N) digital input 0.0008%
Total harmonic distortion (THD+N) analog input 0.002 %
IM distortion (IMD) digital input 0.003%
IM distortion (IMD) analog input 0.005%
Crosstalk 90 dB
Operating voltage9.6 - 17 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ¡šÅ3 A max.
Current draw 450 mA
Max. remote output current 500 mA
Additional featuresHEC slot, Ground lift switch, Smart Control Port, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch
Dimensions (H x W x D)40 x 177 x 120 mm /
1.58 x 6.97 x 4.72¡šÅ
