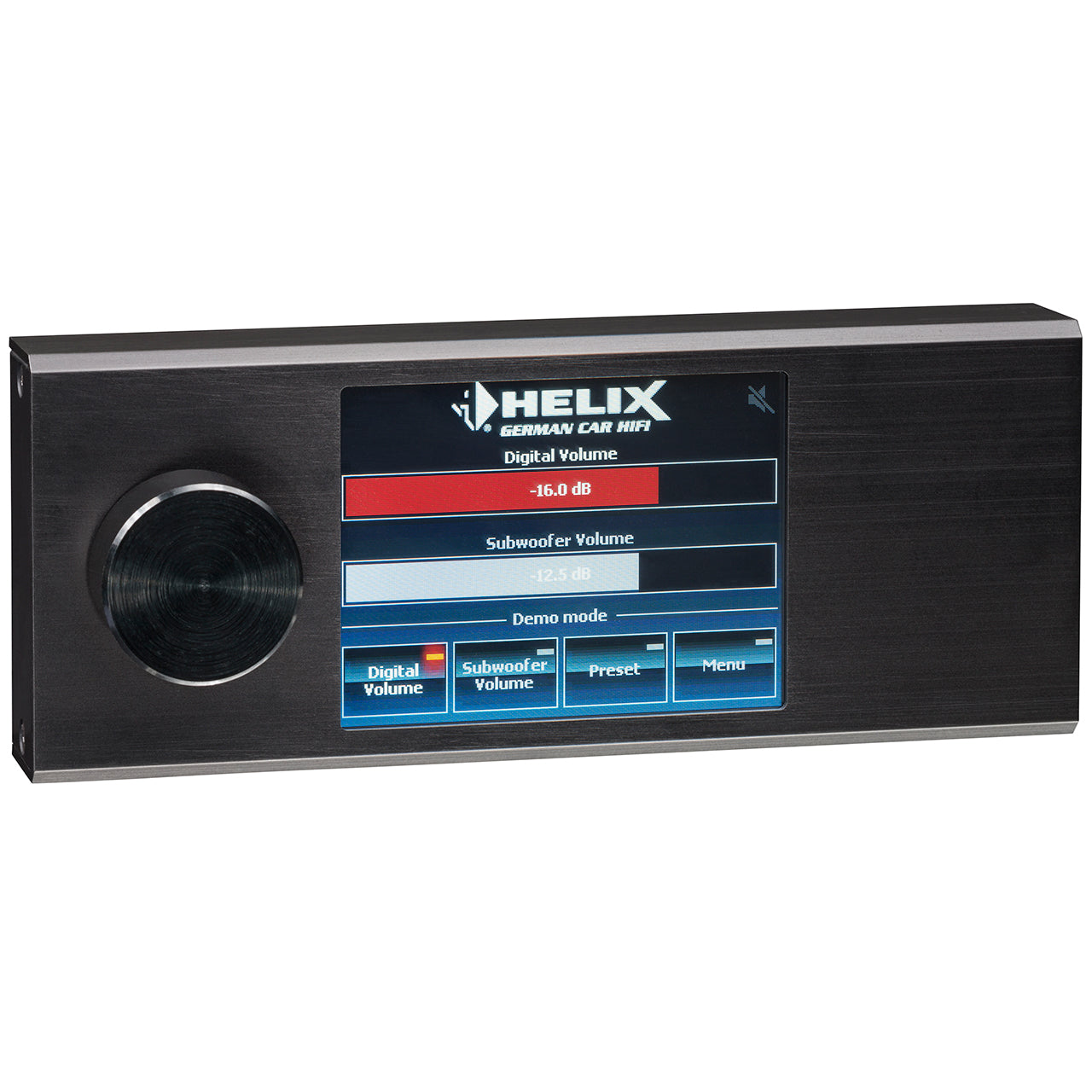

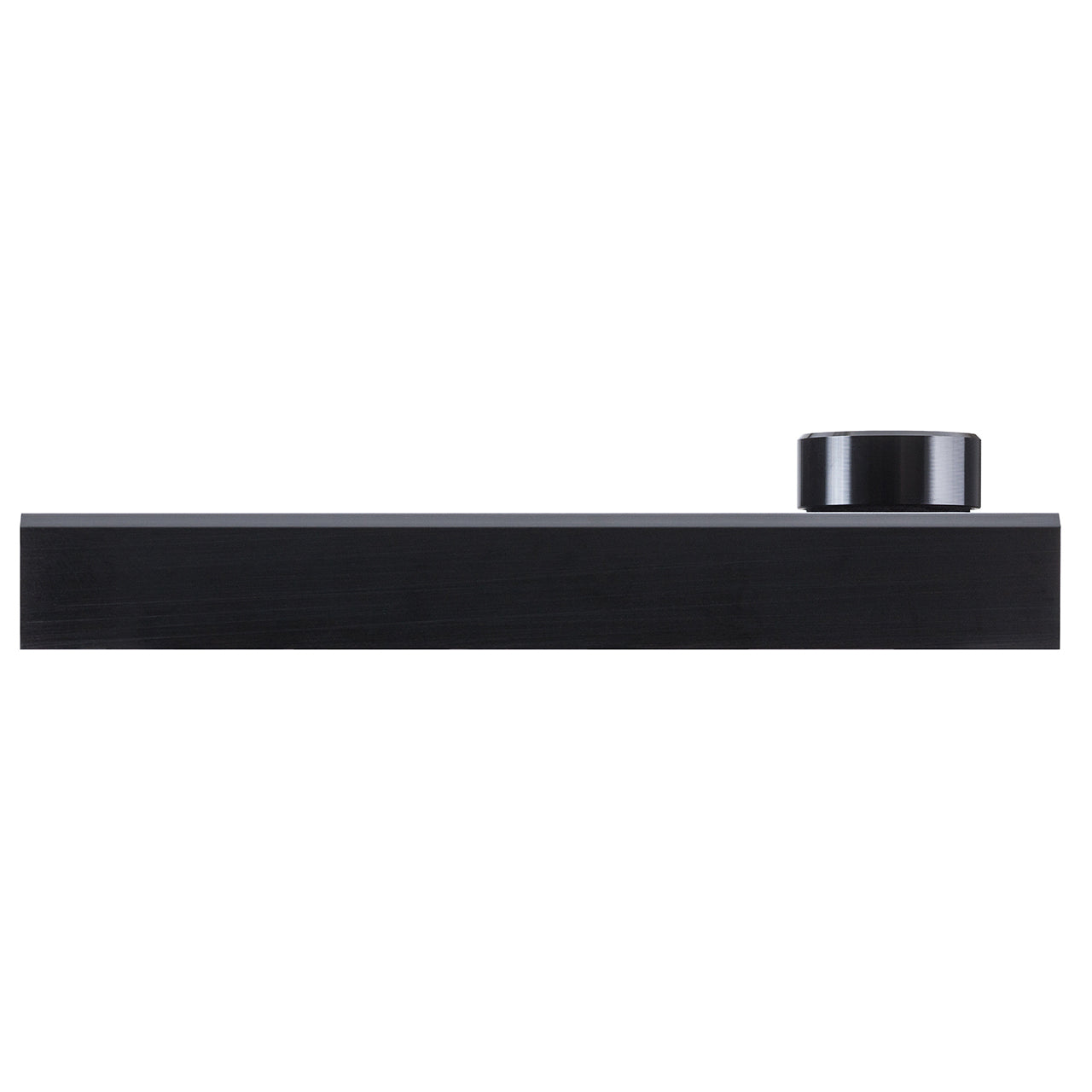

HELIX DIRECTOR remote control
DIRECTOR lets you easily control Helix and Match DSP processors. Thanks to its small size, it offers very wide installation possibilities!
-2.8″ Touchscreen
– Volume of all program sources (Volume)
– Subwoofer level control
– Selecting the program source
– Changing the adjustment settings in the DSP memory
– Helix HEC BT module control
(Bluetooth Connect functions: pairing, reconnect, disconnect)
(Bluetooth Control functions: track forward/back, play/pause)
20 memory locations
Automatic screen dimming function
Screen rotation 180°
Specifications:
Features
2.8“ / 7 cm touchscreen display and powerful ARM processor
Easy handling of the main functions
Volume control of all sources
Volume control of the subwoofer
Source selection
Control of the HEC BT module (Bluetooth® Connect functions: pairing, reconnect, disconnect / Bluetooth® Control functions: track forward/back, play/pause)
Switching between sound Setups
Memory locations for 20 additional sound Setups (only devices without ACO platform)
Automatic dimming function of the display
Display rotation adjustable to 180°
Compatible with all DSP products which are supported by DSP PC-Tool Version 3 and higher
Exclusive solid aluminum housing
17' / 5.2 m connection cable included
Technical data
Dimensions (H x W x D)
53.50 x 135 x 18 mm
2.07 x 5.32 x 0.71″
Compatibility
DIRECTOR for Control Input
BRAXDSP
NOX4 DSP*
HELIXDSP ULTRA
DSP PRO MK3**
DSP PRO (MK1/MK2)
DSP.3S**
DSP.3
DSP.2
DSP MINI MK2**
DSP MINI
DSP
P SIX DSP ULTIMATE** (not in 24V applications)
P SIX DSP (MK1 / MK2)
V TWELVE DSP
V EIGHT DSP (MK1 / MK2)
MATCH
DSP
UP 10DSP**
UP 8DSP**
UP 7BMW
UP 7DSP
M 5.4DSP**
M 5DSP (MK1 / MK2)
PP 86DSP
PP 82DSP
PP 62DSP
PP 52DSP
* An additional adapter (Art. No. H424481) is required for connecting the remote control.
** The Control Input-to-SCP adapter supplied with the DSP product is required for connecting the remote control.
Director updates: https://www.audiotec-fischer.de/en/tools/director-update/.
