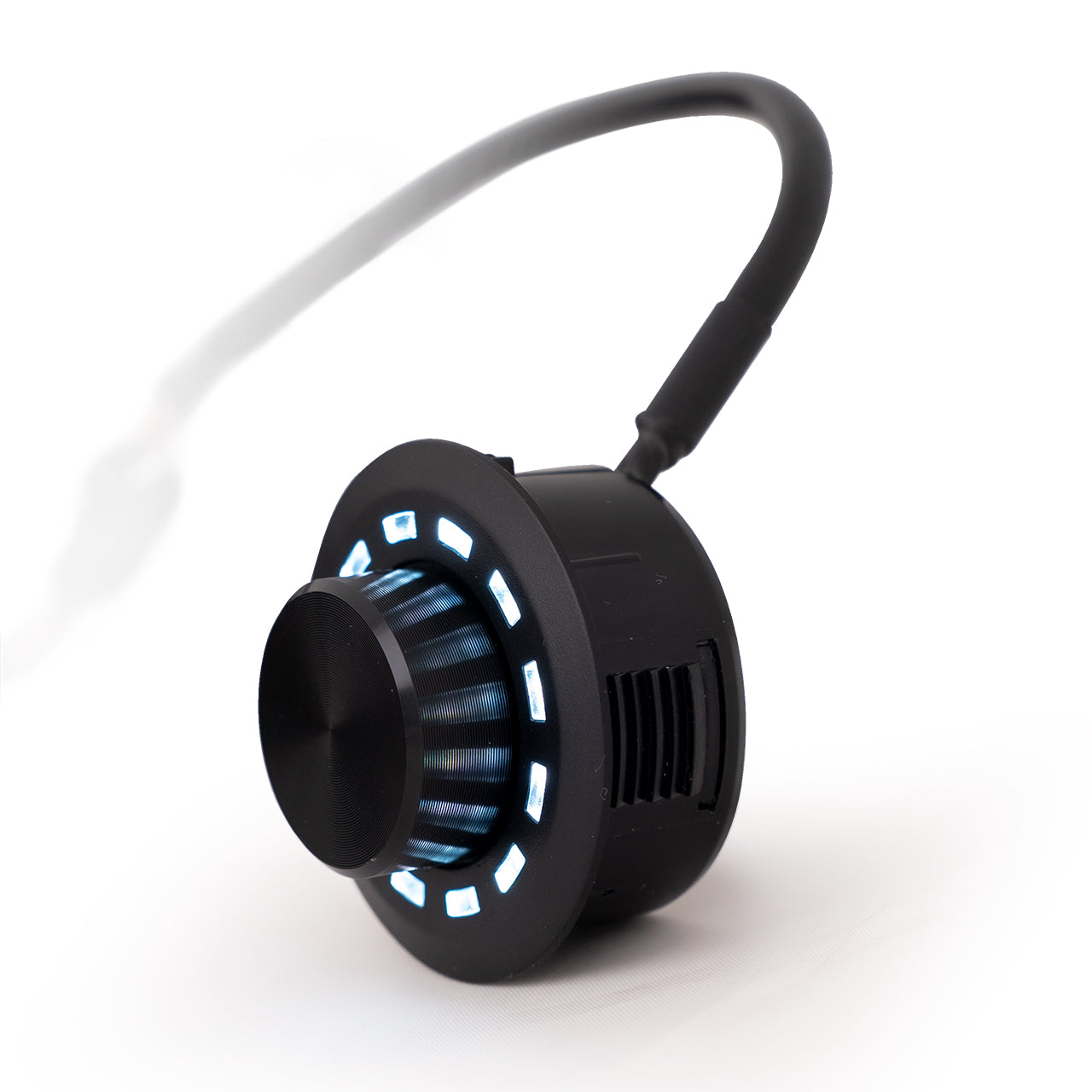

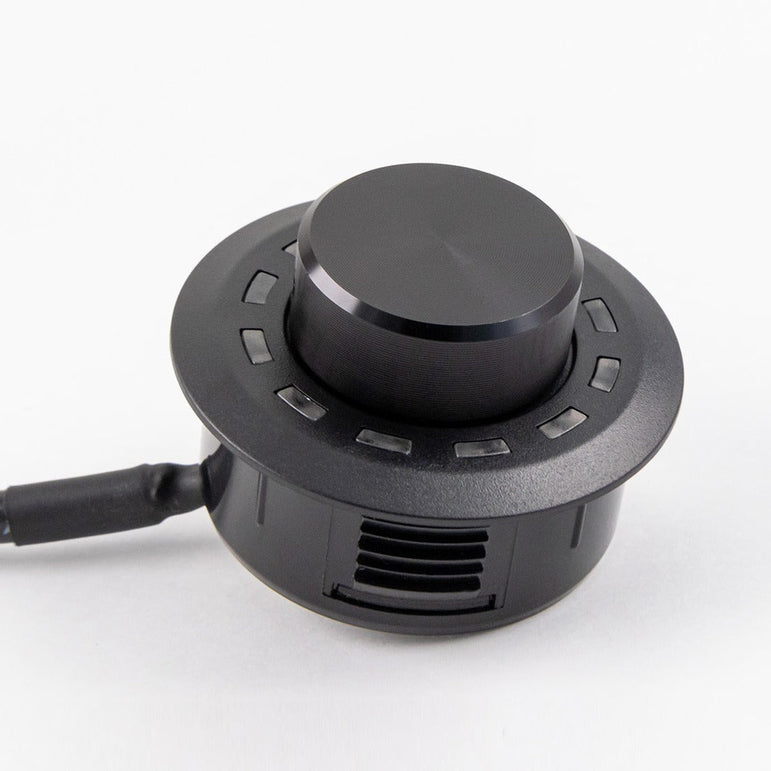

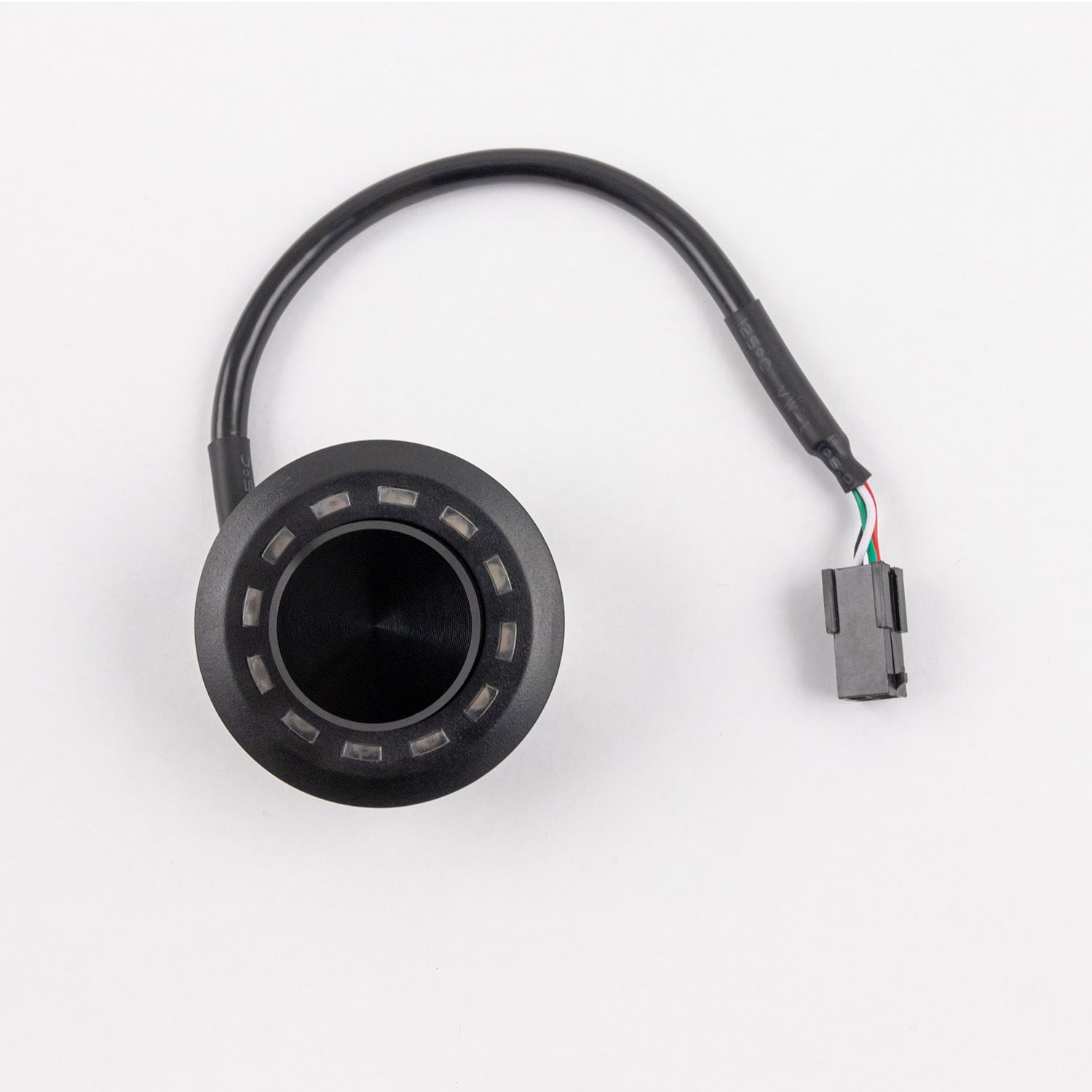

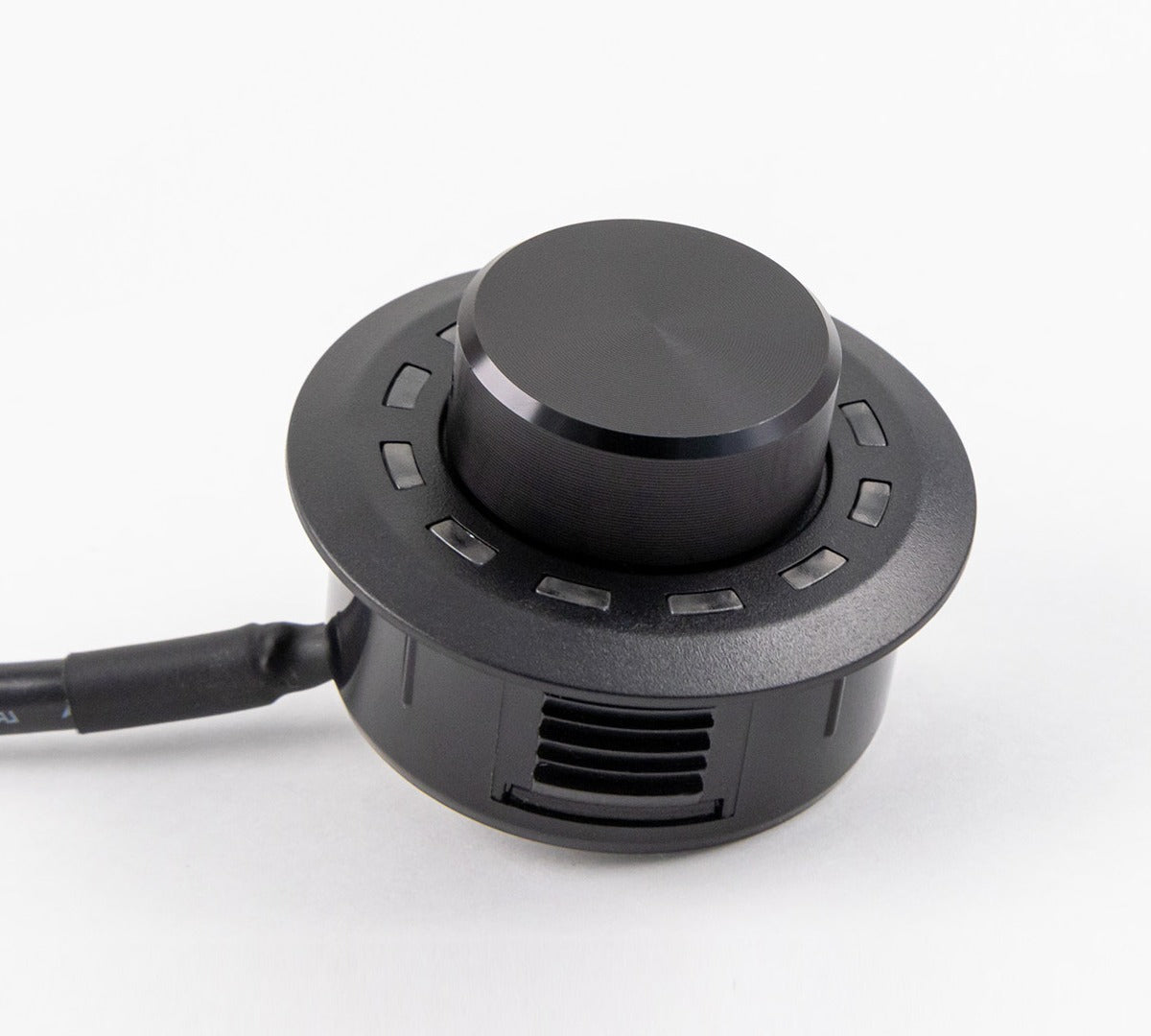

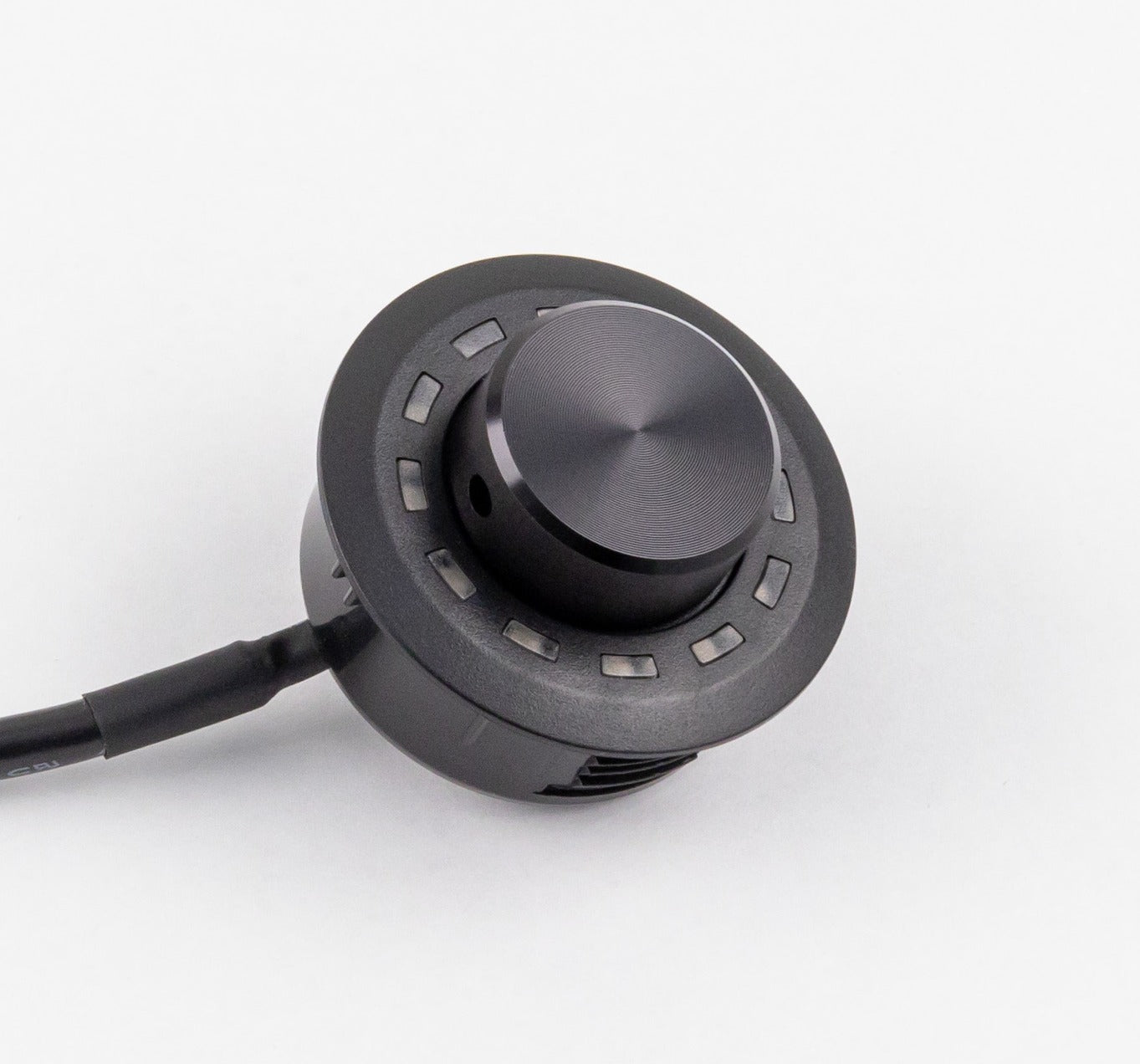

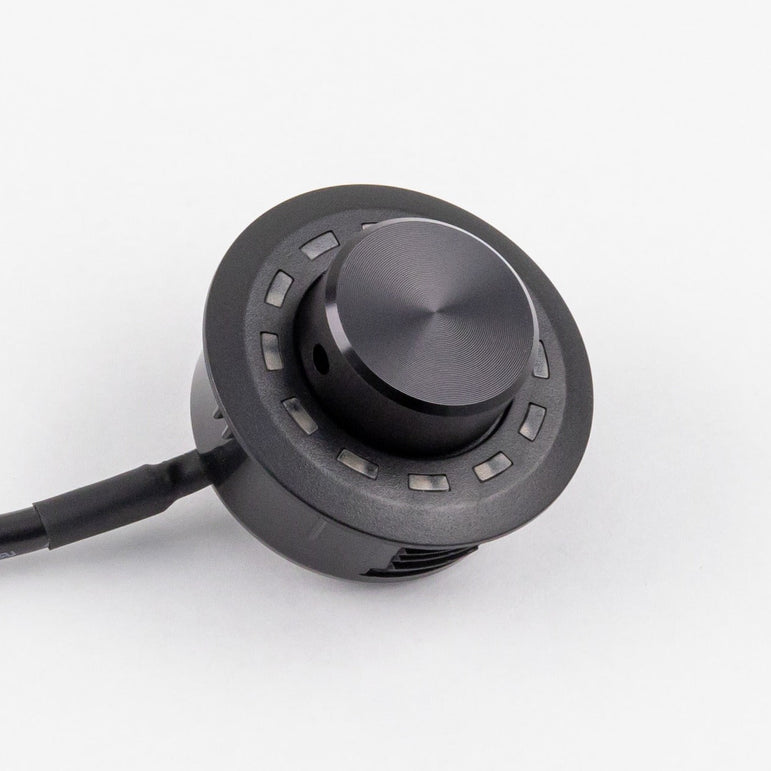

HELIX Conductor for Control Input
New compact wired remote control.
FEATURES:
4 volume menus that are configurable
(Master, digital, HEC / AUX, subwoofer, rear.)
• Selectable volume range (60 dB, 24 dB, 12 dB).
• Selectable volume steps (1 dB, 0.5 dB).
• A separate color for each configurable volume setting.
Sound setting selection between 10 memory locations.
Bluetooth playback control and pairing activation
(only with Bluetooth expansion card).
12 x RGB LEDs for visual feedback.
• Wide color space, over 16 million colors.
• Brightness and auto dimming
(configurable).
Easy installation.
• Flush mounting in a Ø 40 mm mounting hole.
• 5 m wiring harness
Management and updatable using DSP PC-Tool software.
(DSP PC-Tool 4.75a or later).
Fit:
BRAX: DSP
HELIX:
DSP ULTRA
DSP PRO MK3*
DSP.3S*
DSP.3
DSP MINI MK2*
DSP MINI
V TWELVE DSP MK2*
V TWELVE DSP
V EIGHT DSP MK2
M SIX DSP
M FOUR DSP
MATCH:
UP 10DSP*
UP 8DSP*
M 5.4DSP*
M 5DSP MK2
NOTE! CONDUCTOR is not compatible with UP 7DSP / UP 7BMW devices.
Specifications:
Housing: ABS housing with machined aluminum knob.
Hardware: Rotary encoder, 12 x RGB LEDs &
48 MHz ARM processor.
Connection: Single connector supply through
MiniDIN or NanoFit.
Cable length: 5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable.

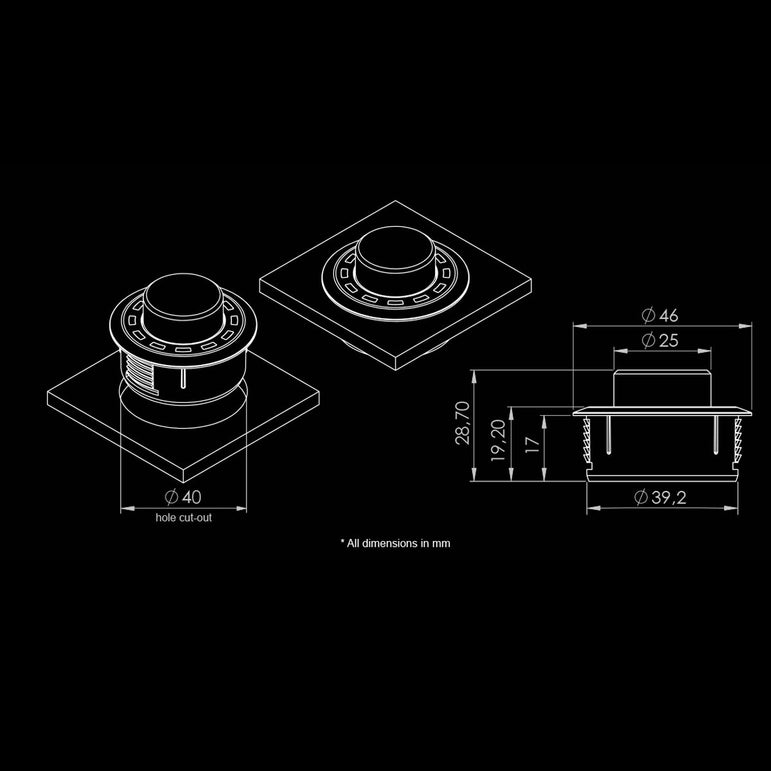

Dimensions: (Ø x H) Ø 46 x 28.7 mm /
Ø 1.81 x 1.13”.
