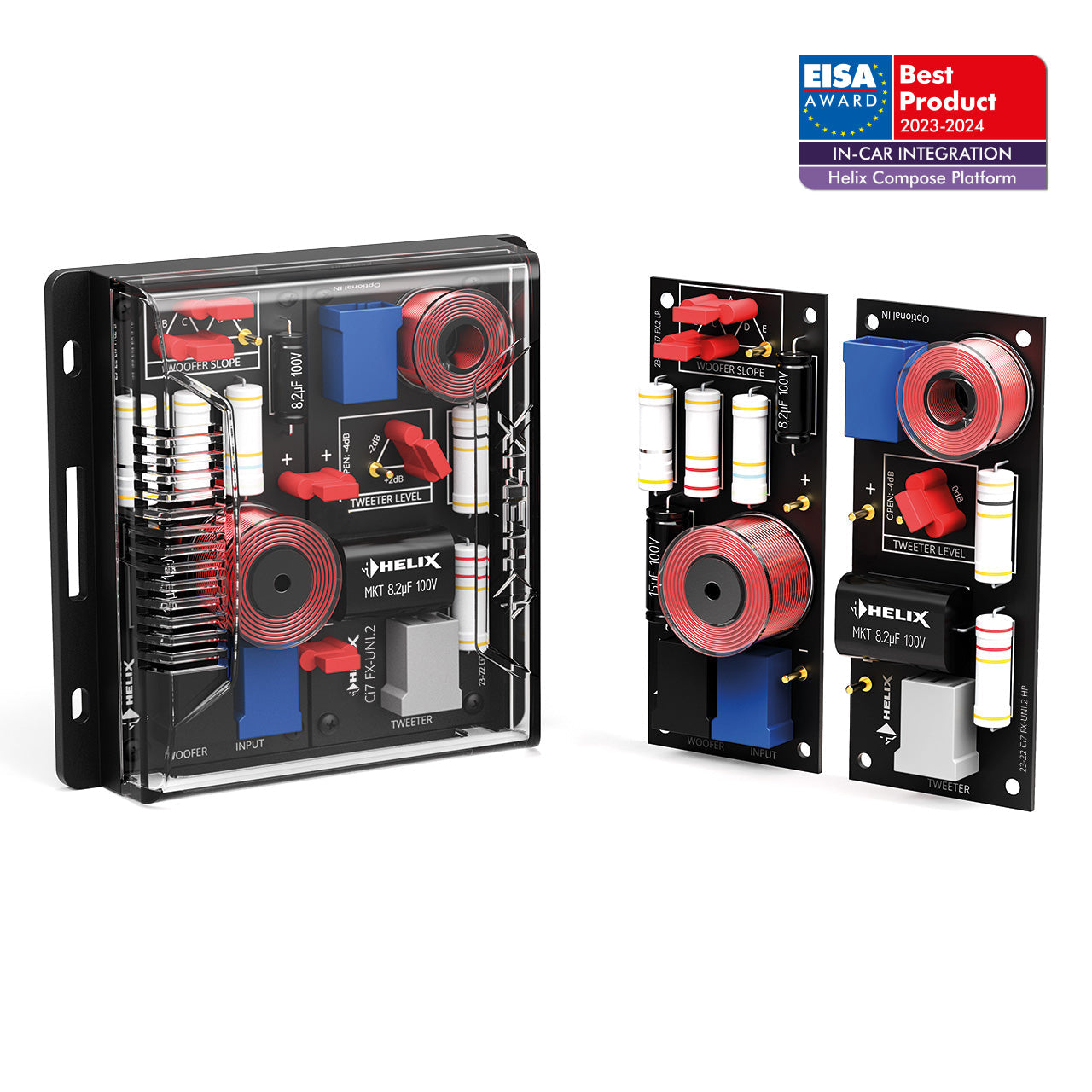

Helix Ci7 FX-UNI.2
The Ci7 FX-UNI.2 crossover is designed for use with the HELIX Compose i7 series. This crossover offers 4-step tweeter level control and a 4-step low-pass filter for the midrange/midbass (with a 12 dB slope).
Thanks to its ″Flex-Crossover″ design, the Ci7 FX-UNI.2 offers flexible installation options in vehicles with separate tweeter and woofer mounting locations. The crossover is compatible with our COMPOSE Connect and WireKit technologies.
Compatibility:
Treble:
Ci7 T20FM-SC
Midrange / midbass:
Ci7 M100FM-S3
Ci7 W130-S3
Ci7 W165FM-S3
Ci7 W200FM-S3
Specifications:
Slope Tweeter: 12 dB highpass
Woofer: 12 dB low pass
Tweeter level adjustment range -4 dB up to +2 dB
Features Designed for Ci7 T20FM-SC,
4-stage Tweeter level adjustment,
4-stage woofer lowpass filter adjustment to all COMPOSE midrange, midbass and woofer speakers
Compatibility:
Tweeter:
Ci7 T20FM-SC
Midrange / Midbass / Woofer:
Ci7 M100FM-S3
Ci7 W130-S3
Ci7 W165FM-S3
Ci7 W200FM-S3
Scope of delivery
2 x Ci7 FX-UNI.2
2 x COMPOSE Connect Kit
4 x PCB sleeves
1 x Mounting material
