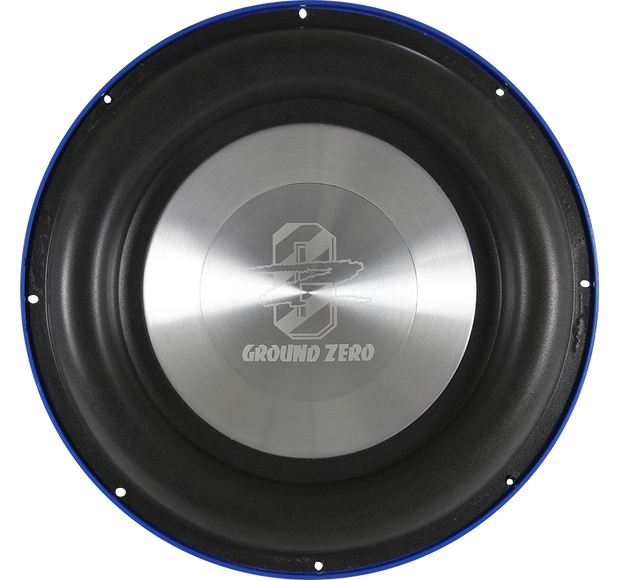

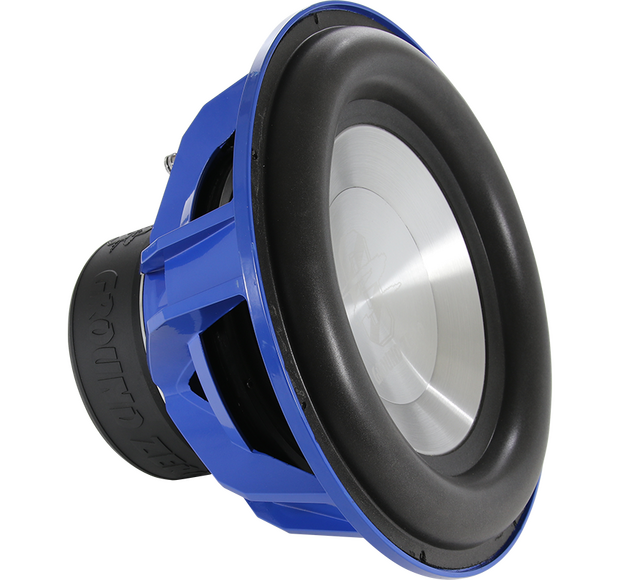

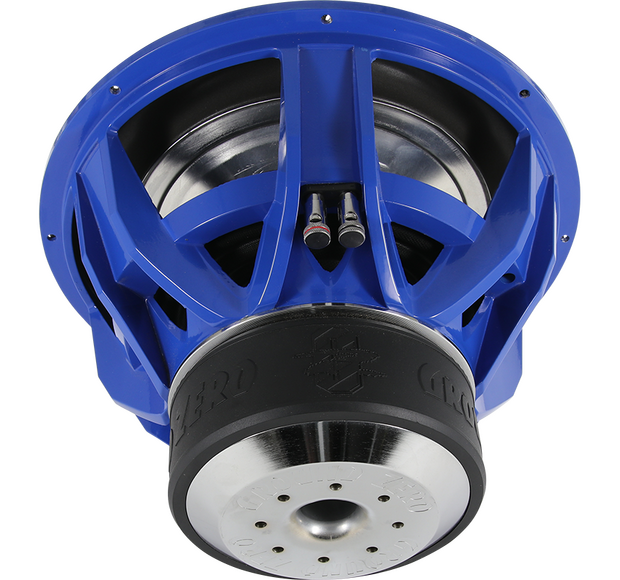

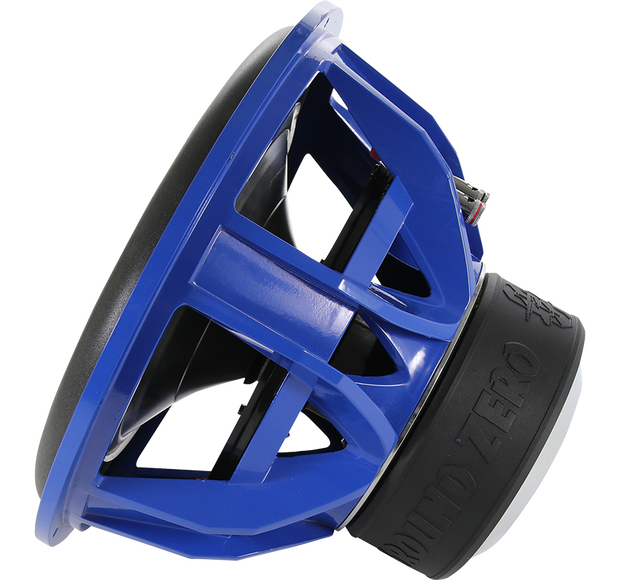

Ground Zero GZNW 15X-D2

Ground Zero GZNW 12X-D2 BIG BROTHER GZNW 15X-D2!

Combining the legendary blue look, modern materials and years of experience, the long-awaited successor is born!

- FS (35.2 Hz)
- XMAX 62mm!!

- Aluminum cone
- High-roll top suspension
- Blue cast body
- 75mm / 3″ 4-layer voice coil
- 4-layer Polycot underlay
- Aluminum dust cup

Voice coil diameter (mm / inch) 75 / 3”
Impedance (Ohms) 2 x 2
Re (Ohm) 4.02 (serial)
FS (Hz) 35.2
Qms 9.05
Qes 0.57
Qts 0.54
Le (mH) 2.73
Left (Liter / cu.ft.) 28 / 0.99
MMS gr 513.65
Xmax (mm / inch) 62 / 2.44
SPL (1w/1m) 85
BL (Tesla – m) 28.29
Sd (cm²) 706.86
Power handling (Watts RMS/SPL) 2500 / 4000
Empfohlene Verstärkerleistung / Recommended
amplifier power
2000 – 3000 WRMS
@4 ohms (1 ohm)
