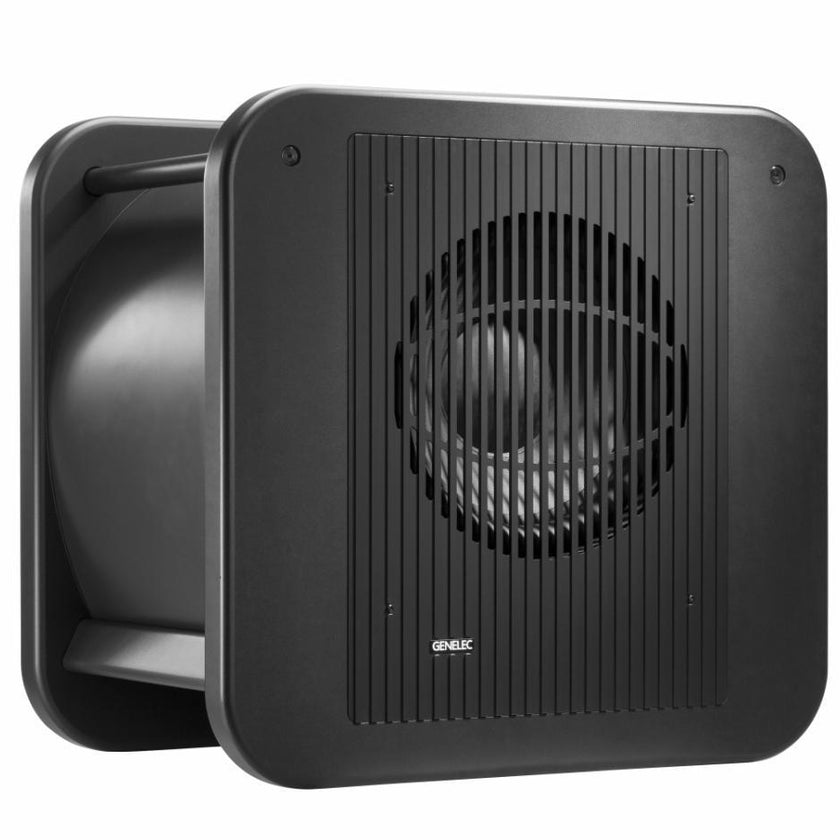

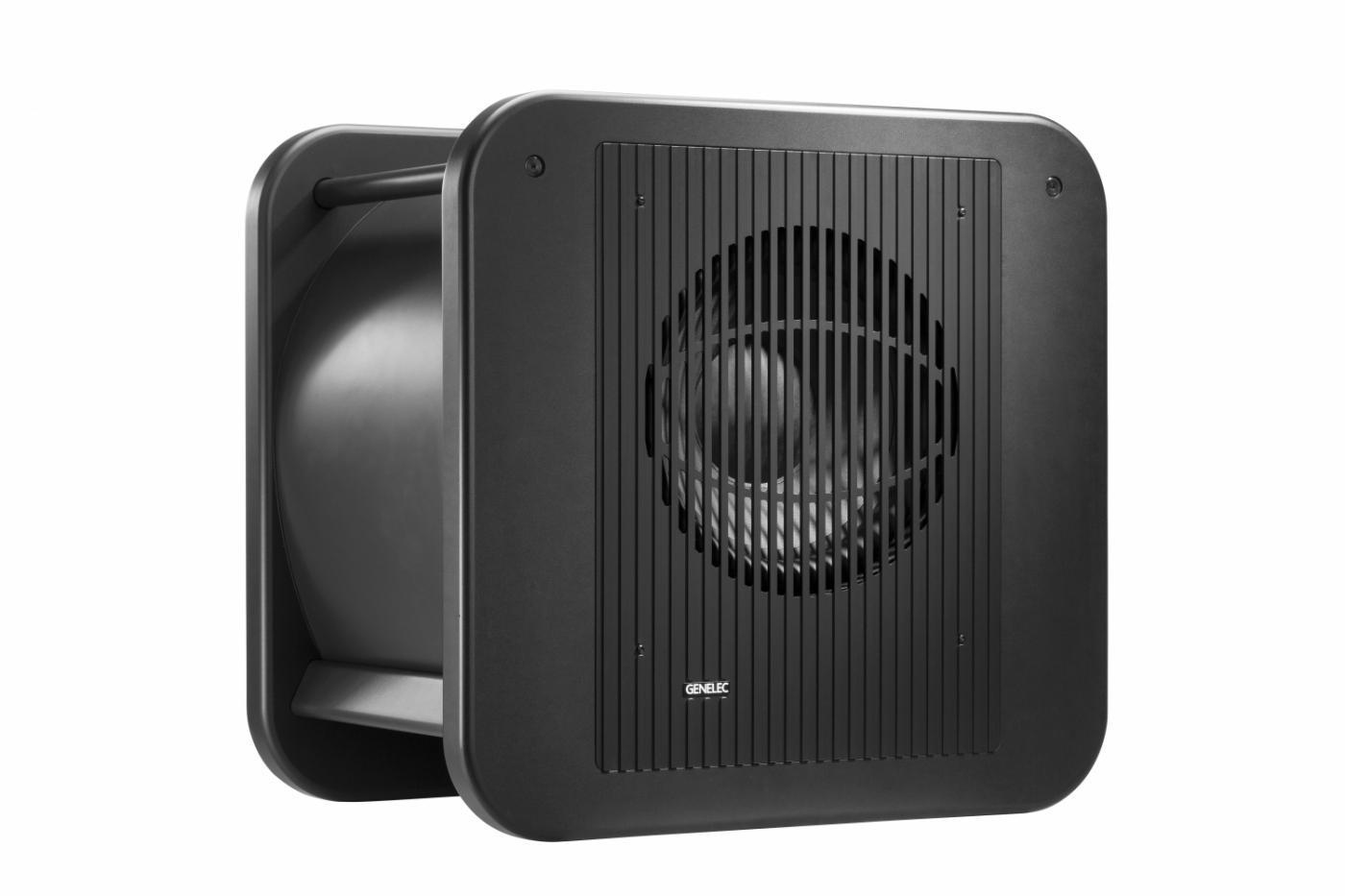

Genelec 7380A DSP Active Subwoofer

The SAM series' extremely robust active DSP subwoofer. The 7380 offers even greater power, sound pressure, low-frequency reproduction, and highly versatile bass frequency control.

The new flagship of the SAM subwoofer series, the 7380, which adapts to acoustics, seamlessly integrates into any audio monitoring system, from stereo to multi-channel or extensive 3D immersive systems, and its performance is at a level typically associated with much larger enclosures. The newly designed Class D power amplifier and SAM technology are combined in the 7380 subwoofer, which is designed to exceed the demands of discerning professionals in music production, post-production, film, and broadcast applications. The 7380 also seamlessly supports Genelec's "The Ones" series of coaxial three-way monitors, making it suitable for applications working with immersive audio systems, such as implementing Dolby Atmos, Auro-3D, or DTS:X systems.

Utilizing Genelec's renowned SAM technology, the 7380 serves as a core part of Genelec's extensive family of intelligent monitors. The GLM software, compatible with Windows and Mac computers, can connect over 40 monitors and subwoofers into the same sound system. The software instantly recalls system settings and provides advanced automatic calibration functions for audio level, time-of-flight, and subwoofer phase. Professionals gain access to comprehensive acoustic room compensation features, including an adjustable crossover frequency and 20 parametric filters, ensuring that the 7380 can be optimized for the best performance even in challenging acoustic environments. GLM supports centralized and distributed bass management, making it suitable as a companion for all monitor loudspeakers.

The 7380 is equally effective even when not used with SAM loudspeakers. With DIP switches and controls on the front panel, the subwoofer can be used without a computer. It can function as part of hybrid systems where the main monitors are traditional analog speakers. In this mode, the analog signal crossover frequency is fixed at 85 Hz.

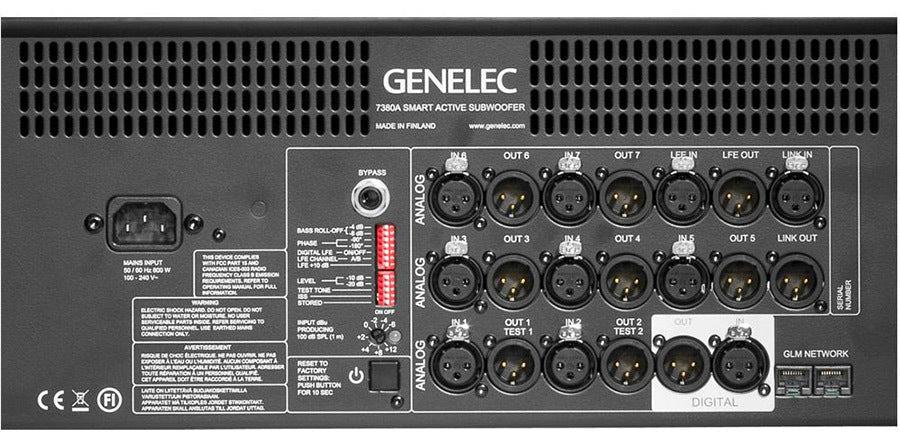

For those working with multichannel audio, the 7380 offers a 7.1-channel bass manager with XLR analog inputs and outputs, as well as an AES/EBU digital audio stereo input and output, which can also be expanded to 7.1 channels using Genelec's 9301 Digital Interface adapter.

Technical specifications:

• Driver: 15 inches
• Frequency response: 16 Hz - 120 Hz
• Continuous SPL: 119 dB (max 123 dB)
• Amplifier power: 800 W Class D
• Dimensions (H x W x D): 685 x 718 x 492 mm
• Weight: 69 kg
