ESB Audio 3.6K3 CX 3-Way Passive Crossover Polyester

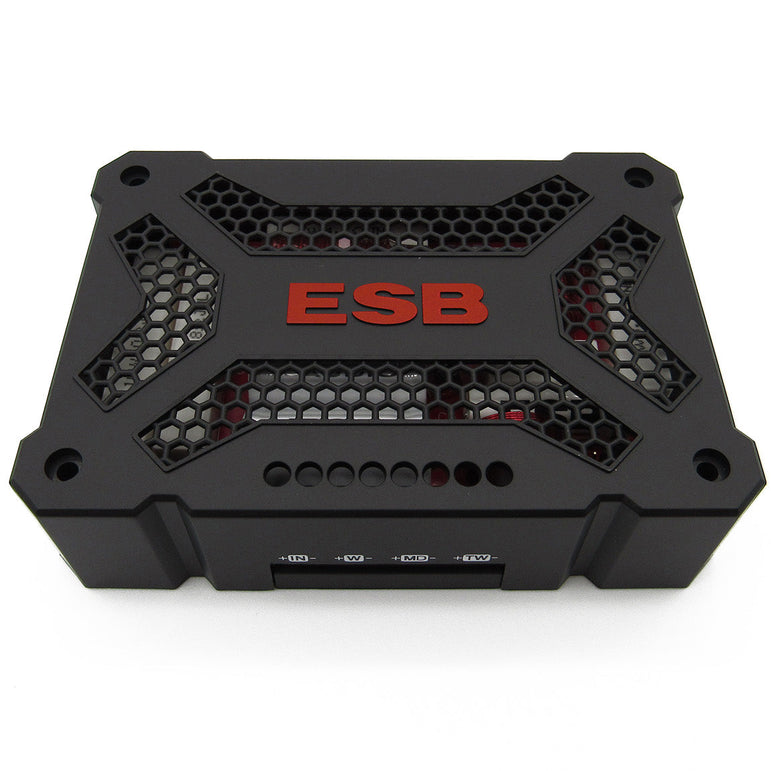

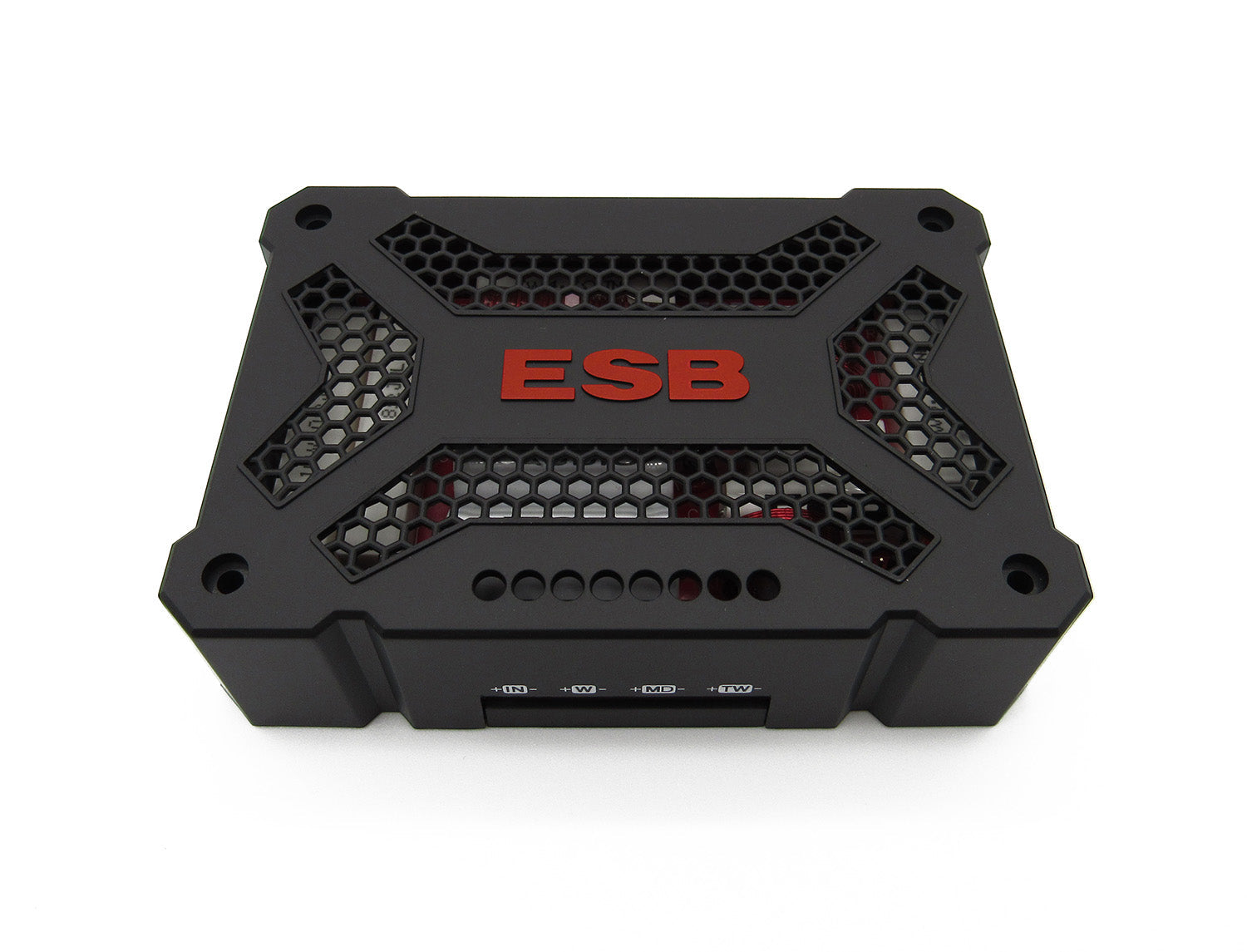

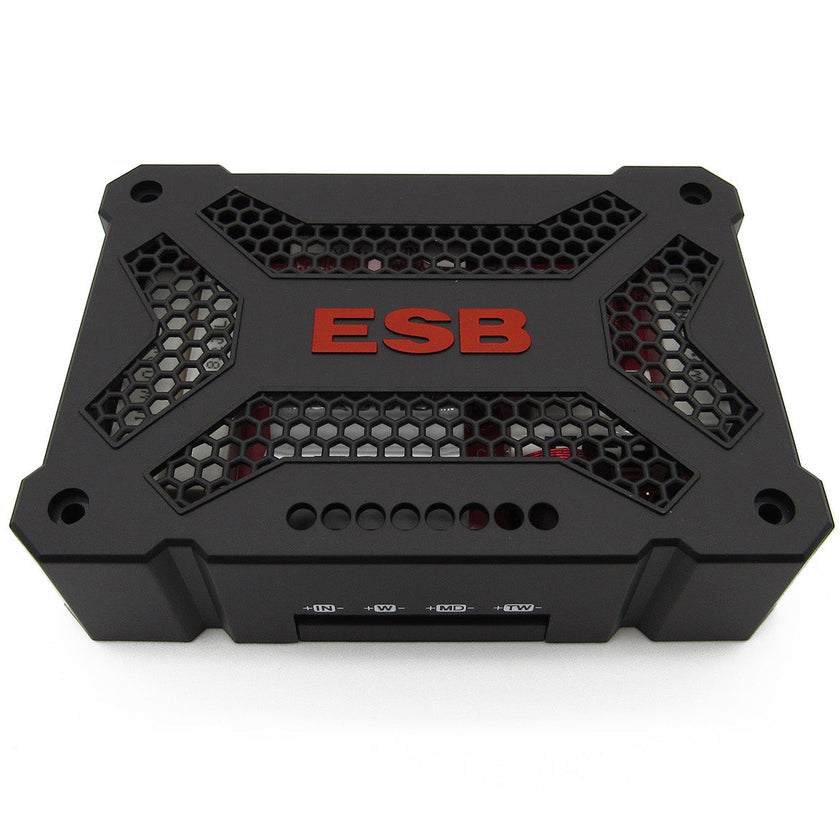

ESB Audio 3.6K3 CX 3-way Passive Crossover

Main features

Passive crossovers are used in 2-way and 3-way loudspeaker systems to electrically direct low frequencies to the woofer and high tones and harmonics to the tweeters. To fulfill its role without compromise, a passive crossover must be able to handle extreme dynamic variations, the entire audio frequency range, complex transients and varying impedance of the loudspeaker load. ESB passive crossovers are carefully designed to complement the precise characteristics of ESB loudspeakers. Each crossover circuit directs the signal to the tweeters and woofers in a way that maintains a consistent acoustic response across the entire audio spectrum.

• Designed specifically for 3.28 tweeter, 3.90 midrange driver and 3.165 woofer.
• High thickness PCB copper.
• Internal 4-step treble level adjustment.
• Oversized, non-inductive ceramic resistors.

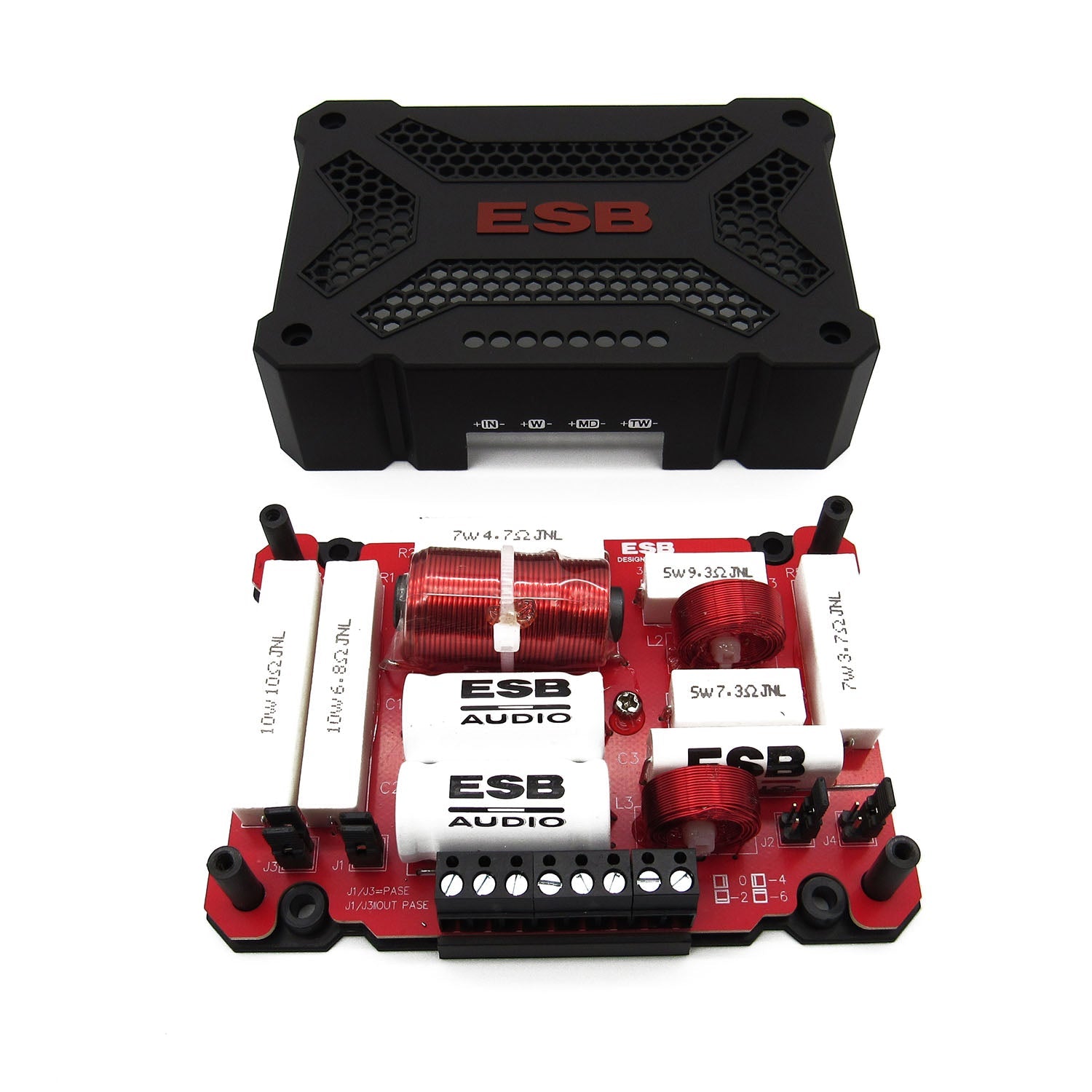

• Polyester tweeter capacitor.
• Asymmetrical cutting slope.
• Air coil for tweeter and midrange driver.

Specifications

• Cut-off frequency: 350 / 3 KHz
• Crossover Slope: 12 dB/Oct LP, 6-6 dB/Oct BP, 12 dB/Oct HP
• 4-step tw/mid level adjustment
• Low frequency section: 3.165
• Midrange: 3.90
• High frequency section: 3.28
