ESB Audio 3.6K2 CX 2-Way Passive Crossover Polyester (Pair)

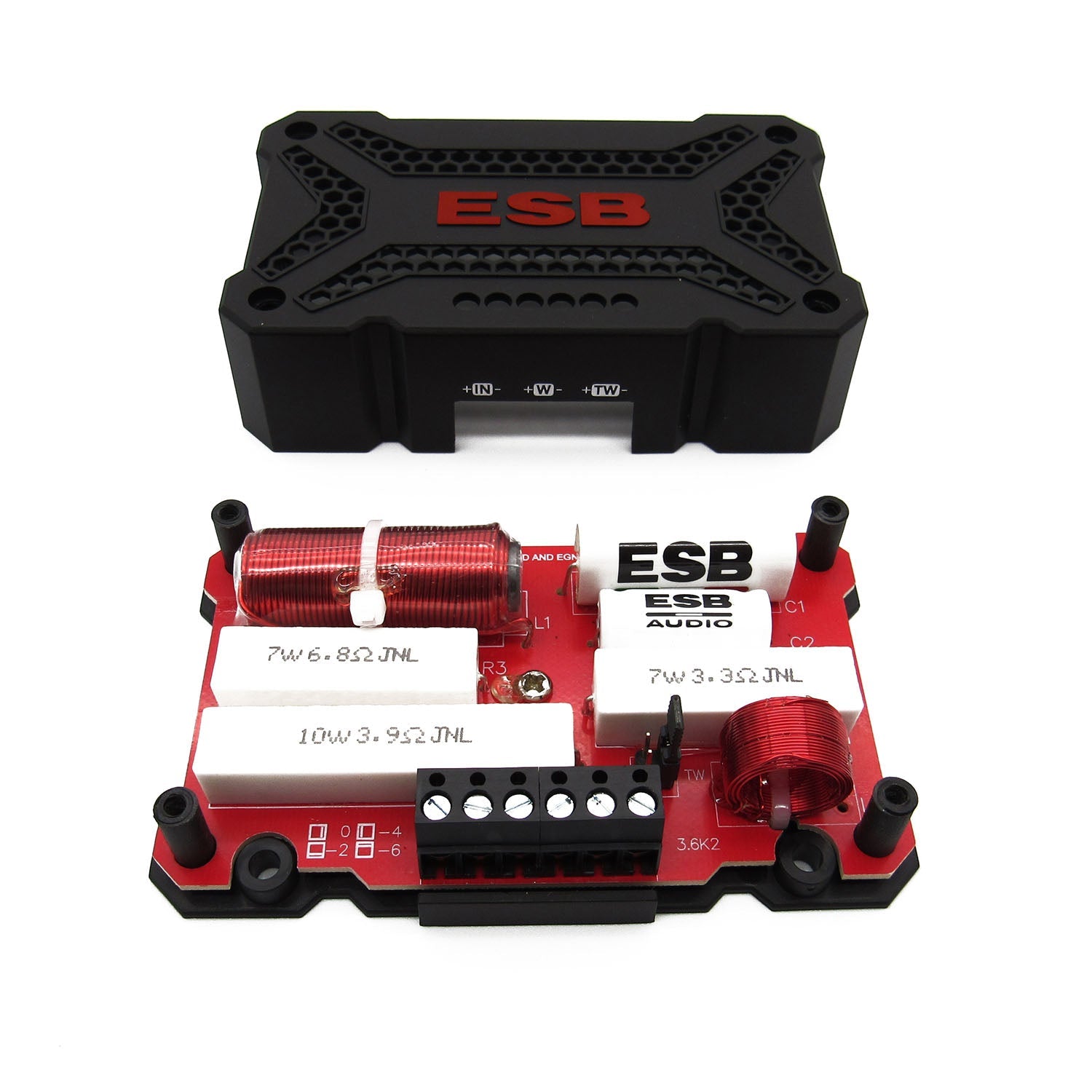

ESB Audio 3.6K2 CX 2-way Passive Crossover

Main features

Passive crossovers are used in 2-way and 3-way loudspeaker systems to electrically direct low frequencies to the woofer and high tones and harmonics to the tweeters. To fulfill its role without compromise, a passive crossover must be able to handle extreme dynamic variations, the entire audio frequency range, complex transients and varying impedance of the loudspeaker load. ESB passive crossovers are carefully designed to complement the precise characteristics of ESB loudspeakers. Each crossover circuit directs the signal to the tweeters and woofers in a way that maintains a consistent acoustic response across the entire audio spectrum.

• Designed specifically for 3.28 tweeter and 3.165 woofer.
• High thickness PCB copper.
• Internal 4-step treble level adjustment.
• Oversized non-inductive ceramic resistors.
• Polyester tweeter capacitor.
• Asymmetrical cutting slope.
• Air coil for tweeter.

Specifications

• Cutoff frequency: 3 KHz
• Crossover filter slope: 6 dB/Oct LP, 12 dB/Oct HP
• 4-step treble level adjustment
• Low frequency section: 3.165
• High frequency section: 3.28
