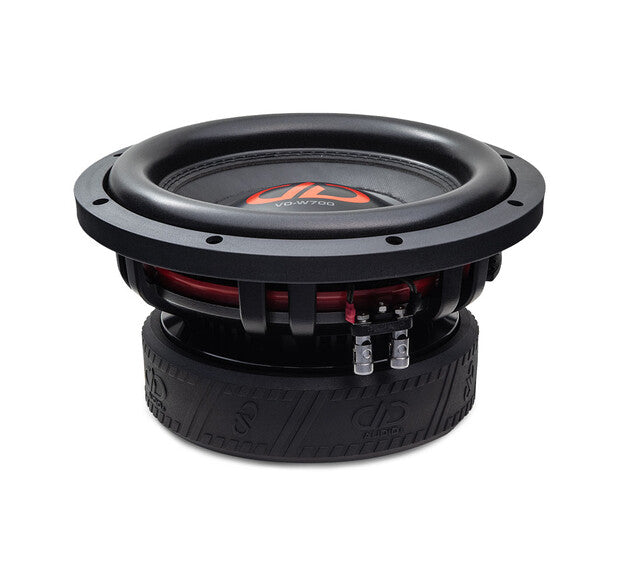

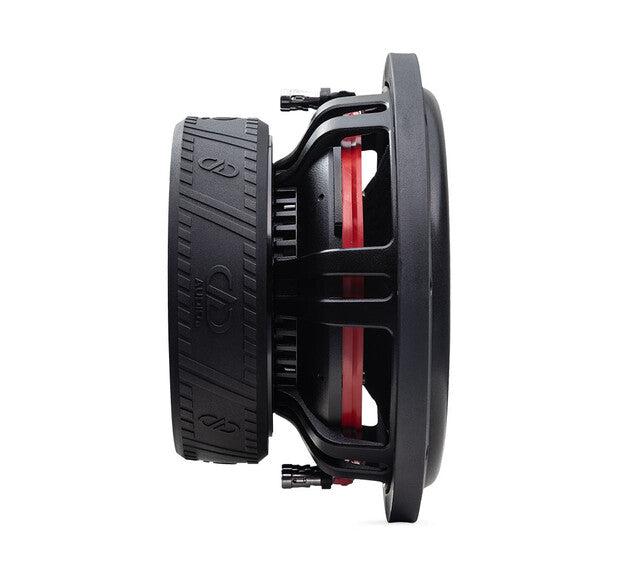

DD Audio VO-W710-D2 10" PA Woofer Mid-bass 1200W

DD Audio VO-W710-D2 - PA Woofer

The extremely robust VO-W700 series woofers are designed to reproduce mid-bass/subwoofer frequencies with power and accuracy.

The DD Audio VO-W series are truly heavy-duty PA speaker-like drivers designed especially for those who want to play really loud! Large voice coils, powerful motors, and a robust cast frame. The driver features a wide surround and a heavy-duty motor, which together provide a longer excursion and a speaker that keeps up even when played extremely loud.

Features

• 10" PA woofer
• Wide frequency response: 35Hz - 2000Hz
• 3" High-Temp voice coil handles power extremely well
• Dual magnet motor
• Mounting depth only 122mm
• Xmax 12mm
• Cast frame

Technical Specifications

• Size: 10"
• Power handling RMS: 1200W
• Impedance: 2x2Ω (dual voice coil)
• Voice coil: 3"
• Piston diameter: 203.2mm
• Frequency response: 35Hz - 2kHz
• Fs: 42Hz
• Qms: 4.684
• Qes: 0.462
• Qts: 0.421
• Vas: 9.331 liters
• BL: 30 TM
• Xmech: 30mm
• Xmax: 12mm
• Overall diameter with gasket: 10.625"
• Mounting hole diameter: 9.375" (238mm)
• Mounting depth: 4.8125" (122mm)
