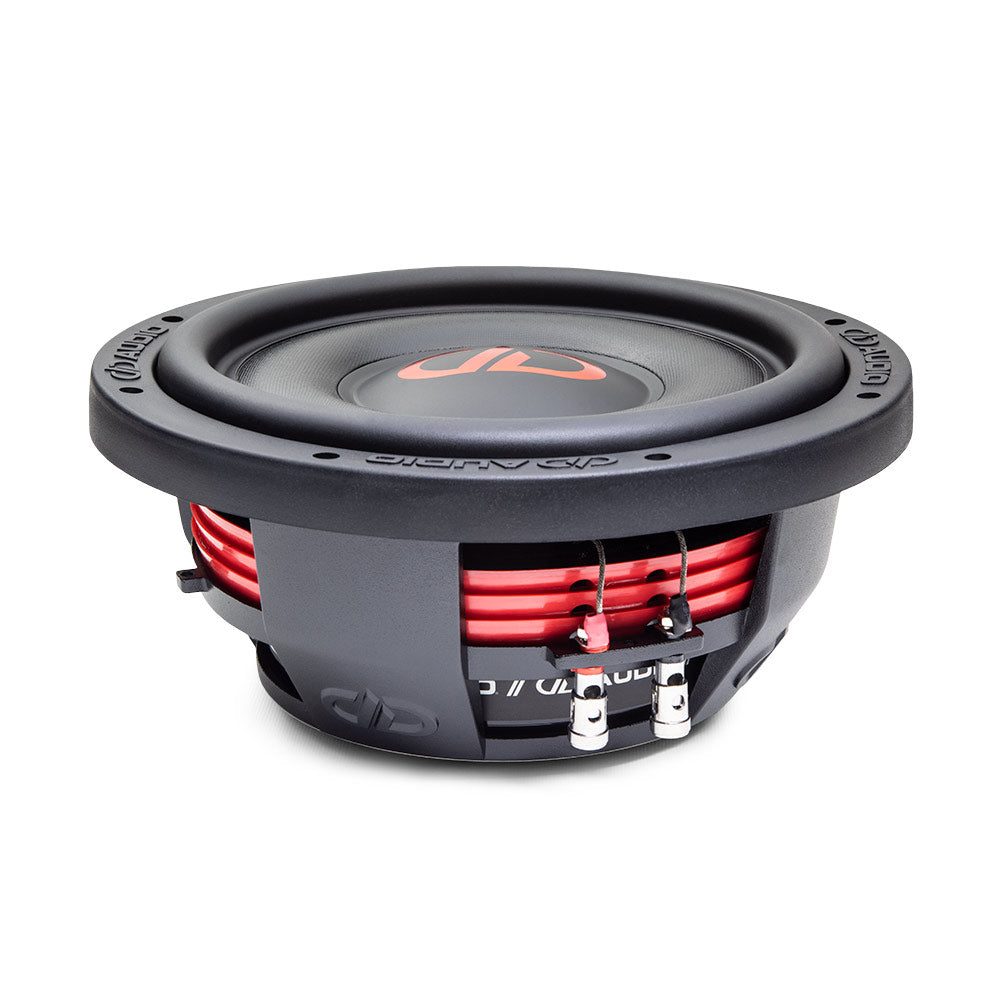

DD Audio SL610 D4 - Shallow Mount Subwoofer

The Redline SL-610 is a very powerful shallow mount subwoofer equipped with excellent sound quality.

A good solution if the subwoofer enclosure needs to be/is desired to be very shallow. The driver is only 10.1cm deep, so it offers plenty of installation options compared to a traditional subwoofer.

SL series 10" subwoofers work in enclosures as small as 14L (sealed/ported).

Features

• 10" shallow mount subwoofer
• Mounting depth only 10.1cm
• EROM surround
• 2.5" high-temperature voice coil
• Double spider system
• Triple-layer flat cone
• 72oz magnet

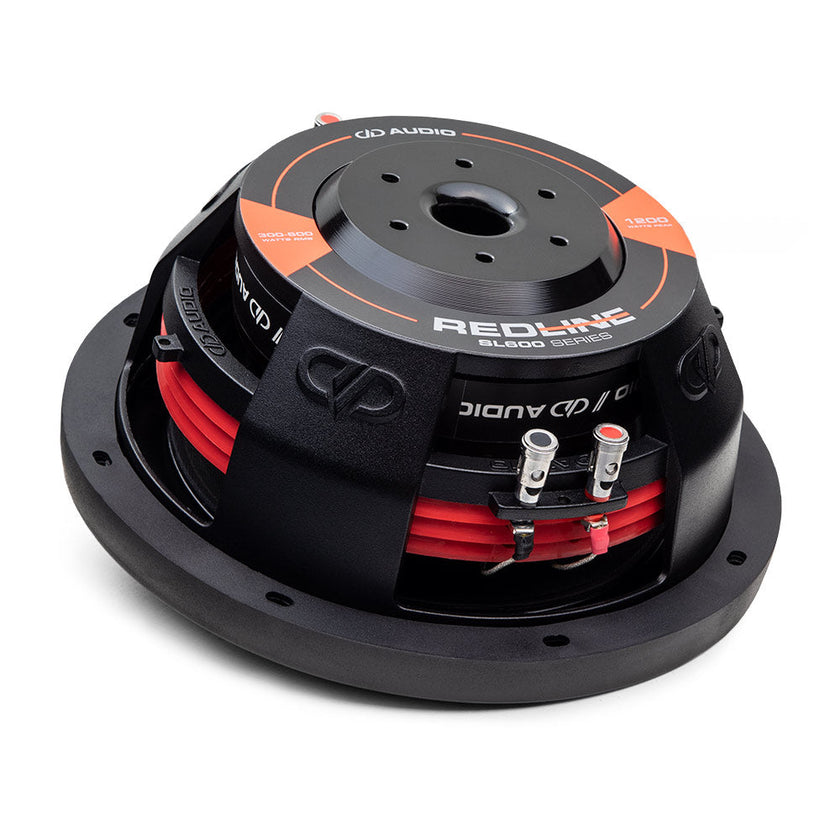

• Voice coil ventilation in the backplate
• DD cast aluminum frame
• Dual 4Ω voice coil

Technical specifications

• Size: 10"
• Impedance: 2x4Ω (dual voice coil)
• Power handling RMS: 300-600W
• Power handling Peak: 1200W
• Voice coil: 2.5"
• Fs: 29Hz
• Qms: 6.878
• Qes: 0.393
• Qts: 0.372
• Vas: 26.769 liters
• Xmech: 40mm
• Xmax: 14.5mm
• Frame outer diameter: 26.92cm
• Frame outer diameter with gasket: 27.4cm
• Mounting hole diameter: 23.5cm (235mm)
• Mounting depth: 10.1cm (101mm)
• Motor diameter: 16.51cm
• Motor depth: 3.81cm
• Driver displacement: 0.84 liters
• Weight: 7 kg

Enclosure recommendations

• Sealed enclosure: 14-28 liters
• Ported enclosure: 14-35 liters
