Alpine SPC-R100-DU Speaker Set 12cm Fiat Ducato / Citroën Jumper / Peugeot Boxer 45W RMS

Alpine SPC-R100-DU (Fiat Ducato)

Audio Playback Limitations

The Fiat Ducato cabin is not originally optimal for good audio playback. The tweeter and mid-bass speaker are far apart, and since most of the speech and vocal sound comes from the door speaker, the driver's and passenger's leg often covers the speaker. The SPC-R100-DU speakers are placed on top of the dashboard, thus avoiding these problems.

Omni-directional speaker

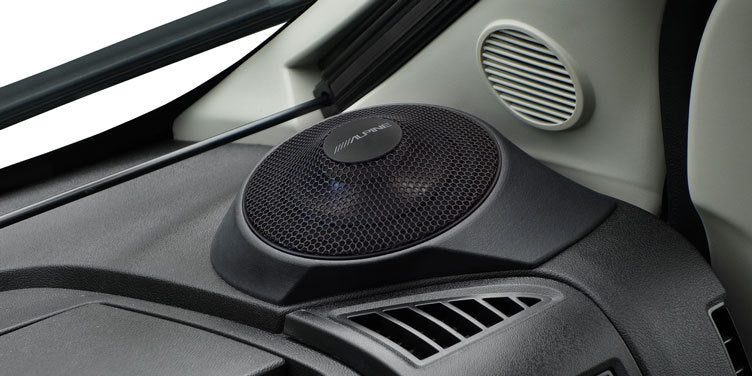

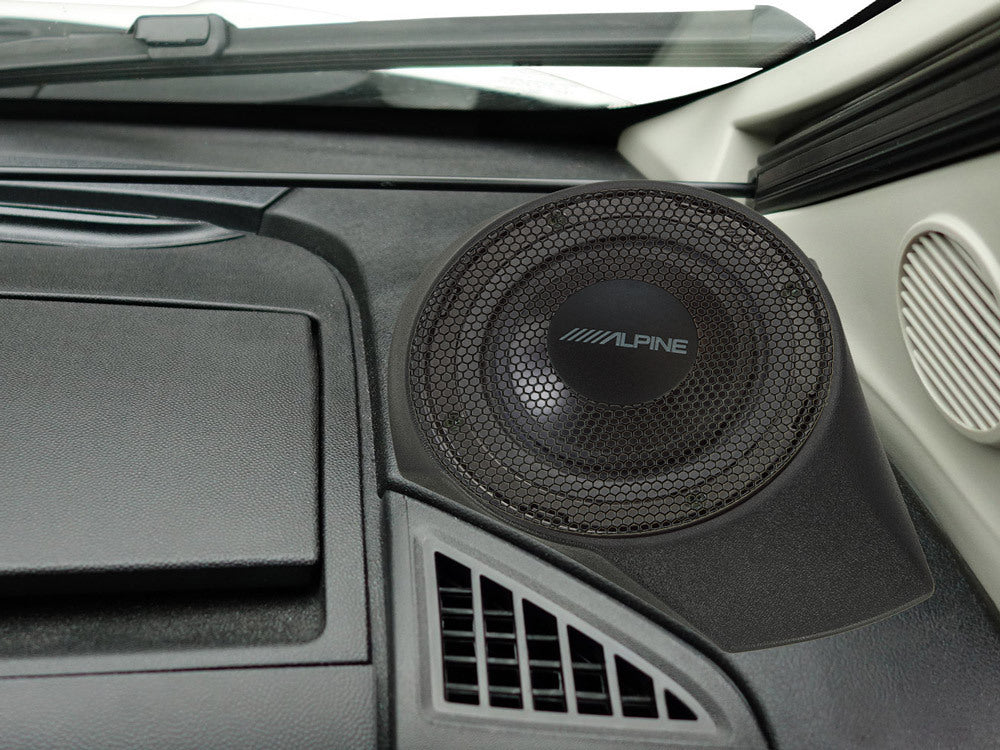

The full-range omni-directional 120mm speaker is installed on the Fiat Ducato dashboard, replacing the car's original tweeter. The speakers feature an inverted cone, which allows for a 360° sound field. The speakers particularly improve the frequencies of speech and vocal sounds.

Easy to install

Installation of the SPC-R100-DU speakers is made easy. The included speaker adapter perfectly matches the contours of the car's dashboard and is fastened with screws. Because the speaker itself is very shallow, there is no need to make separate holes in the dashboard for the speaker. Speaker cable adapters are also included, ensuring that all original car connectors remain intact.

Technical Specifications

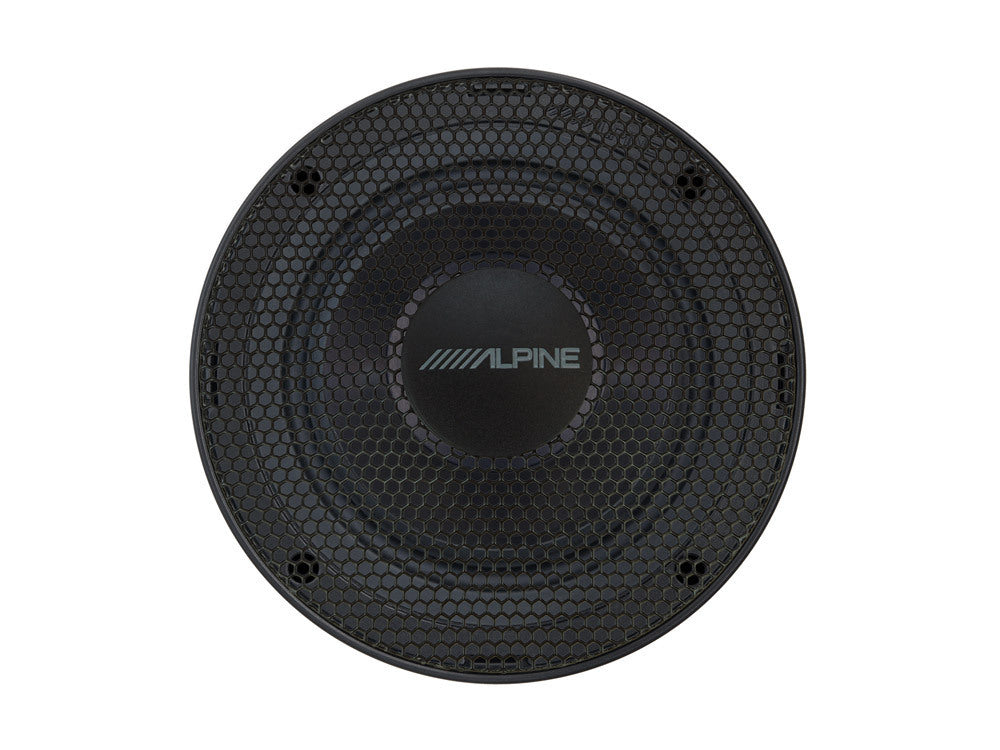

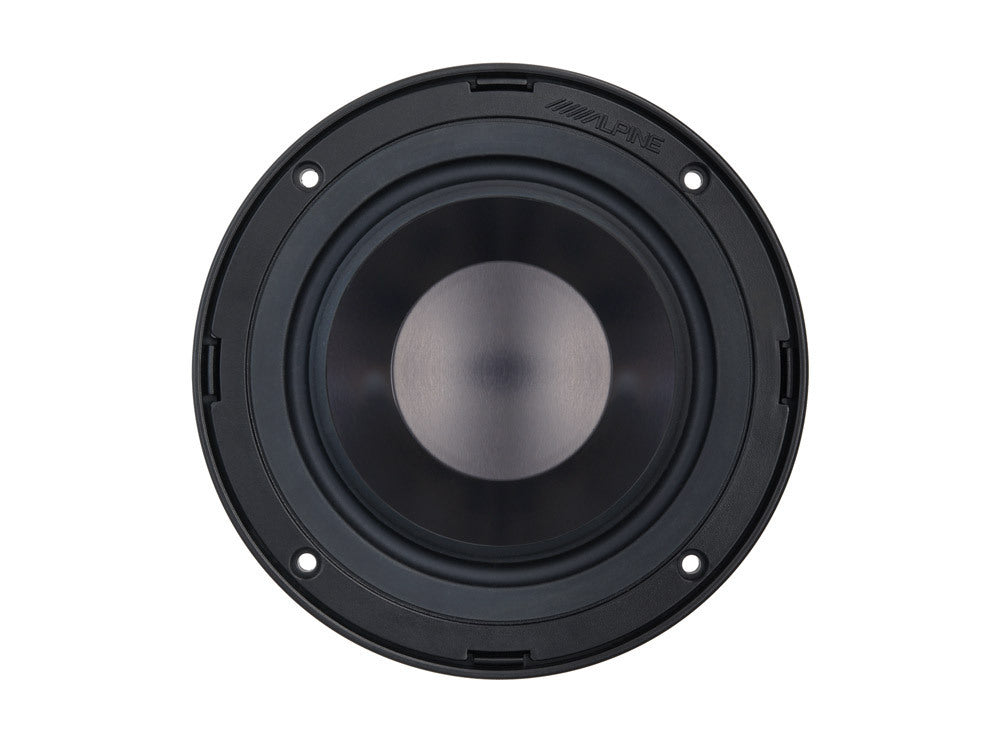

• 12cm omni-directional speaker

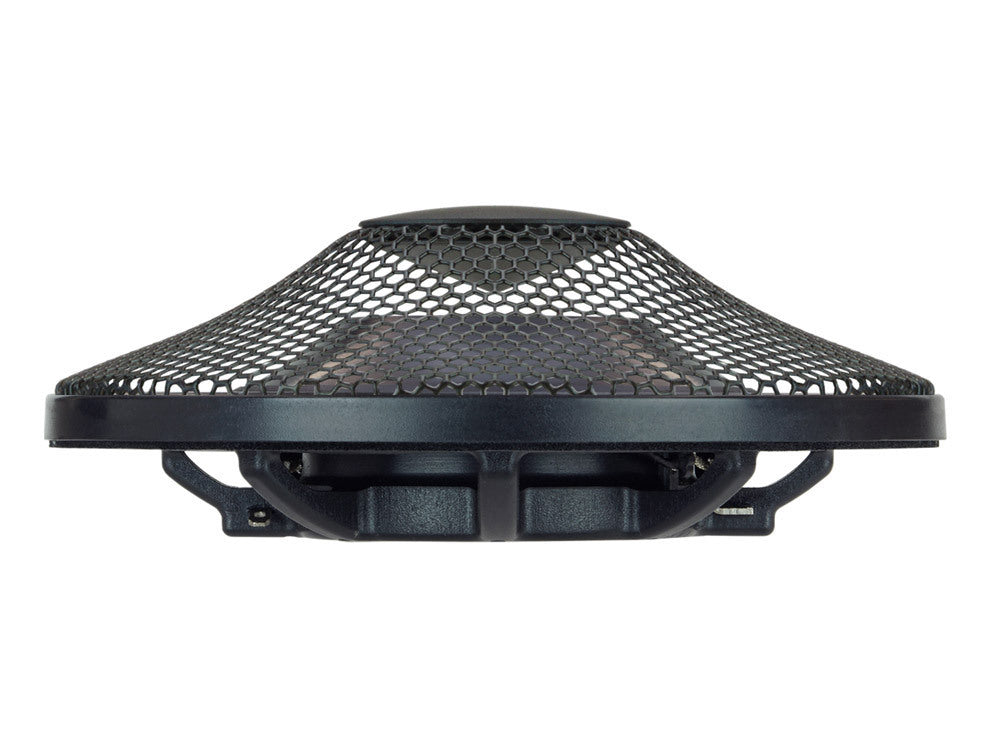

• Shallow mount design
• 360° sound field
• RMS: 45W
• Peak: 180W
• Frequency Response: 100Hz – 20kHz
• Impedance: 4ohm
• Speaker outer diameter: 120mm
• Speaker mounting depth: 12mm
• Speaker height: 45mm

Installation

• Includes surface mount adapters
• Includes wiring adapters
• Includes all necessary installation accessories
• If no subwoofer and amplifier are installed in the car, the original door speakers are kept in use

Compatible Cars

• Fiat Ducato III (250) 06/2006 →
• Fiat Ducato III Facelift (250) 2011 – 2014
• Fiat Ducato III (290) 2014 →
• Citroën Jumper II (250) 06/2006 →
• Peugeot Boxer II (250) 06/2006 →

Alpine Adventure Audio – Fiat Ducato

Alpine Adventure Audio is divided into three stages:

• Stage 1: Omni-directional speakers mounted on the dashboard
• Stage 2: Dashboard speakers and an 8″ subwoofer
• Stage 3: Dashboard speakers, an 8″ subwoofer, and a 150W amplifier for the subwoofer
